Journey of Tile PMTs from Design Studies to Production & QA Tests

Slide Note
Embed
Share

Tile PMTs, developed over 15 years, faced challenges but met TileCal specifications. Starting with APDs in RD1, the journey involved collaboration with Hamamatsu for revolutionary R5600 PMTs. Main R&D improvements each year led to the creation of PMTs meeting TileCal needs. Key specifications for TileCal include nominal amplification and high voltage requirements.


Uploaded on Sep 07, 2024 | 2 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

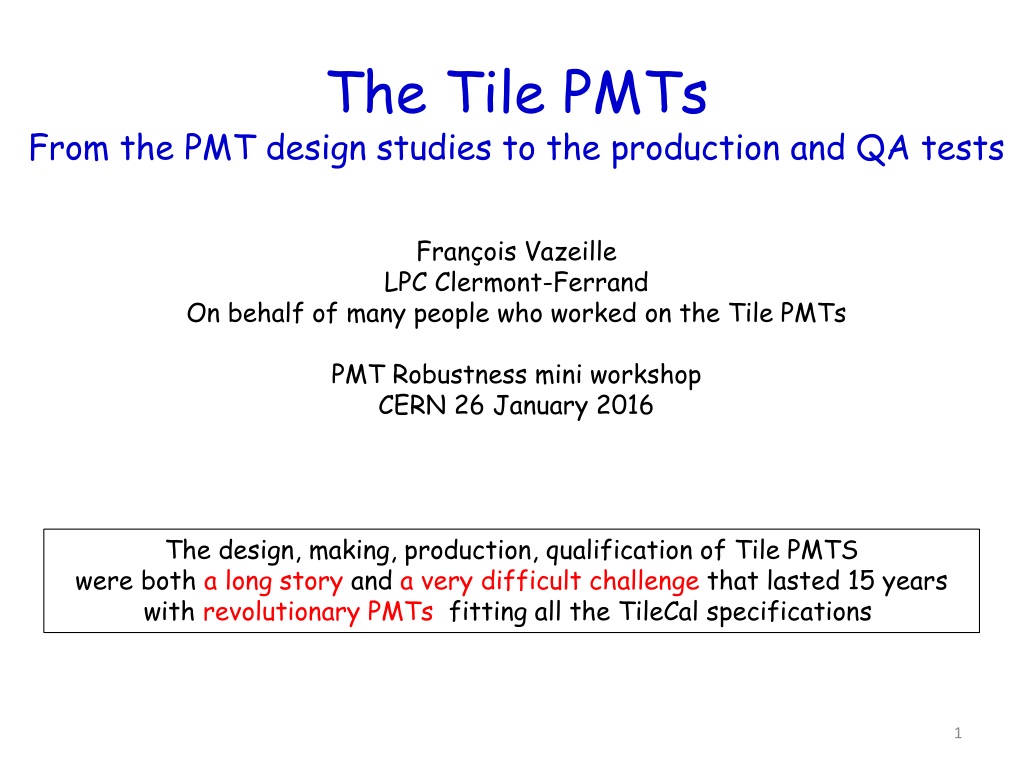

  1. The Tile PMTs From the PMT design studies to the production and QA tests Fran ois Vazeille LPC Clermont-Ferrand On behalf of many people who worked on the Tile PMTs PMT Robustness mini workshop CERN 26 January 2016 The design, making, production, qualification of Tile PMTS were both a long story and a very difficult challenge that lasted 15 years with revolutionary PMTs fitting all the TileCal specifications 1

  2. First photodetector considered in RD1: 1991-1993 Large area APDs (Avalanche Photo Diodes) from Advanced Photonic (Los Angeles) Good test beam results with comparison to standard PMTs (High quantum efficiency close to 60%) but irreversible damages of neutrons (Neutron generator at Clermont-Ferrand) Thesis of Nourdine Bouhemaid in 1995. Come back to PMTs with strong TileCal constraints in RD34. 2

  3. Worldwide overview of PMT manufacturers started in 1993 None having PMTs fitting TileCal needs (Compactness, linearity, etc.). A single Cie, Hamamatsu, ready to perform free of charge R&D studies with us, moreover, they offer a revolutionary PMT (R5600): - Of a very small size, with a round photocathode. - "Metal channel dynode structure with a metal package . PMT too small. Evolution to a larger area with a square shape ( 4 R5600): R5900 series. Start of 7 R&D years with Clermont-Ferrand (Written in the Hamamatsu catalog !), with contributions of other Institutes on tests (Pisa and Valencia), followed by the production (2000-2002) and the qualification. 3

  4. Main R&D improvements every year - 1994: From the round shape to the square shape of larger PMTs. - 1995: Mono-block dynodes Improvement of uniformity. - 1996: Improvement of the electrical contact cathode- package Decrease of cathode resistivity. - 1997: From 10 to 8 stages Improvement of the linearity. - 1997:New cathode window material and new activation process Improvement of the quantum efficiency. - 1998: Modification of the electrode supports Improvement of the uniformity. - 1998: Modification of the focus system Increase of the photoelectron collection efficiency. - 1998: Improvement of the getter Gain drift reduction. - 1999: New dynode compounds and new activation process Down drift improvement. These improvements were managed mainly by Michel Crouau and G rard Montarou with in parallel theoretical studies of Stano Tokar et al. (Bratislava) and G rard Montarou (Clermont-Ferrand). 4

  5. TileCal specifications for the market survey Characteristics Nominal amplification Nominal High Voltage Required value 105 600 V 800 V < 2% Minimum Maximum Non linearity to pulses with a DC current of 50 mA Dark current Some of them are coming from the designs of Drawers and PMT blocks. At 800 V At 900 V Mean at 480 nm Minimum at 480 nm Mean at 520 nm 2 nA 8 nA 18% 15 % 12.5% 50 V Quantum efficiency Photocathode-first dynode HV for 90% photoelectron collection Short term Short term Long term Maximum < 1.5% Mean < 0.8% Maximum < 5% < 2.5 ns + 10, - 30 % > 90 % < 60 mm 300 mm2 < 10% Gain drift Rise time to pulses Aging to 100 C on anode Photocathode uniformity Length Photocathode area Sensitivity to 90 Gauss magnetic field Sensitivity to temperature < 0.25%/ C 5

  6. Official tendering procedures at CERN - 1998: Market Survey. - 1999: Invitation to tender IT-2573/EP/ATLAS Only the Hamamatsu Cie was able to provide a PMT fitting all the TileCal specifications. Examples: Dark current average < 200 pA Non linearity with a 50 mA DC current 1% Safety factor to magnetic field with shielding > 50 Definition of control procedures with Hamamatsu for the series production and of the production planning in 10 batches (February 2000-April 2002). Development within TileCal institutes of a test bench model at Clermont-Fd for the qualification of batches, with possible rejection of a batch, then production of 7 identical test benches distributed to the Institutes. 6

  7. Purchase of 10140 PMTs Total cost of TileCal: about 14 MCHF Electronics cost: roughly half total cost. PMT cost : roughly half electronics cost 3.5 MCHF. Shared by TileCal Institutes (2000-2002) in 10 batches: 1/3 : CERN, Lisbon, Pisa, Valencia 1/3: Arlington, Urbana (US funds) 1/3: Clermont-Ferrand + additional 400 PMTs in 2010 payed from TileCal funds. 7

  8. Qualification tests supervised by Fabrice Podlyski and data base supervised by Christophe Guicheney Using 7 identical test benches and the same software - Identical components : Commercial or home made in one place for a given component. (The Pisa test bench is slightly different) - 7 Institutes testing the 10140 PMTs Arlington, Clermont-Ferrand, Dubna, Lisbon, Pisa, Urbana, Valencia with Valencia testing part of the 3300 Clermont-Ferrand PMTs . + 400 new PMTs tested at Clermont-Ferrand in 2010-2011 (Reina Camacho). Automatic qualification of sets of 20 PMTs in 2 steps in a week (Mond-Friday) - Step 1 (Special Dividers with relays) under a continuous light Quantum efficiency, gain, collection efficiency, dark current, stability. acceptance or rejection of the batch. - Step 2 (Standard Divider coupled to its PMT) under pulsed light Gain, linearity (with additional DC light), dark current. PMT/Divider ranking for their next installation in TileCal. 8

  9. PMT box Light box Electronics: DCS and readout DAQ 9

  10. PMT box DC and AC Light box 10

  11. - Two mounting grids 5x5 : 1 for STEP1, 1 for Step2. - 1 large area photodiode in the middle for channel calibration. - 24 slots for PMTs: 4 Reference PMTs on the corners. 20 tested PMTs. - 2 other Photodiodes to monitor the DC and the AC lights. - Special suitcase holding 20 Reference PMTs travelling across the world. 11

  12. Data from the 7 institutes were in a very good agreement: The qualification results are independent of the Institute. 12

  13. Documents on the Tile PMT story The most comprehensive documents - On PMTs Etude et caract risation des photomultiplicateurs du calorim tre tuiles scintillantes d Atlas , Thesis of Christophe H brard (Clermont-Ferrand, 1999) Characterization of the new 8 stages Hamamatsu photomultipliers for the July 98 Test Beam ATL-TILECAL-98-166, Camarena F., Crouau M., Grenier P., H brard C., Montarou G. http://cds.cern.ch/record/683716/files/tilecal-98-166.pdf - On qualification test bench Technical characteristics of the prototype of the TILECAL photomultipliers test bench ATL-TILECAL-98-148, Crouau M., Montarou G., Rey D. See list of all papers in Appendix 13

  14. Conclusion Many Institutes were skeptical when the works started on these PMTs. Many successful challenges R&D and Test beam Production Qualification in 7 Institutes TileCal. The TileCal PMTs fit all the specifications. No official publication on the PMTs ! Perhaps I could try to do that ! What about the robustness ? - Radiation tests made by Clermont-Ferrand: NIEL, TID (See H brard s thesis) No modification of characteristics, except a slight increase of the dark current staying within specifications. - Effects of large integrated charge Accelerated exposure to a big charge studied by Valencia PMTs fitting specification, with an up-drift tendency. Natural aging studied by Pisa Same behavior. 14

  15. Appendix: All the papers on PMTs 15

  16. ATL-TILECAL- 94-041 ; ATL- L-PN-41 Title The Tilecal 3-in-1 PMT Base concept and the PMT block assembly Ajaltouni, Ziad J ; Badaud, F ; Bouhemaid, N ; Brette, P ; Brossard, M ; Chadelas, R ; Chevaleyre, J C ; Crouau, M ; Daudon, F ; Dugne, JJ ; Durand, F ; Fayard, C ; Lentignac, G ; Mayade, S ; Michel, B ; Montarou, G ; Muanza, G S ; Nigon, J ; Pallin, D ; Pozzobon, F ; Poirot, S ; Sahuc, E ; Saigne, R ; Savinel, G ; Says, LP ; Vazeille, F ; Vincent, D Hide Author(s) ATL-TILECAL- 94-042 ; ATL- L-PN-42 Title The magnetic field studies of the Tilecal PMTs Ajaltouni, Ziad J ; Badaud, F ; Bouhemaid, N ; Brette, P ; Brossard, M ; Chadelas, R ; Chevaleyre, JC ; Crouau, M ; Daudon, F ; Dugne, JJ ; Durand, F ; Fayard, C ; Lentignac, G ; Mayade, S ; Michel, B ; Montarou, G ; Muanza, G S ; Nigon, J ; Pallin, D ; Pozzobon, F ; Poirot, S ; Sahuc, E ; Saigne, R ; Savinel, G ; Says, LP ; Vazeille, F ; Vincent, D Hide 06 Dec 1994. - mult. p. Author(s) Imprint ATL-TILECAL- 94-043 ; ATL-L- PN-43 Title The drawer system concept for the ATLAS Tilecal readout Ajaltouni, Ziad J ; Badaud, F ; Bouhemaid, N ; Brette, P ; Brossard, M ; Chadelas, R ; Chevaleyre, JC ; Crouau, M ; Daudon, F ; Dugne, JJ ; Mayade, S ; Michel, B ; Montarou, G ; Muanza, G S ; Pallin, D ; Plothow- Besch, H ; Poirot, S ; Reinmuth, G ; Saigne, R ; Says, LP ; Vazeille, F Hide 31 Dec 1994. - mult. p. Author(s) Imprint 16

  17. ATL-TILECAL-96-83 ; ATL-L- PN-83 Results of test linearity of 10-stages and 8-stages R5900 PMTS Crouau, M ; Garnier, E ; Montarou, G 13 Sep 1996. - mult. p. Title Author(s) Imprint ATL-TILECAL-96-097 ; ATL-L-PN-97 Characterization of the new R5900 Hamamatsu photomultiplier in Pisa Beschastnov, P ; Cavasinni, V ; Cologna, S ; Del Prete, T ; Di Girolamo, B ; Mazzoni, E 09 Dec 1996. - mult. p. Title Author(s) Imprint ATL-TILECAL-97-108 ; ATL-L-PN-108 Characterization of the Hamamatsu 10-stages R5900 photomultipliers at Clermont for the TILE calorimeter Bouhemaid,N ; Crouau,M ; Gil-Botella, A ; Gonz lez de la Hoz, S ; Grenier, P ; Montarou, G ; Muanza, G S ; Poirot,S ; Vazeille, F 28 Apr 1997. - mult. p. Title Author(s) Imprint 17

  18. ATL-TILECAL-97-115 ; ATL-L- PN-115 An estimation of Module 0 R5900 PMT quantum efficiency Montarou, G (Clermont-Ferrand U.) 10 Apr 1997. - mult. p. Title Author(s) Imprint ATL-TILECAL-97-117 ; ATL-L-PN-117 Title Study of the charge spectra generated by photomultipliers Cavasinni, V ; Cologna, S ; Del Prete, N ; Di Girolamo, B (CERN) ; Renzoni, G ; Cavasinni, V 06 Jun 1997. - mult. p. Author(s) Imprint ATL-TILECAL-97-125 ; ATL-L-PN-125 Characterization of EMI 9112A photomultipliers at Valencia for the ATLAS Tile Calorimeter Castillo, V ; Chiron,L ; Fassi,F ; Ferrer, A ; Gil, I ; Gonz lez, S ; Hig n, E ; Romance, J B 20 Oct 1997. - mult. p. Title Author(s) Imprint 18

  19. ATL-TILECAL-97-129 ; ATL-L-PN-129 Characterization of 8-stages Hamamatsu R5900 photomultipliers for the TILE calorimeter Crouau,M ; Grenier, P ; Montarou, G ; Poirot,S ; Vazeille, F 20 Oct 1997. - mult. p. Title Author(s) Imprint ATL-TILECAL-98-148 ; ATL-L-PN-148 Technical characteristics of the prototype of the TILECAL photomultipliers test-bench Crouau, M ; Montarou, G ; Rey, D 23 Mar 1998. - mult. p. Title Author(s) Imprint ATL-TILECAL-98- 156 ; ATL-L-PN-156 Measurement of 20 Hamamatsu R-5900 Photomultiplier Tubes for ATLAS TileCal Module-0 Ames, E ; Cogswell, F ; Downing, RW ; Errede, D ; Errede, S ; Griswold, M ; La Due, J ; Ruppert-Felsot, J E ; Seshagiri, C ; Simaitis, V Show all 11 authors 23 Mar 1998. - mult. p. Title Author(s) Imprint 19

  20. ATL-TILECAL- 98-166 Characterization of the new 8 stages Hamamatsu photomultipliers for the July 98 Test Beam Camarena, F ; Crouau, M ; Grenier, P ; H brard, C ; Montarou, G 5 Oct 1998. - 21 p. Title Author(s) Imprint ATL-TILECAL-99- 012 Title Author(s) Imprint Simulation of Photomultiplier Response Fedorko, I ; Tokar, S ; Chirikov-Zorin, I E 19 May 1999. - 17 p. ATL-TILECAL-2000- 012 Title The PMT-block Test Bench Developed in Pisa Costanzo, D ; Del Prete, T ; Mazzoni, E ; Pagani, GF ; Paoletti, R ; Rizzi, D 11 Aug 2000. - 24 p. Author(s) Imprint 20

  21. ATL-TILECAL- 2000-018 Definition of sets of photomultipliers for the tile hadron calorimeter of the ATLAS detector Lef vre, R ; Santoni, C ; Vazeille, F 20 Dec 2000. - 12 p. Title Author(s) Imprint ATL-TILECAL- 2001-003 Final definition of sets of photomultipliers for the tile hadron calorimeter of the ATLAS detector. Lef vre, R ; Santoni, C ; Vazeille, F 30 Jul 2001. - 11 p. Title Author(s) Imprint ATL-TILECAL-2001- 007 Title Author(s) Imprint The PMT Test-Bench in Pisa Cicalini, E ; Costanzo, D ; Del Prete, T ; Mazzoni, E ; Usai, G L 06 Nov 2001. - 23 p. 21

  22. ATL-TILECAL- 2000-018 Definition of sets of photomultipliers for the tile hadron calorimeter of the ATLAS detector Lef vre, R ; Santoni, C ; Vazeille, F 20 Dec 2000. - 12 p. Title Author(s) Imprint ATL-TILECAL- 2001-003 Final definition of sets of photomultipliers for the tile hadron calorimeter of the ATLAS detector. Lef vre, R ; Santoni, C ; Vazeille, F 30 Jul 2001. - 11 p. Title Author(s) Imprint ATL-TILECAL-2001- 007 Title Author(s) Imprint The PMT Test-Bench in Pisa Cicalini, E ; Costanzo, D ; Del Prete, T ; Mazzoni, E ; Usai, G L 06 Nov 2001. - 23 p. 22
