IoT/IoL Technology for Drone-based Guard Tour Solution

Proposed IoT/IoL connectivity technology for checkpoints reporting in a Drone-based Guard Tour System. The system aims to operate on various application services like ITS, ADAS, and IoT/IoL for efficient road condition monitoring. It can also be utilized for LEDIT, Digital Signage, and connected information services. The document provides concept models of light communication-based IoT/IoL solution for Vehicular Assistant Technology (VAT) Interest Group.

• IoT
• IoL Technology
• Drone-based
• Guard Tour
• Connectivity

maesiebo Follow

Uploaded on Sep 24, 2024 | 2 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

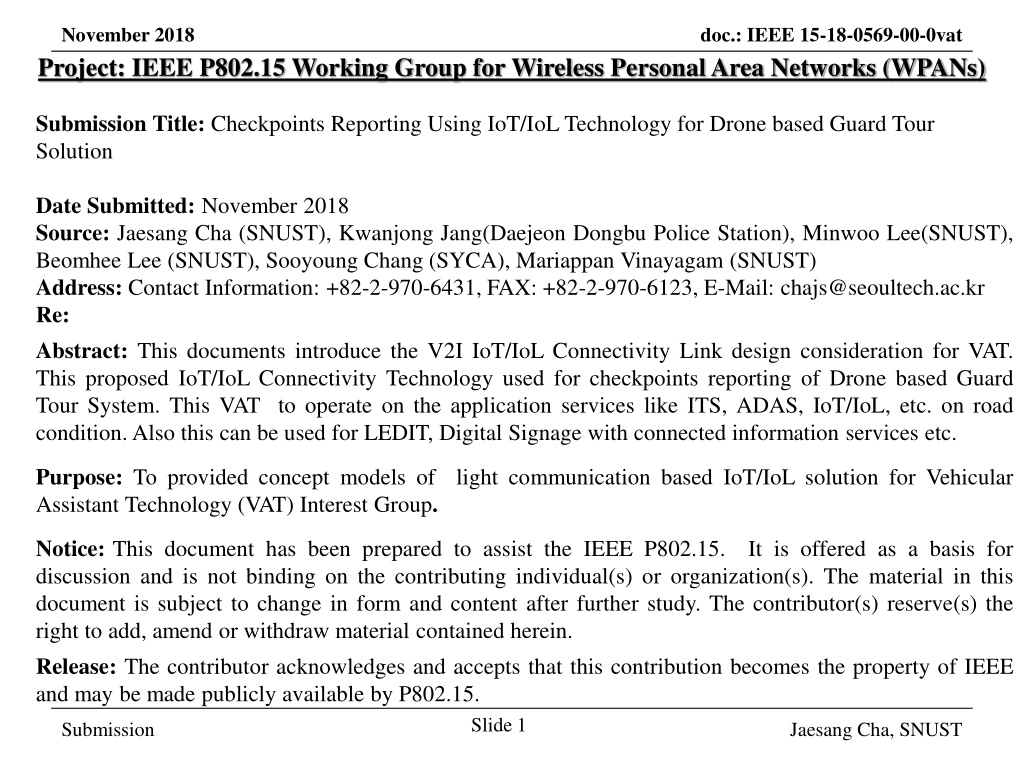

1. November 2018 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) doc.: IEEE 15-18-0569-00-0vat Submission Title: Checkpoints Reporting Using IoT/IoL Technology for Drone based Guard Tour Solution Date Submitted: November 2018 Source: Jaesang Cha (SNUST), Kwanjong Jang(Daejeon Dongbu Police Station), Minwoo Lee(SNUST), Beomhee Lee (SNUST), Sooyoung Chang (SYCA), Mariappan Vinayagam (SNUST) Address: Contact Information: +82-2-970-6431, FAX: +82-2-970-6123, E-Mail: chajs@seoultech.ac.kr Re: Abstract: This documents introduce the V2I IoT/IoL Connectivity Link design consideration for VAT. This proposed IoT/IoL Connectivity Technology used for checkpoints reporting of Drone based Guard Tour System. This VAT to operate on the application services like ITS, ADAS, IoT/IoL, etc. on road condition. Also this can be used for LEDIT, Digital Signage with connected information services etc. Purpose: To provided concept models of light communication based IoT/IoL solution for Vehicular Assistant Technology (VAT) Interest Group. Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1 Submission Jaesang Cha, SNUST

2. November 2018 doc.: IEEE 15-18-0569-00-0vat Contents Need for Drone Based Guard Tour Patrol Solution Checkpoints Reporting IoT/IoL Link for Drone based Guard Tour Solution Conclusion Slide 2 Submission Jaesang Cha, SNUST

3. November 2018 doc.: IEEE 15-18-0569-00-0vat Need for Drone Based Guard Tour Patrol Solution Needs Human Guards patrol creates on environment of calm and order, as it discourages criminal activity. Used for security guards patrolling, technicians monitoring climate-controlled correctional officers Guard Tour patrol system is a system for logging the rounds of guards employees in a variety of situations. Uses the three kind of technology GPS, GPRS,RFID for check points reporting Human Guards limits vigilant the scheduled patrols by touring on defined route and does not record visual data Also vigilant on raining, snowing , windy time is difficult and not efficient environments, and < Security Guard Tour Patrol Checkpoints Reporting Scenario > Basic Concept Drones based schedule autonomous patrol will provide more efficient surveillance than human guard based vigilant. Uses the Drone front and back LED lights as a Transmitter and Photo detector or CCTV Camera based receiver at check points to reporting tour patrol. < Security Guard Tour Patrol Checkpoints RFID Tag > Slide 3 Submission Jaesang Cha, SNUST

4. November 2018 Checkpoints Reporting IoT/IoL Link for Drone Based Guard Tour Solution doc.: IEEE 15-18-0569-00-0vat Checkpoints Reporting for Drone Based Guard Tour Solution Using IoT / IoL Link Tx : Drone Front and Back Lights Rx : PD / CCTV Image Sensor in Patrol Region Day-Night Communication Mode Modulations OOK, VPPM, Offset-VPWM, Multilevel PPM, Inverted PPM, Subcarrier PPM, DSSS SIK etc. < V2I IoT/IoL Link for Checkpoints Reporting of Drone Based Guard Tour Solution > Data Rate : 1K ~ 1Mb/s Integrating Drone based guard with a computerized security Supported LoS (Line of Sight) system, security is made even more vigilant. Available Distance : 2m ~ 200m Drone guard tour patrol system is a system for logging the Possible to record the scheduled patrols visual rounds of tour in a variety of situations such as security history for defined route in addition to guard guards patrolling property, technicians monitoring climate- tour controlled environments. Slide 4 Submission Jaesang Cha, SNUST

5. November 2018 doc.: IEEE 15-18-0569-00-0vat Conclusion Proposed the Checkpoints Reporting Using IoT/IoL Technology for Drone based Guard Tour Solution. Uses the Drone front and back LED lights as a Transmitter and PD or CCTV Camera connected in Guard Tour check points Drone guard tour patrol system is a system for logging the rounds of tour in a variety of situations such as security guards patrolling property, technicians monitoring climate-controlled environments and store the guard tour visual record. No need of any additional infrastructure drone based Guard Tour Solution using IoT/IoL link. Slide 5 Submission Jaesang Cha, SNUST
