Introduction to Touch Sensor Technology
Al-mustaqbal University College
Biomedical sensors lab 2
Biomedical sensors lab 2
EXP. 3 : touch sensor
By:
Dr. Eng. Mustafa Turki
BME: Mays Mohammed
Introduction
Touch sensor is one of the most common sensors in these days
because of its wide range of applications.
Touch sensor is an electronic sensor used in detecting and
recording physical touch. These sensor made to replace old
mechanical switches we seen in the past.
Touch sensors or tactile sensors have many types capacitive,
resistive, Infrared, Surface acoustic wave (SAW), and transistor
touch A touch sensor works like a switch, where when there’s
contact, touch, or pressure on the surface of a touch sensor, it
opens up an electrical circuit and allows currents to flow through
it.
A transistor touch sensor will be used. It is simple, small, and
low-cost sensor, the output is obtained when the leg of the
transistor circuit is touched then pass the signal to LM393.
KY_036 touch sensor
This module has integrated on board touch sensor which
consists of potentiometer one microchip, six resistors and
two LEDs. The resistor R1 used in this module is10-kilo
ohms the resistor R2 is 100-kilo ohms the resistor R3 is 150
ohms and the resistor R4 is 1-kilo ohm the resistor R5 is 1-
kilo ohm the resistor R6 is 100-kilo ohms and the main
reason for using the resistors is to limit current circulating
inside the module in other words to prevent current from
burning the module. The LED L1 in the module lights up to
show if the module is working properly or not and the LED
L2 lights up every time when we touch the sensor.
KY_036 touch sensor

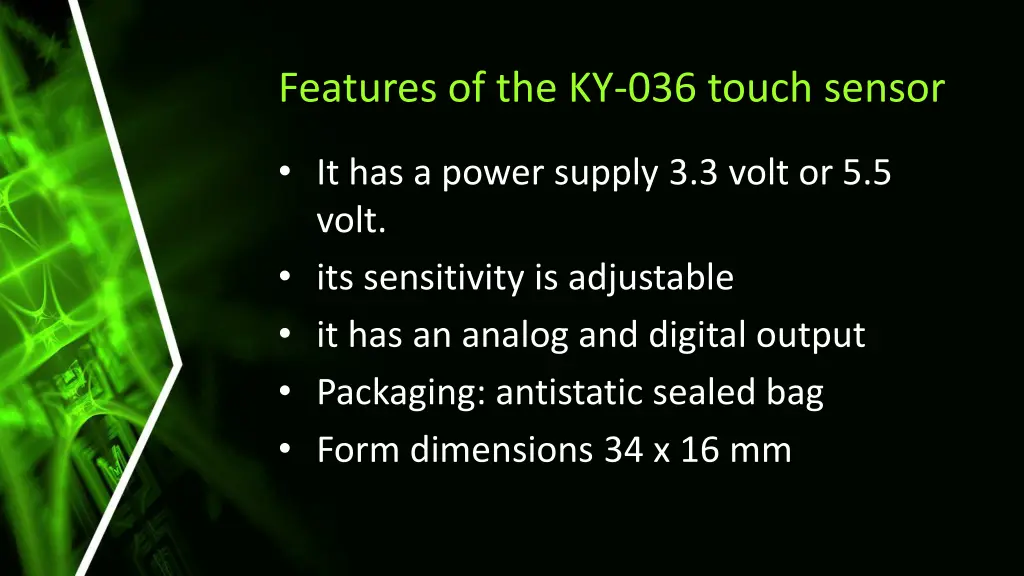

Features of the KY-036 touch sensor
•
It has a power supply 3.3 volt or 5.5
volt.
•
its sensitivity is adjustable
•
it has an analog and digital output
•
Packaging: antistatic sealed bag
•
Form dimensions 34 x 16 mm
Working Principle of the KY-036
Let us quickly understand the working principle of the KY-036 Metal Touch sensor module.
Basically, the functionality of the KY-036 Metal Touch sensor module is divided into three
main components first the sensor unit at the front of the module which measures the area
physically and sends an analog signal to the second unit the amplifier. The amplifier basically
amplifies the signal and according to the resistance value of the potentiometer and sends
the signal to the analog output of the module also you can set the sensitivity of the sensor
by adjusting the knob of the potentiometer. If you rotate it in clockwise direction you can
increase the sensitivity and if you rotate it in anti-clockwise direction you can reduce the
sensitivity as shown in the diagram.
The comparator will switches the digital out and turn on the led if the
signal falls under a specific value
Interfacing KY-036 with Arduino
Arduino Code
int touchPin = A0;
int sensorValue = 0;
void setup ()
{Serial.begin (9600);
}
void loop ()
{sensorValue = analogRead (touchPin);
Serial.println (sensorValue, DEC);
delay (1000);
}
Thanks for listening
