Software Defined Radio (SDR) and its Implementation Brandon Graham W0GPR

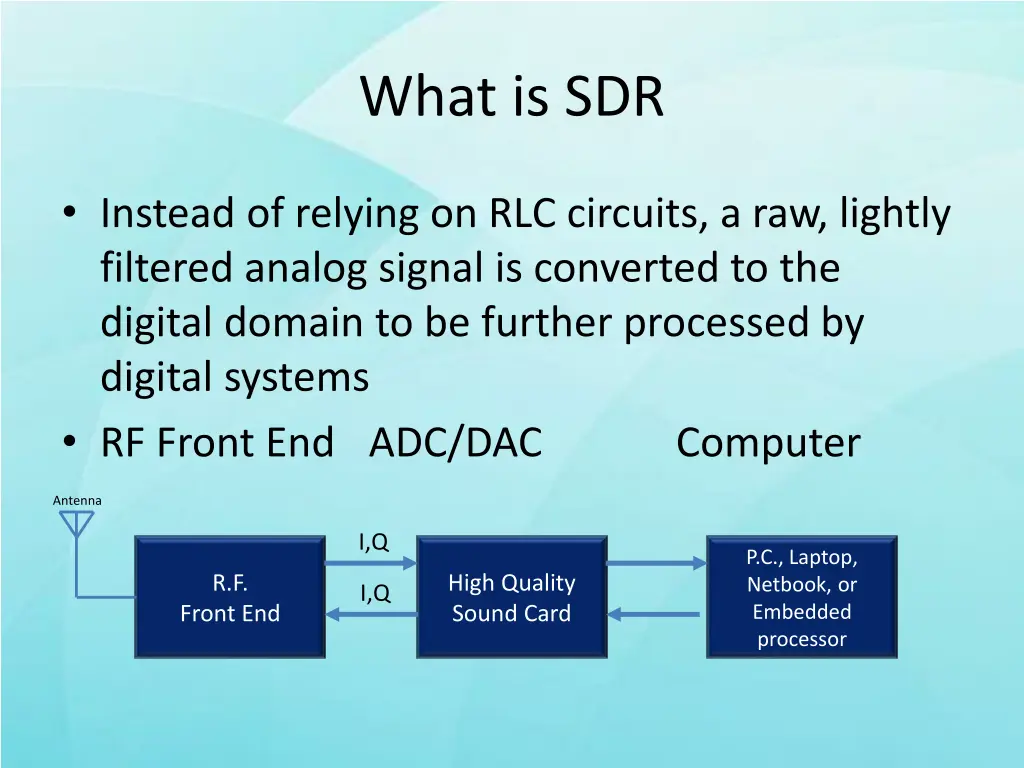

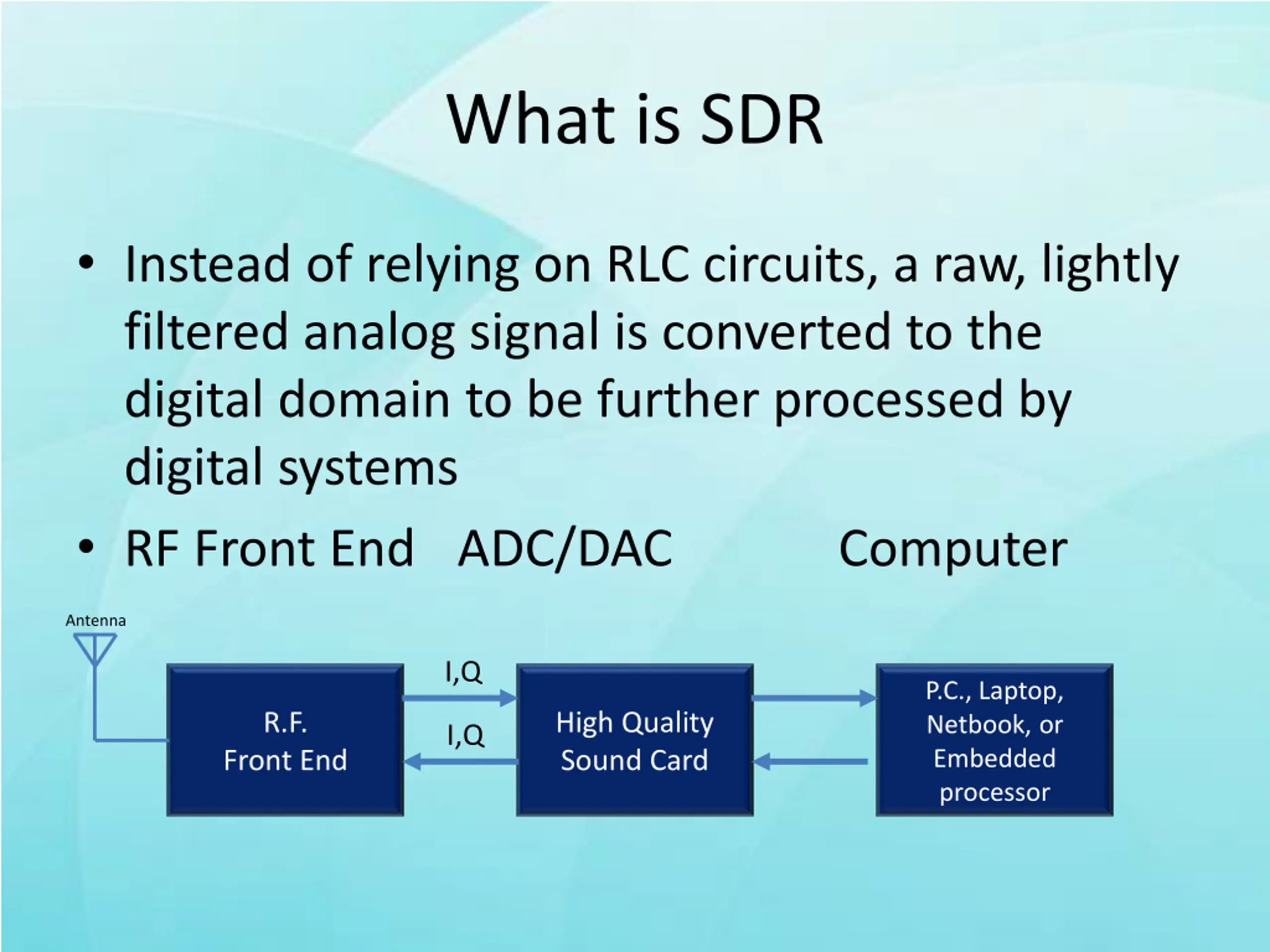

What is SDR Instead of relying on RLC circuits, a raw, lightly filtered analog signal is converted to the digital domain to be further processed by digital systems RF Front End ADC/DAC Computer Antenna I,Q P.C., Laptop, Netbook, or Embedded processor R.F. High Quality Sound Card I,Q Front End

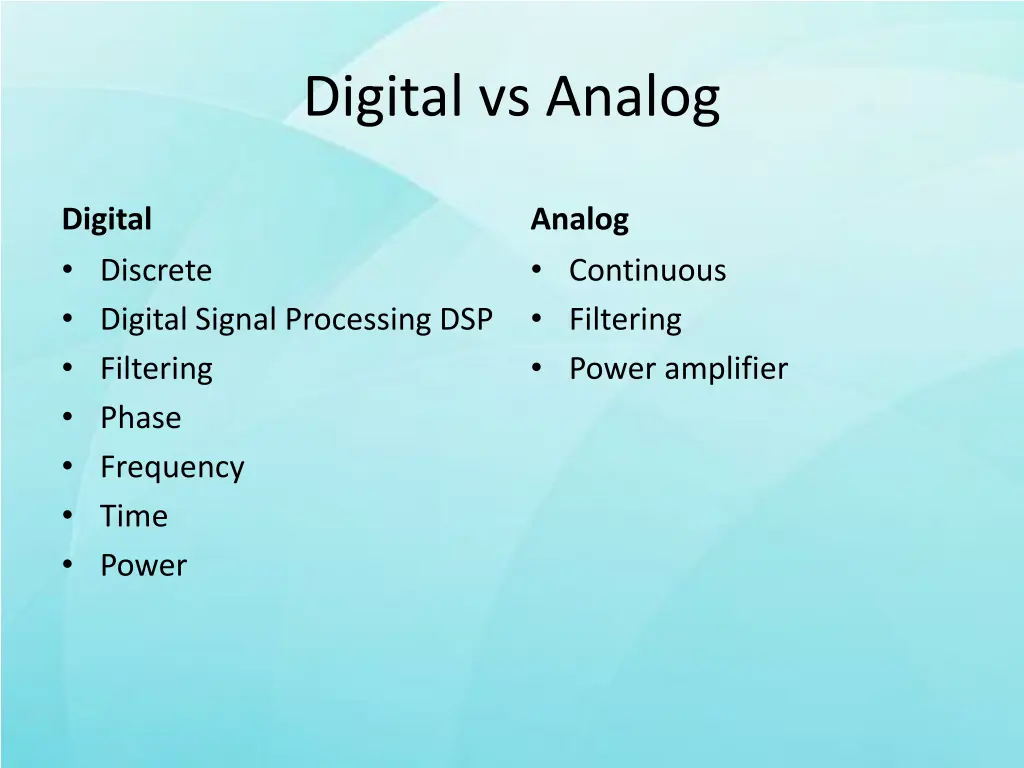

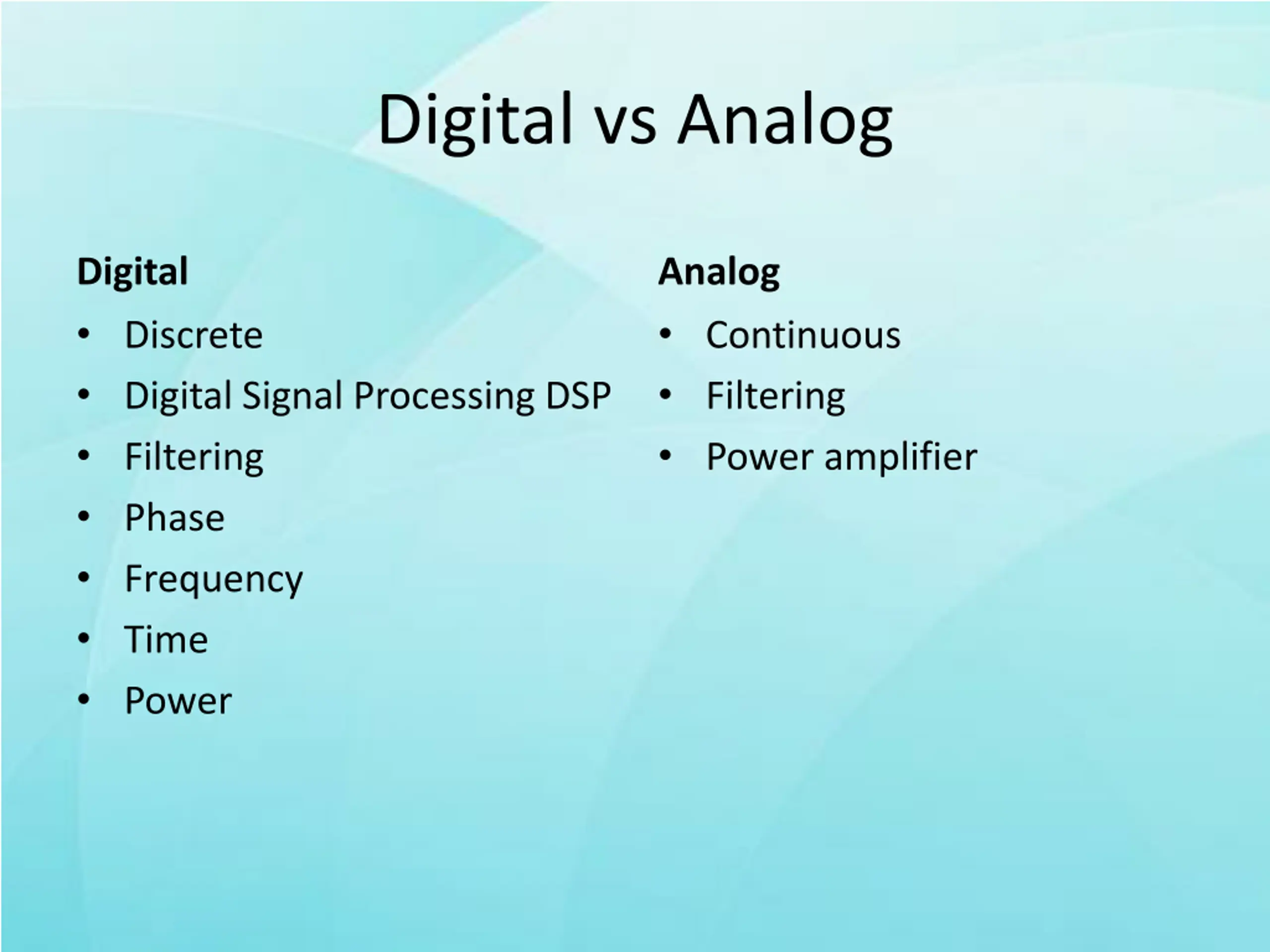

Digital vs Analog Digital Discrete Digital Signal Processing DSP Filtering Phase Frequency Time Power Analog Continuous Filtering Power amplifier

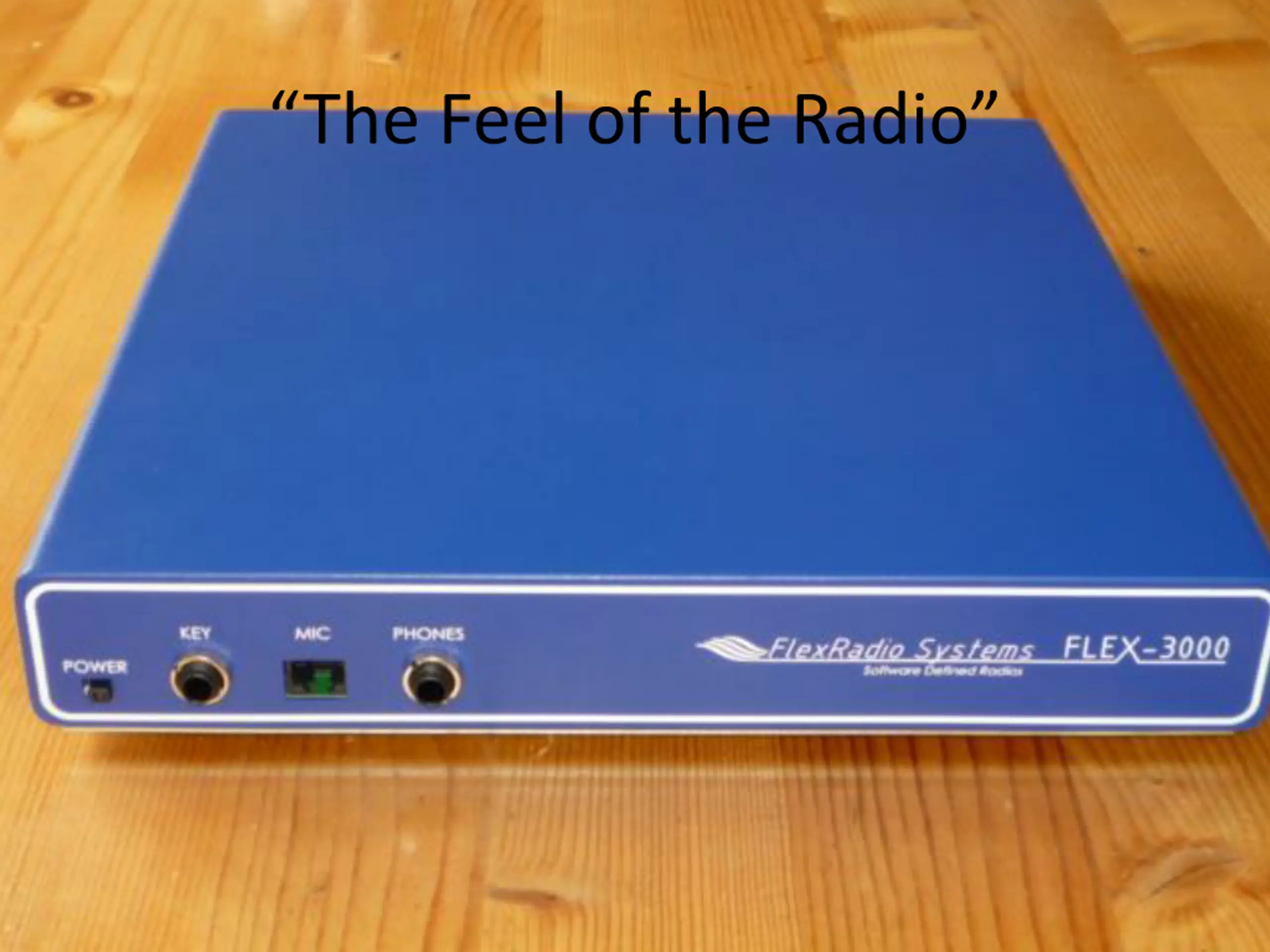

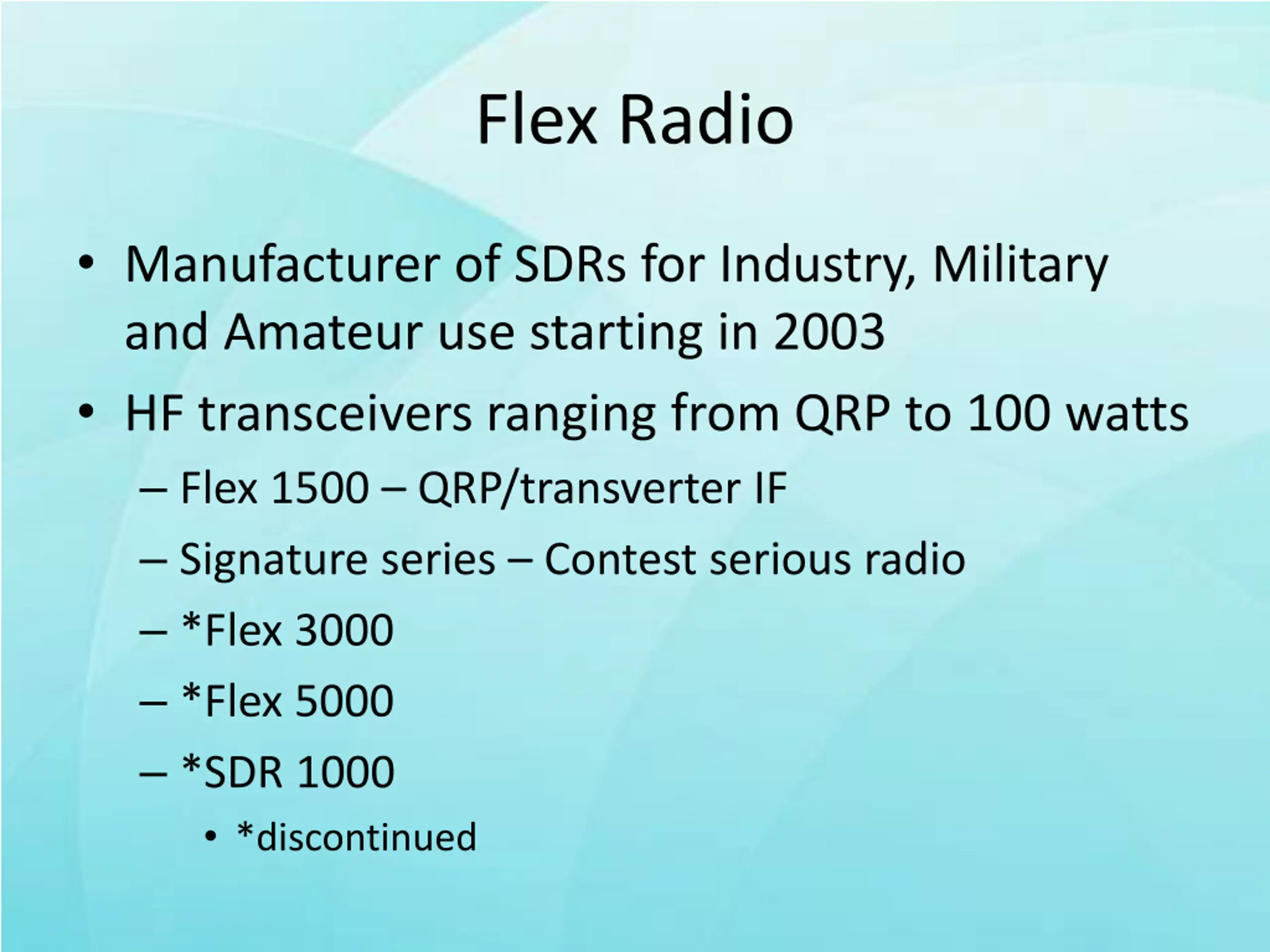

Flex Radio Manufacturer of SDRs for Industry, Military and Amateur use starting in 2003 HF transceivers ranging from QRP to 100 watts Flex 1500 QRP/transverter IF Signature series Contest serious radio *Flex 3000 *Flex 5000 *SDR 1000 *discontinued

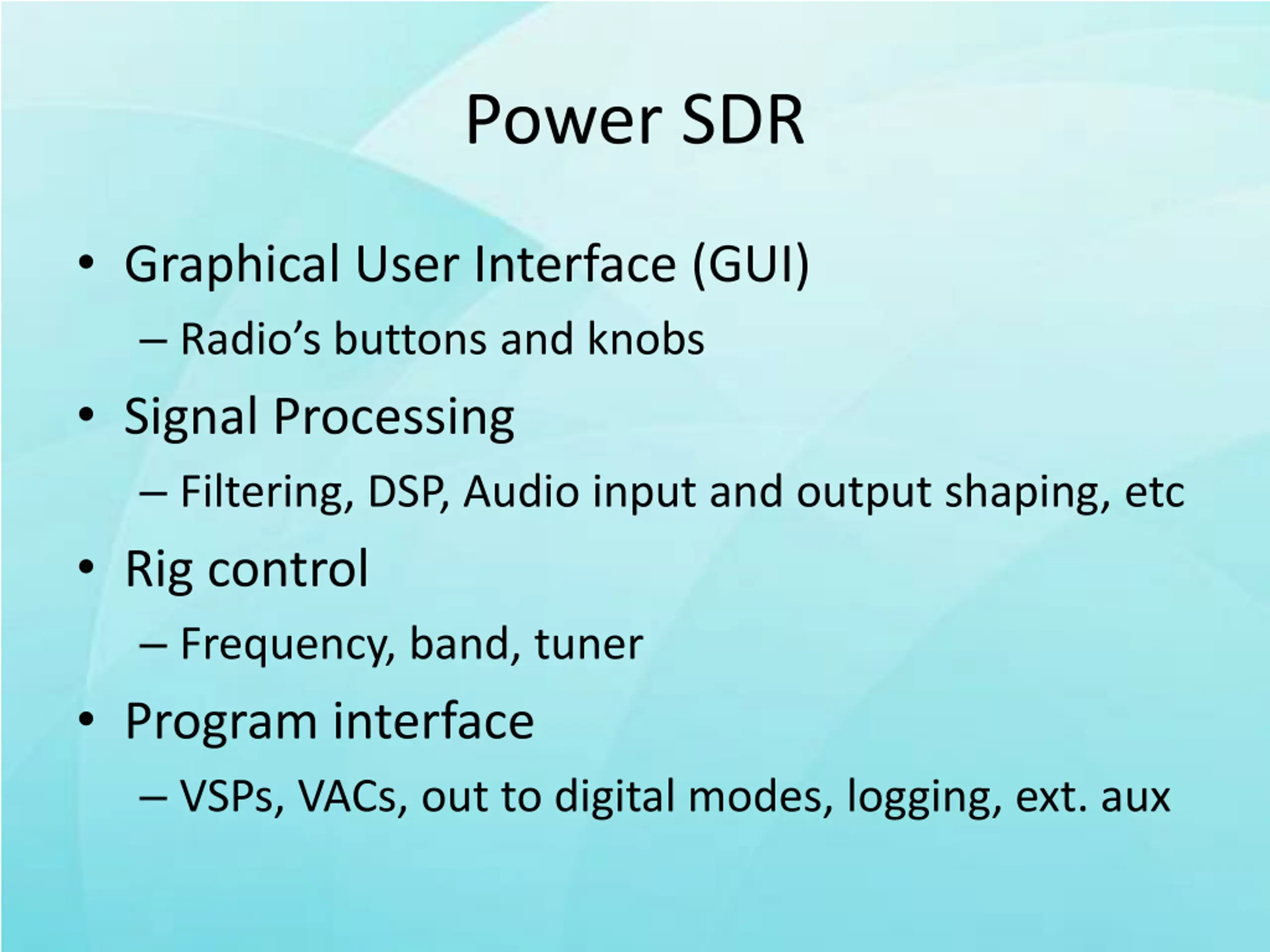

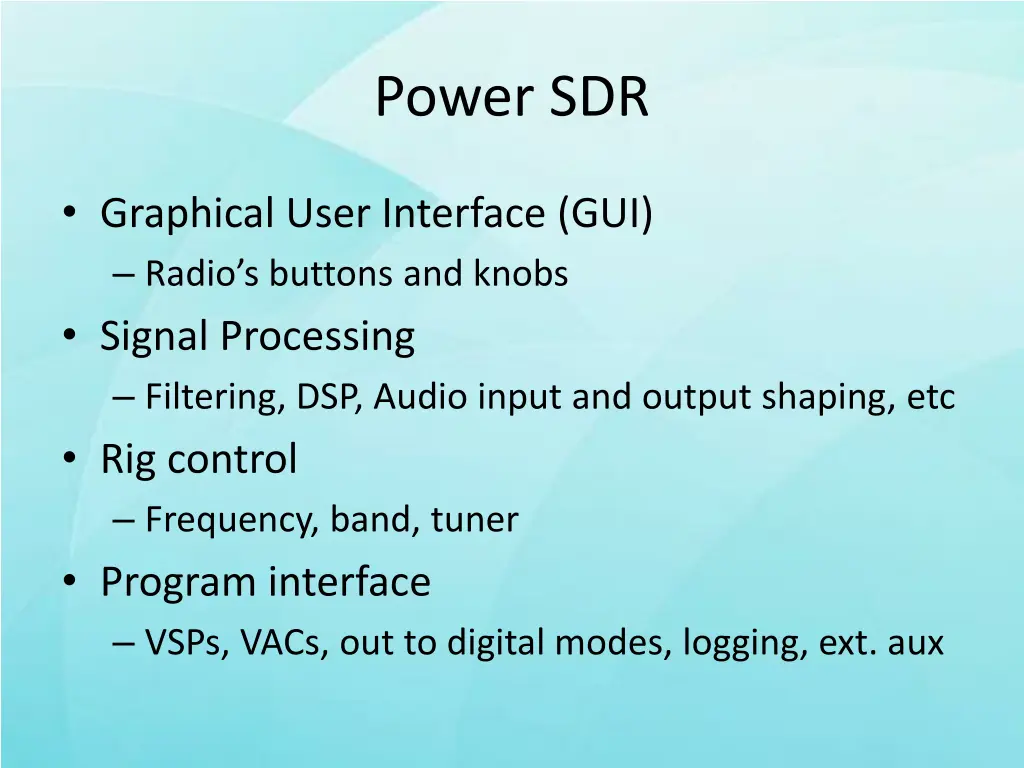

Power SDR Graphical User Interface (GUI) Radio s buttons and knobs Signal Processing Filtering, DSP, Audio input and output shaping, etc Rig control Frequency, band, tuner Program interface VSPs, VACs, out to digital modes, logging, ext. aux

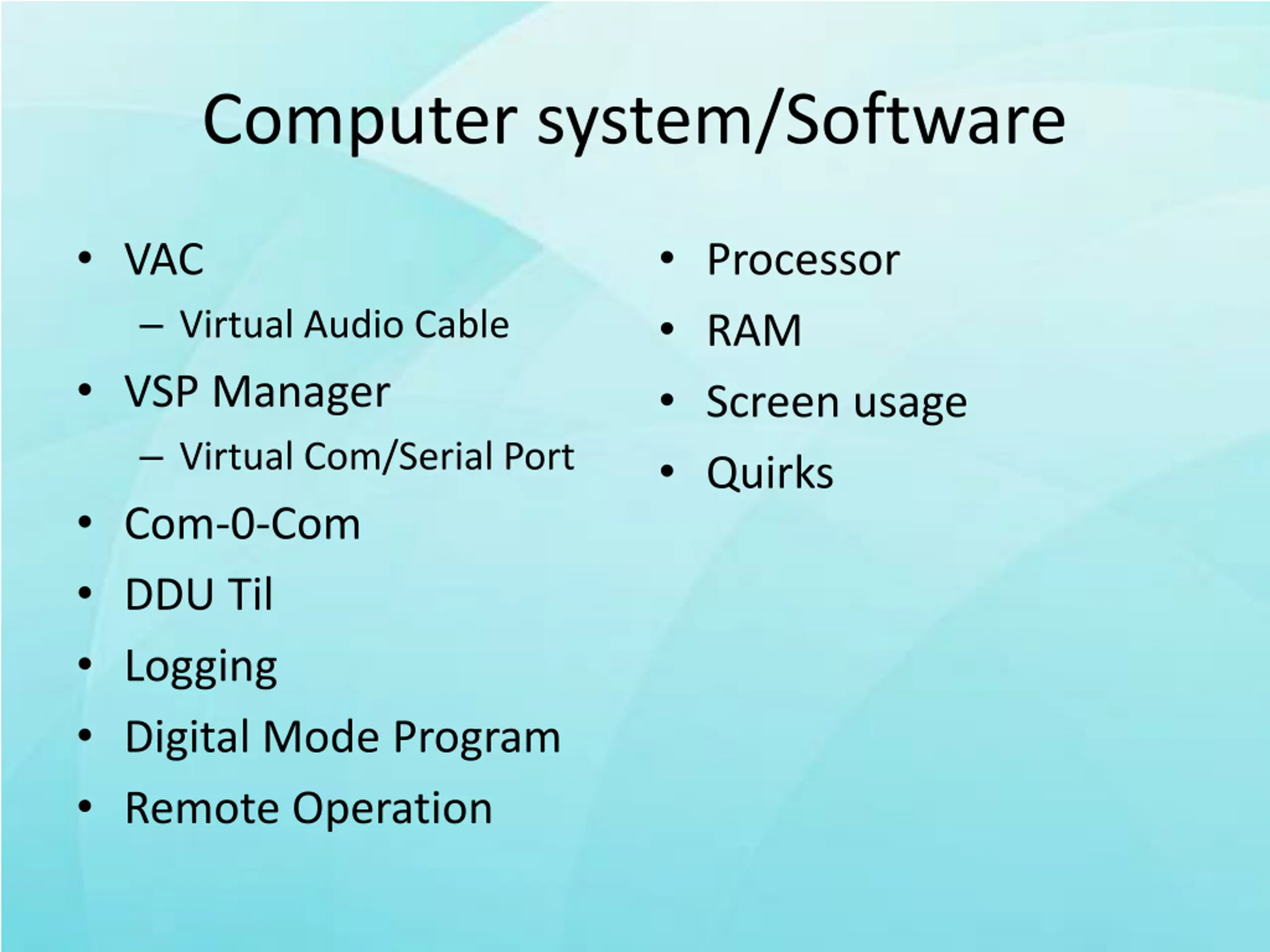

Computer system/Software VAC Virtual Audio Cable VSP Manager Virtual Com/Serial Port Com-0-Com DDU Til Logging Digital Mode Program Remote Operation Processor RAM Screen usage Quirks

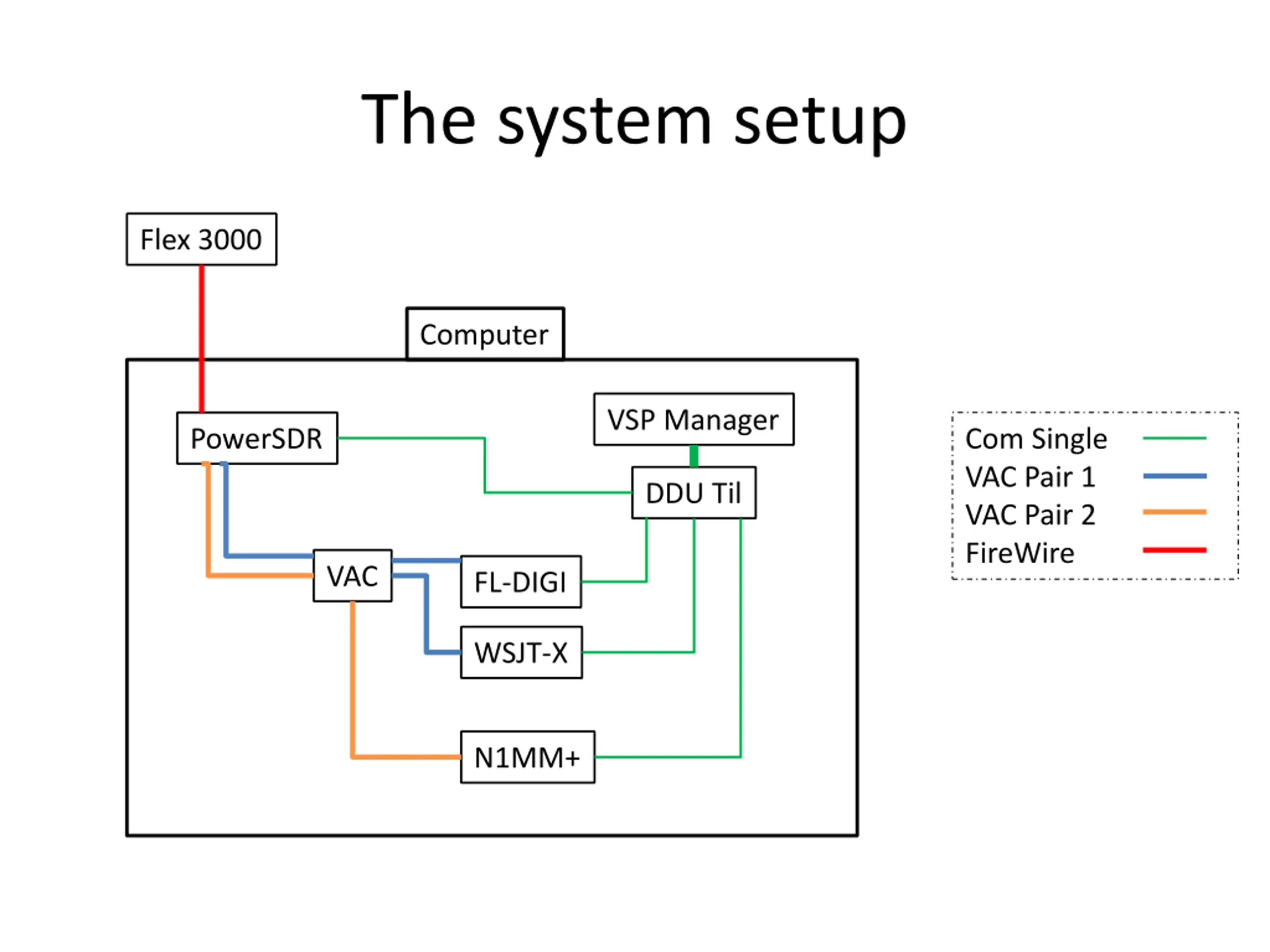

The system setup Flex 3000 Computer VSP Manager PowerSDR Com Single VAC Pair 1 VAC Pair 2 FireWire DDU Til VAC FL-DIGI WSJT-X N1MM+

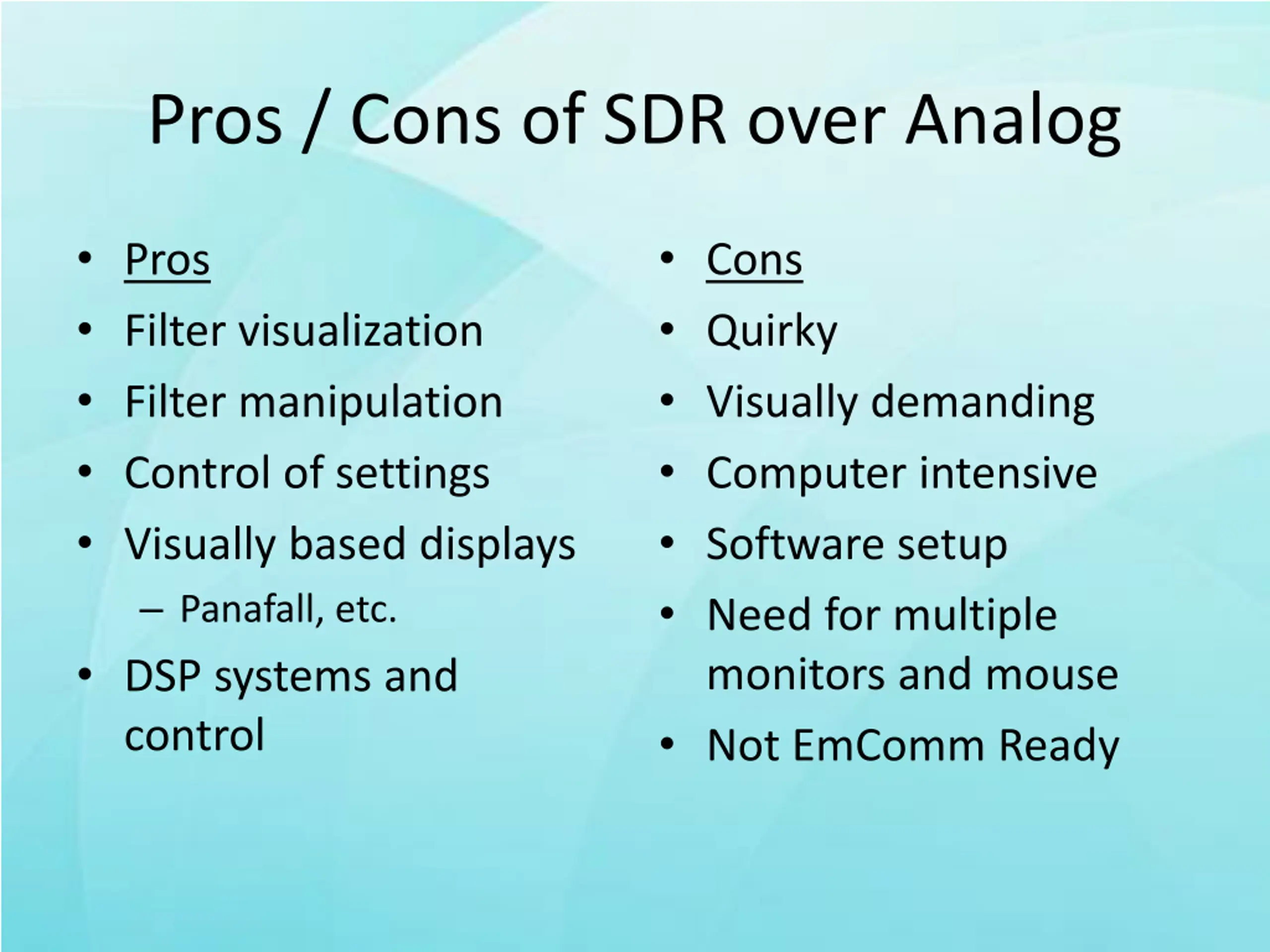

Pros / Cons of SDR over Analog Pros Filter visualization Filter manipulation Control of settings Visually based displays Panafall, etc. DSP systems and control Cons Quirky Visually demanding Computer intensive Software setup Need for multiple monitors and mouse Not EmComm Ready

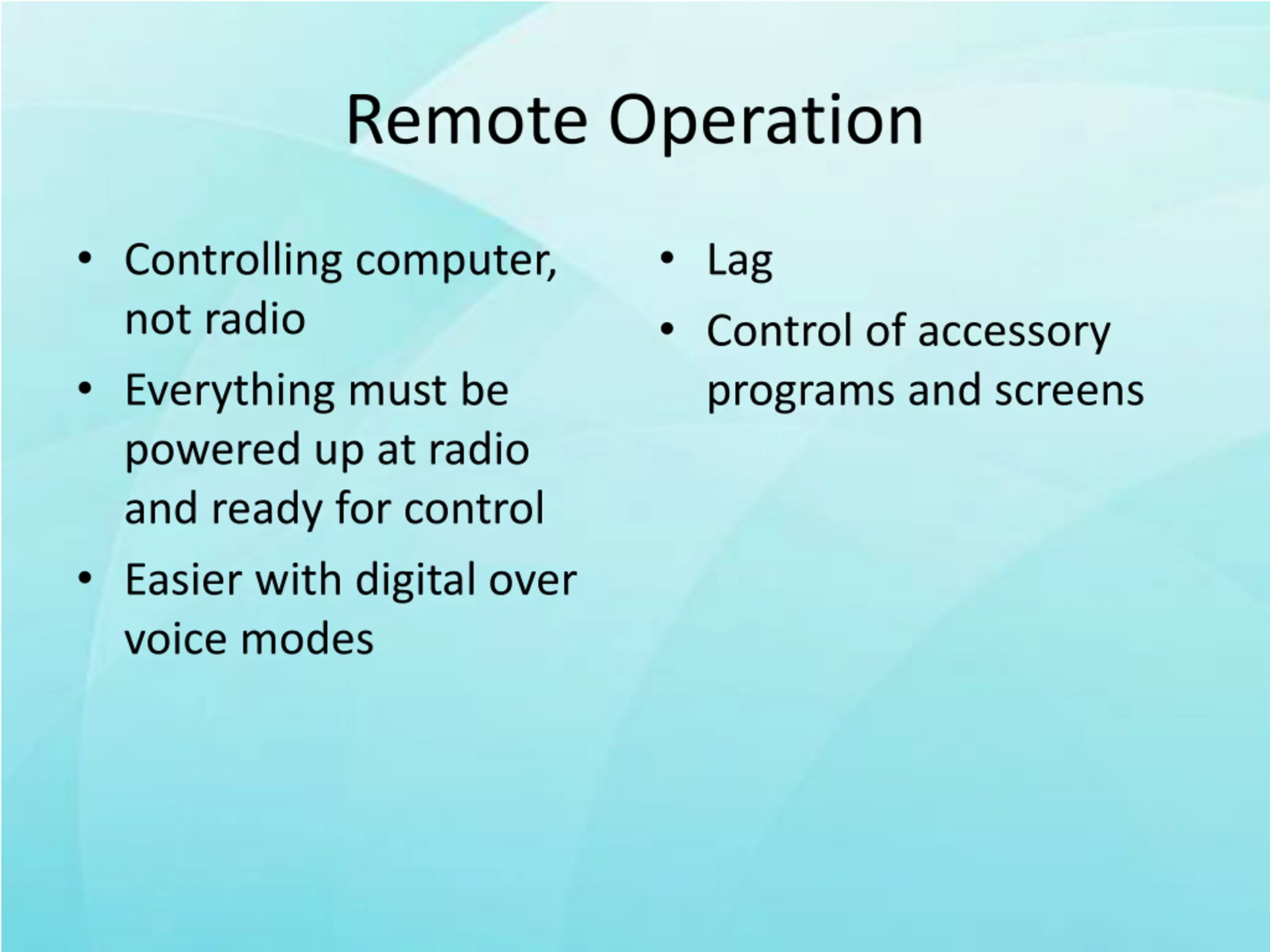

Remote Operation Controlling computer, not radio Everything must be powered up at radio and ready for control Easier with digital over voice modes Lag Control of accessory programs and screens

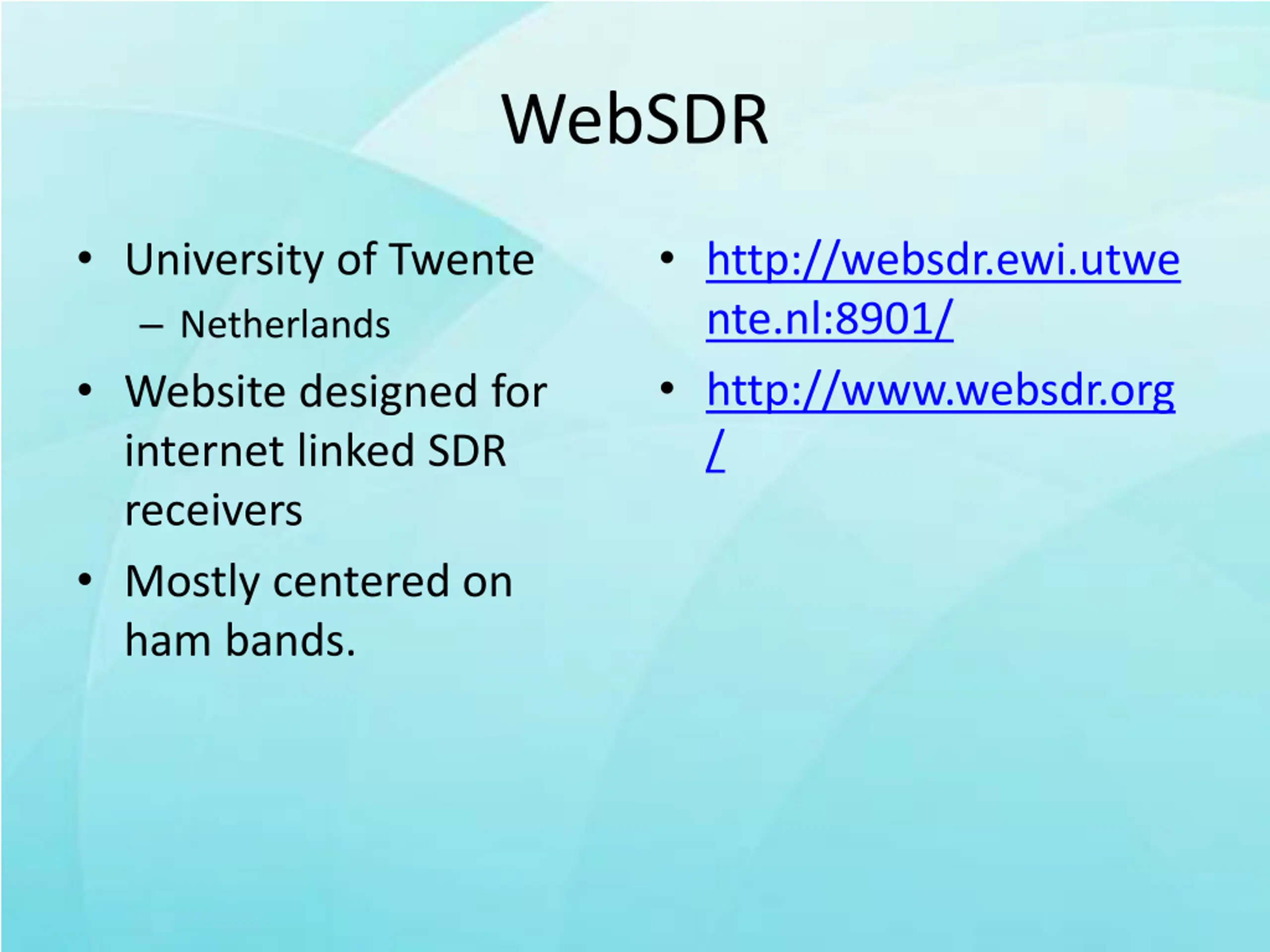

WebSDR University of Twente Netherlands Website designed for internet linked SDR receivers Mostly centered on ham bands. http://websdr.ewi.utwe nte.nl:8901/ http://www.websdr.org /

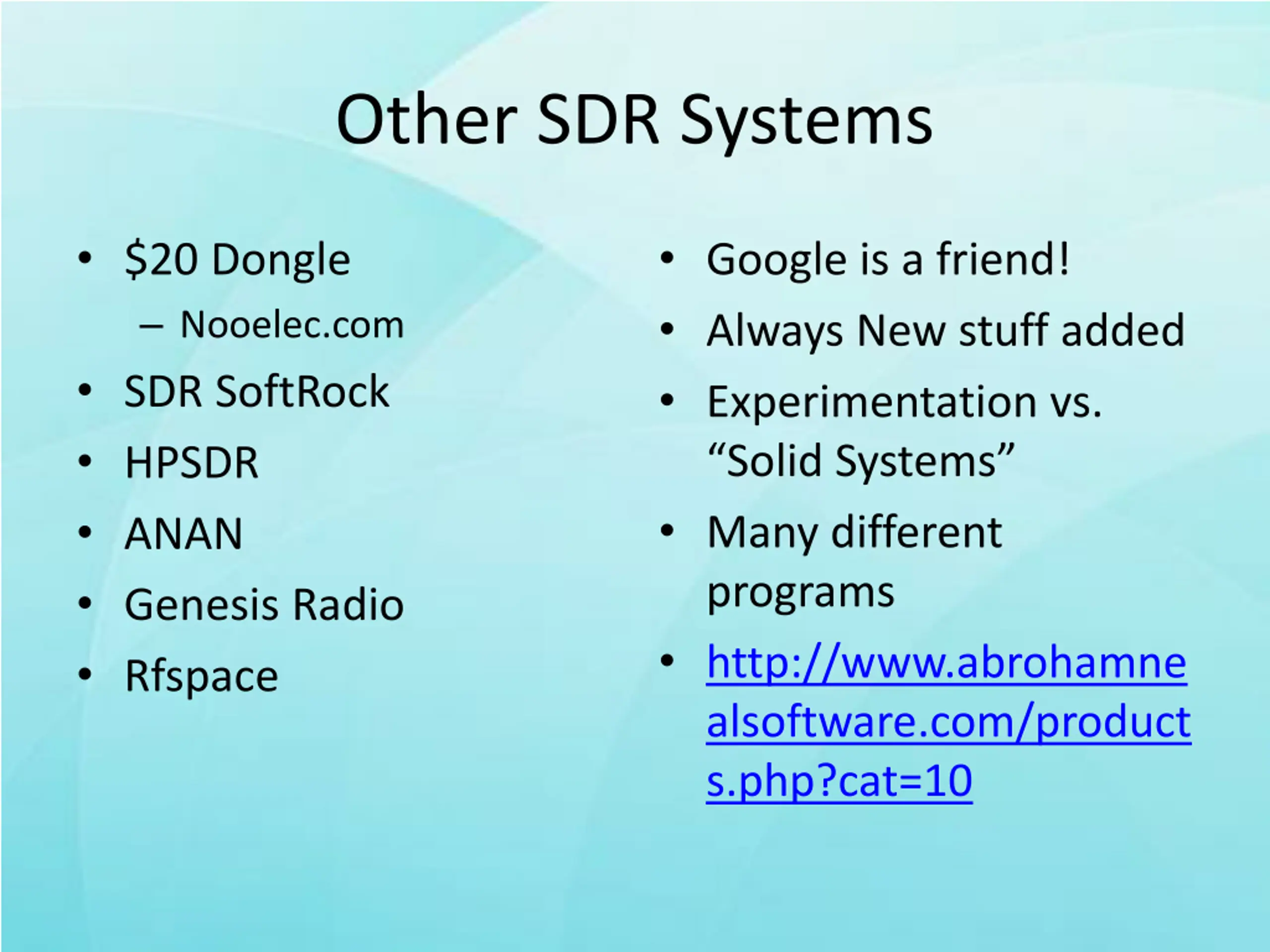

Other SDR Systems $20 Dongle Nooelec.com SDR SoftRock HPSDR ANAN Genesis Radio Rfspace Google is a friend! Always New stuff added Experimentation vs. Solid Systems Many different programs http://www.abrohamne alsoftware.com/product s.php?cat=10
