Idempotence Bugs in Intermittent Systems

I/O Dependent Idempotence Bugs
in Intermittent Systems
Milijana Surbatovich
,
Limin Jia, and Brandon Lucia
1

Energy-harvesting devices (EHDs) enable computing in
inaccessible environments
Batteries:
expensive or impossible to access and replace
maintenance can be intrusive

2
Intermittence in energy harvesting devices
Energy Buffer
Harvester
3
Powers on as
energy is available
Hardware platform
Intermittence in energy harvesting devices
4
Powers off at arbitrary
program location
Volatile state clears,
persistent state remains
Energy Buffer
Harvester
Hardware platform
B

x := y

y := 5
Background: intermittent execution causes bugs
B

Power fail
5
A
B
C
A
B
Re-execution must
be idempotent
B

x := y

y := 5
Write-after-read:
no dataflow
Re-execution
causes dataflow
Current systems provide forward progress and
fix WAR bugs – is this enough?
Need to back up
original value
Save volatile
state periodically
What about input operations?
6
B

x := input()

y := x
B

x := input()

y := x
A different value
on re-execution?
Current systems miss bugs caused by input
Repeating input operations causes unaddressed bugs
Want to port existing code-bases
Prior systems only address progress and WAR bugs
7
Outline
How intermittence causes bugs without system support
Repeated I/O operations can cause idempotence bugs
IBIS, a tool for detecting bugs caused by I/O operations
Evaluation and conclusion
8
Repeated I/O reads cause idempotence bugs
get_temp() -> cold
input < limit
steady := 1

Execution Time
Control dependence
on I/O causes
inconsistent updates!

steady
0

blink
0

steady
1

blink
0
1
1
9
input := get_temp()
if (input < limit):
    steady := 1
else:
    blink := 1
assert(blink^steady)
get_temp() -> hot
input > limit
blink := 1
assert == false
Simple fix can break program timeliness

10
J. Hester, K. Storer, and J. Sorber. Timely Execution on
Intermittently Powered Batteryless Sensors. (SenSys '17)
get_temp() -> cold
input < limit
steady := 1

Execution Time
if (input < limit):
    steady := 1
else:
    blink := 1
assert(blink^steady)
input := get_temp()
(input == cold)
input < limit
steady := 1
Detecting I/O bugs is particularly important for EHDs
11
get_temp() -> cold
get_temp() -> hot

get_temp() -> cold
We characterize input-dependent bugs for the first time

Sensor driven

Input causes bugs

No simple fix
Outline
How intermittence causes bugs without system support
Repeated I/O operations can cause idempotence bugs
IBIS, a tool for detecting bugs caused by I/O operations
IBIS-Static – less precise, full coverage, no runtime cost
IBIS-Dynamic – no false positives, may have less coverage, runtime cost
Evaluation and conclusion
12
Uses standard taint analysis
Reports bug patterns to the programmer
IBIS-S: static taint analysis and pattern matching
Taint Analysis
13
Bug Pattern
Matching
Report
Taint analysis: tracks dataflow off inputs
LLVM analysis pass, programmer annotates tainted source
14
input :=
get_temp()
if (input < limit):
    steady := 1
else:
    blink := 1
alert(blink)

Algorithm

1.
Mark uses of annotated
functions as
tainted
,
add to worklist

2.
Get item from list,
propagate taint to any
uses

3.
If a branch is tainted,
propagate taint to any
dependent stores
Repeat until
list is empty
Taint analysis: interprocedural flows
15
func sample:
  io_src = getTemp()
  process(io_src)
func process(temp):
  sink = temp

Function arguments
input :=
get_temp()
if (input < limit):
    steady := 1
else:
    blink := 1
alert(blink)
alert(val):
    if (val):
       events++
Also: global variables,
return statements,
pass-by-ref parameters
Bug pattern matching

Bug Pattern
if input < limit
blink = 1

blink

s0:
steady = 1

s1:
A tainted branch with paths that write to
different
 variables
if input < limit
blink = 1
steady  =0

s0:
blink = 0
steady = 1

s1:

blink
steady

blink
steady

blink
steady
16

Safe Pattern
Pass outputs bug report of the tainted branch and
differing variables to the programmer
Outline
How intermittence causes bugs without system support
Repeated I/O operations can cause idempotence bugs
IBIS, a tool for detecting bugs caused by I/O operations
IBIS-Static – less precise, full coverage, no runtime cost
IBIS-Dynamic – no false positives, may have less coverage, runtime cost
Evaluation and conclusion
17
IBIS-D: dynamic taint and freshness propagation
18

z := y

w := x

y := input

fresh

taint
An execution must not
read a stale, tainted value
Taint: input
dependent?
Fresh: written on the
current execution?
1

x

y

z

w
0
0
0
0
0

1.
Shadow memory to
record metadata

2.
Compiler pass to instrument
calls to runtime library
0
0
1
1
1
1
Runtime warning

Implementation
Outline
How intermittence causes bugs without system support
Repeated I/O operations can cause idempotence bugs
IBIS, a tool for detecting bugs caused by I/O operations
IBIS-Static – less precise, full coverage, low overhead
IBIS-Dynamic – no false positives, may have less coverage, runtime cost
Evaluation and conclusion
19
Goal of evaluation
Does IBIS-S provide usable reports to the programmer?
Does IBIS-D have reasonable overheads?
20
Reported
Bugs
False
Positives
IBIS-D

Evaluation methodology for IBIS-S
21
Embedded
system drivers
Existing
intermittent apps
IBIS-S
Manual
categorization
Software
validation
IBIS-S finds bugs with few false positives
22
Sensor drivers more
likely to have bugs
Not I/O driven – no bugs
Blank bar means no
reports generated
Evaluation methodology for IBIS-D
23
Existing
intermittent apps
IBIS-D
Embedded
system drivers
Compare
runtimes
Extract
Bugs
IBIS-D
Compare
runtimes
IBIS-D performance
24
Constant shadow
memory overhead
Normalized to continuous unaltered
25x mean slowdown
against unaltered
(in-line with valgrind)
Comparison and limitations of IBIS-S and IBIS-D
25
Sound
(Reported bugs are true bugs)
Complete
(Finds all bugs)
IBIS-S
IBIS-D
??
Opaque path conditions,
may-write set
Alias imprecision
Exploring all paths?
Interesting challenges uncovered
26

Symbolic execution?

Safe instrumentation

Path

Power failure

Restart point

Path’
Read more in the paper
Discussion of how IBIS-S integrates with differing execution
models
Implementation details
More evaluation for both systems
Case studies of a selection of bugs
27
Summary and take-aways
We characterize I/O idempotence bugs, not addressed by prior systems, and find
they exist in real code
IBIS-S provides information to programmers about hard-to-reason about I/O
dependences
IBIS-D detects concrete bug instances when running on real energy-harvesting
hardware
28

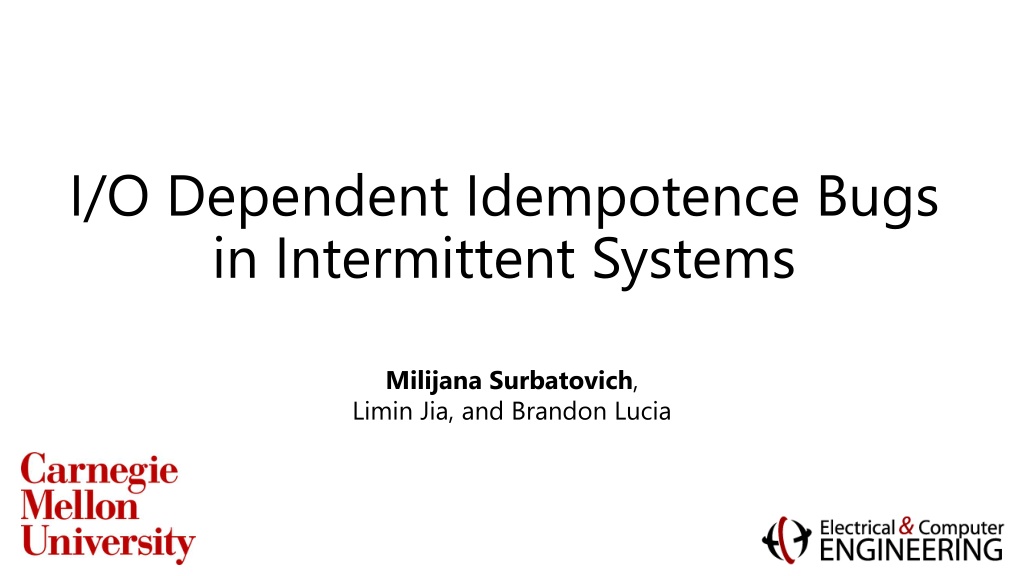

I/O Dependent Idempotence Bugs in
