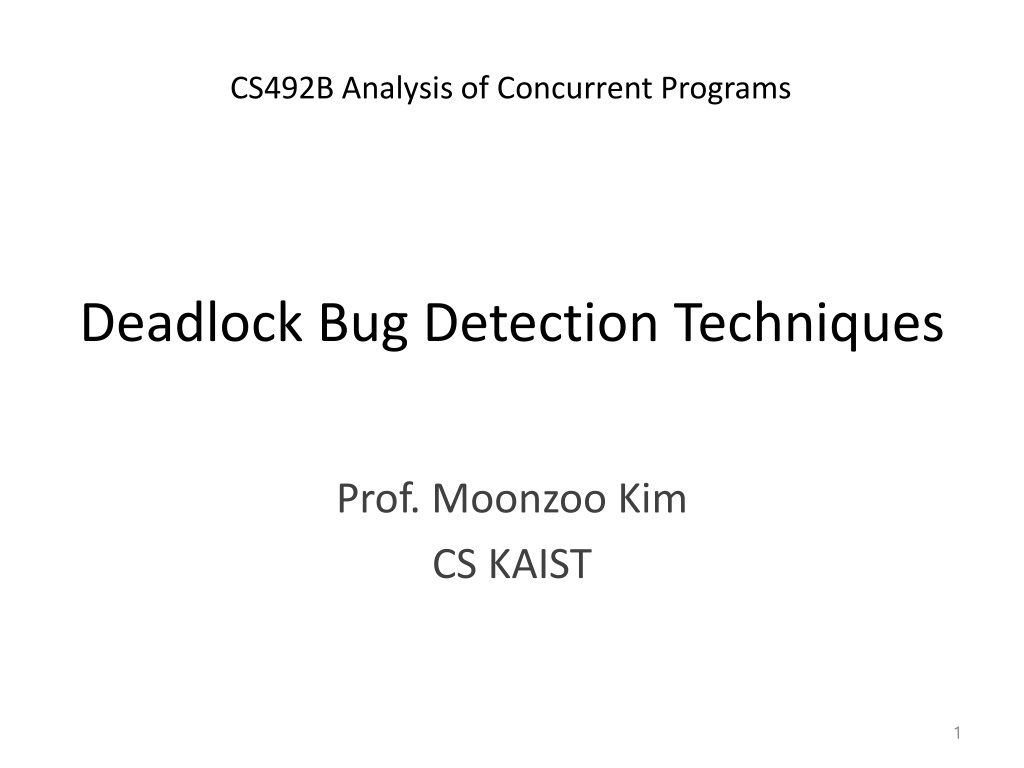

Deadlock Bug Detection Techniques

Prof. Moonzoo Kim
CS KAIST

CS492B Analysis of Concurrent Programs

1
Bug Detection Techniques for
Concurrent Programs
1,000,000 LOC <
100~1,000 LOC
Precision
rstest
rstest
ConTest
ConTest
MetaL
MetaL
RacerX
RacerX
Java PathFinder
Java PathFinder
jCute
jCute
CHESS
CHESS
SPIN
SPIN
CalFuzzer
CalFuzzer
Atomizer
Atomizer
 Eraser
 Eraser
Fusion
Fusion
KISS
KISS
Scalability
Verification
False alarm
Model checking techniques
+  High precision
+  Comprehensive error detection
-  Scalability
   (state explosion problem)
-  Verification expertise is required
Testing techniques
+  High precision
+  Friendly to developers
-  Difficult to generate
   test cases and thread schedules
Bug detection techniques
+ Fast and convenient
   (no need to generate many
    executions)
-
  False alarms
2
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Deadlock Bugs Frequently Occur in Real World

•
In a survey on 105 real-world concurrency bugs in open-
source applications,
31 out of 105 bugs are deadlock bugs
[Lu
et al
., ASPLOS 08]

3

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Deadlock Bugs Frequently Occur in Real World

•
According to Apache
bug tracking systems,
there have been
200
deadlock related issues
since 2014

4

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Deadlock
•
A deadlock occurs when each of a set of threads
is blocked, waiting for another thread in the set
to satisfy certain condition


5
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

release shared resource

raise event
Resource Deadlock
•
Ex. Dining philosopher problem
1.
Think
2.
If left fork is available,
pick it up
3.
If right fork is available,
pick it up
4.
Eat
5.
Put the right folk down
6.
Put the left folk down


Folk#1
Folk#2
6
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Resource
 Deadlock in Concurrent Programs
•
ABBA deadlock


t1: Thread 1
1
:lock(X)
2:x = …

3
:lock(Y)

t2: Thread 2

11:
lock(Y)
12:y=...

13
:lock(X)

  Thread1() {
1:
lock(
X
)
2: x = … ;
3:
lock(
Y
)
4: y = … ;
5:
unlock(
Y
)
6:
unlock(
X
)
  }
  Thread2() {
11:
lock(
Y
)
12: y = … ;
13:
lock(
X
)
14: x = … ;
15:
unlock(
X
)
16:
unlock(
Y
)
  }
7
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Non-blocking Algorithm

•
An algorithm is called
non-blocking
 if failure or suspension of any thread
cannot
 cause failure or suspension of another thread
–
a non-blocking algorithm is lock-free if there is guaranteed system-wide
progress, and wait-free if there is also guaranteed per-thread progress.
•
Blocking a thread is undesirable for many reasons while non-blocking
algorithms do not suffer from these downsides
–
while the thread is blocked, it cannot accomplish anything
–
certain interactions between locks can lead to error conditions such as
deadlock, livelock, and priority inversion.
–
using locks involves a trade-off between coarse-grained locking, which can
significantly reduce opportunities for parallelism, and fine-grained locking,
which requires more careful design, increases locking overhead and is more
prone to bugs.

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

8

Excerpt from the wikipedia
Communication
 Deadlock

t
1
: Thread 1
3:
wait
(m)//i==0
  …











3:
wait
(m)//i==9

t
2
: Thread 2


13:
notify
(m)//j==0
   …

13:
notify
(m)//j==9
   (terminate)

  Thread1() {
1: ...
2:
for
(i=0;i<10;i++){
3:
wait
(m) ;}
  }
   Thread2() {
11: ...
12:
for
(j=0;j<10;j++){
13:
  notify
(m)
;
}
   }
9
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
•
Lost notify

public final void wait()

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

10

Excerpt from the Java reference manual
•
Causes the current thread to wait until another thread invokes the notify()
method or the notifyAll() method for this object.
•
The current thread must
own this object's monitor
.
–
The thread releases ownership of this monitor and waits until another thread notifies
threads waiting on this object's monitor to wake up either through a call to the notify
method or the notifyAll method. The thread then waits until it can re-obtain ownership
of the monitor and resumes execution.
•
Interrupts and spurious wakeups
are possible, and this method should
always be used in a loop:
     synchronized (obj) {
         while (<condition does not hold>)
             obj.wait();
         ... // Perform action appropriate to condition
     }
See the following stackoverflow discussion:
http://stackoverflow.com/questions/105059
2/do-spurious-wakeups-actually-happen

public final void notify()

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

11

Excerpt from the Java reference manual
•
Wakes up a single thread that is waiting on this object's
monitor
.
–
If any threads are waiting on this object, one of them is chosen to be awakened. The
choice is
arbitrary
 and occurs at the discretion of the implementation.
•
The awakened thread will not be able to proceed until the current
thread relinquishes the lock on this object.
–
The awakened thread will
compete
 in the usual manner with any other threads that
might be actively competing to synchronize on this object; for example, the
awakened thread enjoys no reliable privilege or disadvantage in being the next
thread to lock this object.
•
This method should only be called by a thread that is the
owner of
this object's monitor.
 A thread becomes the owner of the object's
monitor in one of three ways:
–
By executing a synchronized instance method of that object.
–
By executing the body of a synchronized statement that synchronizes on the object.
–
For objects of type Class, by executing a synchronized static method of that class.

Finding Deadlock Bugs is Difficult

•
A deadlock bug induces deadlock situations
only under certain thread schedules
•
Systems software creates a
massive number
of locks
for fine-grained concurrency controls
•
Function caller-callee relation
 complicates
the reasoning about possible nested lockings

12

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Bug
Detection
 Approach

Resource deadlock
•
Basic potential deadlock detection algorithm
•
GoodLock algorithm

Communication deadlock
•
CHECKMATE: a trace program model-checking
technique for deadlock detection

13

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Basic Potential Deadlock Detection

•
Extend the cyclic deadlock monitoring algorithm

•
Cyclic deadlock monitoring algorithm
(e.g.
LockDep
)
–
Monitor lock acquires and releases in runtime
–
Lock graph (
N
,
E
N
)
•
Create a node
n
X
 when a thread acquires lock
X
•
Create an edge (
n
X
,
n
Y
) when a thread acquires lock
Y
while holding lock
X
•
Remove
n
X
 ,
(
n
X
,*
)

and

(
*, n
X
)

when a thread releases
X


Report deadlock when the graph has any cycle

14

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Cyclic Deadlock Detection Example (1/2)

t1: Thread 1
1
:lock(X)
2:a = …

3
:lock(Y)

t2: Thread 2

11:
lock(Y)
12:b=...

13
:lock(X)

  Thread1() {
1:
lock(
X
)
2: a = … ;
3:
lock(
Y
)
4: b = … ;
5:
unlock(
Y
)
6:
unlock(
X
)
  }
  Thread2() {
11:
lock(
Y
)
12: b = … ;
13:
lock(
X
)
14: a = … ;
15:
unlock(
X
)
16:
unlock(
Y
)
  }
X
Y

3

13

Deadlock detected!
15
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Cyclic Deadlock Detection Example (2/2)

t1: Thread 1
1
:lock(X)
2:a = …
3
:lock(Y)
4:b = …
5:
unlock(Y)

6:
unlock(X)

t2: Thread 2




11:
lock(Y)

12:b =...
13
:lock(X)
14:a =...
15:
unlock(X)
16:
unlock(Y)

  Thread1() {
1:
lock(
X
);
2: a = …
3:
lock(
Y
);
4: b = …
5:
unlock(
Y
);
6:
unlock(
X
);
  }
  Thread2() {
11:
lock(
Y
);
12: b = …
13:
lock(
X
);
14: a = …
15:
unlock(
X
);
16:
unlock(
Y
);
  }
X
Y

3

No problem
16
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Basic Deadlock
Prediction
 Technique

•
Potential cyclic deadlock detection algorithm [Harrow, SPIN 00]
–
Lock graph (
N
,
E
N
)
•
Create a node
n
X
 when a thread acquires lock
X
•
Create an edge (
n
X
,
n
Y
) when a thread acquires lock
Y
while holding lock
X
•
Remove
n
X
 , (n
X
,*) and (*, n
X
)
when a thread releases
X

Report potential deadlocks if the resulted graph at the
      end of an execution has a cycle

17

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

[Harrow, SPIN 00] J. J. Harrow, Jr.: Runtime checking of multithreaded applications
with Visual Threads, SPIN Workshop 2000
Potential Cyclic Deadlock Detection Example


t1:Thread 1
1
:lock(X)
2:a = …
3
:lock(Y)
4:b = …
5:
unlock(Y)

6:
unlock(X)

t2:Thread 2




11
:lock(Y)

12:b=...
13
:lock(X)
   ...

  Thread1() {
1:
lock(
X
)
2: a = … ;
3:
lock(
Y
)
4: b = … ;
5:
unlock(
Y
)
6:
unlock(
X
)
  }
  Thread2() {
11:
lock(
Y
)
12: b = … ;
13:
lock(
X
)
14: a = … ;
15:
unlock(
X
)
16:
unlock(
Y
)
  }
X
Y

3

13

Cycle

Potential deadlock
18
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Basic Deadlock Prediction Technique
•
The algorithm is commercialized as a SW tool
VisualThreads (
HP
)
•
Empirical results show that the algorithm is
very effective to discover hidden deadlock bugs
•
Challenge:
19
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

generate
many false positive
False Positive Example#1 – Single Thread Cycle
  Thread1() {
1:
 lock(
X
);
2:
  lock(
Y
);
3:
  unlock(
Y
);
4:
 unlock(
X
);
5:
 lock(
Y
);
6:
  lock(
X
);
7:
  unlock(
X
);
8:
 unlock(
Y
);
}
   Thread2() {
11:
 lock(
X
);
12:
 unlock(
X
);
13:
 lock(
Y
);
14:
 unlock(
Y
);
}
X
Y

2

5

The lock graph has a
cycle, but no deadlock

A cycle
that consists of edges
created by one thread is a
false positive
20
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
False Positive Example#2: Gate Lock
  Thread1() {
1:
 lock(
X
);
2:
  lock(
Y
);
3
:   lock(
Z
) ;
4
:   unlock(
Z
);
5:
  unlock(
Y
);
6:
 unlock(
X
);

}
   Thread2() {
11:
 lock(
X
);
12:
lock(
Z
)
;
13:
lock(
Y
)
 ;
14:
  unlock(
Y
)
;
15:
unlock(
Z
)
;
16:
 unlock(
X
);
X
Y
Z

3

13

3, 12

2, 13

Cycle, but no deadlock
Gate lock
(guard lock)
21
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
False Positive Example#3: Thread Creation
  f1(){
1:
 lock(
X
);
2:
  lock(
Y
);
3:
  unlock(
Y
);
4:
 unlock(
X
);

5:
start
(f2);
  }

Cycle, but no deadlock
   f2(){
11:
lock(
Y
)
 ;
12:
  lock(
X
);
13:
 unlock(
X
);
14:
 unlock(
Y
)
;
   }
X
Y

2

12
Thread
segment#1
Thread
segment#2
22
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
 main(){
0:
start
(f1);
 }

GoodLock Algorithm
[Agarwal, IBM 10]

•
Extend the lock graph in the basic potential deadlock detection
algorithm to consider
thread, gate lock,
and
 thread segment
•
Thread segment graph (
S
,
E
S
)
–
When

the main thread
t
0
 starts:
•
Create a thread segment node
s
0
 ;
•
map
t
0
 to
s
0
(
M
(
t
0
) =
s
0
);
•
n
 = 1.
–
When

a thread
t
i
 starts a new thread
t
j
•
Create two thread segment nodes
s
n

and
 s
n+1
;
•
Create two edges

(
M
(
t
i
)
, s
n
)
 and
(
M
(
t
i
)
, s
n+1
)
 ;
•
M
(
t
i
)
 = s
n
 ; M
(
t
j
)
 = s
n+1
;
•
n
=
 n
+
 2 ;


[Agarwal, IBM 10] R. Agarwal et al., Detection of deadlock potential in
multithreaded programs,  IBM Journal of Research and Development, 54(5), 2010

23

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Thread Segment Graph Example

  f1(){
1:
 lock(
X
);
2:
 lock(
Y
);
3:
start
(f2);
4:
 unlock(
Y
);
5:
 unlock(
X
);
}






  f2(){
11:
lock(
Y
)
 ;
12:
 lock(
X
);
13:
unlock(
X
);
14:
 unlock(
Y
)
;

main(){
0:
 …
1:
 start
(f1);
2: …
}

s
0

s
1

s
3

s
2

s
4
t0

: main()
t1: f1()
t2: f2()
s
0
s
1
s
2
s
4
s
3
24
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Extended Lock Graph

25

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Potential Deadlock Detection

26

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Thread Creation Example Revisit

  f1(){
1:
 lock(
X
);
2:
 lock(
Y
);
3:
start
(f2);
4:
 unlock(
Y
);
5:
 unlock(
X
);
}






  f2(){
11:
lock(
Y
)
 ;
12:
 lock(
X
);
13:
unlock(
X
);
14:
 unlock(
Y
)
;

main(){
0:
 …
1:
 start
(f1);
2: …
}

s
0

s
1

s
3

s
2

s
4

t0

: main()

t1: f1()

t2: f2()

27

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
X
Y

e
2
: (
n
Y
, (
s
4
,
t
2
, {Y},
s
4
),
n
X
)

e
1
: (
n
X
, (
s
2
,
t
1
, {X},
s
2
),
n
Y
)
s
0
s
1
s
2
s
4
s
3
Revising Singe Thread Cycle Example
main() {
1:
start
(Thread1);
2:
start
(Thread2);
}
Thread2() {
21:
 lock(
X
);
22:
 unlock(
X
);
23:
 lock(
Y
);
24:
 unlock(
Y
);
}
X
Y

e
1
: (
n
X
, (
s
2
,
t
1
,{X},
s
2
),
n
Y
)

e
2
: (
n
Y
, (
s
2
,
t
1
, {Y},
s
2
),
n
X
)
s
0
s
1
s
2
s
3
s
4
Thread1() {
11:
 lock(
X
);
12:
  lock(
Y
);
13:
  unlock(
Y
);
14:
 unlock(
X
);
15:
 lock(
Y
);
16:
  lock(
X
);
17:
  unlock(
X
);
18:
 unlock(
Y
);
}
28
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Revising Gate Lock Example
  Thread1() {
1:
 lock(
X
);
2:
  lock(
Y
);
3
:   lock(
Z
) ;
4
:   unlock(
Z
);
5:
  unlock(
Y
);
6:
 unlock(
X
);

}
   Thread2() {
11:
 lock(
X
);
12:
lock(
Z
)
;
13:
lock(
Y
)
 ;
14:
  unlock(
Y
)
;
15:
unlock(
Z
)
;
16:
 unlock(
X
);
X
Y
Z

e
1
: (
n
Y
, (
s
2
,
t
1
,
{X, Y}
,
s
2
),
n
Z
)

e
2
: (
n
Z
, (
s
4
,
t
2
,
{X, Z}
,
s
4
),
n
Z
)
main() {
 start(
Thread1
);
 start(
Thread2
);
}
s
0
s
1
s
2
s
3
s
4
29
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

Detecting Potential Deadlock
with Wait/Notify, Semaphore, etc*

*P. Joshi et al., An Effective Dynamic Analysis for Detecting Generalized Deadlocks, FSE 2010

30

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim

class
 BlockedBuffer {
 List buf =
new
 ArrayList();

int
 cursize = 0;

int
 maxsize;

 BlockedBuffer(
int
 max){
   maxsize = max;
 }

 sync
 boolean isFull(){

return
(cursize>=maxsize);
 }

 sync

boolean
 isEmpty(){

return
(cursize == 0) ;
 }

 sync

void
 resize(
int
 m){
   maxsize = m;
 }

Object get(){
  Object e;

sync
(
this
){

while
(isEmpty())
      wait
() ;
    e = buf.remove(0);

if
(isFull()){
      cursize--;
      notify
(); }

else
      cursize--; }

return
 e; }

sync

void
 put(Object e){

while
(isFull())
    wait
() ;
  buf.add(e);
  cursize++ ;

notify
(); }

Correct Execution Scenario

main() {
 BoundedBuffer bf =

new
 BoundedBuffer(1);
 (
new
 Thread1(bf)).start();
 (
new
 Thread2(bf)).start();
 (
new
 Thread3(bf)).start();}

Thread1(BoundedBuffer bf){
  bf.put(0);
  bf.put(1);}

Thread2(BoundedBuffer bf){
  bf.resize(10);}

Thread3(BoundedBuffer bf){
  bf.get();}

Thread1

Thread2

Thread3
bf.put(0)
bf.resize(10)
bf.put(1)
bf.get()

31

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Another Correct Execution Scenario
main() {
 BoundedBuffer bf =

new
 BoundedBuffer(1);
 (
new
 Thread1(bf)).start();
 (
new
 Thread2(bf)).start();
 (
new
 Thread3(bf)).start();}
Thread1(BoundedBuffer bf){
  bf.put(0);
  bf.put(1);}
Thread2(BoundedBuffer bf){
  bf.resize(10);}
Thread3(BoundedBuffer bf){
  bf.get();}
Thread1
Thread2
Thread3
bf.put(0)
bf.resize(10)
bf.put(1)
bf.get()
32
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
bf.put(1)
while(isFull())
    wait();
if(isFull()) {…
  notify() ; }
Deadlock Execution Scenario
main() {
 BoundedBuffer bf =

new
 BoundedBuffer(1);
 (
new
 Thread1(bf)).start();
 (
new
 Thread2(bf)).start();
 (
new
 Thread3(bf)).start();}
Thread1(BoundedBuffer bf){
  bf.put(0);
  bf.put(1);}
Thread2(BoundedBuffer bf){
  bf.resize(10);}
Thread3(BoundedBuffer bf){
  bf.get();}
Thread1
Thread2
Thread3
bf.put(0)
bf.resize(10)
bf.put(1)
bf.get()
33
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
while(isFull())
    wait();
if(isFull()) {…

notify() ;
 }
cursize=1

CHECKMATE: Trace Program Model Checking

•
Observe a multi-threaded program execution
•
Retain only the synchronization operations observed
during execution
–
Throw away all other operations like memory update and
method calls
•
Create a program from the retained operations (trace
program)
•
Model checking trace program
–
Check partial behaviors

34

CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
Trace Program Example

main() {
 bf = Lock();
 isFull=false;

start
(t1);

start
(t2);

start
(t3);}

t1() {

lock
(bf) ;

if
(isFull)

wait
(bf) ;
  isFull=
true
;

notify
(bf) ;

unlock
(bf);



lock
(bf);

if
(isFull)

wait
(bf) ;

notify
(bf);

unlock
(bf);}

t2() {

lock
(bf);
 isFull=
false
;

unlock
(bf);
}
t3() {

lock
(bf) ;

if
(isFull)

notify
(bf);

unlock
(bf);
}
Thread1
Thread2
Thread3
bf.put(0)
bf.resize(10)
bf.put(1)
bf.get()

bf.put(0)

bf.put(1)

bf.get()

bf.resize()
35
CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim









Slide Note





















Embed



Share
























This analysis delves into various bug detection techniques for concurrent programs, focusing on deadlock bugs. It explores model checking and testing techniques, discussing their precision, error detection capabilities, and scalability challenges. The prevalence of deadlock bugs in real-world applications is highlighted, underlining the importance of effective bug detection methods. Additionally, examples such as the dining philosopher problem illustrate resource deadlock scenarios in concurrent programs.





  •   Concurrency Bugs
    •

  •    Deadlock Detection
    •

  •    Bug Detection Techniques
    •

  •    Concurrent Programs
    •








										brrr392


											 brrr392 Follow







Uploaded on Sep 18, 2024 | 0 Views









Download Presentation





Please find below an Image/Link to download the presentation.


The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
									Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.






















 E N D





Presentation Transcript




  1. CS492B Analysis of Concurrent Programs Deadlock Bug Detection Techniques Prof. Moonzoo Kim CS KAIST 1
    2.



  2. Bug Detection Techniques for  Concurrent Programs Model checking techniques +  High precision +  Comprehensive error detection - Scalability  (state explosion problem) - Verification expertise is required test cases and thread schedules executions) - False alarms  Testing techniques +  High precision  +  Friendly to developers - Difficult to generate  (no need to generate many  Verification Bug detection techniques + Fast and convenient SPIN  jCute Fusion Java PathFinder CHESS Precision KISS  CalFuzzer ConTest rstest Atomizer  Eraser  RacerX MetaL False alarm 100~1,000 LOC 1,000,000 LOC < Scalability 2 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    3.



  3. Deadlock Bugs Frequently Occur in Real World     In a survey on 105 real-world concurrency bugs in open- source applications, 31 out of 105 bugs are deadlock bugs  [Lu et al., ASPLOS 08] 3 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    4.



  4. Deadlock Bugs Frequently Occur in Real World     According to Apache  bug tracking systems,  there have been  200  deadlock related issues  since 2014 4 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    5.



  5. Deadlock     A deadlock occurs when each of a set of threads  is blocked, waiting for another thread in the set  to satisfy certain condition release shared resource raise event 5 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    6.



  6. Resource Deadlock     Ex. Dining philosopher problem 1. Think 2. If left fork is available,  pick it up 3. If right fork is available,  pick it up 4. Eat 5. Put the right folk down 6. Put the left folk down [Milner] [Dijkstra] [Milner] [Dijkstra] Folk#1 Pick up Folk#1 Pick up Folk#1 Pick up Folk#2 Pick up Folk#2 Wait for  Folk#2 Folk#2 Pick up Folk#2 Wait for  Folk#1 Pick up Folk#1 6 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    7.



  7. Resource Deadlock in Concurrent Programs     ABBA deadlock Thread1() { 1: lock(X) 2: x =     ; 3: lock(Y) 4: y =     ; 5: unlock(Y) 6: unlock(X) } Thread2() { 11: lock(Y) 12: y =     ; 13: lock(X) 14: x =     ; 15: unlock(X) 16: unlock(Y) } t1: Thread 1 t2: Thread 2 1:lock(X) 2:x =     11:lock(Y) 12:y=... 3:lock(Y) 13:lock(X) 7 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    8.



  8. Excerpt from the wikipedia Non-blocking Algorithm     An algorithm is called non-blocking if failure or suspension of any thread  cannot cause failure or suspension of another thread     a non-blocking algorithm is lock-free if there is guaranteed system-wide  progress, and wait-free if there is also guaranteed per-thread progress. Blocking a thread is undesirable for many reasons while non-blocking  algorithms do not suffer from these downsides     while the thread is blocked, it cannot accomplish anything      certain interactions between locks can lead to error conditions such as  deadlock, livelock, and priority inversion.      using locks involves a trade-off between coarse-grained locking, which can  significantly reduce opportunities for parallelism, and fine-grained locking,  which requires more careful design, increases locking overhead and is more  prone to bugs.     8 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    9.



  9. Communication Deadlock     Lost notify Thread1() { 1: ... 2: for(i=0;i<10;i++){ 3:  wait(m) ;} } Thread2() { 11: ... 12: for(j=0;j<10;j++){ 13: notify(m);} } t2: Thread 2 t1: Thread 1 3:wait(m)//i==0     13:notify(m)//j==0     13:notify(m)//j==9 (terminate) 3:wait(m)//i==9 9 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    10.



  10. Excerpt from the Java reference manual public final void wait()     Causes the current thread to wait until another thread invokes the notify()  method or the notifyAll() method for this object.      The current thread must own this object's monitor.      The thread releases ownership of this monitor and waits until another thread notifies  threads waiting on this object's monitor to wake up either through a call to the notify  method or the notifyAll method. The thread then waits until it can re-obtain ownership  of the monitor and resumes execution.     Interrupts and spurious wakeups are possible, and this method should  always be used in a loop: synchronized (obj) { while (<condition does not hold>) obj.wait(); ... // Perform action appropriate to condition } See the following stackoverflow discussion: http://stackoverflow.com/questions/105059 2/do-spurious-wakeups-actually-happen 10 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    11.



  11. Excerpt from the Java reference manual public final void notify()     Wakes up a single thread that is waiting on this object's monitor.      If any threads are waiting on this object, one of them is chosen to be awakened. The  choice is arbitrary and occurs at the discretion of the implementation.       The awakened thread will not be able to proceed until the current  thread relinquishes the lock on this object.      The awakened thread will compete in the usual manner with any other threads that  might be actively competing to synchronize on this object; for example, the  awakened thread enjoys no reliable privilege or disadvantage in being the next  thread to lock this object.     This method should only be called by a thread that is the owner of  this object's monitor. A thread becomes the owner of the object's  monitor in one of three ways:     By executing a synchronized instance method of that object.     By executing the body of a synchronized statement that synchronizes on the object.     For objects of type Class, by executing a synchronized static method of that class. 11 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    12.



  12. Finding Deadlock Bugs is Difficult     A deadlock bug induces deadlock situations  only under certain thread schedules     Systems software creates a massive number  of locks for fine-grained concurrency controls     Function caller-callee relation complicates  the reasoning about possible nested lockings 12 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    13.



  13. Bug Detection Approach Resource deadlock     Basic potential deadlock detection algorithm     GoodLock algorithm Communication deadlock     CHECKMATE: a trace program model-checking  technique for deadlock detection 13 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    14.



  14. Basic Potential Deadlock Detection     Extend the cyclic deadlock monitoring algorithm     Cyclic deadlock monitoring algorithm (e.g. LockDep)     Monitor lock acquires and releases in runtime     Lock graph (N, EN)     Create a node nXwhen a thread acquires lock X     Create an edge (nX, nY) when a thread acquires lock Y while holding lock X     Remove nX, (nX,*) and (*, nX) when a thread releases X     Report deadlock when the graph has any cycle 14 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    15.



  15. Cyclic Deadlock Detection Example (1/2) Thread1() { 1: lock(X) 2: a =     ; 3: lock(Y) 4: b =     ; 5: unlock(Y) 6: unlock(X) } Thread2() { 11: lock(Y) 12: b =     ; 13: lock(X) 14: a =     ; 15: unlock(X) 16: unlock(Y) } t1: Thread 1 t2: Thread 2 1:lock(X) 2:a =     11:lock(Y) 12:b=... 3:lock(Y) 13:lock(X) 3 X Y Deadlock detected! 13 15 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    16.



  16. Cyclic Deadlock Detection Example (2/2) t1: Thread 1 1:lock(X) 2:a =     3:lock(Y) 4:b =     5:unlock(Y) t2: Thread 2 Thread1() { 1: lock(X); 2: a =      3: lock(Y); 4: b =      5: unlock(Y); 6: unlock(X); } Thread2() { 11: lock(Y); 12: b =      13: lock(X); 14: a =      15: unlock(X); 16: unlock(Y); } 11:lock(Y) 6:unlock(X) 12:b =... 13:lock(X) 14:a =... 15:unlock(X) 16:unlock(Y) 3 XX X YYY No problem X Y 13 16 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    17.



  17. Basic Deadlock Prediction Technique     Potential cyclic deadlock detection algorithm [Harrow, SPIN 00]     Lock graph (N, EN)     Create a node nXwhen a thread acquires lock X     Create an edge (nX, nY) when a thread acquires lock Y while holding lock X     Remove nX, (nX,*) and (*, nX) when a thread releases X     Report potential deadlocks if the resulted graph at the  end of an execution has a cycle [Harrow, SPIN 00] J. J. Harrow, Jr.: Runtime checking of multithreaded applications  with Visual Threads, SPIN Workshop 2000 17 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    18.



  18. Potential Cyclic Deadlock Detection Example t1:Thread 1 1:lock(X) 2:a =     3:lock(Y) 4:b =     5:unlock(Y) t2:Thread 2 Thread1() { 1: lock(X) 2: a =     ; 3: lock(Y) 4: b =     ; 5: unlock(Y) 6: unlock(X) } Thread2() { 11: lock(Y) 12: b =     ; 13: lock(X) 14: a =     ; 15: unlock(X) 16: unlock(Y) } 11:lock(Y) 6:unlock(X) 12:b=... 13:lock(X) ... 3 X Y Cycle         Potential deadlock 13 18 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    19.



  19. Basic Deadlock Prediction Technique     The algorithm is commercialized as a SW tool  VisualThreads (HP)     Empirical results show that the algorithm is  very effective to discover hidden deadlock bugs     Challenge: generate many false positive 19 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    20.



  20. False Positive Example#1  Single Thread Cycle 2 Thread1() { 1: lock(X); 2: lock(Y); 3: unlock(Y); 4: unlock(X); Thread2() { 11: lock(X); 12: unlock(X); X Y 13: lock(Y); 14: unlock(Y);} 5 The lock graph has a  cycle, but no deadlock 5: lock(Y); 6: lock(X); 7: unlock(X); 8: unlock(Y);} A cycle that consists of edges  created by one thread is a  false positive 20 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    21.



  21. False Positive Example#2: Gate Lock Thread1() { 1: lock(X); 2: lock(Y); 3:   lock(Z) ; 4:   unlock(Z); 5: unlock(Y); 6: unlock(X); } Thread2() { 11: lock(X); 12:  lock(Z) ; 13:   lock(Y) ; 14:  unlock(Y); 15:  unlock(Z); 16: unlock(X); Gate lock (guard lock) Cycle, but no deadlock 3 Y 2, 13 13 X Z 3, 12 21 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    22.



  22. False Positive Example#3: Thread Creation Thread  segment#1 Thread  segment#2 main(){ 0:  start(f1); } f1(){ 1: lock(X); 2: lock(Y); 3: unlock(Y); 4: unlock(X); 5: start(f2);  } 2 f2(){ 11: lock(Y) ; 12: lock(X); 13: unlock(X); 14: unlock(Y); } Cycle, but no deadlock X Y 12 22 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    23.



  23. GoodLock Algorithm[Agarwal, IBM 10]     Extend the lock graph in the basic potential deadlock detection algorithm to consider thread, gate lock, and thread segment     Thread segment graph (S, ES)     When the main thread t0starts:     Create a thread segment node s0;     map t0to s0  (M(t0) = s0);      n = 1.     When a thread tistarts a new thread tj     Create two thread segment nodes snand sn+1 ;     Create two edges (M(ti), sn) and (M(ti), sn+1) ;     M(ti) = sn; M(tj) = sn+1 ;      n = n + 2 ; [Agarwal, IBM 10] R. Agarwal et al., Detection of deadlock potential in  multithreaded programs,  IBM Journal of Research and Development, 54(5), 2010 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim 23
    24.



  24. Thread Segment Graph Example t0: main() t1: f1() t2: f2() main(){ 0:     1: start(f1); 2:     } s0 s1 s2 f1(){ 1: lock(X); 2: lock(Y); 3: start(f2); 4: unlock(Y); 5: unlock(X);} s4 s3 f2(){ 11: lock(Y) ; 12: lock(X); 13: unlock(X); 14: unlock(Y); s4 s0 s2 s1 s3 24 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    25.



  25. Extended Lock Graph     Lock graph (N, EN)     Create a node nXwhen a thread acquires lock X     Create an edge (nX, L, nY) when a thread acquires lock Y while  holding lock X, where  L = (s1, t, G, s2)     s1: the thread segment (s1    S) where lock X was acquired     t: the thread that acquires lock Y     G: the set of locks that t holds when it acquires Y     s2: the thread segment where lock Y was acquired 25 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    26.



  26. Potential Deadlock Detection     A cycle is valid (i.e., true positive) when every pair of edges  (m11, (s11, t1, G1, s12), m12), and (m21, (s21, t2, G2, s22), m22) in the  cycle satisfies:     ?1    ?2, and     ?1    ?2=     , and       (?12    ?21)    The happens-before relation     is the transitive  closure of the relation R such that ?1,?2     ? if there exists the edge from ?1 to ?2 in the thread  segment graph 26 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    27.



  27. Thread Creation Example Revisit t0: main() t1: f1() t2: f2() main(){ 0:     1: start(f1); 2:     } s0 s1 s2 f1(){ 1: lock(X); 2: lock(Y); 3: start(f2); 4: unlock(Y); 5: unlock(X);} s4 s3 f2(){ 11: lock(Y) ; 12: lock(X); 13: unlock(X); 14: unlock(Y); e1: (nX, (s2, t1, {X}, s2), nY) X Y s4 s0 s2 e2: (nY, (s4, t2, {Y}, s4), nX) s1 s3 27 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    28.



  28. Revising Singe Thread Cycle Example Thread1() { 11: lock(X); 12: lock(Y); 13: unlock(Y); 14: unlock(X); Thread2() { 21: lock(X); 22: unlock(X); main() { 1: start(Thread1); 2: start(Thread2); } 23: lock(Y); 24: unlock(Y);} 15: lock(Y); 16: lock(X); 17: unlock(X); 18: unlock(Y);} e1: (nX, (s2, t1,{X}, s2), nY) s0 s2 X Y s1 s4 s3 e2: (nY, (s2, t1, {Y}, s2), nX) 28 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    29.



  29. Revising Gate Lock Example main() { start(Thread1); start(Thread2); } Thread1() { 1: lock(X); 2: lock(Y); 3:   lock(Z) ; 4:   unlock(Z); 5: unlock(Y); 6: unlock(X); } Thread2() { 11: lock(X); 12:  lock(Z) ; 13:   lock(Y) ; 14:  unlock(Y); 15:  unlock(Z); 16: unlock(X); Y e1: (nY, (s2, t1, {X, Y}, s2), nZ) s0 s2 e2: (nZ, (s4, t2, {X, Z}, s4), nZ) s1 s4 X Z s3 29 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    30.



  30. Detecting Potential Deadlock  with Wait/Notify, Semaphore, etc* class BlockedBuffer { List buf = new ArrayList(); int cursize = 0;  int maxsize; sync void put(Object e){ while(isFull())   wait() ; buf.add(e);  cursize++ ; notify(); } BlockedBuffer(int max){ maxsize = max; } Object get(){ Object e; sync(this){ while(isEmpty())  wait() ; e = buf.remove(0); if(isFull()){ cursize--;  notify(); } else cursize--; } return e; } sync boolean isFull(){ return(cursize>=maxsize); } sync boolean isEmpty(){ return(cursize == 0) ; } sync void resize(int m){ maxsize = m; } *P. Joshi et al., An Effective Dynamic Analysis for Detecting Generalized Deadlocks, FSE 2010 30 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    31.



  31. Correct Execution Scenario main() { BoundedBuffer bf = new BoundedBuffer(1); (new Thread1(bf)).start(); (new Thread2(bf)).start(); (new Thread3(bf)).start();} Thread1 Thread2 Thread3 bf.put(0) bf.resize(10) Thread1(BoundedBuffer bf){ bf.put(0); bf.put(1);} bf.put(1) bf.get() Thread2(BoundedBuffer bf){ bf.resize(10);} Thread3(BoundedBuffer bf){ bf.get();} 31 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    32.



  32. Another Correct Execution Scenario main() { BoundedBuffer bf = new BoundedBuffer(1); (new Thread1(bf)).start(); (new Thread2(bf)).start(); (new Thread3(bf)).start();} Thread1 Thread2 Thread3 while(isFull())  wait(); bf.put(0) bf.put(1) if(isFull()) {    notify() ; } Thread1(BoundedBuffer bf){ bf.put(0); bf.put(1);} bf.get() bf.put(1) Thread2(BoundedBuffer bf){ bf.resize(10);} bf.resize(10) Thread3(BoundedBuffer bf){ bf.get();} 32 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    33.



  33. Deadlock Execution Scenario main() { BoundedBuffer bf = new BoundedBuffer(1); (new Thread1(bf)).start(); (new Thread2(bf)).start(); (new Thread3(bf)).start();} Thread1 Thread2 Thread3 while(isFull())  wait(); bf.put(0) bf.put(1) Thread1(BoundedBuffer bf){ bf.put(0); bf.put(1);} cursize=1 bf.resize(10) if(isFull()) {    notify() ; } Thread2(BoundedBuffer bf){ bf.resize(10);} bf.get() Thread3(BoundedBuffer bf){ bf.get();} 33 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    34.



  34. CHECKMATE: Trace Program Model Checking     Observe a multi-threaded program execution     Retain only the synchronization operations observed  during execution     Throw away all other operations like memory update and  method calls     Create a program from the retained operations (trace  program)     Model checking trace program     Check partial behaviors 34 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    35.



  35. Trace Program Example main() { bf = Lock(); isFull=false; start(t1); start(t2); start(t3);} bf.resize() t2() { lock(bf); isFull=false; unlock(bf); } Thread1 Thread2 Thread3 bf.put(0) bf.put(0) t1() { lock(bf) ; if(isFull) wait(bf) ; isFull=true; notify(bf) ; unlock(bf); bf.put(1) bf.get() t3() { lock(bf) ; if(isFull) notify(bf); unlock(bf); } bf.put(1) bf.get() bf.resize(10) lock(bf); if(isFull) wait(bf) ; notify(bf); unlock(bf);} 35 CS492B Analysis of Concurrent Programs, Prof. Moonzoo Kim
    36.














Related
























              Fighting Bed Bugs NYC Bed Bug Treatments and Exterminators





Fighting Bed Bugs NYC Bed Bug Treatments and Exterminators


VJ


















              Arkansas Concurrent Challenge Scholarship Program Details





Arkansas Concurrent Challenge Scholarship Program Details


vela


















              Deadlocks in Operating Systems





Deadlocks in Operating Systems


zahava


















              Database Deadlocks and Detection





Database Deadlocks and Detection


pear


















              Deadlock: Conditions, Detection, and Avoidance





Deadlock: Conditions, Detection, and Avoidance


arjan


















              Deadlock Avoidance in Operating System Concepts





Deadlock Avoidance in Operating System Concepts


lior


















              Deadlock in Shareholders Disputes





Deadlock in Shareholders Disputes


anatoly
