Presentation Transcript

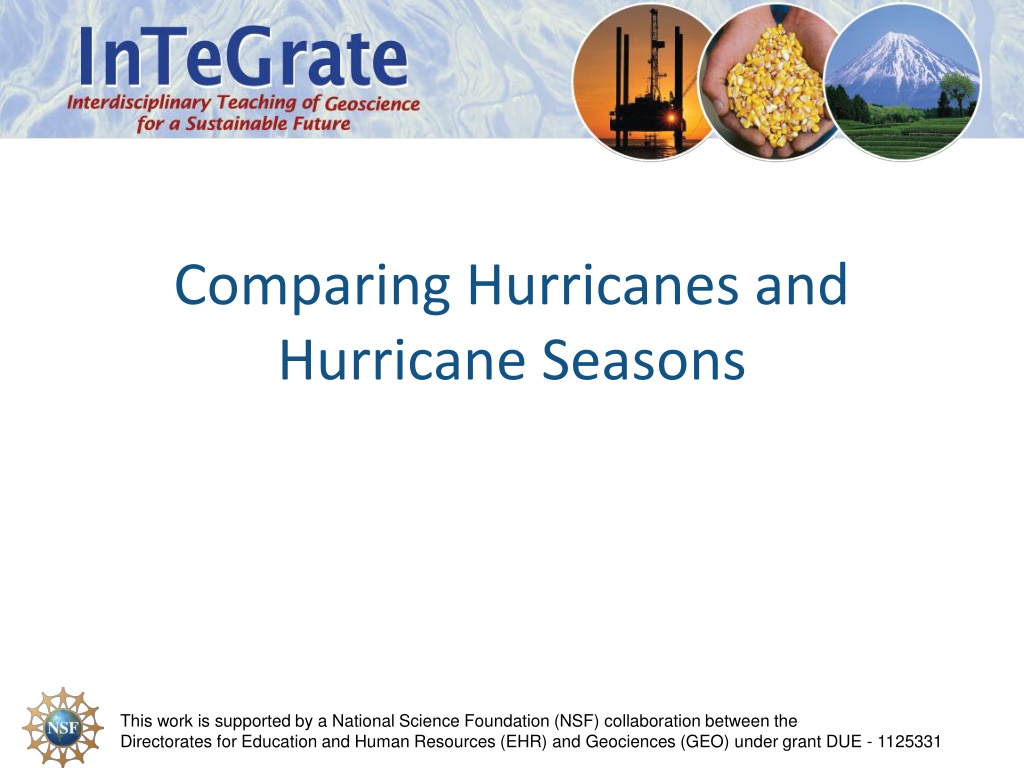

1. Comparing Hurricanes and Hurricane Seasons This work is supported by a National Science Foundation (NSF) collaboration between the Directorates for Education and Human Resources (EHR) and Geociences (GEO) under grant DUE - 1125331

2. Saffir-Simpson Scale Based on wind speed: What is a hurricane? What 4 conditions are necessary for hurricane formation What happens as hurricanes approach land? Hurricane Category 5 Hurricane Category 4 Category Maximum Sustained Wind Speed (knots) 157 130 156 Hurricane Category 3 111 129 Hurricane Category 2 96 110 Hurricane Category 1 74 95 Tropical Storm 39 73 Tropical Depression 0 38 Hurricanes that are Category 3 or higher (>111 knots) are called major hurricanes.

3. Accumulated Cyclone Energy ACE =10-4 (maximum wind speed in knots)2 maximum sustained winds every 6 hours

4. Example: Irene (2011) day 9/8/11 9/8/11 9/8/11 9/8/11 9/9/11 9/9/11 9/9/11 9/9/11 9/10/11 9/10/11 9/10/11 9/10/11 9/11/11 9/11/11 9/11/11 9/11/11 time 0 600 1200 1800 0 600 1200 1800 0 600 1200 1800 0 600 1200 1800 max sust winds (kt) 45 50 55 65 65 55 50 45 45 45 50 55 55 50 40 35 total ACE (10^-4 kt^2) 0.2025 0.25 0.3025 0.4225 0.4225 0.3025 0.25 0.2025 0.2025 0.2025 0.25 0.3025 0.3025 0.25 0.16 0.1225 4.15

5. Example: 2011 Total ACE (104kt ) Storm: 1 27.0 Katia 11 2.22 Emily 2 18.8 Irene 12 1.88 Arlene 3 18.7 Ophelia 13 1.85 Gert 4 15.9 Philippe 14 1.79 Lee 5 10.1 Rina 15 1.62 Don 6 9.17 Maria 16 1.53 Harvey 7 4.31 Nate 0.848 Unnamed 17 8 3.75 Sean 0.848 Jose 9 3.28 Bret 19 0.283 Franklin 10 2.31 Cindy Is a seasonal total ACE of 126 above normal? Below normal? Normal? Total: 126

6. ACE Season Totals Season type ACE (x 104 kt2) Above normal Above 150 Near normal 100-150 Below normal Below 100 What was last season s ACE total? http://www.srh.noaa.gov/bro/?n=2012event_hurricaneseasonwrap

7. Seasonal Outlooks There is great interest in trying to predict: How many hurricanes, major hurricanes? WHY? General awareness/preparedness Some predictions about climate are useful for deciding what crops to plant HOWEVER we cannot yet predict specific hurricanes more than a few days in advance

8. figure3.gif

9. We are currently in a high-activity era More total storms per year More big storms per year And more energy released by all the hurricanes combined in a year (ACE)

11. The latest . . . nhc.jpg

12. Looking at the most recent hurricane season outlook for the Atlantic Ocean: http://www.cpc.ncep.noaa.gov/products/outl ooks/ What implications can you imagine for this outlook (above-normal, normal, or below- normal) for 1. a farmer in Georgia? 2. a governor in New Jersey? 3. your own life? Plant more drought-resistant or water-loving crops? Allocate funds for education and evacuation? Cut tree limbs near house? Restock emergency kit?

13. Summary How big is a hurricane? Saffir-Simpson scale ACE Index calculation Multi-decadal cycles (high/low activity eras) Seasonal outlooks and applications to society

14. References and Reuse Slide 4. Data in public domain. http://en.wikipedia.org/wiki/2011_Atlantic_hurricane_season Slides 4 and 5. Data in public domain . . . Can be updated for different years and hurricanes: http://rammb.cira.colostate.edu/products/tc_realtime/ Slide 6. Screenshot from NOAA. Website in public domain. http://www.srh.noaa.gov/bro/?n=2012event_hurricaneseasonwrap Slide 8. Screenshot from NOAA. Website in public domain. http://www.cpc.ncep.noaa.gov/products/outlooks/hurricane2012/August/figure3. gif Slide 10. Screenshot from NOAA. Website in public domain. http://www.cpc.ncep.noaa.gov/products/outlooks/figure2.gif Slide 11. Screenshot from NOAA. Website in public domain. http://www.nhc.noaa.gov/ Slide 12 refers to Hurricane Outlooks at: http://www.cpc.ncep.noaa.gov/products/outlooks/
