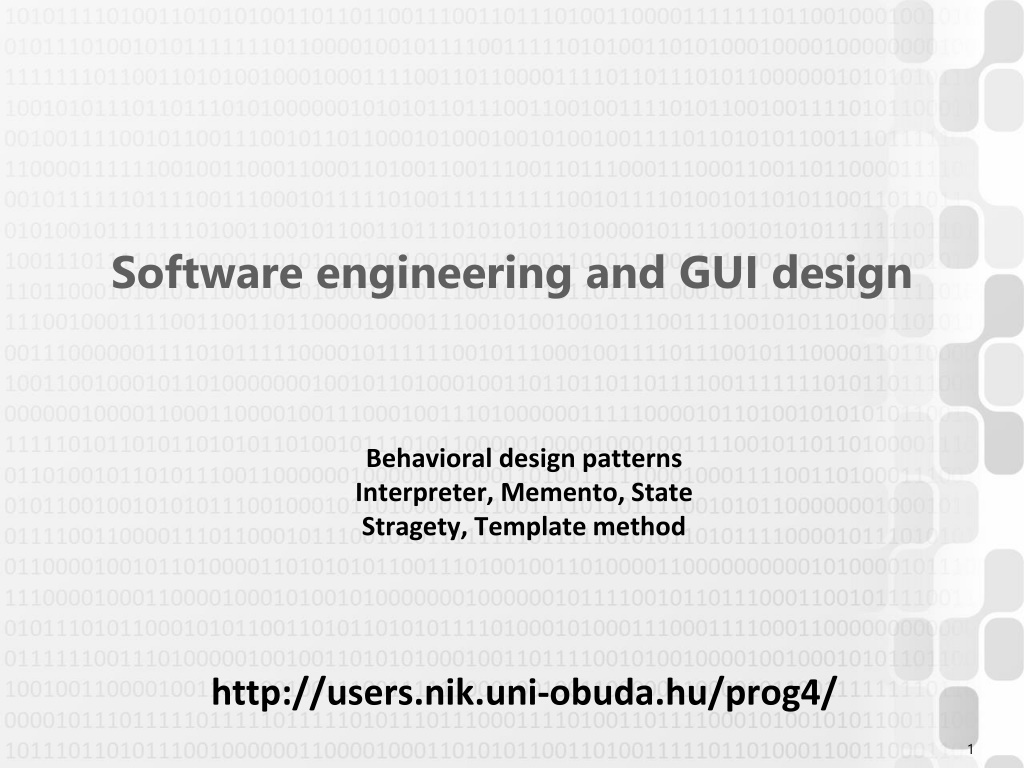

undefinedSoftware engineering and
GUI
design
Behavioral
design patterns
Interpreter, Memento, State
Stragety, Template method
1
http://users.nik.uni-obuda.hu/prog4/
2
Behavioral Design Patterns
3
Interpreter
4
expression ::= literal | alternation | sequence | repetition | '(' expression ')'alternation ::= expression '|' expression
sequence ::= expression '&' expression
repetition ::= expression '*'
literal ::= 'a' | 'b' | 'c' | ... { 'a' | 'b' | 'c' | ... }*Interpreter
5
raining & (dogs | cats) *
Interpreter
6
Interpreter
•
In principle
:
using formal language/grammar rules of expressions,
convert arbitrary input to arbitrary output
•
Too generic, rarely useable, complicated pattern
•
Only useable with simple languages (with a complex grammar,
the class hierarchy can get extremely complex)
•
The class hierarchy is not optimal regarding memory and cpu
issues, either
–
For example, regular expressions are processed using much
more efficient and faster “state machine” methods instead of
slow and painful syntax trees
7
Interpreter – C#
8
CALL OR GET INFO
Interpreter – C#
9
Interpreter – C#
10
Interpreter – C#
11
Interpreter – C#
12
•
This is a more common
use case:
an
Expression
will not produce a
final output on its own, but rather multiple Expressions are called
after each other, and they gradually modify the output property
of the context
Interpreter – C#
13
Interpreter – C#
14
Interpreter – C#
15
Interpreter – C#
16
Memento
17
•
Save and restore previous state
•
Originator =
original object
Memento =
store a single state
(OOP: private class?)
Caretaker =
handle multiple states
(OOP: private class?)
•
The Originator is responsible for saving its own state into a
Memento instance, and restore its state from a Memento
instance
Memento – C#
18
•
The
Save()’s
parameter
:
the important data (the full instance is
rare, as most of the times, private datafields are also saved)
Memento – C#
19
Memento – C#
20
Memento – C#
21
State
22
•
„Memento” state =
full object state, the important data
fields/properties
•
„State” state =
one single data field, that stores the current status
of the instance
State
•
State chains can get complex, especially with many states / state
transitions
•
Without the pattern
: „spagetti-
code
”,
same or similar chain of
complex checks in multiple business logic methods
23
State –
Implementation alternatives
•
Common implementation rules
–
Context class, with a single State property
–
Every different state requires a different suitable class
–
The state-classes have state-changing methods
–
In the state-changing methods, we perform business logic
checks / conditions and then we change the state:
24
•
Variants
–
State-changing methods
=
business logic methods
E.g
.
bug tickets
,
Proposed, Open, Resolved, Closed
MoveForward(), MoveBackward(), Reject(), Reopen()
–
State-changing method
=
a single
state supervisor method
E.g
.
bank accounts
, Bronze, Silver, Gold
Deposit(), Withdraw(), PayInterest()
State – C#, Tickets
25
State – C#, Tickets
26
State – variant 1
•
Typical modell
: State Transition Table
–
F(
currentState
,
operation
)
Conditions
+
New state
•
Pro
–
VERY
easy, clear structure
–
Easy to extend
–
Every code has its clear place
•
Con
–
Many states
,
many BL
MANY
2
methods
,
mostly empty
(STT: 1
cell
= 1
method
; UML State Diagram: 1
possible
arrow
=
1
method
)
–
„S”OLID violation?
Does not define logic, but knows about…
•
Can be good if you have few states/operations but lots of state
changes (implements them into a good structure
)
•
Disturbing if many states/operations
(
LOTS OF empty methods
)
27
State – C#, bank account
28
State – C#, bank account
29
State – C#, bank account
30
State – variant 2
•
Typical model
: UML state diagram
•
„
Prettier
”
solution
–
Better suited for the
SOLID
principles
–
The state classes have ZERO business logic code
–
No unnecessary empty methods
–
However
:
we extract the state changed from the Context class,
BUT the Context must know when a state change might occur
–
this is not obviously nice
•
The
EnsureState()
method can get too complex
–
Every state in the UML diagram means one EnsureState method
–
With complex state systems, this method can get too big
–
Solution
: Chain of Responsibility,
but this increases the number
of classes
31
Behavioral Design Patterns
32
Strategy, Template method
•
Basic patterns describing the main
OOP
principles
–
Describes the meaningful use of virtual methods
(S”OL”ID)
–
Dependency injection (
with abstract classes
: SOLI”D”)
–
Related
(structural)
patterns
: Adapter, Bridge
•
Used every day, even with the most simple programs
–
Strategy:
a full operation is dependent on the descendant class
(DI with
base
class)
–
Template:
the operation is defined by the base class, some steps
can be defined in the descendants (virtual methods, DI with
base class)
–
Adapter:
How can we substitute a class/interface with a
different one
(DI with interface)
–
Bridge:
Decomposition of hierarchies
(DI with base class)
•
Dependency Injection???
–
GoF(1994); Martin Fowler (2004)
33
Strategy
34
Strategy – C#
35
Template method
36
Template method – C#
37
Template method – C#
38
Strategy, Template method
•
Practically the most widely used design pattern
s
in any system (of
any size!)
•
Strategy: „How to implement and use a library hierarchy?”
–
The base class
(interface?)
is fixed
–
We write code that uses the base class
–
Any descendant instance can be used later
–
Our code calls the hierarchy’s code
•
Template: „How to implement and use a framework?”
–
The base class defines the possibilities
–
The base class is used by a full business logic/process
–
We write code that utilizes the rules/possibilities of the base
class (usually only a fraction of those)
–
The externally defined
business
process will call our code
39
Strategy = ASP.NET Core Identity
•
A completely generic approach, does not care which descendant
(= login
implementation
)
is used
40
•
PROG3, PROG4:
The Logic does not care which data storage
implementation is used
Template =
MVC
Framework
41
•
PROG4
–
During the render process, the
WPF
will SOMEWHERE call the
OnRender()
method of the
FrameworkElement
descendants
–
WPF
will SOMEHOW call the event handler/Command member
–
ASP.NET will SOMEHOW call the Action handler method
Thank you for your attention
Behavioral
design patterns
Interpreter, Memento, State
Stragety, Template method
42
http://users.nik.uni-obuda.hu/prog4/
