Geometry Fundamentals Overview

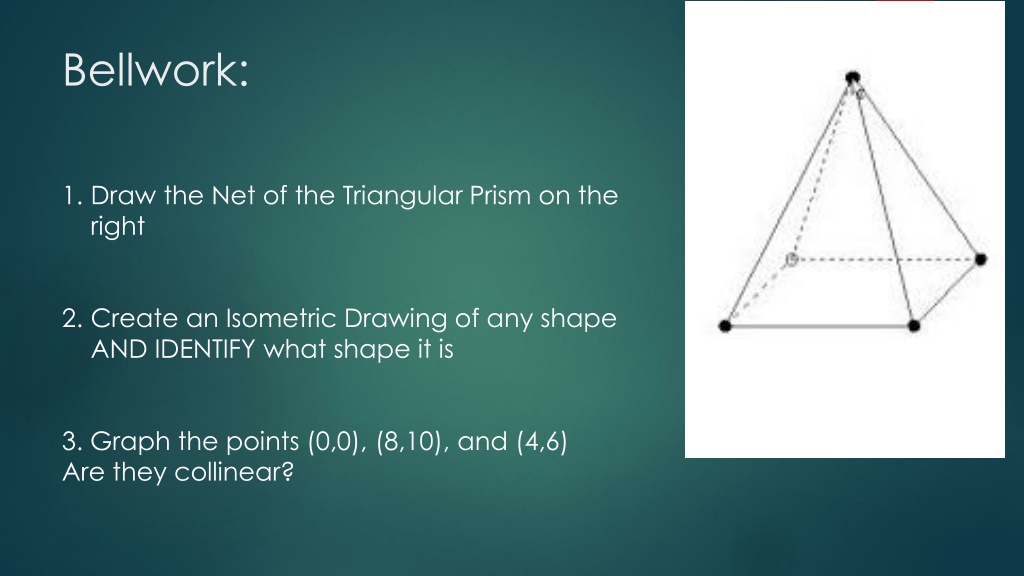

Bellwork:

1.
Draw the Net of the Triangular Prism on the
right


2.
Create an Isometric Drawing of any shape
AND IDENTIFY what shape it is


3. Graph the points (0,0), (8,10), and (4,6)
Are they collinear?

1.2-Points, Lines,
and Planes(Cont.)



How to name things…
Lines?
Points?
Planes?
Segments?
Rays?
Postulates

Postulate 1-1
Through any two points there is exactly one line

Postulate 1-2
If two distinct lines intersect, they do so in exactly one point

What about Planes?


What is the intersection
of planes BFE and FEH?


In general, what is the
intersection of two
planes?


Postulate 1-4
Through any three non-collinear points there is
exactly one plane

1.3 – Measuring Segments

What is a
Coordinate
?

How do we find the distance between
two points?

How do we cut a segment in half?


So, what IS a coordinate?

2D Coordinates


3D, too!


Measuring Segment Lengths

To find the distance between two
coordinates (in 1D) find the absolute value
of the difference in coordinates


What is the  distance between point A
and B?

A
A

B
B


Postulate 1-6
If A,B, and C are collinear points, and B is between
A and C, then AB+BC=AC

Using Postulate 1-6

What is the length of AC?







If AC=62, find AB and BC



If AC=232, find AB and BC

5x+3
5x+3

10
10
x+4
x+4

Definition

Two objects are said to be
congruent
when they are similar. If two figures are
congruent, they will appear the same
when superimposed

Two line segments are congruent when
they have the same length

Problem 3 – page 22

A
A

B
B

C
C

D
D

Definition:

The
Midpoint
of a segment is the point that
divides the segment into two congruent
segments.
A point, line, ray, or other segment that
intersects a segment at its midpoint is said
to
bisect
the segment. That point, line, ray,
or segment is called a
segment bisector

Using the Midpoint: Problem 4 –
page 23

Homework:

Section 1.1: 17, 20, 22
Section 1.2: 8, 9, 12, 15, 33, 53, 65, 75,
78
Section 1.3 : 9, 13, 17, 20, 35, 37


Online textbook: pearsonrealize.com

Username:  student_ID@edu.leonschools.net.     This is actually the
students' computer login information as well.
Password is:  Lcs6789!  Students can change passwords when they
are in the system.
Slide Note
Embed
Share

Explore key concepts in geometry such as points, lines, planes, segments, and measurements. Learn about postulates, coordinates in 2D and 3D, and calculating distances between points.

  • Geometry Fundamentals
  • Points Lines Planes
  • Coordinate Systems
  • Distance Measurement
  • Postulates

Uploaded on Sep 30, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. Bellwork: 1. Draw the Net of the Triangular Prism on the right 2. Create an Isometric Drawing of any shape AND IDENTIFY what shape it is 3. Graph the points (0,0), (8,10), and (4,6) Are they collinear?

  2. 1.2-Points, Lines, and Planes(Cont.)

  3. How to name things Lines? Points? Planes? Segments? Rays?

  4. Postulates Postulate 1-1 Through any two points there is exactly one line Postulate 1-2 If two distinct lines intersect, they do so in exactly one point What about Planes?

  5. What is the intersection of planes BFE and FEH? In general, what is the intersection of two planes?

  6. Postulate 1-4 Through any three non-collinear points there is exactly one plane

  7. 1.3 Measuring Segments What is a Coordinate? How do we find the distance between two points? How do we cut a segment in half?

  8. So, what IS a coordinate?

  9. 2D Coordinates

  10. 3D, too!

  11. Measuring Segment Lengths To find the distance between two coordinates (in 1D) find the absolute value of the difference in coordinates

  12. What is the distance between point A and B? A B

  13. Postulate 1-6 If A,B, and C are collinear points, and B is between A and C, then AB+BC=AC

  14. Using Postulate 1-6 What is the length of AC?

  15. If AC=62, find AB and BC

  16. If AC=232, find AB and BC 5x+3 10x+4

  17. Definition Two objects are said to be congruent when they are similar. If two figures are congruent, they will appear the same when superimposed Two line segments are congruent when they have the same length

  18. Problem 3 page 22 Are ?? and ?? congruent? A B C D

  19. Definition: The Midpoint of a segment is the point that divides the segment into two congruent segments. A point, line, ray, or other segment that intersects a segment at its midpoint is said to bisect the segment. That point, line, ray, or segment is called a segment bisector

  20. Using the Midpoint: Problem 4 page 23 If we know that Q is the midpoint of ??, how can we find PQ, QR, and PR?

  21. Homework: Section 1.1: 17, 20, 22 Section 1.2: 8, 9, 12, 15, 33, 53, 65, 75, 78 Section 1.3 : 9, 13, 17, 20, 35, 37

  22. Online textbook: pearsonrealize.com Username: student_ID@edu.leonschools.net. This is actually the students' computer login information as well. Password is: Lcs6789! Students can change passwords when they are in the system.
