Forces and Stopping Distances in Vehicle Safety


Forces on the road
Stopping a vehicle

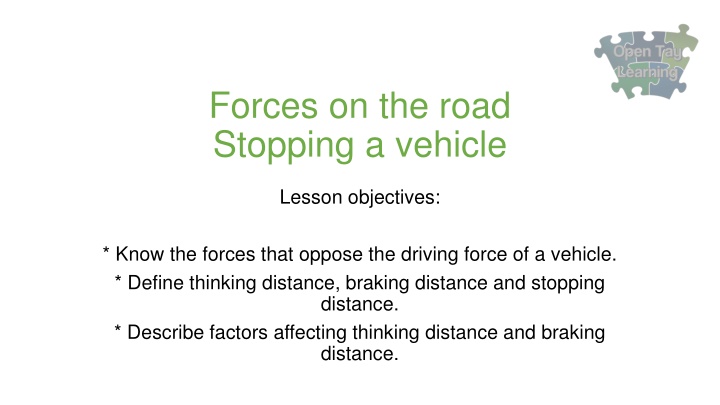

Lesson objectives:

* Know the forces that oppose the driving force of a vehicle.
* Define thinking distance, braking distance and stopping
distance.
* Describe factors affecting thinking distance and braking
distance.

Stopping a vehicle

In an emergency, a driver must
bring their vehicle to a stop in the
shortest distance possible.

What do you think happens if the
driver presses harder on the
accelerator?
Friction and Stopping Forces
Although it is sometimes unwanted, friction can really help us – for example in
car braking systems, and giving shoes grip on the ground.
Friction and Stopping Forces
Although it is sometimes unwanted, friction can really help us – for example in
car braking systems, and giving shoes grip on the ground.

As the block is gently pulled, friction stops it
moving – increase the force and the block will
start to slip = starting or
static
 friction.
Friction and Stopping Forces
Although it is sometimes unwanted, friction can really help us – for example in
car braking systems, and giving shoes grip on the ground.

When the block starts to move, the friction
drops.  Moving or
dynamic
 friction is less
than static friction.  This friction
HEATS
materials up.

Stopping distance

The distance needed for a car, travelling at a given
speed, to stop (m).

Stopping distance = Thinking distance + Braking
Distance




T
h
i
n
k
i
n
g

D
i
s
t
a
n
c
e
   Before we react to a danger our brain takes
time to think. The distance travelled during this
time is the
Thinking Distance
(m)

Mmh, a level
crossing! I should
stop now!

Just in time!
Braking Distance
   Cars don’t stop straight away. They travel a
certain distance from when you start braking
to when they stop. This is the
Braking
Distance
.

Stopping distance

S
t
o
p
p
i
n
g

d
i
s
t
a
n
c
e

i
s

t
h
e

s
h
o
r
t
e
s
t

d
i
s
t
a
n
c
e

a

v
e
h
i
c
l
e

c
a
n

s
t
o
p

i
n
,
a
n
d

i
s

i
n

t
w
o

p
a
r
t
s
:
T
h
e

t
h
i
n
k
i
n
g

d
i
s
t
a
n
c
e


t
h
i
s

i
s

t
h
e

d
i
s
t
a
n
c
e

a

v
e
h
i
c
l
e

t
r
a
v
e
l
s
b
e
f
o
r
e

a

d
r
i
v
e
r

a
p
p
l
i
e
s

t
h
e

b
r
a
k
e
s
.
T
h
e

b
r
a
k
i
n
g

d
i
s
t
a
n
c
e


t
h
i
s

i
s

t
h
e

d
i
s
t
a
n
c
e

t
h
e

v
e
h
i
c
l
e

t
r
a
v
e
l
s
w
h
i
l
s
t

b
r
a
k
i
n
g
.

stopping distance = thinking distance + braking distance

Reaction times

Reaction time varies from person to person, but is between
typically 0.2 s and 0.9 s.

A driver's reaction time can be affected by:

The speed of the vehicle
The reaction time of the driver (tiredness, drugs, alcohol,
distractions)

Braking distance

The braking distance of a vehicle can be affected by:

The mass of the vehicle
The speed of the vehicle
The breaking force applied to the wheels (poor vehicle
conditions, such as worn brakes or worn tyres)
Frictional forces between the tyres and the road (poor road and
weather conditions, such as wet or icy roads)

Investigating human reaction times

Work with a partner.
Get a 30cm ruler…
One person holds the ruler near the 30cm mark and lets it hang
vertically…
The other person places their thumb and index finger either side of the
0cm mark ready to catch it when it falls - their fingers shouldn’t touch the
ruler.
Without warning the person holding the ruler lets go and the subject tries
to catch the ruler as soon as possible. [Hint: To prevent guessing, vary the
time before letting go of the ruler].
The level (in cm) just above the subject’s first finger where the ruler was
caught is recorded.
The same person is tested 5 times and then calculate the mean average of
their results (add all five numbers together and then divide by five).
Now swap over and test your partner.

Ruler drop test

The ‘mean catch distance’ on the ruler can be
converted into a ‘mean reaction time’ in
milliseconds

R
E
A
C
T
I
O
N

T
I
M
E

R
A
T
I
N
G
Reaction time

Rating

Comment
(milliseconds)
0-50

Ultra-fast

A clairvoyant catcher… are you cheating?!
50-130

Superb

Impressive, do you play computer games?
131-175

Excellent

Well done, are you a text messager?
176-200

Good

Keep trying, you're not top gun yet!
201-240

Average

Not bad – but you’re just Joe Average.
241-250

Fair

You’d get faster if it were money instead of a ruler!
251+

Slow

…ouch!

Did the ruler hit your foot? Keep trying!

Summary questions

1.
Which to distances are added together to find the stopping
distance of the car?
2.
Name two things that may affect the thinking distance of a driver.
3.
Name three things that may affect the braking distance of the car.
4.
Each of the following factors affects the thinking distance or the
braking distance of a vehicle. Which of these two distances is
affected in these?
a)
The road surface condition affects the ______ distance.
b)
The tiredness of a driver increases his or her ______ distance.
c)
Poorly maintained brakes affects the
______ distance.
Slide Note
Embed
