FADC for APEX Experiment
FADC for APEX experiment
Current HRS FADCs
•
LHRS using front panel distribution board
•
S2m (32/2 FADC)
•
S0 (2) + Cerenkov (10) = 12/ 1 FADC
•
Pion rejector (68/4 FADC)
•
Raster (4)/ BPM (8) = 1 FADC
•
8 FADCs, modify distribution board for 8 instead of seven
•
RHRS
•
S2m (32/2 FADC)
•
S0 (2) + Cerenkov (10) + A1 and A2 (50) = 62/4 FADC
•
Raster (4/1FADC)/ BPM
•
7 FADCs can use as is
APEX
•
LHRS using front panel distribution board
•
S2m (32/2 FADC)
•
S0 (2) + Cerenkov (10) = 12/ 1 FADC
•
Pion rejector (68/4 FADC)
•
Raster (4)/ BPM (8) = 1 FADC
•
SciFi detector (64 ) = 4 FADCs
•
Need additional crate or VXS crate for 12 FADCs
•
RHRS
•
S2m (32/2 FADC)
•
S0 (2) + Cerenkov (10) + SciFi (64) = 76/5 FADC
•
Raster (4/1FADC)/ BPM
•
Can use modified front to have 8 FADCs

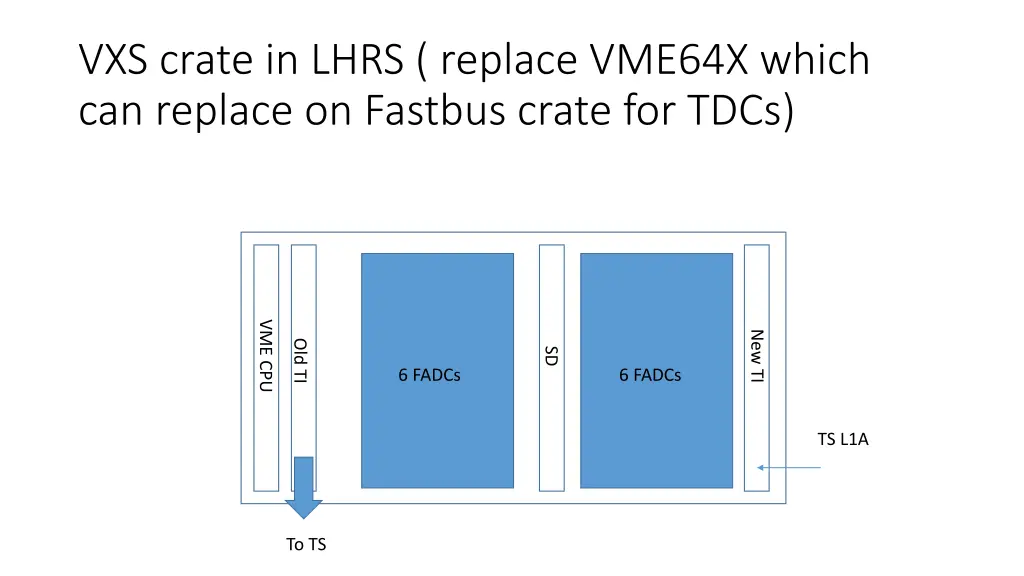

VXS crate in LHRS ( replace VME64X which
can replace on Fastbus crate for TDCs)
VME CPU
SD
New TI
Old TI
To TS
TS L1A
6 FADCs
6 FADCs

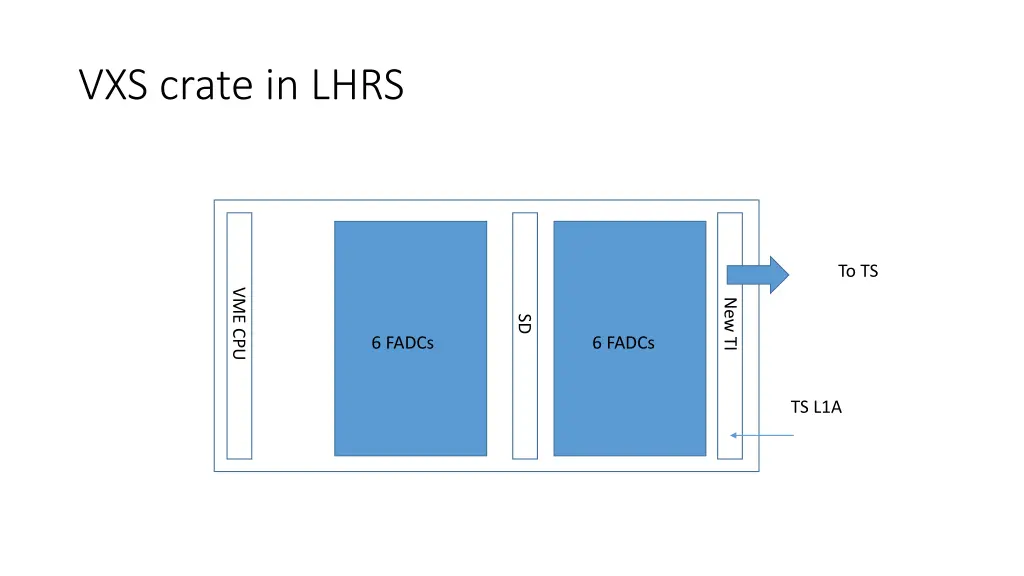

VXS crate in LHRS
VME CPU
SD
New TI
TS L1A
6 FADCs
6 FADCs
To TS
