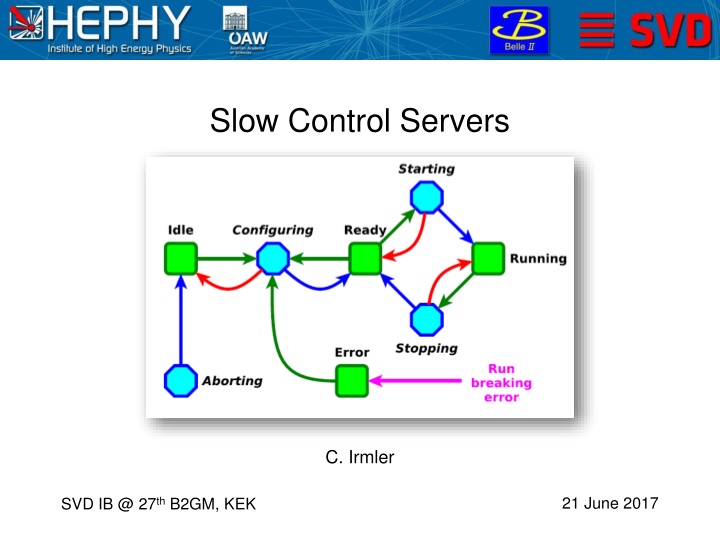

Slow Control Servers C. Irmler 21 June 2017 SVD IB @ 27thB2GM, KEK
Network Configuration FADC spydaq SVD management SVD epics 1 U 1 U 1 U 1 U 1 U FADC spydaq switches FADC spydaq switches 5 U 1 U svd epics switch 1F-A4 PDP 2 U ENV server E-hut 2F 8 U Archiver 9 U 9 U CAEN PS 2 U 5 U FADC crates FW rack FADC crates BW rack SVD-SC server E-hut 1F-A4 SVD-FADC server E-hut 1F-A4 b2epics bdaq SVD SC network V2.1 2017/04/21 Backup server will / should be installed for each machine 20 June 2017 C. Irmler 2
SVD SC/RC Computing HW Minimum 4 servers required Backup for each should be foreseen 8 servers 1x for FADC system with some dedicated HW Responsibility & funding: HEPHY agreed 1x for other, non HW dependent IOC s and systems PS, PDP, CA GW, alarm system, etc. Responsibility & funding: to be discussed by SVD-IB 1x for environmental monitoring NTC, HUM, RAD, FOS, INTLK Responsibility & funding: INFN Trieste agreed 1x archiver Common HW with PXD (each group purchases 1 machine) Responsibility & funding: to be discussed by SVD-IB 20 June 2017 C. Irmler 3
FADC Server Status 1 machine already purchased by HEPHY Intel-Xeon E5-1650 v3, 3.5GHz, 6 cores 128 GB DDR4-2133 RAM (ECC) 4 x 6TB SATA HD for data (RAID 5) 2 x 480 GB SSD for OS ASUS X99-E WS mainboard SuperMicro CSE-842XTQ-R606B chassis (4U) Will be used for BEAST phase 2 HEPHY will also take care about 10 GBit network components of FADC spydaq network and backup server 2ndserver will be purchased as soon as Hao is sure that performance is sufficient for SVD-QM of the full SVD 20 June 2017 C. Irmler 4
ENV Server Status Trieste group agreed to provide these servers Specification Supermicro SuperServer 5019S-WR (1U) Intel Xeon E3-1225v6, 4 cores, 3.7GHz, 8MB cache 32GB DDR4 2400 RAM ECC PCIe AOC-SG-I4 Quad Port 1Gb/s RJ45 3x 2TB disks, 2x RAID1 + 1x spare, Detailed specification: www.supermicro.com Procurement and installation Costs: about 2.5 kEUR Lorenzo wants to order the servers asap (next 2 weeks), but needs some help from someone at KEK (Hara-san?) After delivery: August / September? 20 June 2017 C. Irmler 5
General SC Server Status Used for non HW dependent IOC s and systems No high computing power and / or large amount of memory equired Can we use the same type of server as for ENV system? Need to check CPU requirements Detailed specs to be defined Estimated costs: 5-10 kEUR (2 servers) Installation Ideally the server should be installed before phase 2 If this is not possible, the IOCs can temporarily run on FADC server Should buy all servers in Japan 20 June 2017 C. Irmler 6
Archiver Common VXD system share HW with PXD group Main specs: Xeon E5 (4thgeneration, 2GHz, 10 cores) 128 GB RAM 4x 6TB HD for data (RAID 5), 2x 256 GB SSD for OS (RAID 1) min. 4 1GBit ports, Remote management, redundant PS, etc. Costs estimate: up to 10 kEUR So far M. Ritzert got 2 offers DELL PowerEdge R530 2S 2U Rack: 988,841 JPY / ~8 kEUR Price gathered from configurator of Dell Japan web page Components well known by M. Ritzert POWER MASTER Server P4041: 862,272 JPY / ~7 kEUR Offer from Itoh-san s supplier Not fully clear which components are installed 20 June 2017 C. Irmler 7
Servers Overview Archiver Xeon E5-2630 v4, 2.2GHz, 10 cores 128 GB DDR4-2400 ECC large (1GB) cache, non- volatile preferred 4 6TB HD (RAID 5) FADC server Xeon E5-1650 v3, 3.5GHz, 6 cores 128 GB DDR4-2133 RAM ECC ENV server Xeon E3-1225v6, 4 cores, 3.7GHz General SC server Xeon E3 or better, min. 4 cores CPU 32GB DDR4 RAM ECC RAM onboard RAID controller 4 x 6TB SATA HD(RAID 5) HD for data 3x 2TB disks, 2x RAID1 + 1x spare 3x 2TB disks, 2x RAID1 + 1x spare 2 256GB SSD 2 x 480 GB SSD for OS HD for OS 2 1GBit ports (+ optical 16GBit ports for spydaq) > 4 1GBit ports > 4 GBit ports > 4 GBit ports Network redundant, 200V redundant, 600W, 100 - 240Vac redundant, 500W, 100Vac redundant, 500W, 100Vac Power supplay yes, 2nd server will be bought by PXD yes, but could be shared with ENV server Backup server required yes yes 0 1 open 1 1 HEPHY 5k 5,151 0 2 Trieste 0 1 or 2 Open 3-5k Servers bought Servers to buy Funding Estimated costs < 10k 2.5k 862,272 = 7k (Itoh-san) 988,841 = 8k (DELL) Offer 1 Offer 2 Price of FADC servers does not include high speed network for spydaq covered by HEPHY 20 June 2017 C. Irmler 8
Backup 20 June 2017 C. Irmler 9
SVD Slow Control System Overview Other NSM2 SYSTEMS Belle II RC SVD RC NSM2 SupeKEKB EPICS NSM2/EPICS gw CA gw SVD COPPER FTSW b2epics PXD CA gw PXD archiver SVD CA gw pxd epics SVD alarms SVD archiver VLHI IBBelle PXD systems SVD epics SVD CTRL FADC CM SVD FADC NTC HUM SVDQM RAD FOS SVD_PS SVD_PDP Power supplies & power distribution pannels Environtmental Monitors SVD run control + FADC system 20 June 2017 C. Irmler 10
SVD IOCs Overview SVD RC and FADC system SVD CTRL: SVD controller SVD FADC: FADC controller SVDQM: FADC CM: Environmental Monitoring (ENV) NTC: NTC sensors FOS: Fiber optics sensor (FOS) RAD: Radiation monitoring HUM: Humidity monitoring VLHI: VXD local hardwired interlock Quality monitoring FADC crate monitoring Power supplies SVD_PS: SVD_PDP: Other systems SVD archiver SVD alarms SVD CA gateway PS control and monitoring Power distribution panel 20 June 2017 C. Irmler 11
