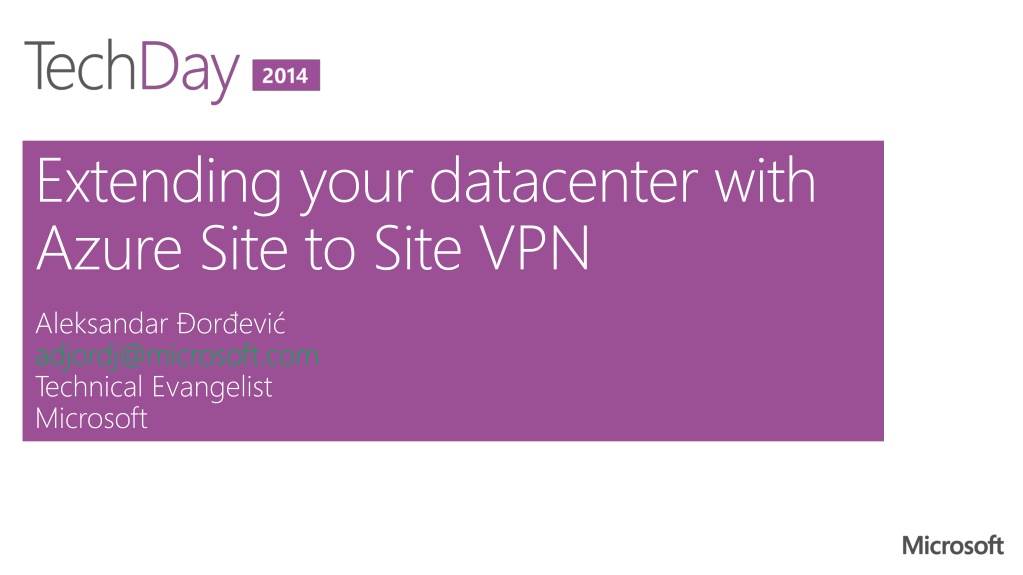

Extending your datacenter with Azure Site to Site VPN Aleksandar or evi adjordj@microsoft.com Technical Evangelist Microsoft
Objectives, agenda and key takeaways Objectives: Show and demo Microsoft Azure Network Site to Site VPN Agenda: Common examples for extending on premise Datacenter to Azure with Site to Site VPN Key takeaways: Hey, it is easy to setup Azure Site to Site VPN

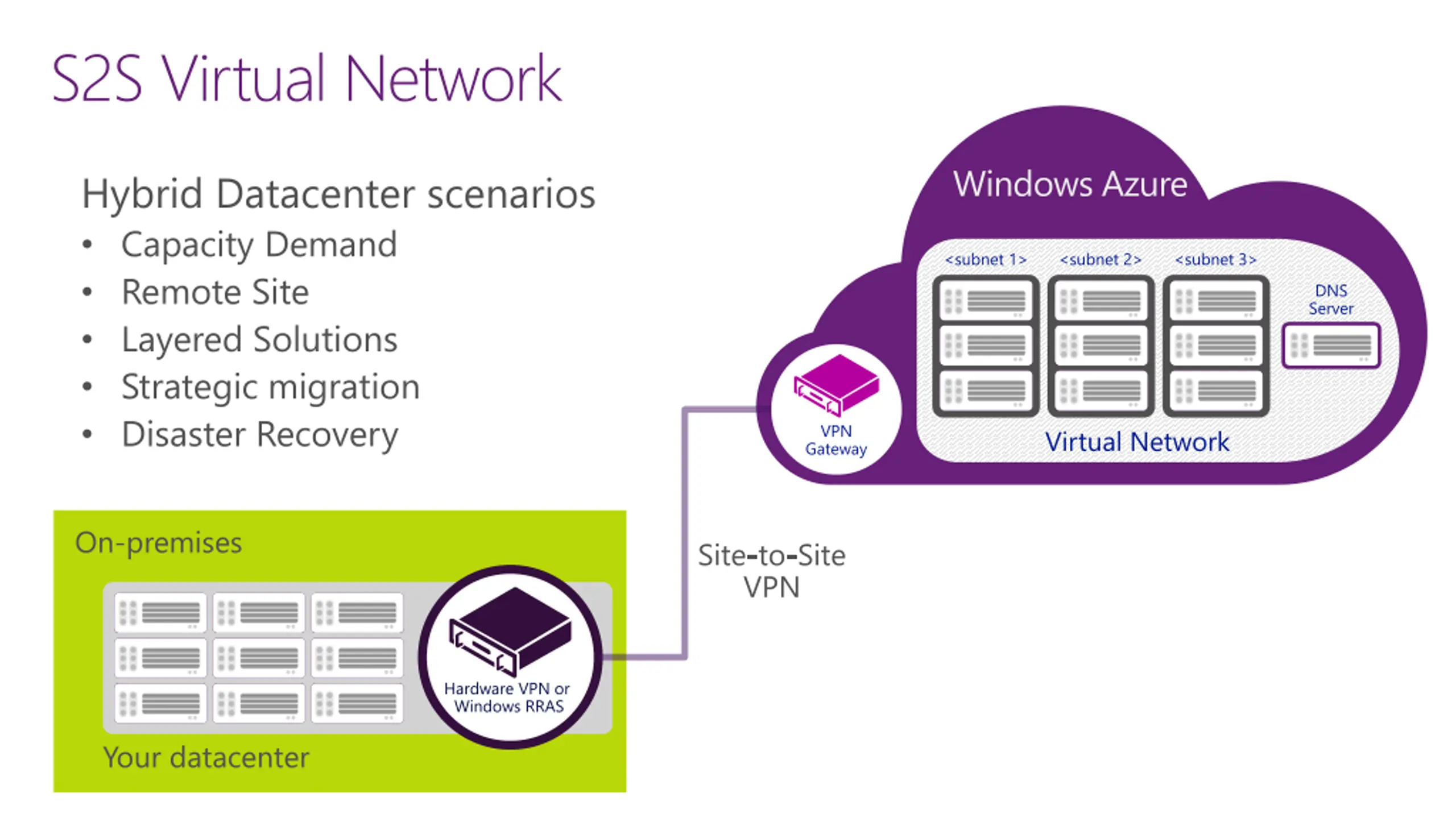

S2S Virtual Network Windows Azure Hybrid Datacenter scenarios Capacity Demand Remote Site Layered Solutions Strategic migration Disaster Recovery <subnet 1> <subnet 2> <subnet 3> DNS Server VPN Gateway Gateway VPN Virtual Network On-premises Site-to-Site VPN Hardware VPN or Windows RRAS Your datacenter

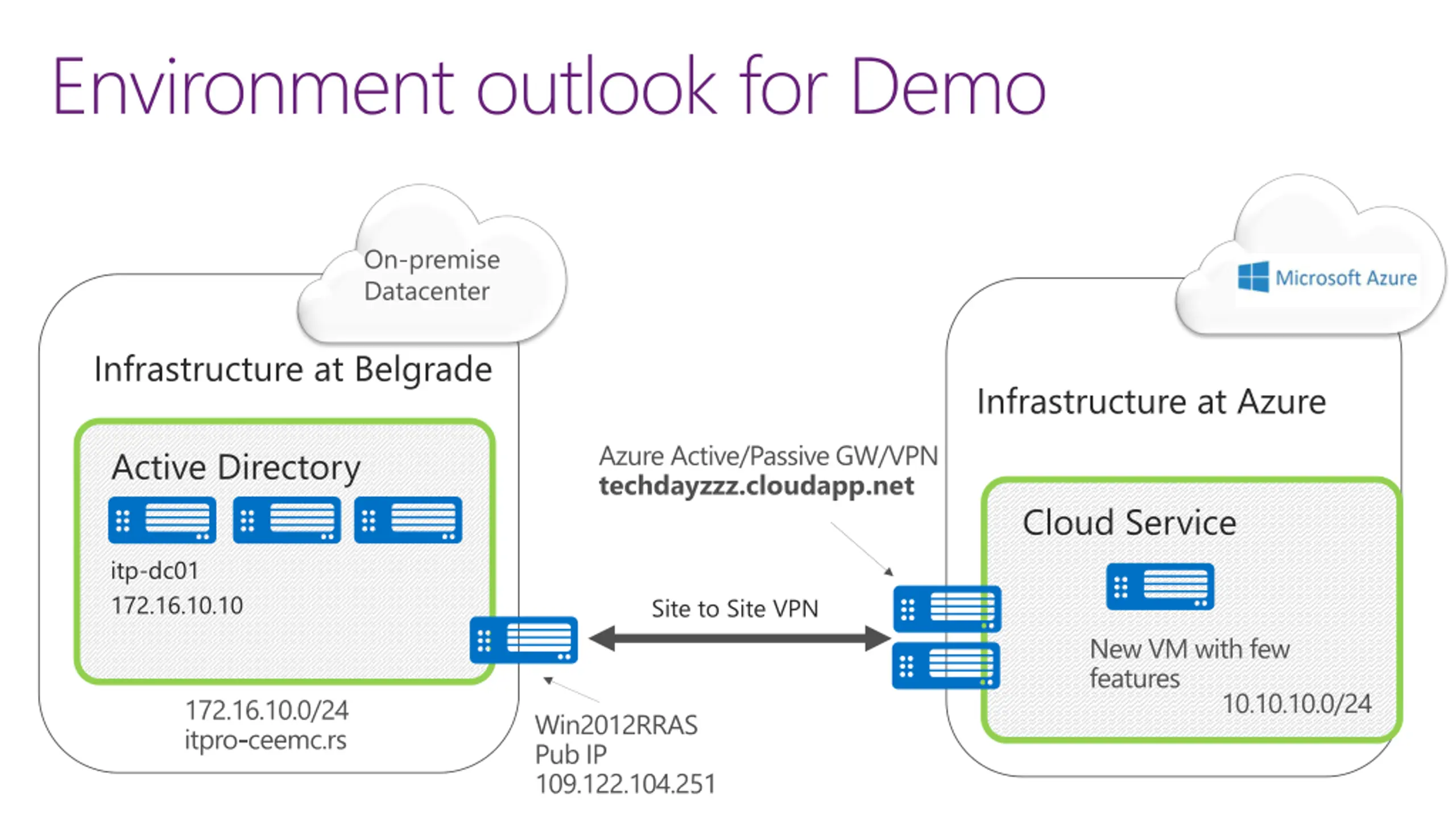

Environment outlook for Demo On-premise Datacenter Infrastructure at Belgrade Infrastructure at Azure Azure Active/Passive GW/VPN techdayzzz.cloudapp.net Active Directory Cloud Service itp-dc01 172.16.10.10 Site to Site VPN New VM with few features 10.10.10.0/24 172.16.10.0/24 itpro-ceemc.rs Win2012RRAS Pub IP 109.122.104.251
Hybrid Datacenter scenarios

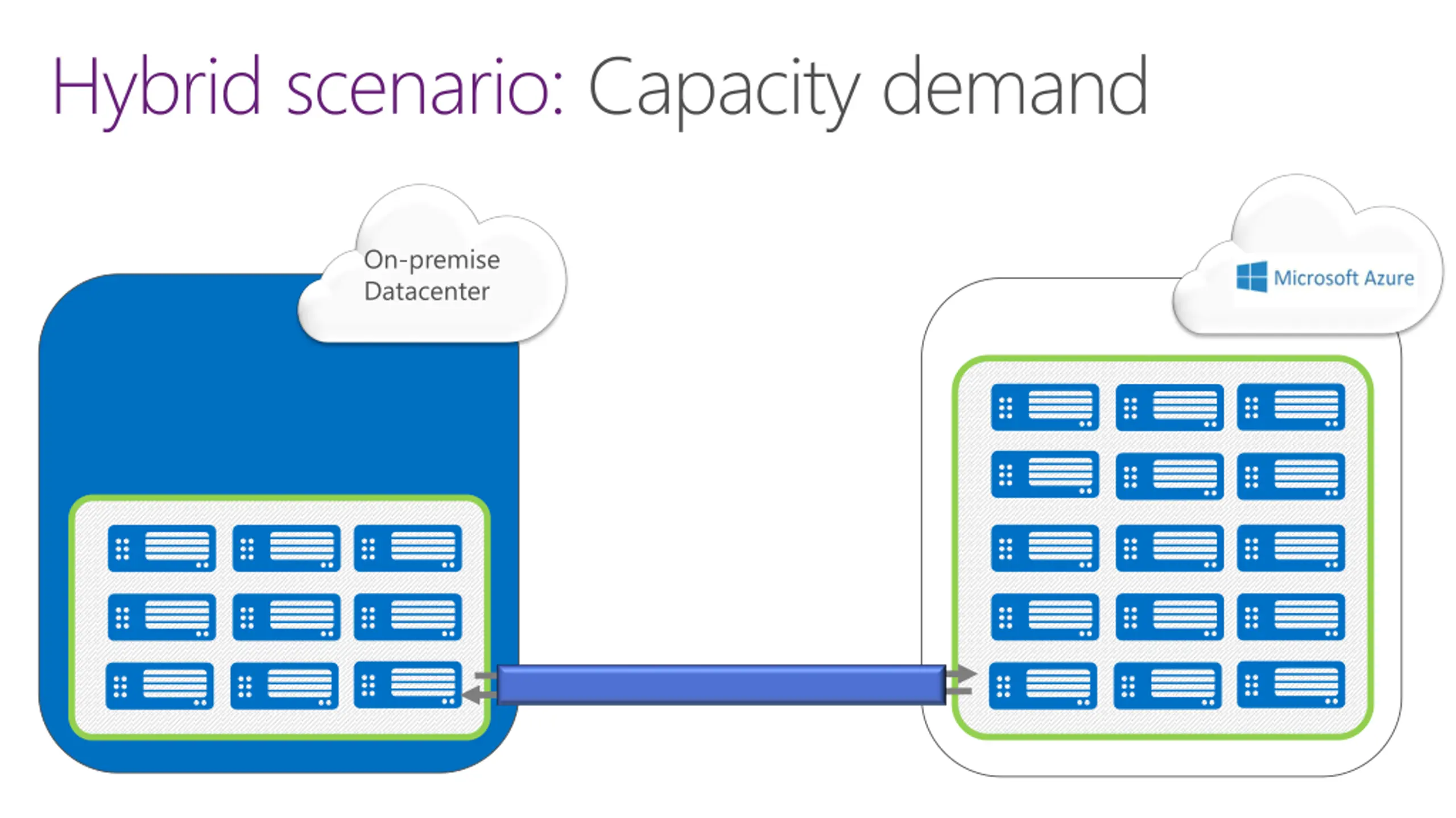

Hybrid scenario: Capacity demand On-premise Datacenter Site-to-Site VPN
Hybrid scenario: Capacity demand On-premise Datacenter Site-to-Site VPN

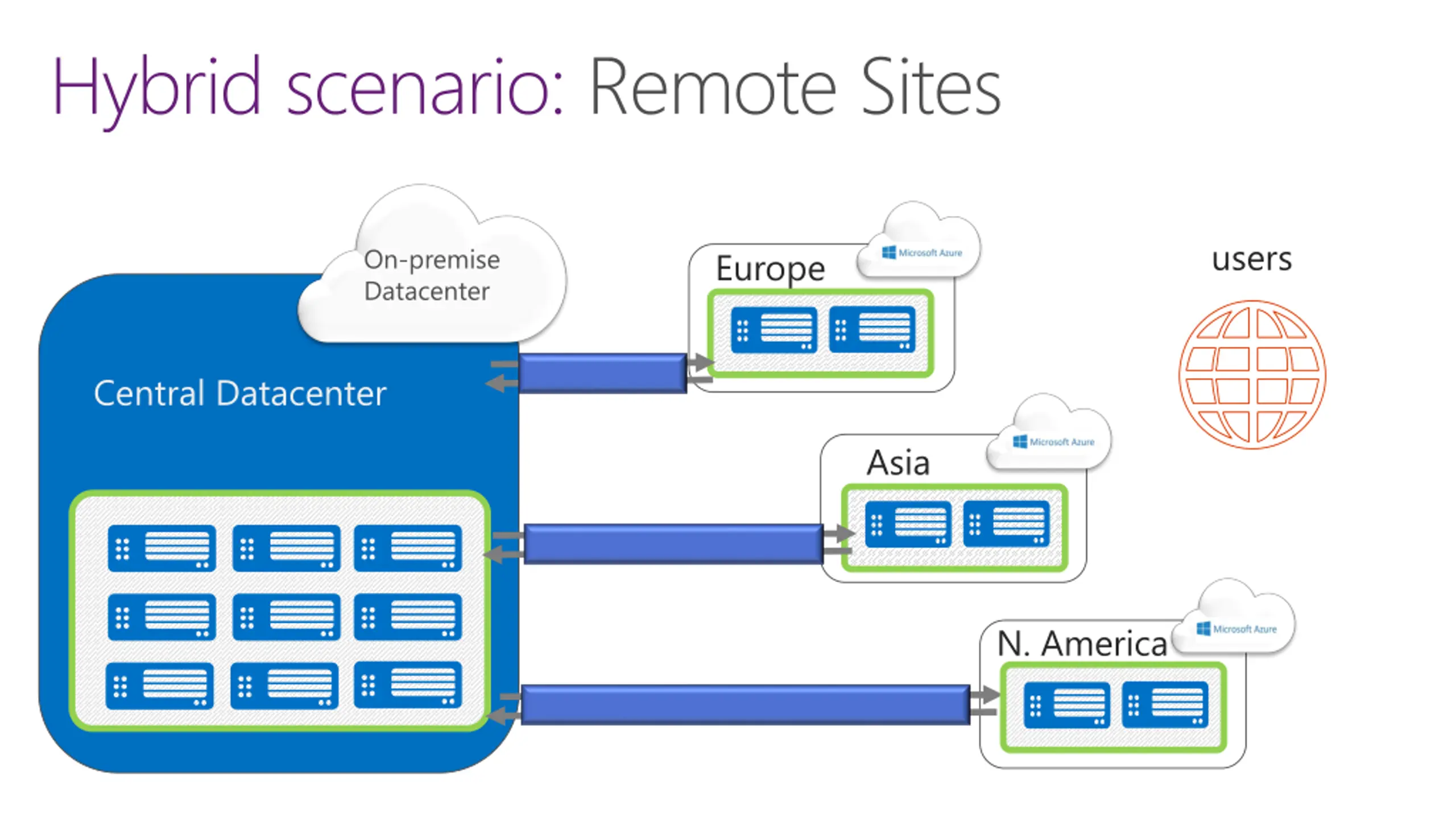

Hybrid scenario: Remote Sites users On-premise Datacenter Europe Central Datacenter Asia N. America

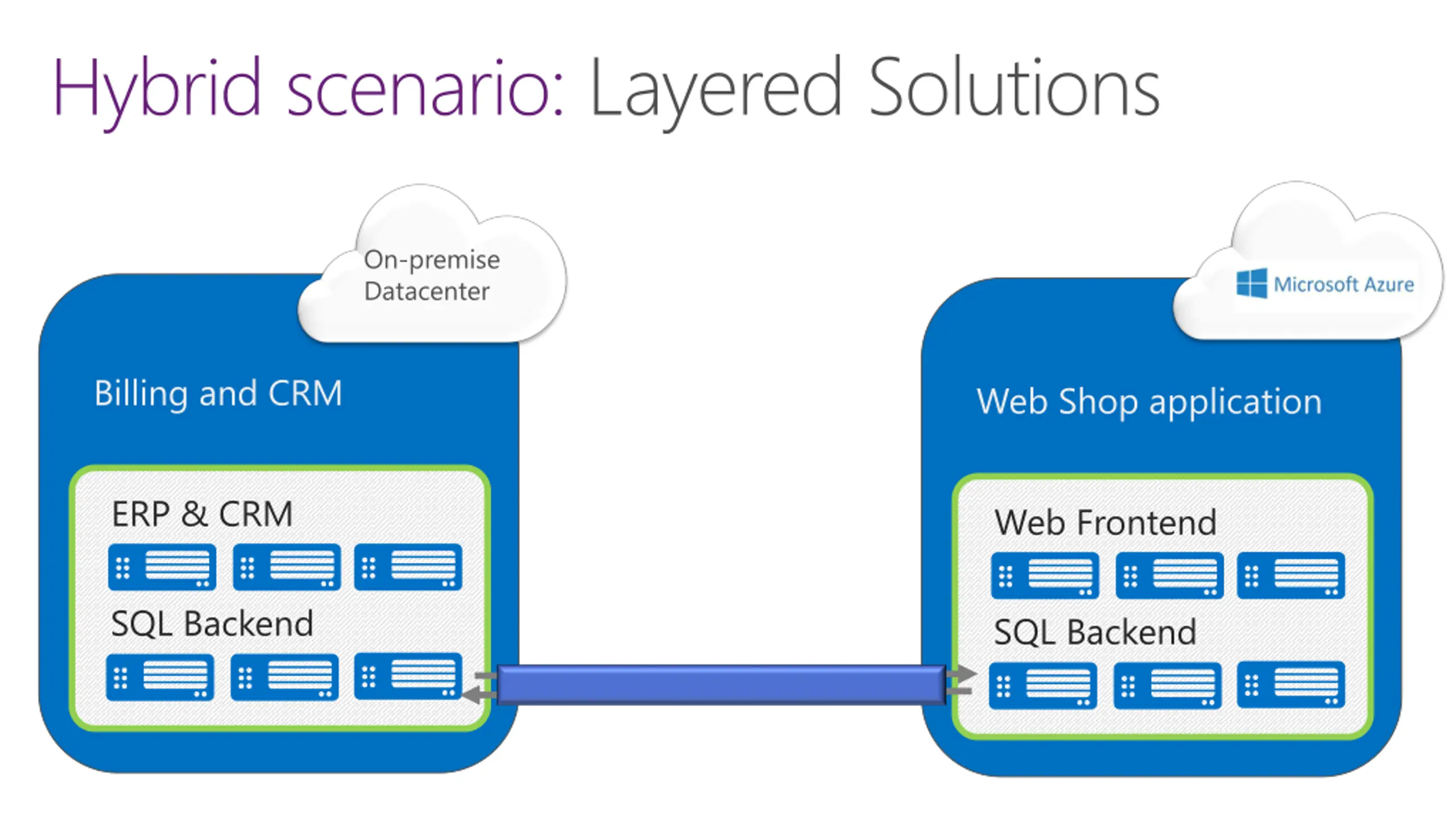

Hybrid scenario: Layered Solutions On-premise Datacenter Billing and CRM Web Shop application ERP & CRM Web Frontend SQL Backend SQL Backend Site-to-Site VPN

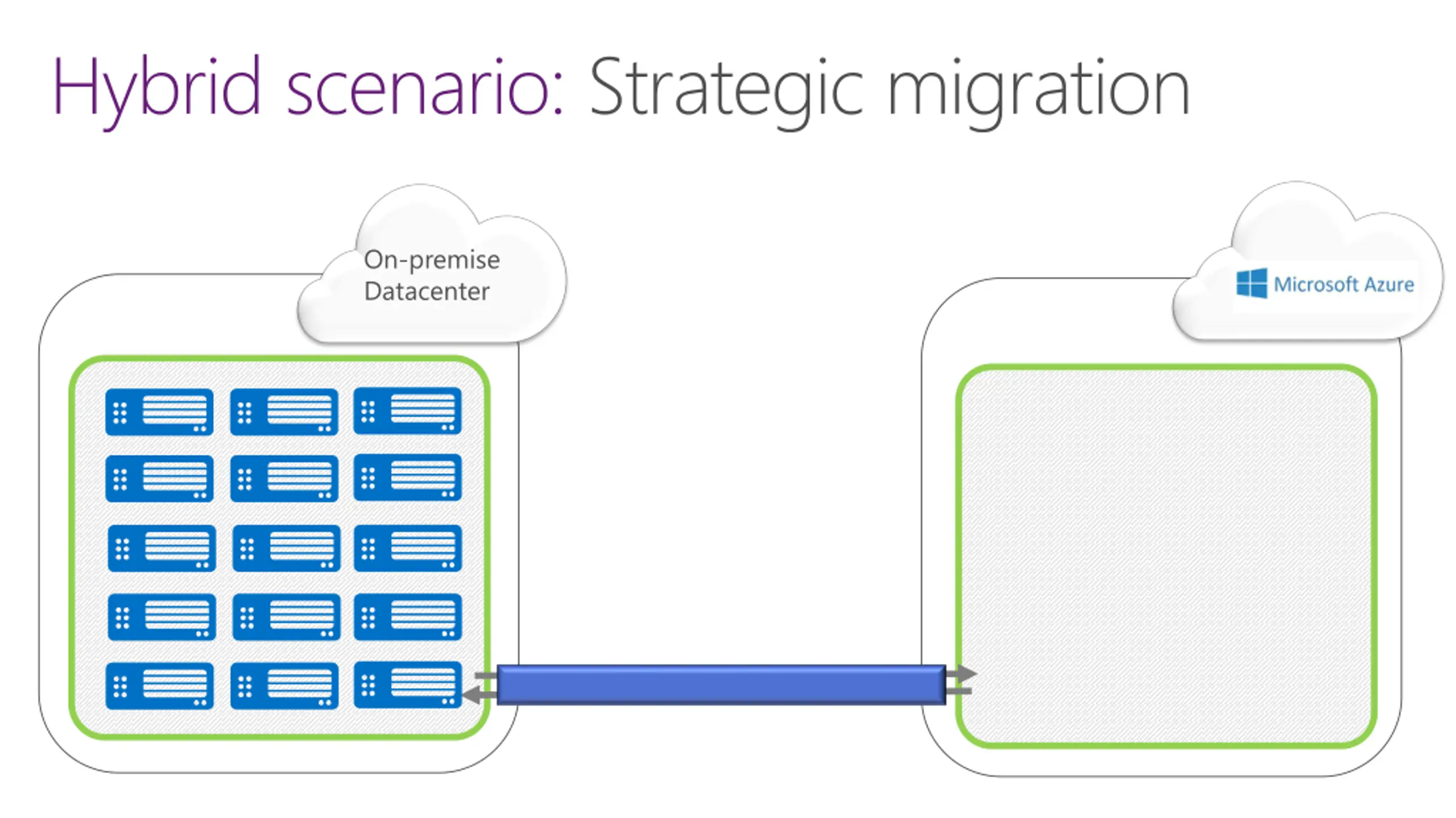

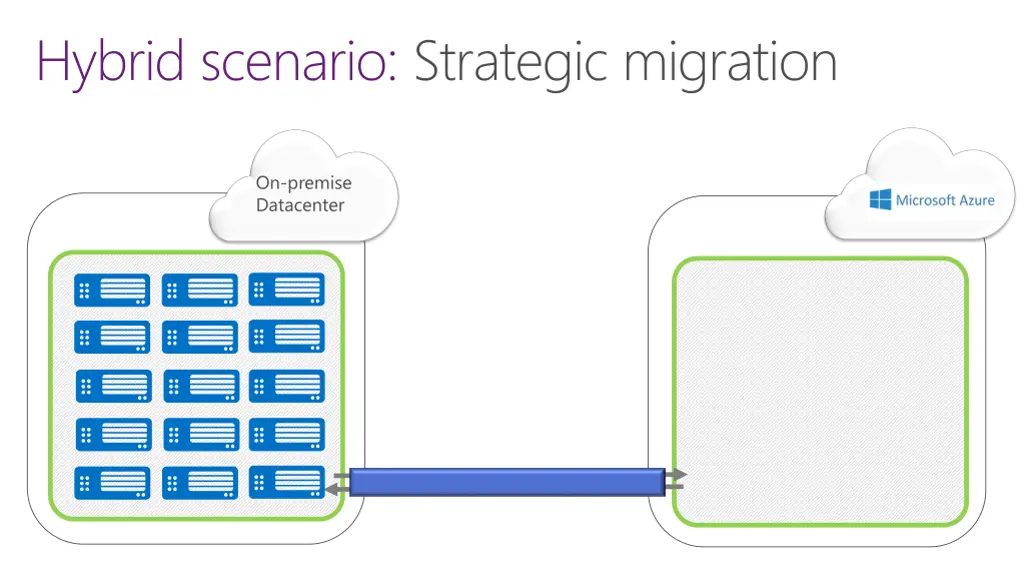

Hybrid scenario: Strategic migration On-premise Datacenter Site-to-Site VPN

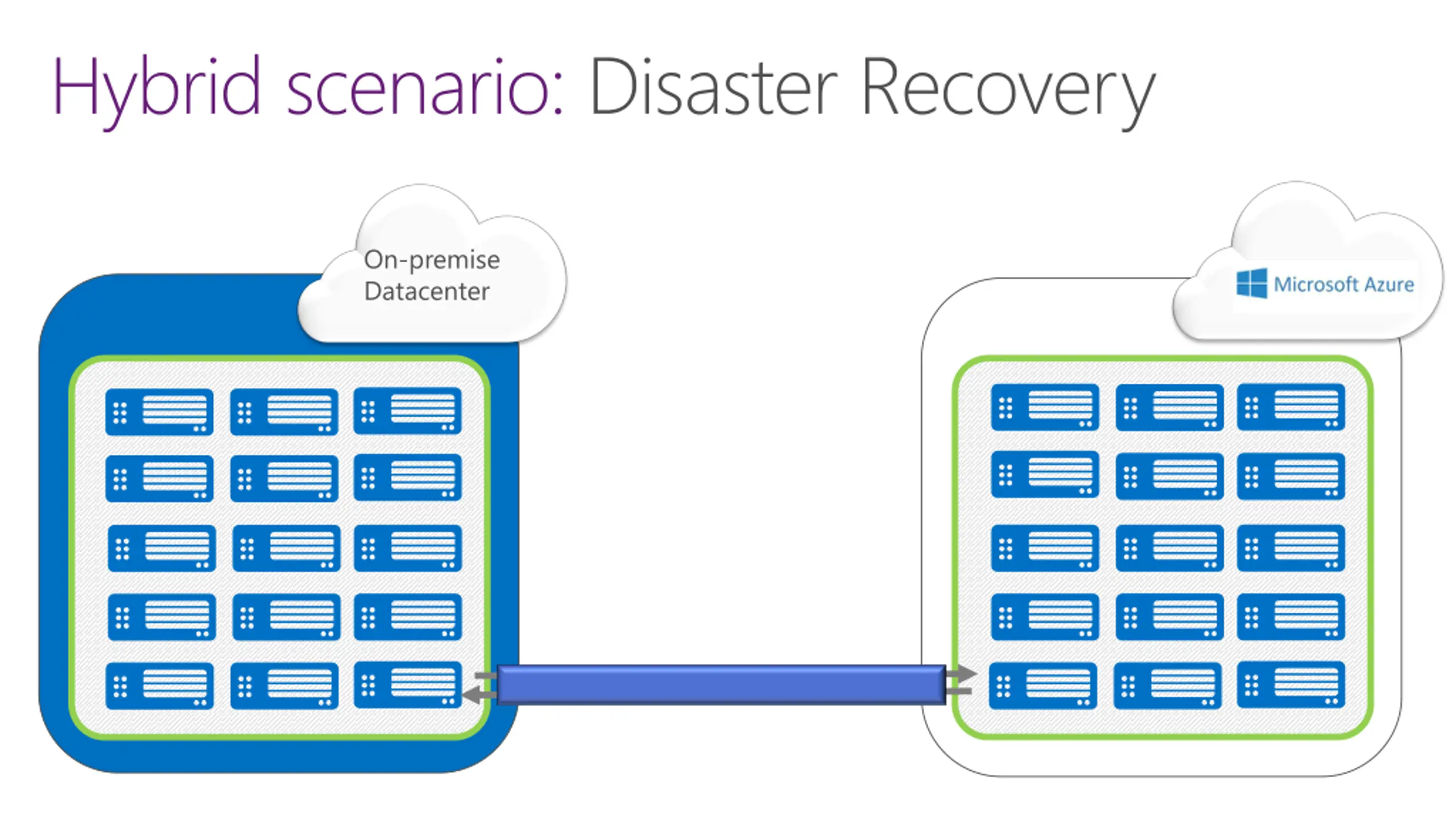

Hybrid scenario: Disaster Recovery On-premise Datacenter Site-to-Site VPN
Good to consider when planning Azure S2S VPN

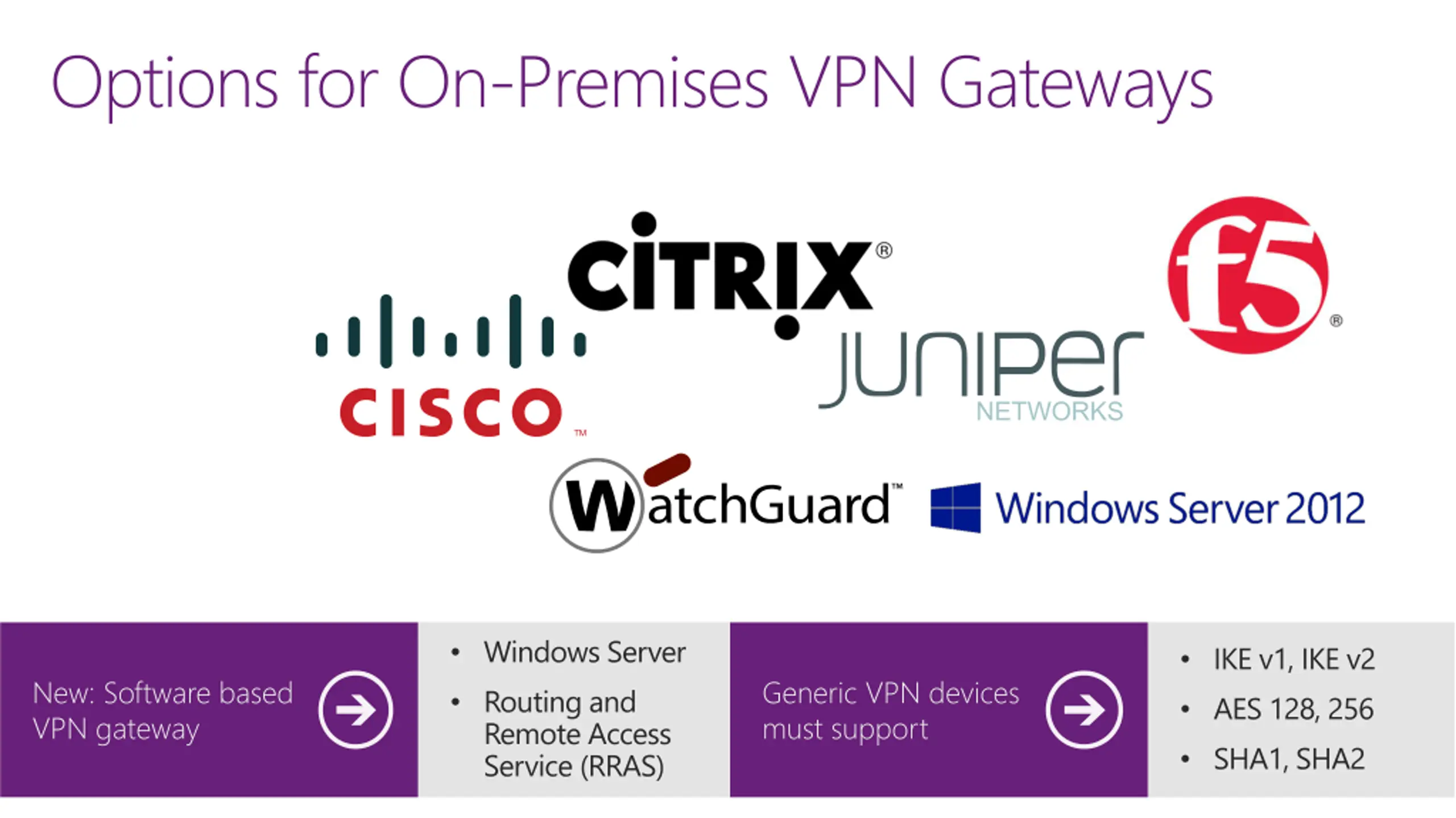

Options for On-Premises VPN Gateways Windows Server Routing and Remote Access Service (RRAS) IKE v1, IKE v2 AES 128, 256 SHA1, SHA2 New: Software based VPN gateway Generic VPN devices must support

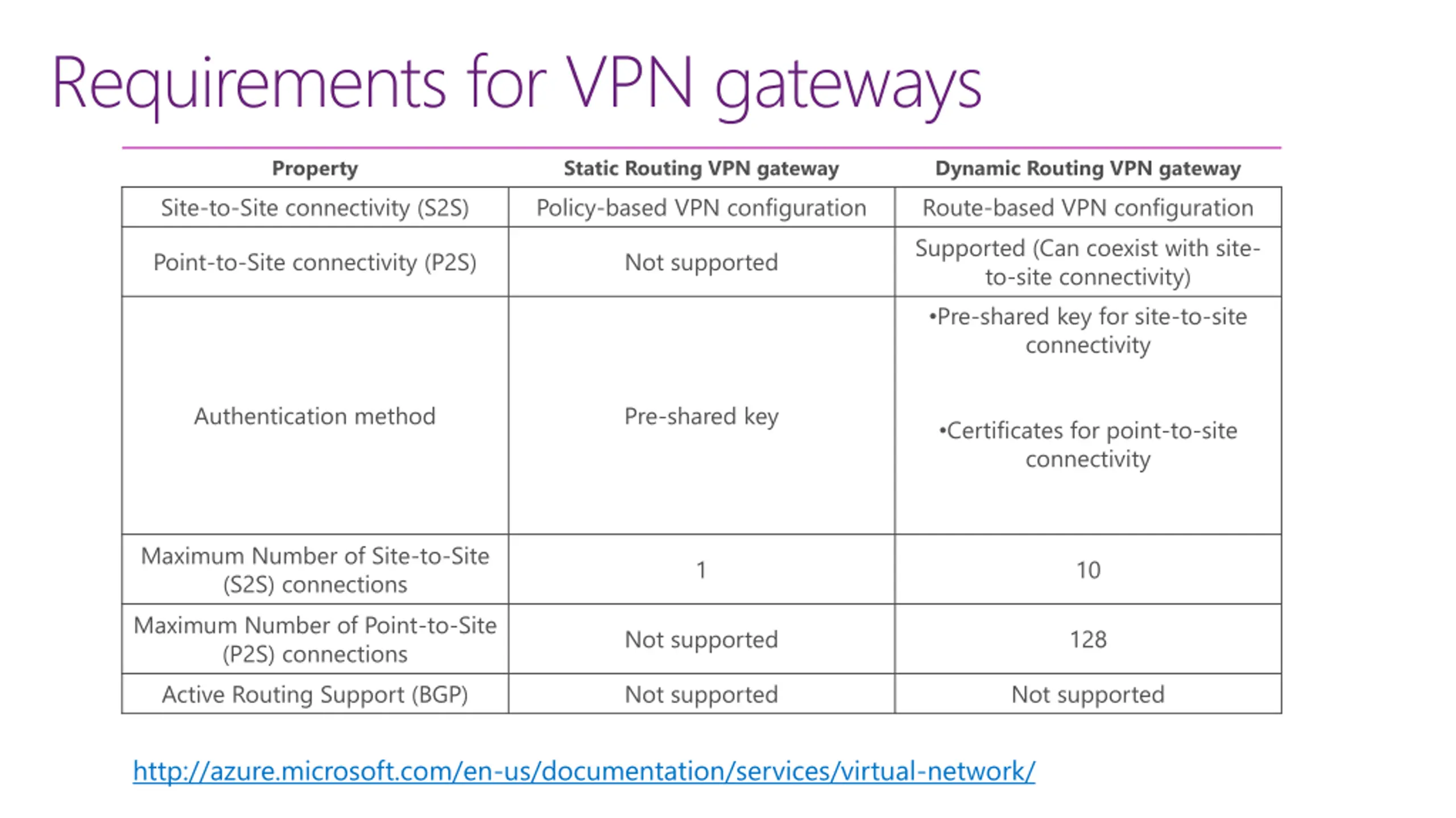

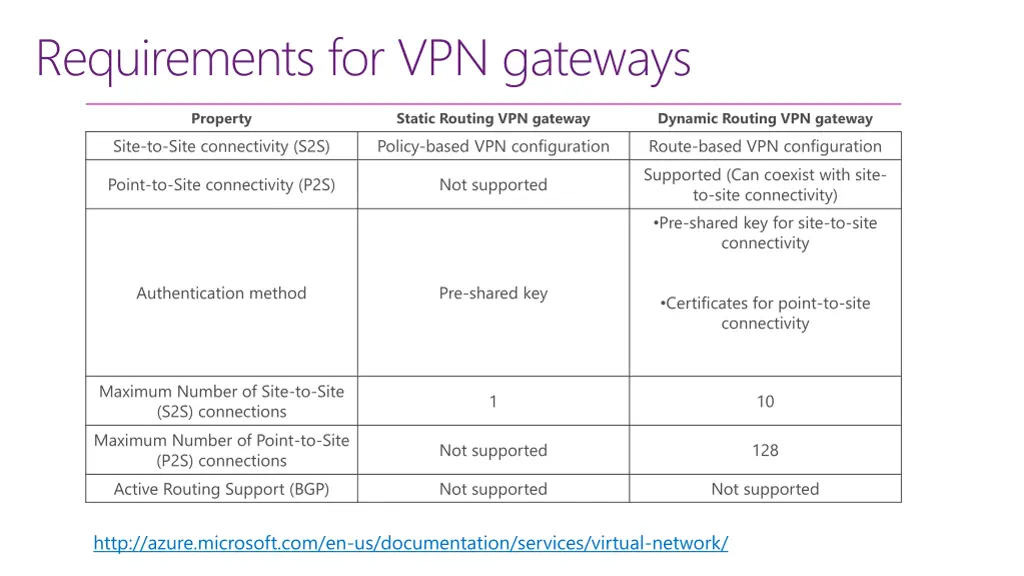

Requirements for VPN gateways Property Static Routing VPN gateway Policy-based VPN configuration Dynamic Routing VPN gateway Route-based VPN configuration Supported (Can coexist with site- to-site connectivity) Pre-shared key for site-to-site connectivity Site-to-Site connectivity (S2S) Point-to-Site connectivity (P2S) Not supported Authentication method Pre-shared key Certificates for point-to-site connectivity Maximum Number of Site-to-Site (S2S) connections Maximum Number of Point-to-Site (P2S) connections Active Routing Support (BGP) 1 10 Not supported 128 Not supported Not supported http://azure.microsoft.com/en-us/documentation/services/virtual-network/

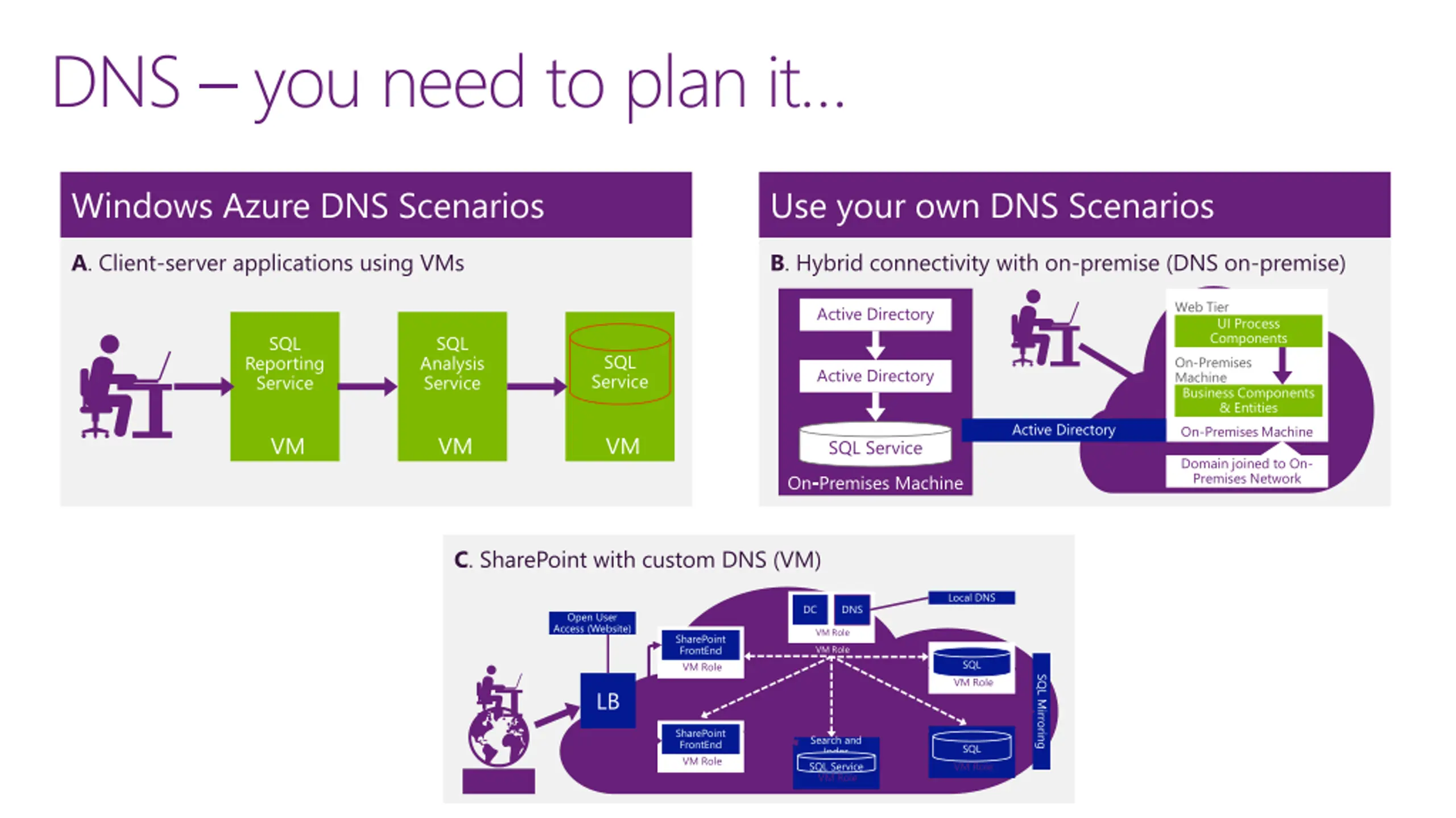

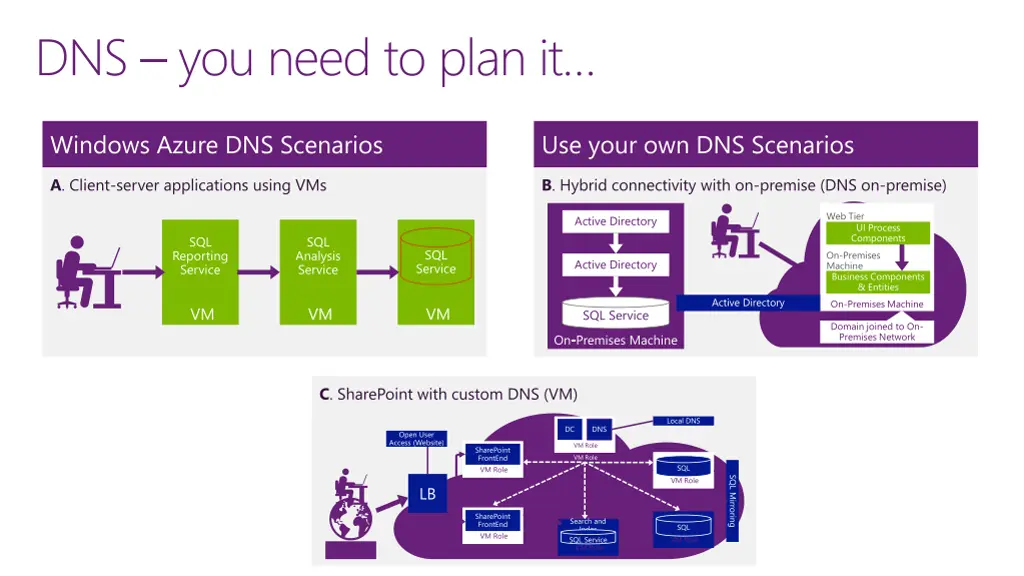

DNS Scenarios DNS you need to plan it Windows Azure DNS Scenarios Use your own DNS Scenarios Web Tier Active Directory UI Process Components SQL SQL Analysis Service SQL Service Reporting Service On-Premises Machine Active Directory Business Components & Entities Active Directory On-Premises Machine VM VM VM SQL Service Domain joined to On- Premises Network On-Premises Machine Local DNS DC DNS Open User Access (Website) VM Role SharePoint FrontEnd VM Role SQL VM Role SQL Mirroring VM Role SharePoint FrontEnd Search and Indes SQL Service SQL VM Role VM Role Internet VM Role

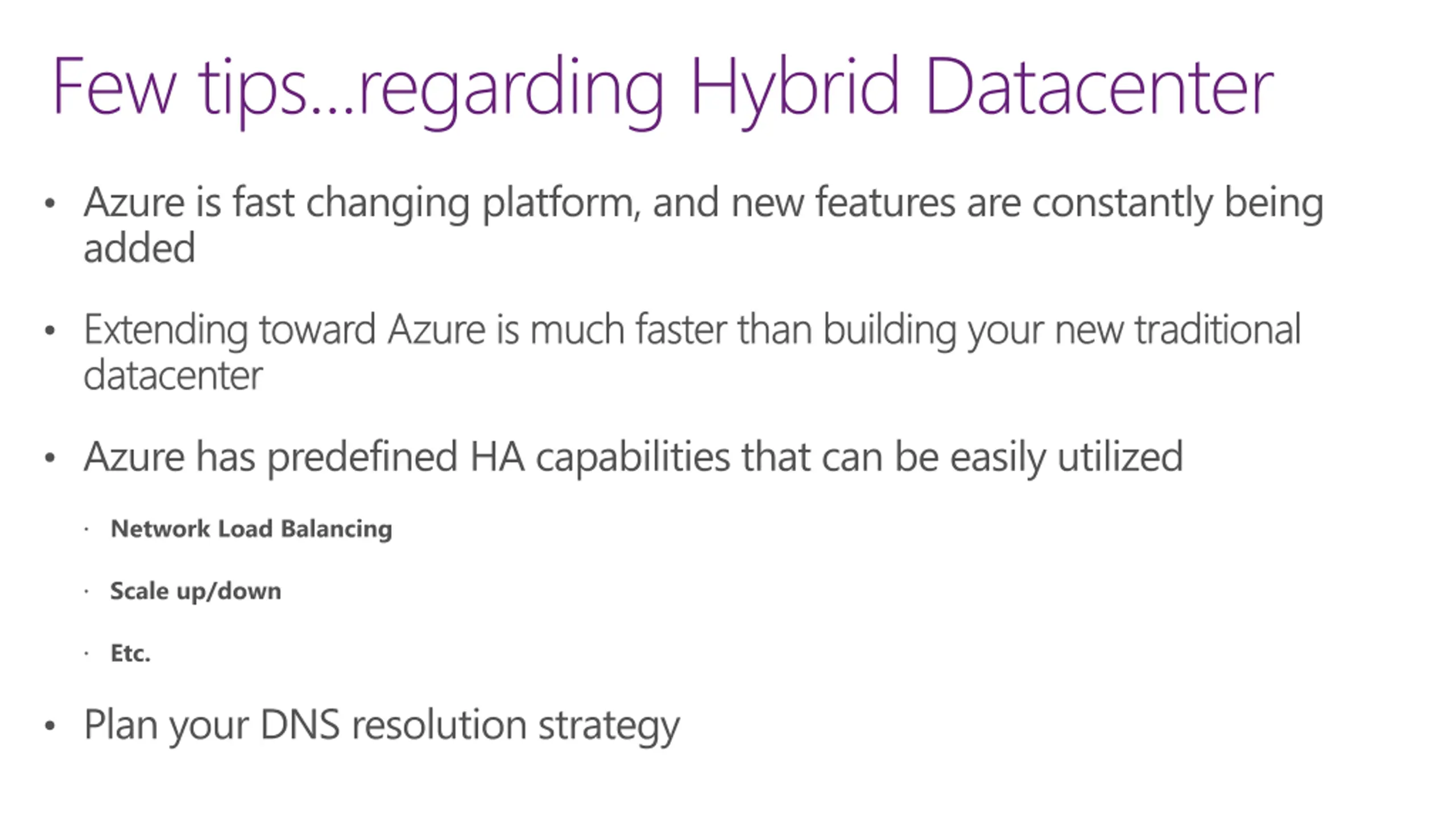

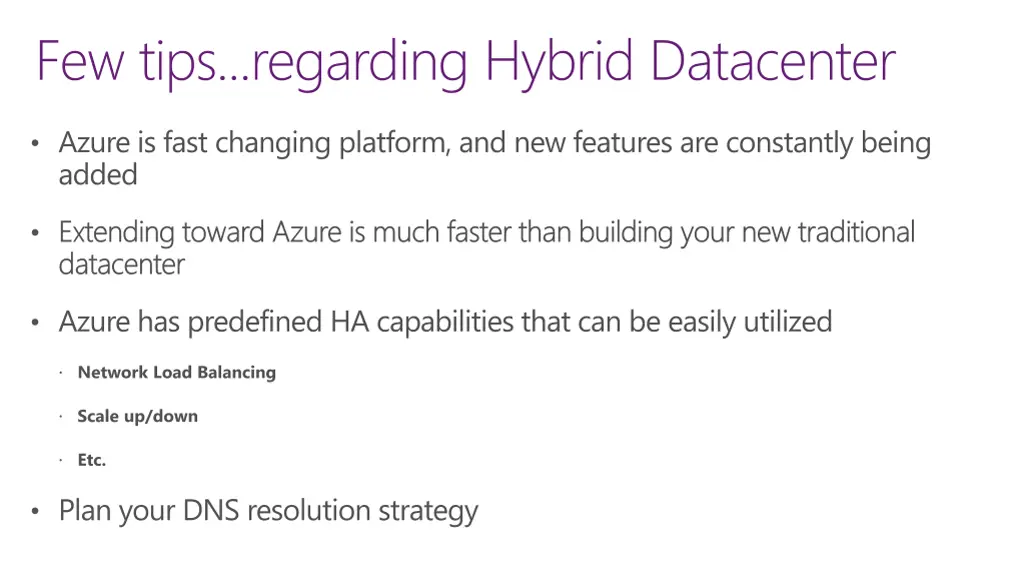

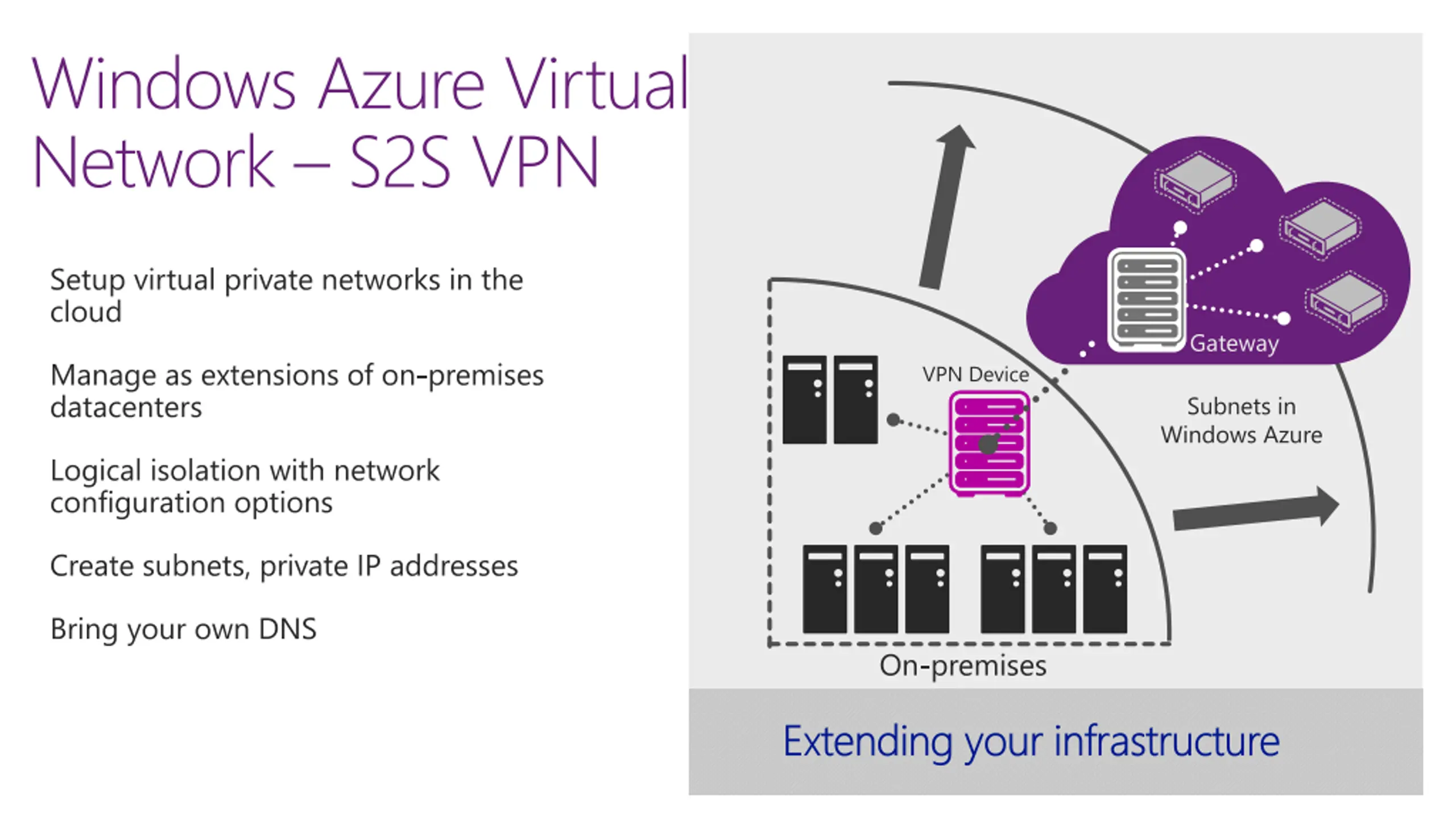

Windows Azure Virtual Network S2S VPN Setup virtual private networks in the cloud Gateway Manage as extensions of on-premises datacenters VPN Device Subnets in Windows Azure Logical isolation with network configuration options Create subnets, private IP addresses Bring your own DNS On-premises Extending your infrastructure Extending your infrastructure

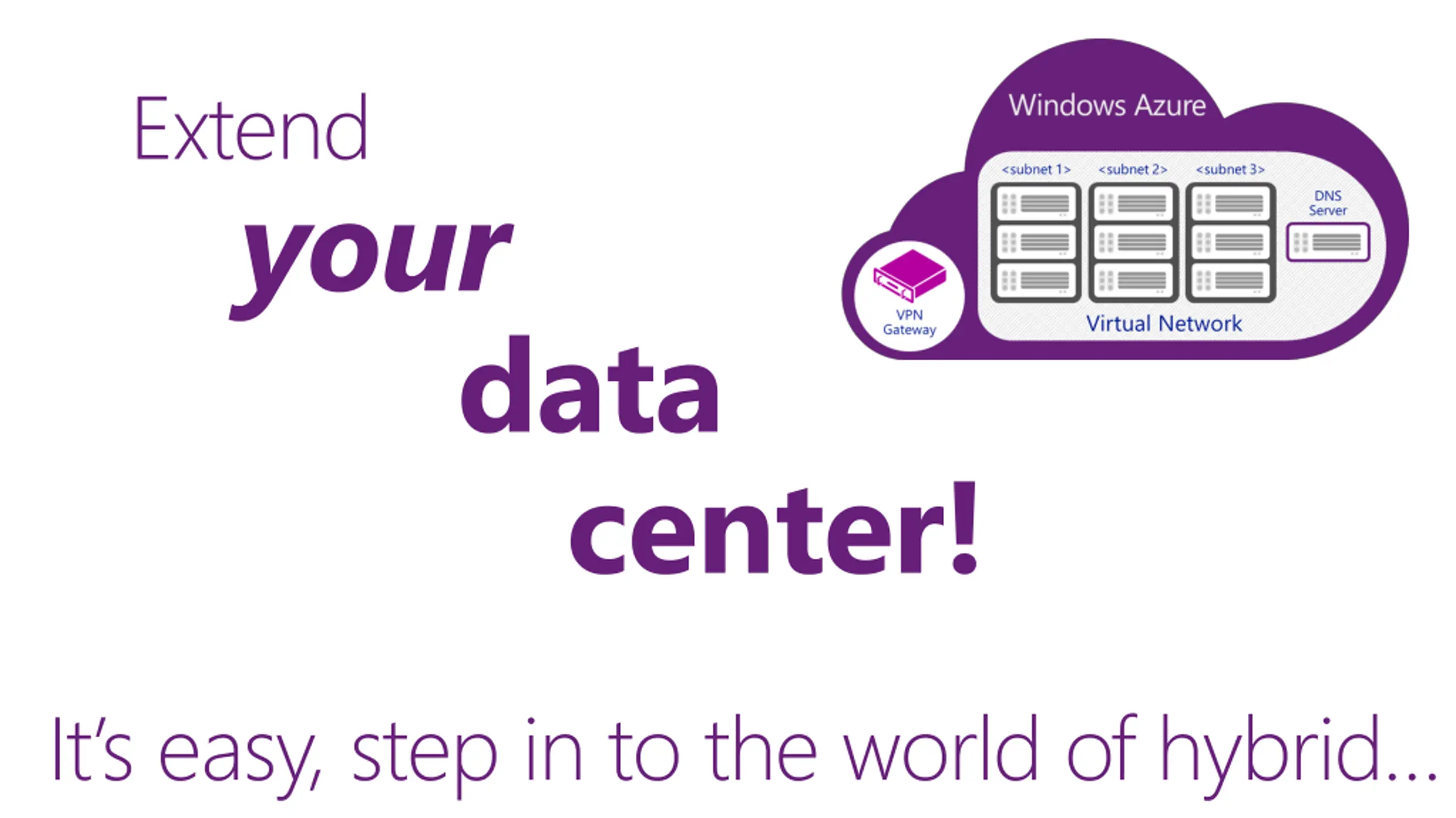

Extend your data center! It s easy, step in to the world of hybrid
Resources Check it out TechNet Evaluation Center Download Microsoft software trials today. technet.microsoft.com/evalcenter Microsoft Virtual Academy Learn, know apply http://www.microsoftvirtualacademy.com/ Microsoft Azure: Site-to-Site VPN http://www.microsoftvirtualacademy.com/training-courses/microsoft-azure-site-to-site-vpn 21
Thank you! Q&A time
