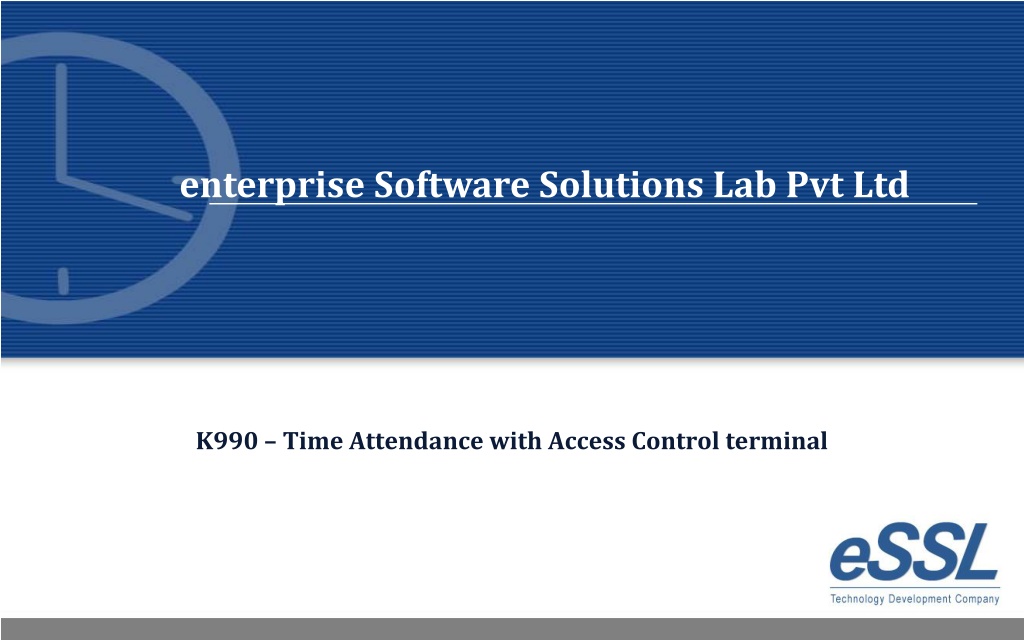

enterprise Software Solutions Lab Pvt Ltd K990 Time Attendance with Access Control terminal
General Issues faced by Business Organizations Attendance Proxy through buddy punching Errors when computing time Cost of paper time cards and manual records Unauthorized overtime payments In a recent study it was found that Buddy Punching inflates the payroll by 2.2% on an average. Ex : If an organization is with 5000 employees and average salary of Rs.12,000 a month, the payroll inflation would be about Rs.13 lakhs only from buddy punching.
Biometric Attendance for Your Office Biometric time systems eliminate buddy punching because they are inextricably linked to the employee, not to a token such as an employee badge or a time card. No need for separate cards Administrator can operate it, no need of contacting vendor again and again Saves lot of time and cost of company by eliminating manual registers and cards etc. Provides accurate and authenticated information
K990 Specifications Card Storage Transaction Card reader CPU Storage capacity 30,000 100,000 Yes 32 bit High End Microprocessor- 800MHz <=0.0001% <=1% <=0.1 sec Biometric FAR FRR Identification speed Display Audio/Visual 3.5 TFT Keypad 4 X 4 with 5 functional keys Green/Red LED Indicator Schedule Bell/Speaker Power Supply Operating Temperature Operating Humidity Dimension Mini Speaker DC 12V: 1.5Amp 0oC to 45oC 20% - 80% 212 x 159 x 45mm Power & environment
K990 Specifications Communication Communication RS232/485,TCP/IP (Optional : Wi Fi, GPRS) Yes Push data Standard features work code,SMS,DLST, Self service query, Status Switch Access control Wiegand In & Out both 26 or 34 bit (With or without site code) Relay 12 V relay for lock EM lock, Bolt Lock or Strike lock Support Fire Alarm Yes Door Sensor Anti Passback Yes Yes Door Bell Yes
K990 Compatible Readers For Exit 101HEExit Switch No Touch Exit KR500 Sensor KR503
K990 Supporting Software Database Software eTimeTrackLite -Desktop eTimeTrackLite - Web ePushServer - Web eSSL Bio Server - Web
Company Overview eSSL Pvt. Ltd. India is one amongst the leading biometric companies in India with over 12 years of presence offering a unique Attendance and Access control solution, which ensures a hassle free and systematic solution for your attendance and access control requirements. eSSL Pvt. Ltd. India is the leading solution provider for CCTV, IP & PTZ Camera, DVR, Biometrics, RFID, Smart Card, Door Access Controllers, Finger Print Turnstiles and Hotel Locks, Biometric Locks, Electronic Safe Lockers, Video Door Phones with its Time and Attendance s/w, Access control s/w Payroll s/w, Visitor management & Canteen Management s/w. eSSL has always been emphasizing on the technology when it comes to end customer satisfaction. Blend of unique technologies and products, essl solutions takes a name as synonymous in the security industry. 200
