Energy Storage and Transfer Concepts

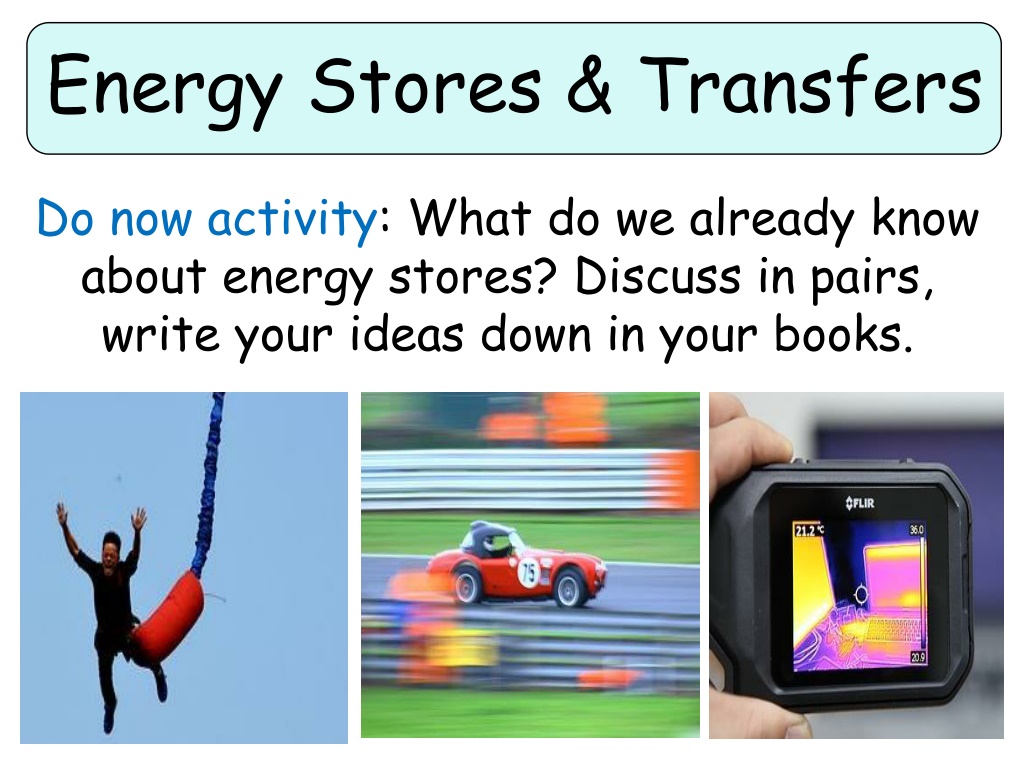

Energy Stores & Transfers
Do now activity
: What do we already know
about energy stores? Discuss in pairs,
write your ideas down in your books.
GOOD PROGRESS:
•
Recall some common energy transfers
•
Describe types of energy stores
OUTSTANDING PROGRESS:
•
Describe energy before and after a change
Progress indicators
The principle of the conservation of energy:
‘Energy cannot be created or destroyed’
So what can it do?
It can be
stored
in various ways and
it can be
transferred.
Energy can be
stored
in different ways and
transferred
too.
Below are some images which represent some types of
energy stores
.
What do you think they might be?
THINK!
kinetic
thermal
chemical
elastic potential
gravitational potential
kinetic
thermal
chemical
elastic potential
gravitational
potential
chemical
Self-assessment:
There are five ways in which energy can be stored:
•
C…
•
Th….
•
K…
•
Gr….
•
El…
Task: Finish the words
and then match with
the correct description
from below!
•
The type of energy that is stored within a moving object
•
The type of energy that can be stored in a springy object if you stretch
or squash it
•
The type of energy that is stored in an object that has the potential to
fall due to gravity
•
This energy stores includes fuels, foods, or the chemicals found in
batteries. The energy is transferred during chemical reactions
•
This describes the energy store a substance has because of it’s
temperature
•
This energy stores includes fuels, foods, or
the chemicals found in batteries. The
energy is transferred during chemical
reactions.
•
This describes the energy store a
substance has because of it’s temperature.
•
The type of energy that is stored within a
moving object.
•
The type of energy that is stored in an
object that has the potential to fall due to
gravity.
•
The type of energy that can be stored in a
springy object if you stretch or squash it.
•
Chemical –
•
Thermal –
•
Kinetic –
•
Gravitational
Potential Energy –
•
Elastic -
Self-assessment:
There are also different ways in which energy can
be
transferred
. Look at the pictures below and try
and figure out what they might be!
Light
Sound
Electric Current
Energy transfers
– what is happening?
Chemical
energy
store in the
battery
Electric
current in
the wires
Energy
transferred
to the
surroundings
Increase in
the thermal
energy store
of the
surroundings
Task:
Match the correct
statement to the correct box
to show how energy is
transferred by a torch.
Light waves
Chemical
energy
store in the
battery
Electric
current in
the wires
Energy
transferred
to the
surroundings
Light waves
Increase in
the thermal
energy store
of the
surroundings
Self-assessment:
Task:
Complete the energy transfer diagrams
:
Ch______
energy store
in the candle
Energy is transferred
to the surroundings
El______
energy is
transferred
to the TV
Energy is transferred
to the surroundings
Chemical
energy store
in the candle
Energy is transferred
to the surroundings
Electrical
energy is
transferred
to the TV
Energy is transferred
to the surroundings
Energy is
transferred as
light waves.
Energy is transferred
to the thermal energy
store of the
surroundings.
Energy is transferred
as light waves.
Energy is
transferred as
sound waves
.
Energy is transferred
to the thermal energy
store of the
surroundings
Self-assessment:
Task
: You must work in 3’s for this experiment:
Person 1
:
Ball dropper
Person 2:
Reads the height the ball bounces back up to.
Person 3
:
The scribe – writes down the height the ball
was dropped from and the height it bounces back up to
Investigate:
The height a ball bounces back
compared to the height it was dropped from.
1.
What type of energy did the ball have before you dropped
it?
(1)
2.
What type of energy was your answer to Q1 transferred
to when the ball dropped?
(1)
3.
Did the ball ever bounce back up to it’s original height? (1)
4.
Can you explain your answer to Q3?
Hint: What energy
was wasted?
(2)
CONCLUSION
:
1.
The ball had a store of gravitational potential energy
before it was dropped.
(1)
2.
As the ball dropped, the store of gravitational potential
energy was transferred to kinetic energy.
(1)
3.
No, the ball never bounced back up to its original height. (1)
4.
Because energy has been wasted, some energy had been
transferred to the thermal energy store of the
surroundings and also transferred as sound waves.
(2)
Self-assessment:
Plenary
~ Complete one of the following
sentences in your book:
Today I
have learnt
that …
One thing I
must remember
from today’s
lesson is…
Before this lesson I
already knew how to …
I still don’t
understand ….
Explore the concept of energy stores and transfers, including various types such as gravitational potential, chemical, thermal, kinetic, and elastic potential energy. Learn about the conservation of energy principle and how energy can be stored and transferred in different ways. Engage in activities and self-assessments to deepen your understanding of energy storage mechanisms.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Energy Stores & Transfers Do now activity: What do we already know about energy stores? Discuss in pairs, write your ideas down in your books.
Progress indicators GOOD PROGRESS: Recall some common energy transfers Describe types of energy stores OUTSTANDING PROGRESS: Describe energy before and after a change
The principle of the conservation of energy: Energy cannot be created or destroyed So what can it do? It can be stored in various ways and it can be transferred.
Energy can be stored in different ways and transferred too. Below are some images which represent some types of energy stores. What do you think they might be? THINK! chemical elastic potential gravitational potential kinetic thermal
Self-assessment: gravitational potential chemical thermal chemical kinetic elastic potential
There are five ways in which energy can be stored: C Th . K Gr . El Task: Finish the words and then match with the correct description from below! The type of energy that is stored within a moving object The type of energy that can be stored in a springy object if you stretch or squash it The type of energy that is stored in an object that has the potential to fall due to gravity This energy stores includes fuels, foods, or the chemicals found in batteries. The energy is transferred during chemical reactions This describes the energy store a substance has because of it s temperature
Self-assessment: This energy stores includes fuels, foods, or the chemicals found in batteries. The energy is transferred during chemical reactions. Chemical Thermal This describes the energy store a substance has because of it s temperature. Kinetic The type of energy that is stored within a moving object. Gravitational Potential Energy The type of energy that is stored in an object that has the potential to fall due to gravity. Elastic - The type of energy that can be stored in a springy object if you stretch or squash it.
There are also different ways in which energy can be transferred. Look at the pictures below and try and figure out what they might be! Electric Current Sound Light
Energy transfers what is happening? Task: Match the correct statement to the correct box to show how energy is transferred by a torch. Light waves Chemical energy store in the battery Electric current in the wires Energy transferred to the surroundings Increase in the thermal energy store of the surroundings
Self-assessment: Light waves Increase in the thermal energy store of the surroundings Chemical energy store in the battery Electric current in the wires Energy transferred to the surroundings
Task: Complete the energy transfer diagrams: Ch______ energy store in the candle Energy is transferred to the surroundings El______ energy is transferred to the TV Energy is transferred to the surroundings
Self-assessment: Energy is transferred as light waves. Chemical energy store in the candle Energy is transferred to the thermal energy store of the surroundings. Energy is transferred to the surroundings Energy is transferred as light waves. Electrical energy is transferred to the TV Energy is transferred as sound waves. Energy is transferred to the thermal energy store of the surroundings Energy is transferred to the surroundings
Investigate: The height a ball bounces back compared to the height it was dropped from. Task: You must work in 3 s for this experiment: Person 1: Ball dropper Person 2: Reads the height the ball bounces back up to. Person 3: The scribe writes down the height the ball was dropped from and the height it bounces back up to Height that the ball was dropped from (cm) Height that the ball bounces back up to (cm)
CONCLUSION: 1. What type of energy did the ball have before you dropped it? 2. What type of energy was your answer to Q1 transferred to when the ball dropped? 3. Did the ball ever bounce back up to it s original height? (1) 4. Can you explain your answer to Q3? Hint: What energy was wasted? (1) (1) (2)
Self-assessment: 1. The ball had a store of gravitational potential energy before it was dropped. (1) 2. As the ball dropped, the store of gravitational potential energy was transferred to kinetic energy. (1) 3. No, the ball never bounced back up to its original height. (1) 4. Because energy has been wasted, some energy had been transferred to the thermal energy store of the surroundings and also transferred as sound waves. (2)
Plenary ~ Complete one of the following sentences in your book: Today I have learnt that One thing I must remember from today s lesson is I still don t understand . Before this lesson I already knew how to
