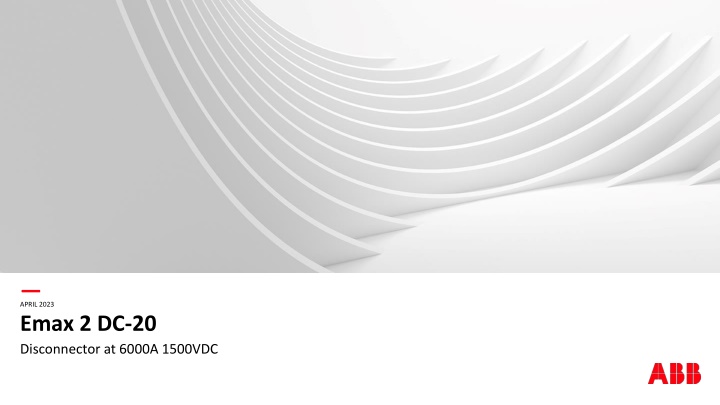

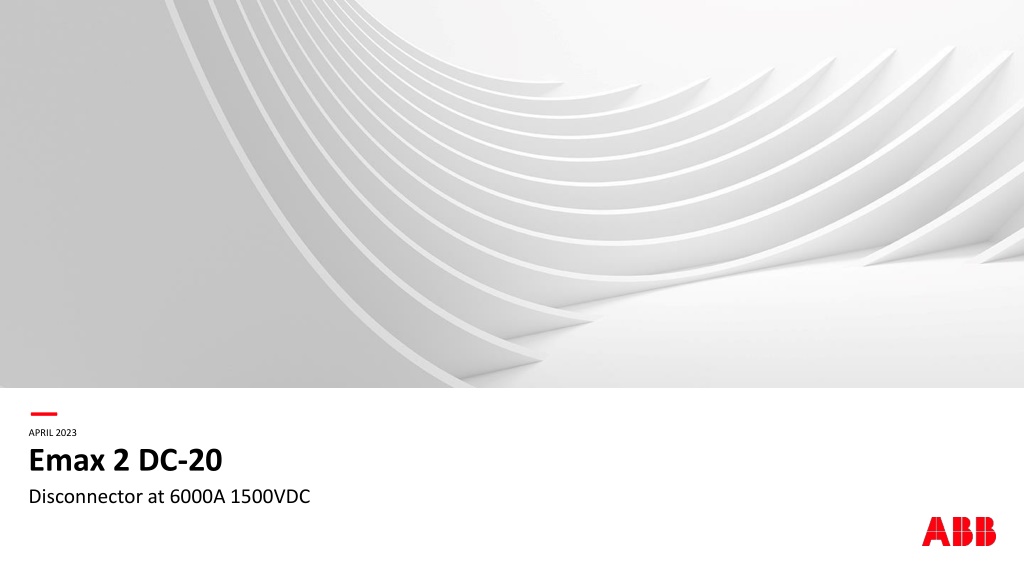

  1. APRIL 2023 Emax 2 DC-20 Disconnector at 6000A 1500VDC

  2. Emax 2 DC-20 Intro The new E4.2 MS/DC-E DC-20 is a: Disconnector rated 6000A1500V DC Icw (1s) = 100kA IEC certified Utilization category DC-20A (IEC 60947-3) Do not operate under load : opening and closing of breaker must be performed only when current is equal to zero.

  3. Emax 2 DC-20 Installation features Based on E4.2 MS/DC-E air switch-disconnector Compact dimension as E4.2 4P W (551 mm wide) Withdrawable only (mobile part + fixed part) Poles are internally connected in parallel 2P+2P (factory fitted)

  4. Emax 2 MS/DC-E Resources Web page https://new.abb.com/low-voltage/products/circuit-breakers/emax2/dc Documentation: DC-20 Product Leaflet Emax 2 MS/DC-E Catalogue
