Presentation Transcript

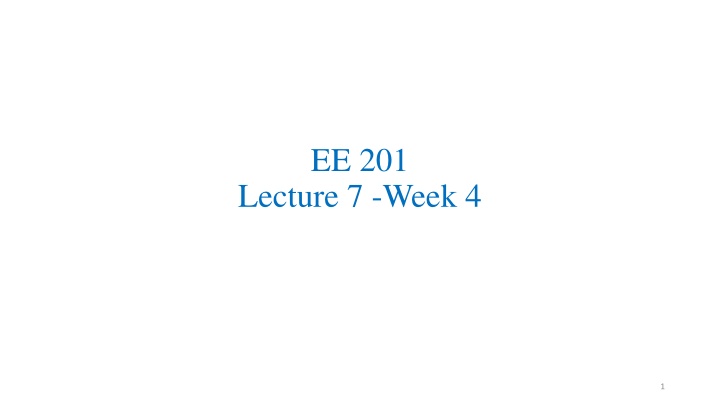

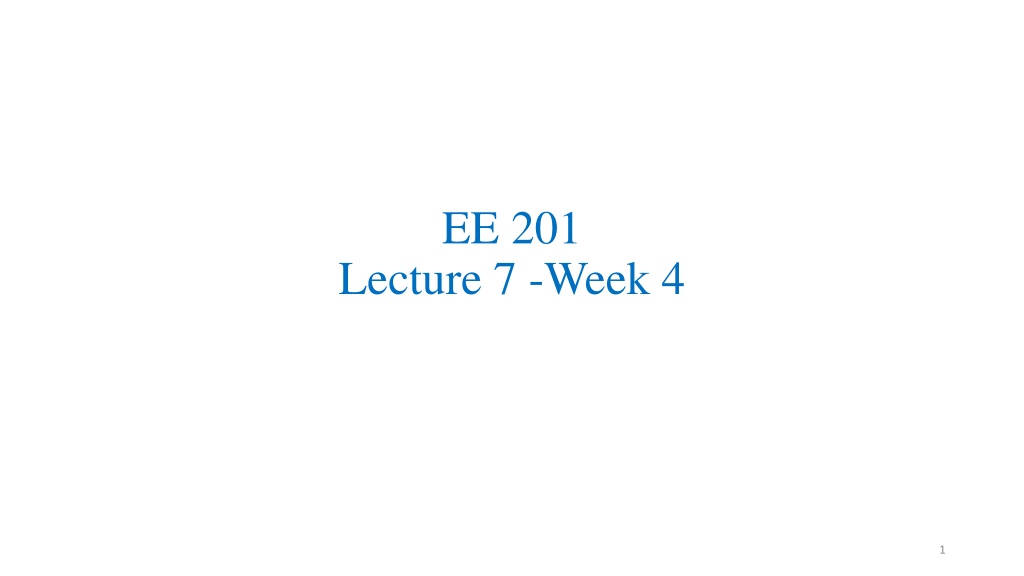

1. EE 201 Lecture 7 -Week 4 1

2. Chapter 8 Methods of Analysis and Selected Topics (dc) Source conversions Current sources in parallel Mesh Analysis 2

3. Source Conversion 3

4. Example 4

5. Current Sources in Parallel 5

6. Mesh Analysis Step 1: Two loop currents (I1 and I2) are assigned in the clockwise direction in the windows of the network. Step 2: Polarities are drawn within each window to agree with assumed current directions. Step 3: Kirchhoff s voltage law is applied around each loop in the clockwise direction. 6

7. Mesh Analysis Loop 1: 2 2?1 4 ?1 ?2 = 0 Loop 2: 6 ?2 4 ?2 ?1 = 0 Loop 1: 2 6 ?1+ 4?2=0 Loop 2: 6 + 4?1 5?2= 0 7

8. Mesh Analysis (Formatted Approach) Loop 1: ?1 ?2= Loop 2: ?2 ?1= ( ) 8

9. Supermesh 9

10. Supermesh 10

11. Example 1 ?1= 2.18 A ?2= 0.77 ? ?1 ?2= 1.41 ? 11

12. Example 2 12

13. Example 3 ???????? ????: 10 ?1+ 9?2 14?3= 20 ?3= 8 ? ?1 ?2= 3 ?1= ?2 3 30 + 10 ?2+ 9?2 112 = 20 ?2= 8.526 ?,?1= 5.526 ? ?6 = 2.47 ? ???? ?8 = 0.526 ? (??? ?) 13

14. Example 4 ?1 ?1+ ?1 ?2 ?2 ?2+ ?3= ?3= ?3= - - 2 ?1 1 ?2 0 ?3= 2 - 1 ?1+ 6 ?2 3 ?3= 4 - 0 ?1 3 ?2+ 7 ?3= 2 14

15. Announcement & Review HW 2 is assigned and is due next week (2 Oct.) You have until next Monday (30 Sept.) to submit HW 1 if you have not submitted (-2 for late submission) 15
