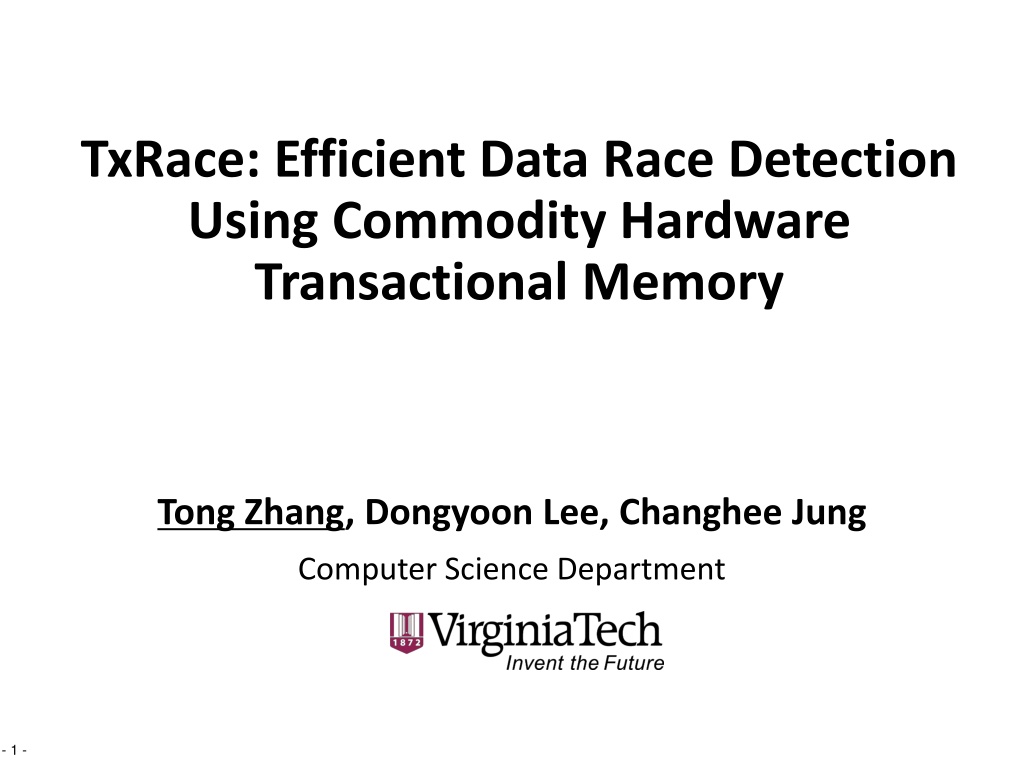

1. TxRace: Efficient Data Race Detection Using Commodity Hardware Transactional Memory Tong Zhang, Dongyoon Lee, Changhee Jung Computer Science Department - 1 -

2. Data Races in Multithreaded Programs Two threads access the same shared location (one is write) Not ordered by synchronizations Thread 1 Thread 2 p = NULL if (p) { crash fput(p, ) } MySQL bug #3596 - 2 -

3. Race Conditions Caused Severe Problems 50+ million people lost power Cost an estimated $6 billion Northeast Blackout of 2003 About 30 million shares worth of trading were affected Cost an estimated $13 million Stock Price Mismatch in 2012 - 3 -

4. State-Of-The-Art Dynamic Data Race Detector Software based solutions FastTrack [PLDI 09] Intel Inspector XE Google Thread Sanitizer ... Sound (no false negatives) Complete (no false positives) High overhead (10-100x) Hardware based solutions ReEnact [ISCA 03] CORD [HPCA 06] SigRace [ISCA 09] Low overhead Custom hardware - 4 -

5. Our Approach Hybrid SW + (existing) HW solution Leverage the data conflict detection mechanism of Hardware Transactional Memory (HTM) in commodity processors for lightweight data race detection Low overhead No custom hardware - 5 -

6. Outline Motivation Background: Transactional Memory TxRace: Design and Implementation Experiments Conclusion - 6 -

7. Transactional Memory (TM) Allow a group of instructions (a transaction) to execute in an atomic manner Thread1 Thread2 Read(X) Transaction begin time Transaction end Write(X) Abort Data conflict Rollback Read(X) - 7 -

8. Challenge 1: Unable to Pinpoint Racy Instructions When a transaction gets aborted, we know that there was a data conflict between transactions Thread1 Thread2 ? Read(X) Write(X) Abort However, we DO NOT know WHY and WHERE - e.g. which instruction? at which address? Which transaction caused the conflict? - 8 -

9. Challenge 2: False Conflicts False Positives HTM detects data conflicts at the cache-line granularity False positives Thread1 Thread2 False transaction abort without data race Read(X) Write(Y) Abort X Y Cache line - 9 -

10. Challenge 3. Non-conflict Aborts Best-effort (non-ideal) HTM with limitations Transaction may get aborted without data conflicts False negatives (if ignored) Read(X) Write(Y) Read(Z) . . . Read(X) Write(Y) Z I/O syscall() Y X Abort Abort Hardware Buffer Unknown Abort Capacity Abort - 10 -

11. Outline Motivation Background: Transactional Memory TxRace: Design and Implementation Experiments Conclusion - 11 -

12. TxRace: Two-phase Data Race Detection Potential data races Slow-path (SW-based) Fast-path (HTM-based) Fast Sound(no false negative) Complete(no false positive) Slow Unable to pinpoint races False sharing(false positive) Non-conflict aborts(false negative) Google ThreadSanitizer (TSan) Intel Haswell (RTM) - 12 -

13. Compile-time Instrumentation Fast-path: convert sync-free regions into transactions Slow-path: add Google TSan checks Thread2 Thread1 Lock() Transaction begin Transaction end X=2 Sync-free X=1 Lock() Unlock() Sync-free Unlock() - 13 -

14. Fast-path Slow-path Fast-path HTM-based Detection Leverage HW-based data conflict detection in HTM Problem: On conflict, one transaction gets aborted, but all others just proceed slow-path missed racy transactions Thread1 Thread2 Thread3 Already passed X=1 Abort X=2 - 14 -

15. Fast-path Slow-path Fast-path HTM-based Detection Leverage HW-based data conflict detection in HTM Problem: On conflict, one transaction gets aborted, but all others just proceed Cannot switch to slow-path Solution: Abort in-flight transactions artificially Thread3 Thread1 Thread2 Rollback all R(TxFail) R(TxFail) R(TxFail) X=1 X=2 Abort Abort Abort W(TxFail) - 15 -

16. Fast-path Slow-path Slow-path SW-based Detection Use SW-based sound and complete data race detection - Pinpoint racy instructions - Filter out false positives (due to false sharing) - Handle non-conflict (e.g., capacity) aborts conservatively Thread3 Thread1 Thread2 SW-based detection X=1 X=2 Abort Abort Abort - 16 -

17. Implementation Two-phase data race detection Fast-path: Intel s Haswell Processor Slow-path: Google s Thread Sanitizer Instrumentation LLVM compiler framework Compile-time & profile-guided optimizations Evaluation PARSEC benchmark suites with simlarge input Apache web server with 300K requests from 20 clients 4 worker threads (4 hardware transactions) - 17 -

18. Outline Motivation Background: Hardware Transactional Memory TxRace: Design and Implementation Experiments 1) Performance 2) Soundness (Detection capability) 3) Cost-effectiveness Conclusion - 18 -

19. 1. Performance Overhead TSan TxRace 30 63x 1195x Runtime Overhead 25 >10x reduction 20 15 11.68x 10 4.65x 5 0 - 19 -

20. 2. Soundness (Detection Capability) Recall:0.95 TSan TxRace 10 Number of Race detected 79 64 64 112 False Negative 8 6 4 2 0 - 20 -

21. False Negatives Due to non-overlapped transactions X=1 Transaction begin Transaction end time X=2 - 21 -

22. False Negatives Case Study in vips Repeat the experiment to exploit different interleaving 120 # of detected data races 100 All detected 80 60 40 20 0 1 2 3 4 5 6 7 # of iterations - 22 -

23. 3. Cost-effectiveness Compared to Sampling TxRace vs. Tsan with Sampling Bodytrack Overhead 1 Runtime Overhead 0.8 0.69 TxRace 0.6 Overhead equivalent to na ve sampling at 25.5% 0.4 25.5% 0.2 TSan+Sampling 0 0 20 40 60 80 100 Sampling Rate (%) - 23 -

24. Recall compared to sampling TxRace: Less overhead + High recall Recall =???????? ???? ???? ????? ????? ???? ???? ????? Bodytrack Recall 1 0.8 0.75 TxRace Spend 25.5% Get 47.2% 0.6 Recall 0.4 47.2% 0.2 TSan+Sampling 0 0 20 40 60 80 100 Sampling Rate (%) - 24 -

25. Conclusion TxRace HTM-based fast-path(most of the time) SW-based slow-path(on-demand) 11.68x -> 4.65x Performance TxRace TSan Completeness Soundness Recall: 0.95 - 25 -

26. Q&A Thank you! - 26 -

27. Performance overhead baseline xbegin/xend 12 11 10 Runtime Overhead 9 8 Transaction overhead is low 7 Large number of short transactions 6 5 4 3 2 1.16 1 0 - 27 -

28. Performance overhead baseline xbegin/xend conflict aborts 12 11 10 Runtime Overhead 9 8 7 6 5 4 3 2.73 2 1 0 - 28 -

29. Performance overhead baseline xbegin/xend conflict aborts capacity aborts 12 11 10 Runtime Overhead 9 8 7 6 5 4 3 2 1 0 - 29 -

30. Performance overhead baseline xbegin/xend conflict aborts 63.3x capacity aborts unknown aborts 12 11 10 31.6x Runtime Overhead 9 8 7 6 5 4 3 2 1 0 - 30 -

31. False Negative Transactions finish and escape before being artifically aborted T1 T2 T3 W(TxFail) R(TxFail) R(TxFail) R(TxFail) X=1 X=2 Abort - 31 -
