Efficient Collective Operations using Remote Memory Operations on VIA-Based Clusters

This article discusses the use of Remote Direct Memory Access (RDMA) to optimize collective communication in parallel applications. It explores the communication characteristics, RDMA models, benefits of RDMA, and design issues related to buffer registration, data validity, and reuse. The potential of RDMA in modern protocols and architectures like Virtual Interface Architecture (VIA) and InfiniBand Architecture (IBA) is highlighted.

• RDMA
• Collective Communication
• Parallel Applications
• VIA-Based Clusters

amcsw Follow

Uploaded on Sep 29, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

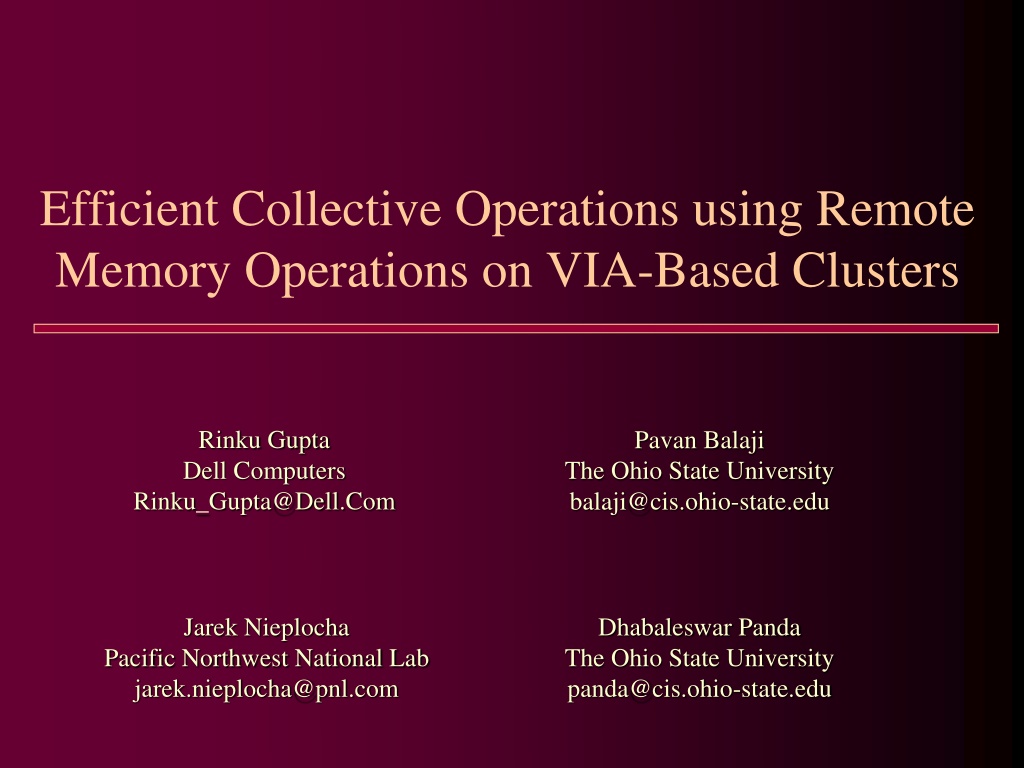

1. Efficient Collective Operations using Remote Memory Operations on VIA-Based Clusters Rinku Gupta Dell Computers Rinku_Gupta@Dell.Com Pavan Balaji The Ohio State University balaji@cis.ohio-state.edu Jarek Nieplocha Pacific Northwest National Lab jarek.nieplocha@pnl.com Dhabaleswar Panda The Ohio State University panda@cis.ohio-state.edu

2. Contents Motivation Design Issues RDMA-based Broadcast RDMA-based All Reduce Conclusions and Future Work

3. Motivation Communication Characteristics of Parallel Applications Point-to-Point Communication o Send and Receive primitives Collective Communication o Barrier, Broadcast, Reduce, All Reduce o Built over Send-Receive Communication primitives Communication Methods for Modern Protocols Send and Receive Model Remote Direct Memory Access (RDMA) Model

4. Remote Direct Memory Access Remote Direct Memory Access (RDMA) Model o RDMA Write o RDMA Read (Optional) Widely supported by modern protocols and architectures o Virtual Interface Architecture (VIA) o InfiniBand Architecture (IBA) Open Questions o Can RDMA be used to optimize Collective Communication? [rin02] o Do we need to rethink algorithms optimized for Send-Receive? [rin02]: Efficient Barrier using Remote Memory Operations on VIA-based Clusters , Rinku Gupta, V. Tipparaju, J. Nieplocha, D. K. Panda. Presented at Cluster 2002, Chicago, USA

5. Send-Receive and RDMA Communication Models Registered User buffer User buffer User buffer User buffer Registered Registered Registered descriptor descriptor descriptor R R S S NIC NIC NIC NIC Send/Recv RDMA Write

6. Benefits of RDMA RDMA gives a shared memory illusion Receive operations are typically expensive RDMA is Receiver transparent Supported by VIA and InfiniBand architecture A novel unexplored method

7. Contents Motivation Design Issues Buffer Registration Data Validity at Receiver End Buffer Reuse RDMA-based Broadcast RDMA-based All Reduce Conclusions and Future Work

8. Buffer Registration Static Buffer Registration Contiguous region in memory for every communicator Address exchange is done during initialization time Dynamic Buffer Registration - Rendezvous User buffers, registered during the operation, when needed Address exchange is done during the operation

9. Data Validity at Receiver End Interrupts Too expensive; might not be supported Use Immediate field of VIA descriptor Consumes a receive descriptor RDMA write a Special byte to a pre-defined location

10. Buffer Reuse Static Buffer Registration Buffers need to be reused Explicit notification has to be sent to sender Dynamic Buffer Registration No buffer Reuse

11. Contents Motivation Design Issues RDMA-based Broadcast Design Issues Experimental Results Analytical Models RDMA-based All Reduce Conclusions and Future Work

12. Buffer Registration and Initialization Static Registration Scheme (for size <= 5K bytes) P0 P1 P2 P3 Constant Block size -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 Notify Buffer Dynamic Registration Scheme (for size > 5K) -- Rendezvous scheme

13. Data Validity at Receiver End Broadcast counter = 1 (First Broadcast with Root P0) P0 P1 P2 P3 Constant Block size Data size 1 -1 1 -1 1 -1 1 Broadcast counter -1 -1 -1 -1 -1 -1 -1 -1 Notify Buffer

14. Buffer Reuse P0 P1 P2 P3 Broadcast Buffer 1 1 1 1 2 2 2 2 2 2 2 2 Notify Buffer 1 1 1 P0 P1 P2 P3

15. Performance Test Bed 16 1GHz PIII nodes, 33MHz PCI bus, 512MB RAM. Machines connected using GigaNet cLAN 5300 switch. MVICH Version : mvich-1.0 Integration with MVICH-1.0 MPI_Send modified to support RDMA Write Timings were taken for varying block sizes Tradeoff between number of blocks and size of blocks

16. RDMA Vs Send-Receive Broadcast (16 nodes) 350 14.4% 300 250 Latency (us) 200 150 100 19.7% 50 0 1024 1536 2048 2560 3072 3584 4096 4608 128 256 512 16 32 64 4 8 Message Size (bytes) RDMA 4K bytes/block RDMA 1K bytes/block RDMA 3K bytes/block Send-Receive RDMA 2K bytes/block Improvement ranging from 14.4% (large messages) to 19.7% (small messages) Block size of 3K is performing the best

17. Anal. and Exp. Comparison (16 nodes) Broadcast 300 250 200 Latency (us) Analytical Experimental 150 100 50 0 128 256 512 1024 1536 2048 2560 3072 3584 4096 4608 4 8 16 32 64 Message Size (bytes) Error difference of lesser than 7%

18. RDMA Vs Send-Receive for Large Clusters (Analytical Model Estimates: Broadcast) 1024 Node Broadcast 512 Nodes Broadcast 21% 700 700 21% 600 600 500 500 Latency (us) Latency (us) 400 400 300 300 200 200 16% 16% 100 100 0 0 1024 2048 4096 128 256 512 1024 2048 4096 16 32 64 128 256 512 4 8 16 32 64 4 8 Message Size (bytes) Message Size (bytes) Send-Receive RDMA Send-Receive RDMA Estimated Improvement ranging from 16% (small messages) to 21% (large messages) for large clusters of sizes 512 nodes and 1024 nodes

19. Contents Motivation Design Issues RDMA-based Broadcast RDMA-based All Reduce Degree-K tree Experimental Results (Binomial & Degree-K) Analytical Models (Binomial & Degree-K) Conclusions and Future Work

20. Degree-K tree-based Reduce P0 P0 P0 P1 P1 P1 P2 P2 P2 P3 P3 P3 P4 P4 P4 P5 P5 P5 P6 P6 P6 P7 P7 P7 [ 1 ] [ 1 ] [ 1 ] [ 1 ] [ 1 ] [ 1 ] [ 2 ] [ 2 ] K = 1 K = 3 K = 7 [ 3 ] [ 1 ] [ 2 ]

21. Experimental Evaluation Integrated into MVICH-1.0 Reduction Operation = MPI_SUM Data type = 1 INT (data size = 4 bytes) Count = 1 (4 bytes) to 1024 (4096) bytes Finding the optimal Degree-K Experimental Vs Analytical (best case & worst case) Exp. and Anal. comparison of Send-Receive with RDMA

22. Choosing the Optimal Degree-K for All Reduce Optimal Degree-K (16 nodes) 1200 Degree 1 Degree 3 Degree 7 Degree 15 Degree-1 Degree-3 Degree-3 16 nodes 1000 Latency (us) 800 Degree-1 Degree-7 Degree-3 8 nodes 600 400 Degree-1 200 4 nodes Degree-3 Degree-3 0 4-256B Beyond 1KB 4 8 16 32 64 128 256 512 1024 2048 4096 256-1KB Message Size (bytes) For lower message sizes, higher degrees perform better than degree-1 (binomial)

23. Degree-K RDMA-based All Reduce Analytical Model Experimental Vs Analytical (Degree 3: 16 nodes) Degree-1 Degree-3 Degree-3 1024 nodes 700 Analytical (Best) Analytical (Worst) Experimental 600 Degree-1 Degree-3 Degree-3 512 nodes 500 Latency (us) 400 Degree-1 Degree-3 Degree-3 16 nodes 300 200 Degree-1 Degree-7 Degree-3 100 8 nodes 0 4 8 16 32 64 128 256 512 1024 2048 4096 Degree-1 4 nodes Degree-3 Degree-3 Message Size (bytes) 4-256B Beyond 1KB 256-1KB Experimental timings fall between the best case and the worst case analytical estimates For lower message sizes, higher degrees perform better than degree-1 (binomial)

24. Binomial Send-Receive Vs Optimal & Binomial Degree-K RDMA (16 nodes) All Reduce 700 9% Binomial Send Receive Optimal Degree-K RDMA Binomial RDMA 600 500 Latency (us) 400 300 200 38.13% 100 0 128 256 512 1024 2048 4096 4 8 16 32 64 Message Size (bytes) Improvement ranging from 9% (large messages) to 38.13% (small messages) for the optimal degree-K RDMA-based All Reduce compared to Binomial Send-Receive

25. Binomial Send-Receive Vs Binomial & Optimal Degree-K All Reduce for large clusters 512 Node All Reduce 1024 Node All Reduce 1400 1600 Binomial Send Receive Binomial Send Receive 14% 14% 1200 1400 Optimal Degree K (best case) Optimal Degree K (best case) 1200 1000 Optimal Degree-K (worst case) Optimal Degree-K (worst case) Latency (us) Latency (us) 1000 800 Binomial RDMA Binomial RDMA 800 600 600 400 35-41% 35-40% 400 200 200 0 0 4 8 16 32 64 128 256 512 1024 2048 4096 4 8 16 32 64 128 256 512 1024 2048 4096 Message Size (bytes) Message Size (bytes) Improvement ranging from 14% (large messages) to 35-40% (small messages) for the optimal degree-K RDMA-based All Reduce compared to Binomial Send-Receive

26. Contents Motivation Design Issues RDMA-based Broadcast RDMA-based All Reduce Conclusions and Future Work

27. Conclusions Novel method to implement the collective communication library Degree-K algorithm to exploit the benefits of RDMA Implemented the RDMA-based Broadcast and All Reduce Broadcast: 19.7% improvement for small and 14.4% for large messages (16nodes) All Reduce: 38.13% for small messages, 9.32% for large messages (16nodes) Analytical models for Broadcast and All Reduce Estimate Performance benefits of large clusters Broadcast: 16-21% for 512 and 1024 node clusters All Reduce: 14-40% for 512 and 1024 node clusters

28. Future Work Exploit the RDMA Read feature if available Round-trip cost design issues Extend to MPI-2.0 One sided Communication Extend framework to emerging InfiniBand architecture
