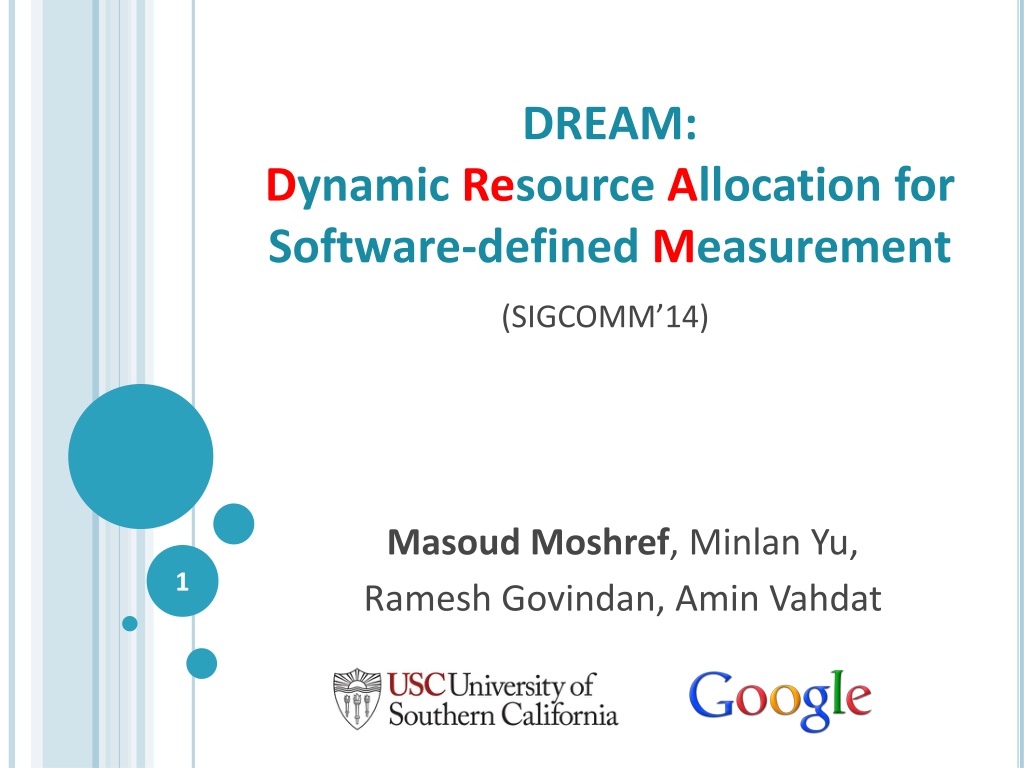

DREAM: Dynamic Resource Allocation for Software-defined Measurement (SIGCOMM 14) Masoud Moshref, Minlan Yu, Ramesh Govindan, Amin Vahdat 1
Measurement is Crucial for Network Management Tenant: Netflix Expedia Reddit Management: Anomaly Detection Detection Traffic Engineering Engineering Failure Traffic Accounting Accounting Measurement: Heavy Hitter detection Heavy Hitter detection Heavy Hitter detection Change detection Change detection Change detection Network: Motivation Motivation System Algorithm Evaluation 2
High Level Contribution: Flexible Measurement Management: Users dynamically instantiate complex measurements on network state Measurement: DREAM supports the largest number of measurement tasks while maintaining measurement accuracy, by dynamically leveraging tradeoffs between switch resource consumption and measurement accuracy Network: We leverage unmodified hardware and existing switch interfaces Motivation Motivation System Algorithm Evaluation 3
Prior Work: Software Defined Measurement (SDM) Controller Heavy Hitter detection Change detection 3 Install rules Update rules 1 2 Fetch counters #Bytes=1M #Bytes=5M Source IP: 10.0.1.128/30 Source IP: 10.0.1.130/31 Source IP: 55.3.4.34/31 Source IP: 55.3.4.32/30 Motivation Motivation System Algorithm Evaluation 4
Our Focus: Measurement Using TCAMs Existing OpenFlow switches use TCAMs which permit counting traffic for a prefix Focus on TCAMs enables immediate deployability Prior work has explored other primitives such as hash-based counters Motivation Motivation System Algorithm Evaluation 5
Challenge: Limited TCAM Memory 31 Find source IPs sending > 10Mbps 26 5 Controller 13 13 2 3 11 Heavy Hitter detection 00 01 10 Install rules Fetch counters 1 2 00 13MB 01 13MB 10 3MB 11 2MB Problem: Requires too many TCAMs 64K IPs to monitor a /16 prefix >> ~4K TCAMs at switches Motivation Motivation System Algorithm Evaluation 6
Reducing TCAM Usage Monitor internal nodes to reduce TCAM usage 31 Monitoring 1* is enough because a node with size 5 cannot have leaves >10 26 5 13 00 13 01 2 10 3 11 31 26 5 13 00 13 01 2 10 3 11 Motivation Motivation System Algorithm Evaluation 7
Challenge: Loss of Accuracy Fixed configuration misses heavy hitters as traffic changes 31 26 5 13 13 2 3 Missed heavy hitters 39 9 30 4 5 15 15 Motivation Motivation System Algorithm Evaluation 8
Dynamic Configuration to Avoid Loss of Accuracy 39 Find leaves >10Mbps using 3 TCAMs 9 30 4 5 15 15 Merge Divide Monitor children to detect HHs but using 2 TCAMs 39 9 30 Monitor parent to save a TCAM 4 5 15 15 Motivation Motivation System Algorithm Evaluation 9
Reducing TCAM Usage: Temporal Multiplexing Required TCAM changes over time Task 1 Task 2 # TCAMs Required Time Motivation Motivation System Algorithm Evaluation 10
Reducing TCAM Usage: Spatial Multiplexing Required TCAMs varies across switches Switch A Switch B # TCAMs Required Time Only needs more TCAMs at switch A Motivation Motivation System Algorithm Evaluation 11
Reducing TCAM Usage: Diminishing Returns 1 7% 0.8 Accuracy Bound 12% Accuracy 0.6 0.4 0.2 0 256 512 1024 TCAMs 2048 Can accept an accuracy bound <100% to save TCAMs Motivation Motivation System Algorithm Evaluation 12
Key Insight Leverage spatial and temporal multiplexing and diminishing returns to dynamically adapt the configuration and allocation of TCAM entries per task to achieve sufficient accuracy Motivation Motivation System Algorithm Evaluation 13
DREAM Contributions System Supports concurrent instances of three task types: Heavy Hitter, Hierarchical HH and Change Detection Algorithm Dynamicallyadapts tasks TCAM allocations and configuration over time and across switches, while maintaining sufficient accuracy Evaluation Significantly outperforms fixed allocation and scales well to larger networks Motivation Motivation System Algorithm Evaluation 14
DREAM Tasks Anomaly detection Traffic engineering Management Network provisioning Accounting Network visualization DDoS detection Heavy Hitter detection Measurement Hierarchical HH detection Change detection DREAM Network Architecture System Motivation Algorithm Evaluation 15
DREAM Workflow Task type Task parameters Task filter Accuracy bound Instantiate task Report Task Instance 1 TCAM Allocation and Configuration Task Instance n DREAM SDN Controller Configure counters Fetch counters Architecture System Motivation Algorithm Evaluation 16
Algorithmic Challenges Dynamically adapts tasks TCAM allocations and configuration over time and across switches, configuration over time and across switches, configuration over time and across switches, configuration Dynamically adapts tasks TCAM allocations and Dynamically adapts tasks TCAM allocations and Dynamically adapts tasks TCAM allocations and configuration over time and across switches, while maintaining sufficient accuracy while maintaining sufficient accuracy while maintaining sufficient accuracy while maintaining sufficient accuracy sufficient accuracy allocations allocations switches switches How to allocate TCAMs for sufficient accuracy? Diminishing Return Which switches to allocate? Temporal Multiplexing How to adapt TCAM configuration on multiple switches? Spatial Multiplexing Algorithm Motivation System Evaluation 17
Dynamic TCAM Allocation Allocate TCAM Estimate accuracy Measure Why iterative approach? Enough TCAMs High accuracy Satisfied We cannot know the curve for every traffic and task instance Thus we cannot formulate a one-shot optimization Not enough TCAMs Low accuracy Unsatisfied 1 Why estimating accuracy? 0.8 Accuracy 0.6 We don t have ground-truth Thus we must estimate accuracy 0.4 0.2 0 256 512 1024 TCAMs 2048 Algorithm Motivation System Evaluation 18
Estimate Accuracy: Heavy Hitter Detection True detected HH Precision = Detected HHs Is 1 because any detected HH is a true HH True detected HH Recall = True detected + Missed HHs Estimate missed HHs Algorithm Motivation System Evaluation 19
Estimate Recall for Heavy Hitter Detection True detected HH Recall = True detected + Missed HHs Find an upper bound of missed HHs using size and level of internal nodes Threshold=10Mbps With size 26: missed <=2 HHs At level 2: missed <=2 HH 76 26 50 12 14 15 35 5 7 12 2 0 15 20 15 Algorithm Motivation System Evaluation 20
Allocate TCAM Goal: maintain high task satisfaction Fraction of task s lifetime with sufficient accuracy How many TCAMs to exchange? Small Slow convergence Large Oscillations Accuracy Accuracy Time Time Algorithm Motivation System Evaluation 21
Avoid Overloading Not enough TCAMs to satisfy all tasks Solutions Reject new tasks Drop existing tasks Algorithm Motivation System Evaluation 22
Algorithmic Challenges Dynamically adapts tasks TCAM allocations and configuration over time and across switches, while maintaining sufficient accuracy How to allocate TCAMs for sufficient accuracy? Diminishing Returns Which switches to allocate? Temporal Multiplexing How to adapt TCAM configuration on multiple switches? Spatial Multiplexing Algorithm Motivation System Evaluation 23
Allocate TCAM: Multiple Switches A task can have traffic from multiple switches Controller 30 HHs Heavy Hitter detection 20 HHs 10 HHs A B Local accuracy is important Global accuracy is important Use both local and global accuracy If a task is globally unsatisfied, increasing B s TCAMs is expensive (diminishing returns) If a task is globally satisfied, no need to increase A s TCAMs Algorithm Motivation System Evaluation 24
