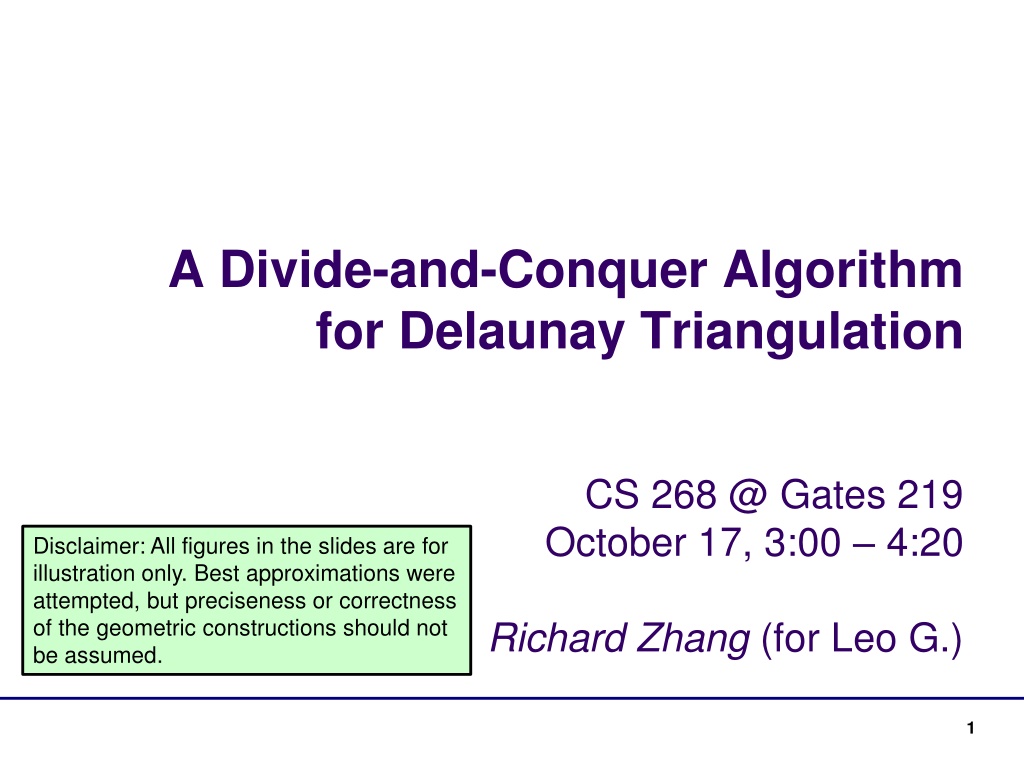

A Divide-and-Conquer Algorithm for Delaunay Triangulation CS 268 @ Gates 219 October 17, 3:00 4:20 Disclaimer: All figures in the slides are for illustration only. Best approximations were attempted, but preciseness or correctness of the geometric constructions should not be assumed. Richard Zhang (for Leo G.) 1
Algorithm pipeline 1. Sort n input sites by their x-coordinates x 2
Algorithm pipeline 2. Divide the n sites into two equal halves x 3
Algorithm pipeline 3. Recursively build Delaunay, L & R, for each half R L x 4
Algorithm pipeline 3. Recombine by adding cross edges between L & R R L x 5
Algorithm pipeline 3. Recombine by adding cross edges between L & R Some LL or RR edges may be deleted R L x 6
Key step: build cross edges (linear time) Start with the lower common tangent of L s and R s convex hulls This edge is on the convex hull, hence a Delaunay edge R L x 7
Key step: build cross edges Add Delaunay edges bottom-up (ascending y-order) Given a current Delaunay edge (called a basel edge), the next Delaunay edge must share a vertex with the basel Lemma 28 R L x 8
Key step: build cross edges Lemma 28 proof sketch: We have a triangulation, the split line (dash) cuts through a series of triangles. Hence, two consecutive cross edges must belong to one triangle. R L x 9
Useful visualization: circular bubbles Think of all circles that pass through two end points of a basel To go from one such circle to another is like stretching a circular bubble by rising it through a chord (the basel) Fixed Basel = chord Fixed 10
Useful visualization: circular bubbles Think of all circles that pass through two end points of a basel To go from one such circle to another is like stretching a circular bubble by rising it through a chord (the basel) Fixed Basel = chord Fixed 11
Useful visualization: circular bubbles Think of all circles that pass through two end points of a basel Stretching on one side = shrinking on the other side stretch Fixed Basel = chord shrink Fixed 12
Some notations Us(AB): upper half plane Hs(AB): either Us(AB) or Ls(AB) Cir(XYZ): circle through X, Y, Z A basel B Ls(AB): lower half plane 13
Lemma 29 Consider truncated circles, Hs(AB) Cir(ABM) and Hs(AB) Cir(ABN) for any points M and N. One of them must entirely contain the other. either A N M B 14
Lemma 29 Consider truncated circles, Hs(AB) Cir(ABM) and Hs(AB) Cir(ABN) for any points M and N. One of them must entirely contain the other. N A M B or 15
Lemma 29 If Yellow contains Green on one side (Green to Yellow is a stretch), then Yellow is contained by Green on the other side (G to Y is a shrink). stretch N A shrink B M 16
N5 N4 N2 N3 N1 B A Lemma 30: characterize the candidate for next basel Consider a basel AB and let N1, , Nkbe A s L-neighbors in the upper half plane Us(AB), sorted in counterclockwise order. Note: some edges ANi may be interior edges in the Delaunay triangulation L. 17
N5 N4 N2 N3 N1 B A Lemma 30: characterize the candidate for next basel Consider all the i = Us(AB) Cir(ABNi) s, the truncated circles The containment of i+1 by i is unimodal in that there is a switching point j so that before j, i.e., i < j, we have: i i+1 And after j, i.e., i j, we have i i+1 18
Lemma 30 Specifically, in the example here, we have N5 N4 1 2 N2 N3 N1 B A 19
Lemma 30 Specifically, in the example here, we have N5 N4 2 3 N2 N3 N1 B A 20
Lemma 30 Specifically, in the example here, but then a switch at N3: N5 N4 3 4 N2 N3 N1 B A 21
Lemma 30 Then the containment does not switch back any more, we have N5 N4 4 5 N2 N3 N1 B A 22
N5 N4 L R N2 N3 N1 B A Lemma 30 The switching point N3is special. It is the candidate (on the L side) for B as the next basel. There is also a similar candidate on the R side for A, as the next basel. 23
N5 N4 L R N2 N3 N1 B A Lemma 30 If N3were chosen, then edges AN1and AN2would be deleted, since they cannot be Delaunary. N3becomes the next A to form the next basel edge. We will start at the new AB and repeat 24
N5 N4 L R N2 A N1 B Lemma 30 If N3were chosen, then edges AN1and AN2would be deleted, since they cannot be Delaunary. N3becomes the next A to form the next basel edge. We will start at the new AB and repeat 25
N5 N4 L R N2 N3 N1 B A A key observation about the switching point (used later) Since 3, the truncated circle Cir(ABN3) Us(AB) for the switching point,is contained by all the other s, ALL other N s, N1, N2, N4, , must lie outside of 3. 26
Proof of Lemma 30 The key is to look at intersection Xi between Cir(ANiNi+1) and line AB and noticing that they monotonically move toward A. N5 N4 N3 N2 N1 X1 A B 27
Proof of Lemma 30 The key is to look at intersection Xi between Cir(ANiNi+1) and line AB and noticing that they monotonically move toward A. N5 N4 N3 N2 N1 X1 X2 A B 28
Proof of Lemma 30 The switch (at N3) occurs when Xi crosses B N5 N4 N3 N2 N1 X1 X2 A B X3 29
Proof of Lemma 30 The switch (at N3) occurs when Xi crosses B Before crossing, Cir(ANiNi+1) contains B. Afterwards, B is outside. N5 N4 N3 N2 N1 X1 X2 A B X3 30
To prove monotonicity of the Xis: Look at ANY three consecutive points Ni-1, Ni, and Ni+1. Since ANi-1Ni is Delaunay, Ni+1 must lie outside Cir(ANi-1Ni). Consider ANi as the chord, to get from Cir(ANi-1Ni) to Cir(ANiNi+1), Cir(ANi- 1Ni) must be stretched through the chord. Ni+1 Ni Ni-1 Stretch B A Xi-1 Xi 31
To prove monotonicity of the Xis: Look at ANY three consecutive points Ni-1, Ni, and Ni+1. Recall Lemma 29, on the other side of ANi, Cir(ANi-1Ni) must be shrunk through the chord. Hence, the intersection Xi must move from Xi-1 toward A. Ni+1 Ni Ni-1 Stretch B A Xi-1 Xi Shrink 32
Lemma 31: how to choose the next Delaunay cross edge Let N be the L candidate and M be the R candidate for besal edge AB, which is the current Delaunay cross edge found. Let ABC be the current Delaunay triangle. Recall: N is the switching point in A s L-neighbors. M is the switching point in B s B-neighbors. L R N M A B C 33
Lemma 31: how to choose the next Delaunay cross edge Let N be the L candidate and M be the R candidate for besal edge AB, which is the current Delaunay cross edge found. Let ABC be the current Delaunay triangle. How to choose: If M is outside Cir(ABN), then BN is chosen instead of AM. Need to show that BN must be a Delaunay edge. L R N M A B C 34
Lemma 31 To show that BN is a Delaunay edge, we show Cir(ABN) is empty of ALL sites. First, look at the Ls(AB), the lower side of AB. Since ABC is Delaunay, ALL sites, including N, must lie outside Cir(ABC). Since N lies outside, in Ls(AB), Cir(ABN) is contained in Cir(ABC). So in the lower side, Cir(ABN) cannot contain any site. L R N M A B C 35
Lemma 31 To show that BN is a Delaunay edge, we show Cir(ABN) is empty of ALL sites. Now let us look at the Us(AB), the upper side of AB. Recall a previous key observation about the choice of switching point N. L R N M B A 36
Reminder slide N5 N4 L R N2 N3 N1 B A A key observation about the switching point (used now) Since 3, the truncated circle Cir(ABN3) Us(AB) for the switching point,is contained by all the other s, ALL other N s, N1, N2, N4, , must lie outside of 3. 37
L R N B A With N as the switching point, it is not hard to see: not any sites in the L side can lie inside Cir(ABN) in the upper side of AB. 38
L R N M B A Similarly, since M is the switching point on the R side for B, no R sites can lie inside Cir(ABM) in the upper side of AB. 39
L R N M B A Since M lies outside Cir(ABN) --- which was why BN was chosen over AM, Cir(ABN) lies inside of Cir(AMB) in Us(AB). Hence, no R sides can lie inside of Cir(ABN) in the upper side of AB. 40
Hence, in the upper side (of AB), Cir(ABN) cannot contain any site. Cir(ABN) cannot contain any site in either side of AB. BN is Delaunay. L Lemma 31 is proved. R N M B A 41
