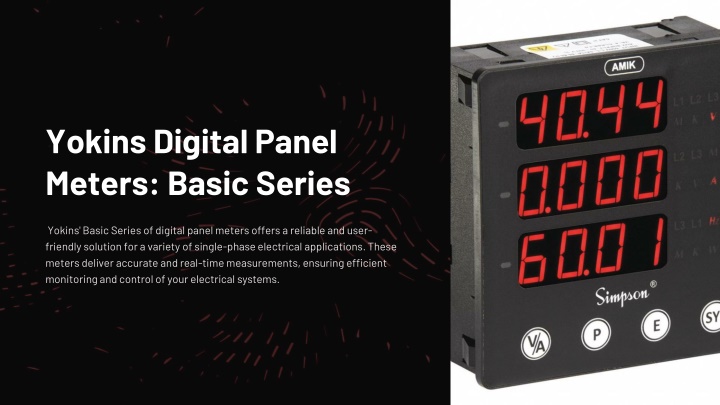

  1. Yokins Digital Panel Meters: Basic Series Yokins' Basic Series of digital panel meters offers a reliable and user- friendly solution for a variety of single-phase electrical applications. These meters deliver accurate and real-time measurements, ensuring efficient monitoring and control of your electrical systems.

  2. Single-Phase Ammeter Precise Measurements Easy to Read Compact Design 1 2 3 The large, easy-to- read display ensures that the current measurements are clearly visible, even in dimly lit environments. The compact and space-saving design of the ammeter allows for seamless integration into your control panels or switchgear. The single-phase ammeter provides precise and reliable current readings, helping you maintain optimal performance in your electrical installations.

  3. Product Overview Versatile Applications Robust Construction Easy Installation The Yokins Basic Series digital panel meters are suitable for a wide range of single-phase electrical applications, including industrial, commercial, and residential settings. Designed with durability in mind, these meters feature a sturdy housing that can withstand harsh environments and ensure long-lasting performance. The panel-mounted design and simple wiring requirements make the installation process straightforward, allowing for quick and efficient deployment.

  4. Key Features Accuracy Wide Measurement Range High-precision measurements with an accuracy of 0.5% ensure reliable data for your electrical systems. The ammeter can measure a wide range of current, accommodating a variety of electrical loads and applications. Intuitive Interface Compact Design The user-friendly interface with clear and easy-to-read displays simplifies the monitoring and control of your electrical parameters. The compact footprint of the meter allows for flexible installation in limited space environments.

  5. Technical Specifications Voltage Range 110-240V AC Current Range 0-5A Accuracy 0.5% Display Large, 3.5-digit LED Dimensions 96 x 48 x 63.5mm Mounting Panel Mount

  6. Applications Industrial Commercial Residential Utilities Ideal for monitoring current in industrial equipment, machinery, and control panels. Suitable for use in commercial buildings, such as offices, retail stores, and restaurants. Perfect for residential applications, including home electrical systems and renewable energy installations. Useful for monitoring current in utility infrastructure, such as power distribution networks.

  7. Installation and Wiring Panel Cutout Secure Mounting Wiring Connections Create a panel cutout to accommodate the meter's dimensions. Securely mount the meter in the panel using the provided hardware. Connect the meter's terminals to the appropriate voltage and current sources.

  8. Ordering Information Model Numbers Accessories How to Order The Yokins Basic Series single-phase ammeter is available in the following model numbers: YAD-48- 1A, YAD-48-2A, and YAD- 48-5A. Optional accessories, such as current transformers and panel mounting kits, are available to meet your specific installation requirements. Contact your local Yokins distributor or visit our website to place your order and obtain pricing information. preencoded.png
