1. Sales Guide DGS-1100 Series B1 D-Link HQ, July 2014 D-Link confidential

2. Outline Gigabit Smart Portfolio Product Overview Target Application Feature Highlight Market Analysis

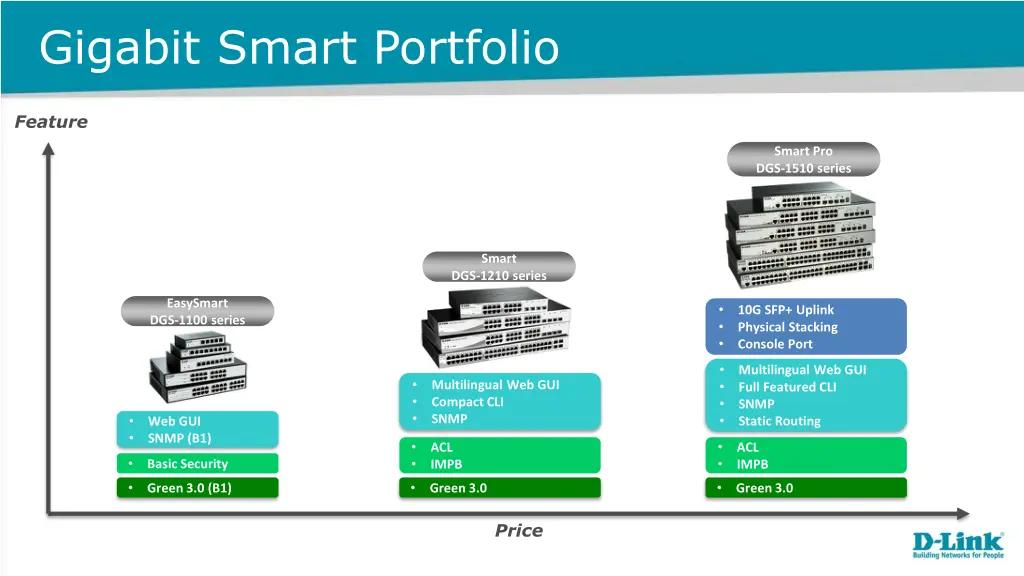

3. Gigabit Smart Portfolio Feature Smart Pro DGS-1510 series Smart DGS-1210 series EasySmart DGS-1100 series 10G SFP+ Uplink Physical Stacking Console Port Multilingual Web GUI Full Featured CLI SNMP Static Routing Multilingual Web GUI Compact CLI SNMP Web GUI SNMP (B1) ACL IMPB ACL IMPB Basic Security Green 3.0 (B1) Green 3.0 Green 3.0 Price

4. DGS-1100 Series/B1 Overview Model DGS-1100-16 DGS-1100-18 DGS-1100-24 DGS-1100-24P DGS-1100-26 Outlook Port Count 16-Ports 16-Ports 24-Ports 12-Ports 24-Ports 10/100/1000Mbps 10/100/1000Mbps + 2- Ports SFP 1000Mbps 10/100/1000Mbps 10/100/1000Mbps PoE + 12-Ports 10/100/1000Mbps 10/100/1000Mbps + 2- Ports SFP 1000Mbps Dimension in Width (Inch) 11 11 11 11 11 Easy-to-setup & installation via Web GUI and D-Link Network Assistant Utility Cost effective Gigabit connection to lower the CAPEX of Small and Medium business Various selection of port counts, PoE and fiber support

5. DGS-1100 Series Portfolio Port DGS-1100-05/08/08P A1 will continue DGS-1100-05 A1 DGS-1100-08 A1 DGS-1100-08P A1 DGS-1100 v.B1 DGS-1100-16 DGS-1100-24 DGS-1100-16/24 changes to B1 DGS-1100-16 A1 DGS-1100-24 A1 New DGS-1100-18 DGS-1100-26 DGS-1100-24P

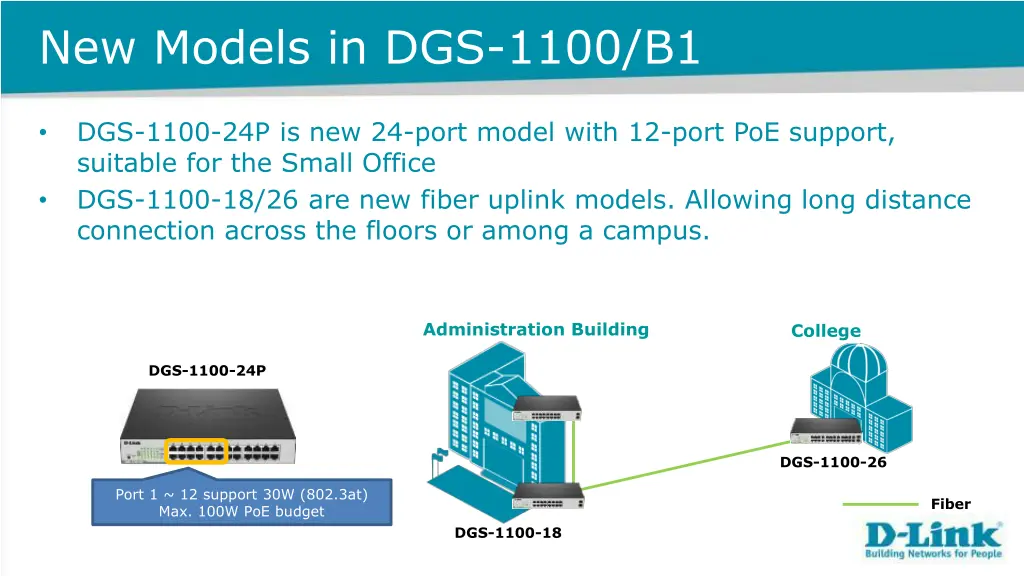

6. New Models in DGS-1100/B1 DGS-1100-24P is new 24-port model with 12-port PoE support, suitable for the Small Office DGS-1100-18/26 are new fiber uplink models. Allowing long distance connection across the floors or among a campus. Administration Building College DGS-1100-24P DGS-1100-26 Port 1 ~ 12 support 30W (802.3at) Max. 100W PoE budget Fiber DGS-1100-18

7. Software Enhancement in DGS-1100/B1 Feature A1 B1 Trunking Spanning Tree Loopback Detection IGMP Snooping Groups VLAN Groups Strom Control DoS Attack Prevention HTTPS D-Link Safeguard Web-based GUI SNMP Installation LLDP Dual Image User Privilege Levels Power Saving Static Trunk x v 32 32 v x x x v x SmartConsole Utility x x 1 D-Link Green 1.0 802.3ad LACP v v 64 64 v v v v v v D-Link Network Assistant v v 2 D-Link Green 3.0 L2 Features Multicast VLAN Security Management Green

8. Concentrator of Small Office Aggregates all network devices of a small office Web GUI provides non-IT personnel an easy tool for management Loopback Detection to avoid the loop because the user privately error installation SOHO/ SMB Router DGS-1100-24P Printer & Servers IP Camera & APs Meeting Room Gigabit Ethernet Working Area (PC+IP Phone) GE PoE

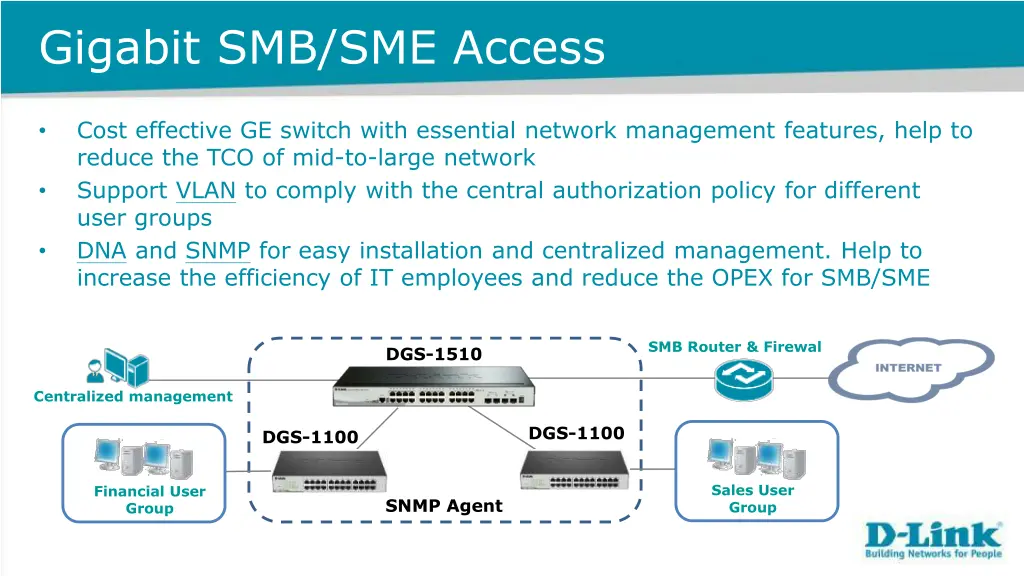

9. Gigabit SMB/SME Access Cost effective GE switch with essential network management features, help to reduce the TCO of mid-to-large network Support VLAN to comply with the central authorization policy for different user groups DNA and SNMP for easy installation and centralized management. Help to increase the efficiency of IT employees and reduce the OPEX for SMB/SME SMB Router & Firewall DGS-1510 Centralized management DGS-1100 DGS-1100 Sales User Group Financial User Group SNMP Agent

10. Easy to Use & Easy to Install The Fuzzy Search, the leading design in the market, allowing users redirect to correct configuration pages quickly New D-Link Network Assistant Utility (DNA) can discover and do initial setup for D-Link SMB devices like switch, access points, storage, etc.... Improving the efficiency on solution installation. Fuzzy Search Web UI DNA

11. Easy Trouble Shooting & Eliminating Loopback Detection is an easier way to prevent Ethernet loops, it can shut down the looped port and recover automatically if the situation was eliminated Cable Diagnostics can verify the cable status and indicate the distance if any problem was found Cable Diagnostics D-Link Loopback Detection Broken/Short Loop

12. Advanced Green Technology Save power and reduce electricity 24 hours a day, 365 days a year Link Status Save power for disconnected ports LED Shut-off Save power for remote controlled device Time-based PoE Save power when PoE endpoints are not in use 802.3az Energy Efficient Ethernet Save power when port is not busy System Hibernation Save power when office/network are both closed Port Shut-off Save power when office is closed, but some important ports are remain active

13. Thanks
