CS1020 Week 9 Content Overview
CS1020
Week 9: 19
th
March 2015
Contents
Practice Exercise 33
Practice Exercise 34
Take-home Lab #4
Week 9
2

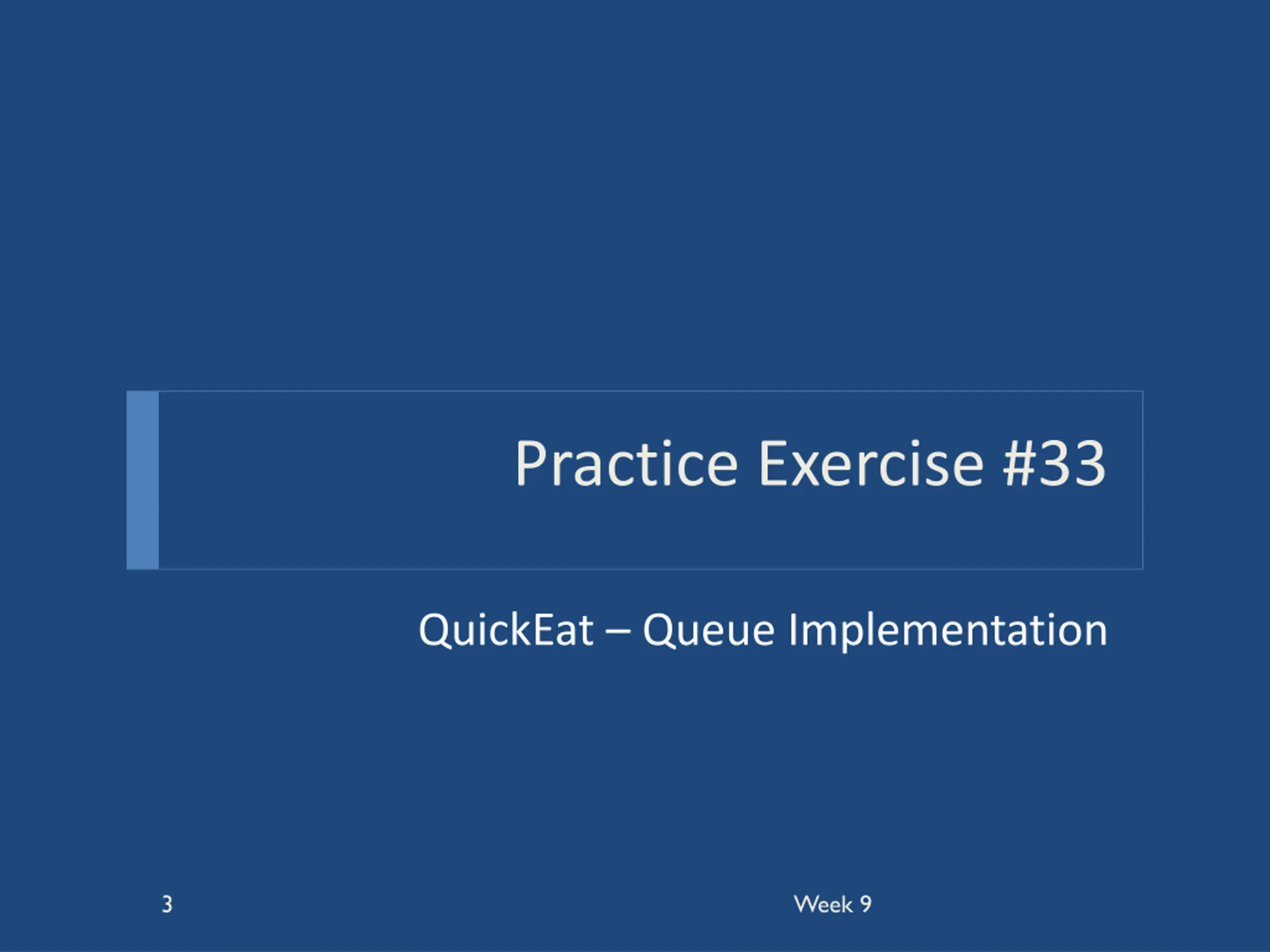

Practice Exercise #33
QuickEat – Queue Implementation
Week 9
3
QuickEat (1/3)
Week 9
Problem:
The food is to be served to customers on first-come-first-
serve basis
The dishes are served only when ready
There are a limited amount of dishes
Dishes Ready but No Order
Throw Away !!
4
QuickEat (2/3)
Week 9
Each Dish Has Own Queue
Maintain
ArrayList Of
Dish Queues
Add More Dishes
5
QuickEat (3/3)
Week 9
Solution :
For Each Dish – maintain a queue for the Orders
P
r
o
c
e
s
s
t
h
e
I
n
p
u
t
c
o
r
r
e
c
t
l
y
:
O
r
d
e
r
(
#
T
a
g
)
(
#
D
i
s
h
O
r
d
e
r
e
d
)
(
#
D
i
s
h
I
d
)
…
.
.
R
e
a
d
y
(
#
D
i
s
h
I
d
)
For every order operation add to queue
For every ready operation process the queue and serve to
customer
6
Understand Question
Week 9
Things to take note:
Queue is an interface, not a class
cannot be instantiated
Maintain an arraylist for queue of all dishes
Use LinkedList class which has implementation of methods in
Queue interface
dishQueues.add(new LinkedList<Integer>());
Queue Operation
Use only methods in LinkedList class
that are legal for Queue
Eg – isEmpty(), offer(), poll()
7

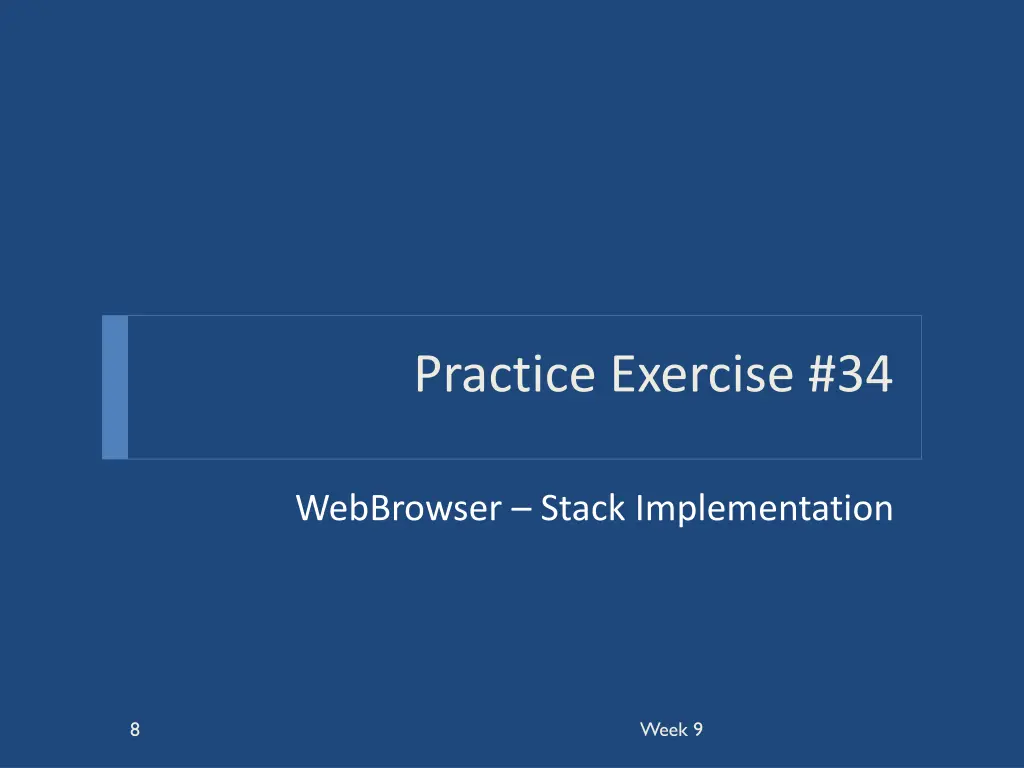

Practice Exercise #34
WebBrowser – Stack Implementation
Week 9
8

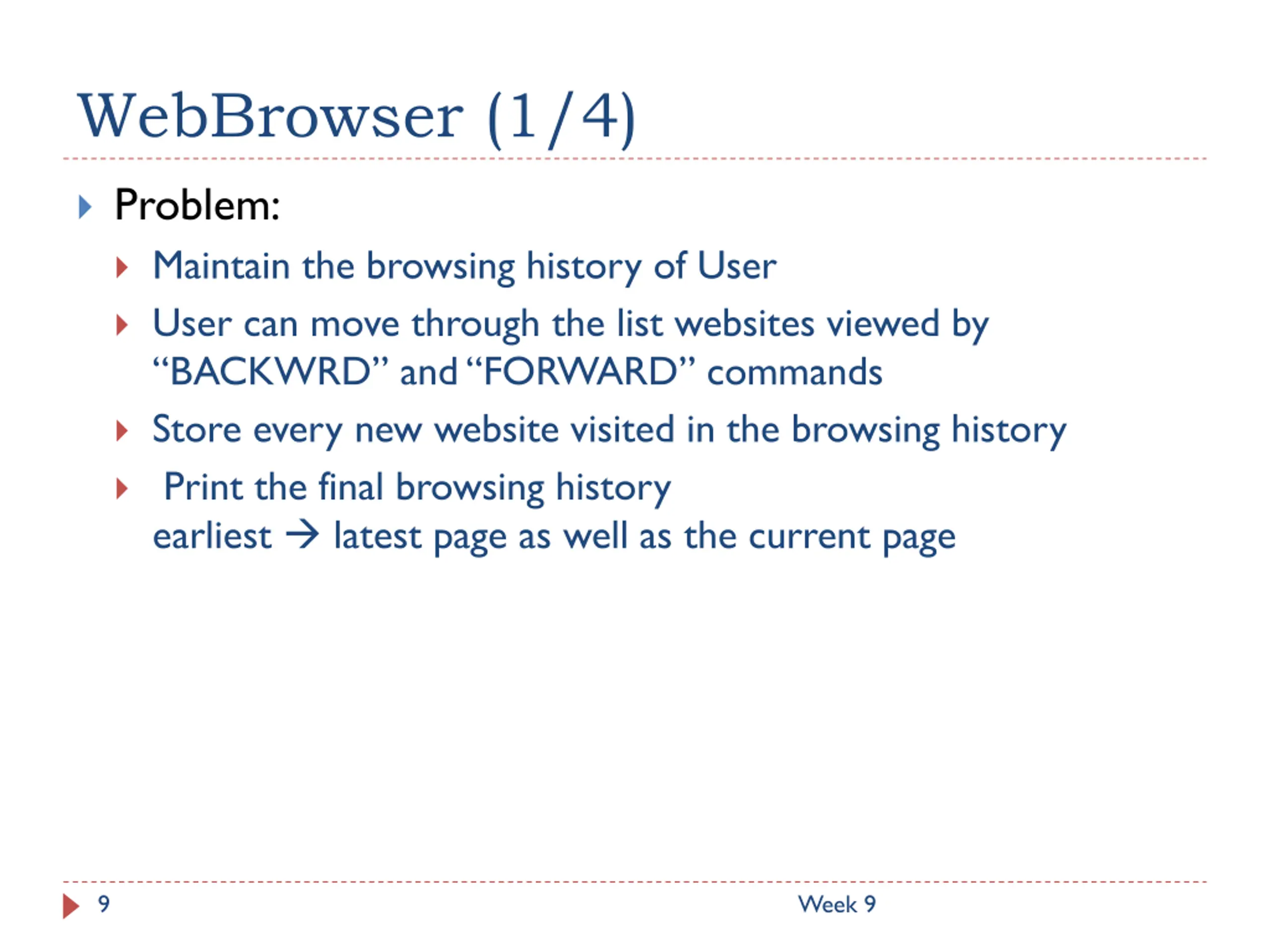

WebBrowser (1/4)
Week 9
Problem:
Maintain the browsing history of User
User can move through the list websites viewed by
“BACKWRD” and “FORWARD” commands
Store every new website visited in the browsing history
Print the final browsing history
earliest
latest page as well as the current page
9
WebBrowser (2/4)
Week 9
Backward Stack
Forward Stack
Current Page
Current Page changes
to recently visited
URL
Back Operation – Pop
back stack – modify
current
Forward Operation –
Pop forward stack –
modify current
10
WebBrowser (3/4)
Week 9
Solution :
Maintain two separate stacks – Back And Forward
Check for corner case – when first page loads
Empty Forward Stack for each new page load
“BACKWARD” – Pop from back stack
move current
forward
“FORWARD” – Pop from forward stack
move current
backward
Print – Earliest to Latest page history
Also print the current page
11
WebBrowser (4/4)
Week 9
Things to take note:
Make use of Java Stack API
Alternatively, solution can be achieved using LinkedList ADT
Can try it to have practice on LinkedList
Familiarize with Stack API to prepare better for SitIn Lab 3
12
Take-home Lab #4
Exercise 1 – Cargo Optimization
Week 9
13
Cargo Optimization (1/3)
Week 9
Problem:
Containers arrives at the terminal in a random order,
addressed to different destination ships (A-Z)
They need to be stacked at the terminal
The destination ships arrives at the terminal in a fixed
sequence (A-Z)
14
Terminal
Cargo Optimization (2/3)
Week 9
Random
order
To: C
To: A
To: D
To: B
15
Cargo Optimization (3/3)
Week 9
Terminal
Fixed
order
16
Required Solution
Week 9
Minimally, how many stacks are needed, such that
destination ship has all its cargo is at the top when it
arrives?
Hint:
You should stack container #1 on top of another container #2
only if Container #1’s ship arrive
before or at the same time
as
container #2
You should always choose the stack whose
top container’s
ship’s arrival time is closest with the new container’s ship’s
arrival time
17
Take-home Lab #4
Exercise 2 – Queue Simulation
Week 9
18
Objective is to find the final queue resulting from
VIP customers and Regular Customers in
Queue and find the number of customers before
the specified customer
Solution
Always insert a VIP customer before a regular
customer in the queue
Redirect the links during insertion is a pre-requisite
Queue is always first come first serve. This
questions requires a modified priority queue.
Queue Simulation
Queue
Simulation
Week 9
19
Queue Visualization (VIP customer
enters the Queue) (1/4)
Queue
Simulation
VIP 1
Reg 2
Reg 3
Reg 1
head
First VIP Customer Arrived:
Week 9
20
Queue Visualization (VIP customer
enters the Queue) (2/4)
Queue
Simulation
VIP 1
Reg 2
Reg 3
Reg 1
head
Week 9
21
Queue Visualization (VIP customer
enters the Queue) (3/4)
Queue
Simulation
VIP 1
Reg 2
Reg 3
Reg 1
head
VIP 2
VIP 2 customers arrived:
Week 9
22
Queue Visualization (VIP customer
enters the Queue) (4/4)
Queue
Simulation
VIP 1
Reg 2
Reg 3
Reg 1
head
VIP 2
Week 9
23
Recap
Take Home Lab 4
Due: 10pm - 20
th
March
Familiarize with Stack and Queue API
Question??
Week 9
24
END OF FILE
Week 9
25
