Comprehensive Overview of Patient Warming Solutions

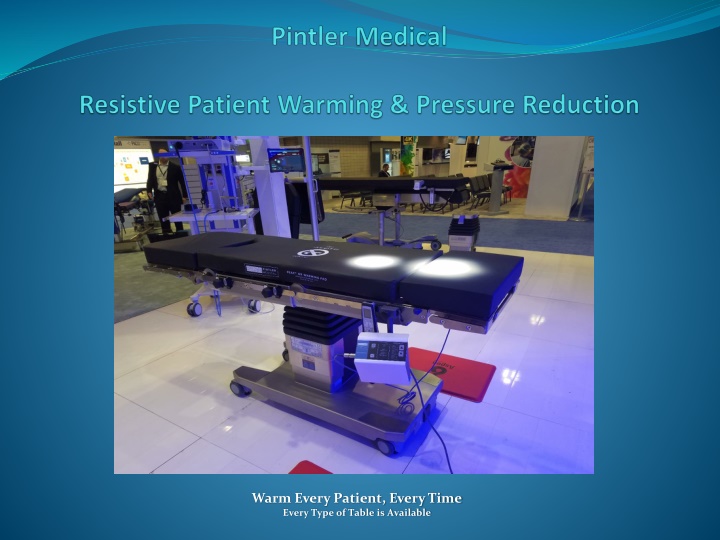

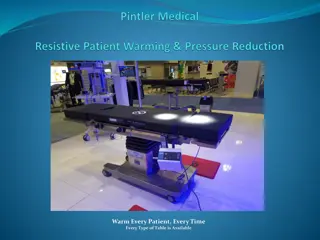

Warm Every Patient, Every Time
Warm Every Patient, Every Time
Every Type of Table is Available
Every Type of Table is Available
Physics of Conductive Warming
Laws of Thermodynamics
Heat moves to cold
Heat rises
Conductive Warming:
High efficiency/Low energy consumption
Conductive Warming: 25-50% more efficient
Conductive Warming is the transfer of warmth to patients via contact warming .
The patient’s body traps rising warm
The human torso is fully warmed, not portions of the body.
View the next slide for Thermal Images of Patient Warming!
Physics
Physics
Conductive Warming vs Forced Air Warming*
Conductive Warming vs Forced Air Warming*
Thermal Images w/FLIR Camera
Thermal Images w/FLIR Camera
*
*
U of WA Med Center Anesthesia study: 30 minutes Active Warming
U of WA Med Center Anesthesia study: 30 minutes Active Warming
comparison of Pintler to Bair Hugger - equal time and subject.
comparison of Pintler to Bair Hugger - equal time and subject.
Supine Image w/Pintler
Setting 41C,
All Skin in contact 36C
Thermal Image of Upper Body Bair Hugger
Maxi temp Setting
No Skin sites reached 36C within 30 minutes
Summit, Heated Ortho Pad
Use in Beach Chairs & Bean Bag position,
Wilson & Jackson Frames.
Specialty Tables: Hana & Cysto
Flexible design for contour fit w/Patient
Flexible warming pad for use with Bean Bag ,
Beach Chair, Hana Table or other positions.
Flexible sizes
Thin profile w/pressure reduction foam
Durable and well accepted
Pinter Family of Innovation
The Pintler Family of Patient Warming and Pressure Reduction Surfaces
- PEAK – Warming OR table pad set, manufactured for all tables types.
Steris, Trumpf, Skytron, Getinge, Hybrid and Cath Lab Tables
- SUMMIT – Flexible warming, focused to Orthopedic or Bean Bag use.
Use w/Wilson Frame, Bean Bag lateral positioning, Jackson Frame
- VISTA – Heated Stretcher pad, cut to fit all stretcher sizes.
PreOp Warming, ER Warming, and other demands for care
- BASE+ - Unheated Pressure Reduction Surgical and Stretcher pads
Pressure reduction pads that exceed the AORN 3” recommendation
- TRENDELENBURG Positioner – non-skid foam that attaches to the PEAK Pad.
Non-slip foam and attachments to hold this pad and patient from moving.
- BOOTIES/MITTEN – Thermal insulating protection for feet/hands
Ideal for use with special patients and patients w/elevated feet.
Design of the Pintler Patient Warming Pads!
Design of the Pintler Patient Warming Pads!
Optimum Pressure Redistribution for Every Patient
Highest Quality US Made Visco Foam
Overall thickness of 3.5”
-
AORN recommendation is 3” for skin care!
Heating element embedded within the comfort of foam
Long Life – we have users with a 8 year use life.
Xray Transparent
No EMI
Sensor technology for safe temperature management
DARTEX Healthcare Covering
Water proof sealant on all seams
Clean with standard OR protocol
Withstands the demands of tape
Can be replaced if damaged – unique to Pintler
Robotics and Trendelenburg &
Reverse Trendelenburg Positioning
Trendelenburg pad allows patient to be intubated and
moved into position by staff w/ease and safety.
Patient is moved into position and the non-skid foam
snaps to the pad. Add the cross body belt and patients
are safely secured
End Cold Feet during surgery for
Pediatrics and the aged with a single product
Booties:
Silvertanium lined foam to end
thermal evaporation and add skin
protection, all sizes.
Mittens:
Silvertanium lined foam cut to fit
w/opening for Pulse oximeter
placement
Low cost and delivers a warm
patient to recovery in PACU or to
the floor.
All the patient’s body heat to be
retained and deliver comfort.
Heated Stretcher pads, fits all brands of strechers.
Remove the cost and waste with Paws.
Reduce the consumption of Bath Blankets
Hand control pendent allows the patient to select
temperature level or no warming.
Pressure activated - active warming requires a weight of
5 lbs., when the patient leaves the pad power is removed.
PreOP Warming – a warming patient arriving in
PreOP Warming – a warming patient arriving in
Surgery w/o disposable cost
Surgery w/o disposable cost
VISTA delivers active patient warming in minutes
.
Financials
Simple patient warming w/o the
waste trail – Green the OR
Pintler Warming
Life: Average of 5+ Years,
Every Pintler system delivers a new set of OR pads
that meet and exceed the AORN Standards.
Pintler ROI – 12 months or less.
Reduction in the number of bath blankets, 2-3
No waste disposal cost.
Every patient warmed and provided a pressure
reduction surface, every surgery
Green the OR in one way, reduce the disposable
warming blanket waste.
Gain with Pintler Warming
Reduce/remove the use of “Bair Hugger”
Cease using “Bair Paws”
Measure the reduce consumption of bath
blankets w/VISTA heated stretcher
End the use of “water pads”
CVOR old practice for patient cooling
that isn’t needed anymore
Conductive warming application is about the
OR environment before the patient arrives.
Set the OR table with sheet and unit at 40C
Removing the demands and requires on staff
for warming and delivery of bath blankets or
disposables.
Post warming no waste stream
Pintler Patient Warming
Deliverables
Every patient is warmed and provided pressure reduction
Medicare/CMS Guidelines Satisfied
AORN Guidelines Satisfied
Anesthesia PQRS 424 Guidelines Satisfied
Green Solution – Remove A Waste Trail
Financially measurable savings with a 1 year ROI
Questions?
