Complete Guide to Bridge Foundations and Substructures

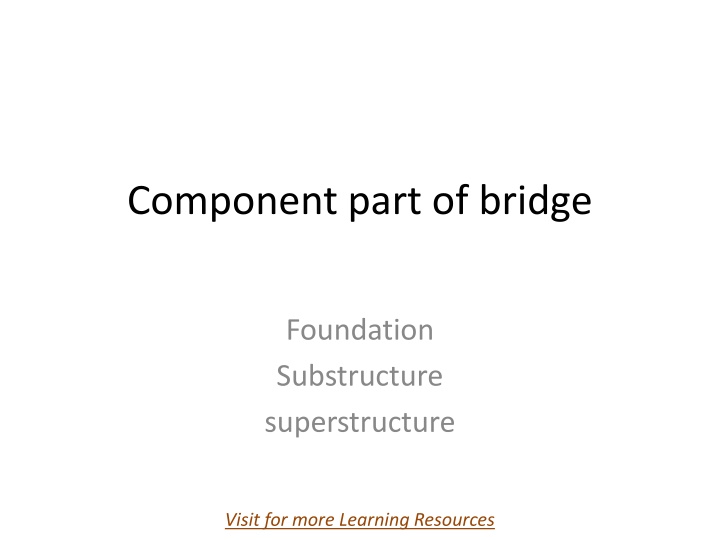

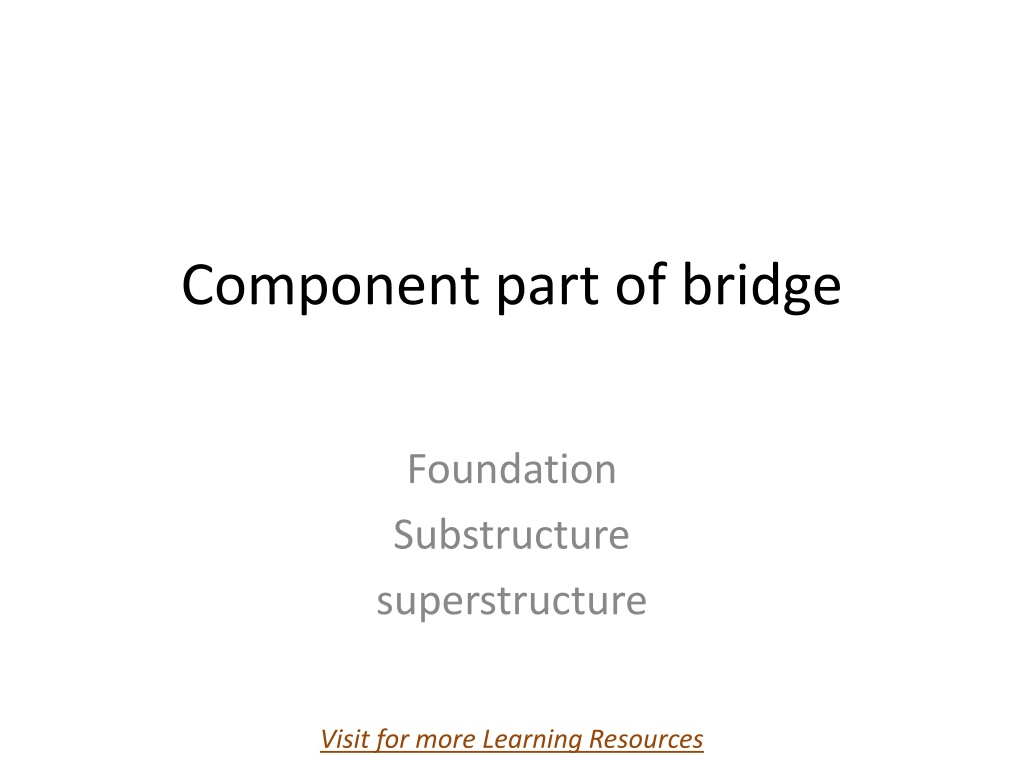

Component part of bridge
Foundation
Substructure
superstructure
Visit for more Learning Resources
Component part of bridge
•
Foundation : the lowest artificially built part of
abutments, piers & other similar structure having
direct contact with the subsoil & supporting the
bridge supersture
•
Substructure: The lower part of bridge in the
form of abutment, piers, wing wall etc. along with
their foundation
•
Superstructure: the upper part of bridge
consisting of beam, girders, arches, suspension
cables etc carrying communication route
Different terms
•
Clear span
•
Effective span
•
Economical span
•
Water way
•
Natural Water way
•
Artificial Water way
•
Linear Water way
•
Afflux
•
Scour
•
Highest flood level (H.F.L.)
•
Free board
•
Lowest water level (L.W.L)
•
Ordinary flood level (O.F.L.)
FOUNDATION
CARRYING TOTAL WEIGHT
•
Function
1.
To take load & transfer to subsoil
2.
To provide level base
3.
To prevent tilt& over turning
4.
To avoid unequal settlement
5.
To prevent sinking
6.
To provide stability
Types of bridge foundation
•
Spread foundation
•
Raft foundation
•
Grillage foundation
•
Inverted arch foundation
•
Pile foundation
•
Well foundation
•
Caisson foundation
Spread foundation
Raft foundation
Grillage foundation
Inverted arch foundation
Pile foundation
Well foundation
Caisson foundation
Piers
•
The intermediate supports
Function
•
To take & transfer the load
•
To divide the length of bridge
Types of piers
•
Solid piers
a)solid masonary piers
b) solid R.C.C piers
•
Open piers
a) Abutment piers
b) cellular piers
For more detail contact us
