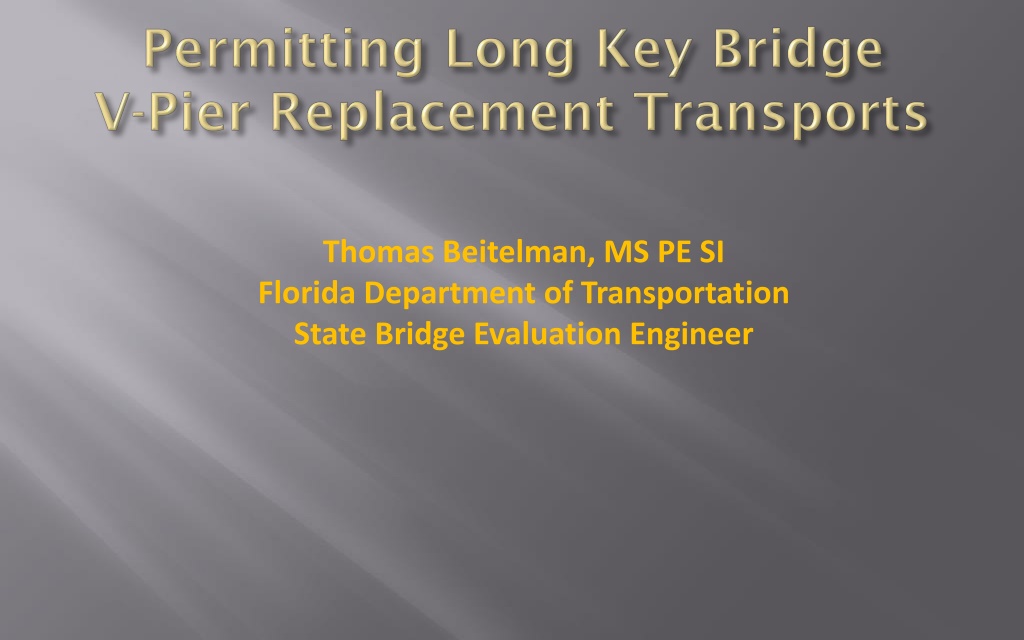

1. Thomas Beitelman, MS PE SI Florida Department of Transportation State Bridge Evaluation Engineer

2. 13 Axles 16 -10 Wide 135 -0 Long 218,000 lbs 328 Roadway Miles

3. Route starts in Tampa START Ends at Long Key Bridge Dozens of routes were evaluated Rejection - Dimensional Rejection Overloaded structures Rejection Construction, coordination, etc. Eventually Approved route END900098 Oops! Last minute construction Oops! Bridge over Channel #5

4. 900098 Over Channel Five Problem Structure Segmental Box Low Operating Rating Bridge would be 60% over loaded 900098 END Hauler had received prior approval Options: 1 Barge .not well received 2 In-depth Engineering review

5. Local shear and moments Wheel positions Factors in our favor: 1 Segmental Box Girder internal strength 2 Load testing performed by FDOT

6. Typical 3D Influence Surface - 84" Cantilever Wing 1000 0 0 42 -1000 84 126 -2000 168 210 -3000 252 -4000 294 336 24" 378 84"

7. Typical 3D Influence Surface - Slab Between Webs 500 0 0 Influence Coefficient 30 60 -500 90 120 150 -1000 198 180 180 162 210 144 240 126 108 -1500 270 90 72 300 54 36 330 18 -2000 0 360 -2500

8. Based on FDOT lab test Joints would not open Joints would not be over-stressed Based on In-Depth Analysis Crawl vehicle over the bridge (zero impact) Precise positioning of wheels (optimum stresses) 10% under the maximum
