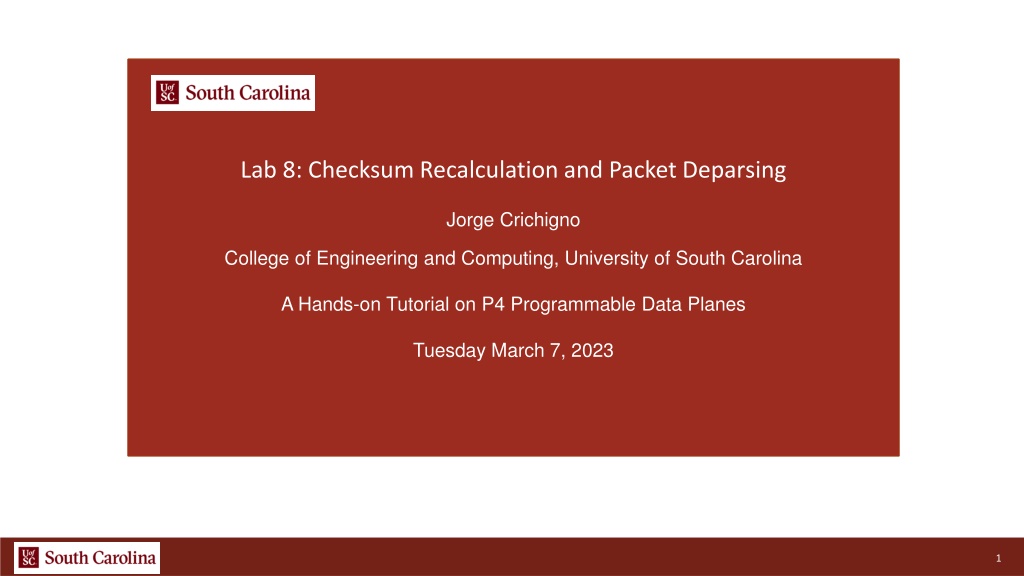

1. Lab 8: Checksum Recalculation and Packet Deparsing Jorge Crichigno College of Engineering and Computing, University of South Carolina A Hands-on Tutorial on P4 Programmable Data Planes Tuesday March 7, 2023 1

2. Checksum Recalculation and Packet Deparsing Lab activities are described in Lab 8, P4 Programmable Data Plane Switches (BMv2) lab series 2

3. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Packet headers 3

4. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Packet headers Hash algorithm (e.g., CRC) H Checksum

5. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Receiver Packet headers Packet headers Hash algorithm (e.g., CRC) Hash algorithm (e.g., CRC) H H Checksum Checksum 5

6. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Receiver Packet headers Packet headers Hash algorithm (e.g., CRC) Hash algorithm (e.g., CRC) H H Checksum Checksum Equal? Checksum verified, accept packet 6

7. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Receiver Packet headers Packet headers Hash algorithm (e.g., CRC) Hash algorithm (e.g., CRC) H H Checksum Checksum Equal? Checksum incorrect, reject packet 7

8. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Programmable Switch Receiver Original headers Modified headers Packet headers Packet headers action Hash algorithm (e.g., CRC) Hash algorithm (e.g., CRC) H H Hash algorithm (e.g., CRC) H Checksum Checksum 8

9. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Programmable Switch Receiver Original headers Modified headers Packet headers Packet headers action Hash algorithm (e.g., CRC) Hash algorithm (e.g., CRC) H H Hash algorithm (e.g., CRC) H Checksum Checksum 9

10. Checksums Several protocols use checksums to validate the integrity of the packet headers A checksum is a small value derived using a checksum algorithm such as the Cyclic Redundancy Check (CRC) Sender Programmable Switch Receiver Original headers Modified headers Packet headers Packet headers action Hash algorithm (e.g., CRC) Hash algorithm (e.g., CRC) H H Hash algorithm (e.g., CRC) H Checksum Checksum Equal? Checksum Checksum verified, accept packet 10

11. Lab Topology and Objectives The topology consists of three hosts: h1, h2, and h3; one P4 switch: s1 The P4 program modifies the headers of the packet The P4 program recomputes the checksum of the updated headers 11
