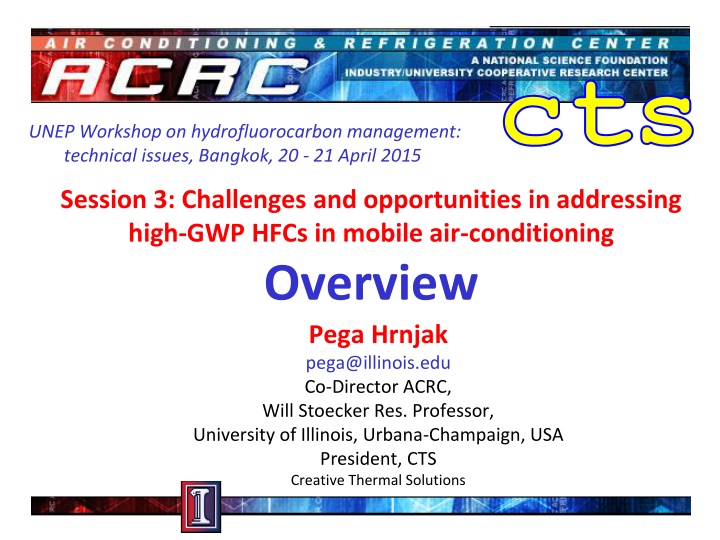

Session 3: Challenges and opportunities in addressing
high-GWP HFCs in mobile air-conditioning
Overview
Pega Hrnjak
pega@illinois.edu
Co-Director ACRC,
Will Stoecker Res. Professor,
University of Illinois, Urbana-Champaign, USA
President, CTS
Creative Thermal Solutions
UNEP Workshop on hydrofluorocarbon management:
technical issues, Bangkok, 20 - 21 April 2015
Unique sector – uniquely addressed
•
Only one refrigerant - R134a
•
Industry strongly prefers that status to hold
•
The only already regulated – EU MAC Directive
•
Significant experience accumulated
Situation
•
Real pressure for GWP reduction in Europe, mostly
on European OEMs (and transferred to suppliers)
•
US and Asian manufacturers address the issues at
European market knowing that development in
Europe will spill over to other regions
•
One thing is definitive:
–
MAC is applications where high-GWP HFC (R134a) used is
demonstrated to be replaceable with several options
–
The question what is
the best option
still remains
–
R1234yf current replacement refrigerant
Historically
•
Competition between CO
2
and R134a (with
indirect system considered) ended in selection of
R1234yf in 2008
•
Some refrigerant manufacturers felt excluded and
presented competitive approaches which ended
being mixtures (R445A as an example)
•
After Daimler’s report of
R1234yf flammability
issues work on its reduction was strengthened to
the extent that CO
2
as refrigerant was again
strongly supported by some OEMs
What happened during CO
2
vs. R134a era
•
Earlier R134a systems may not have been
optimized for efficiency
•
Excellent and motivated engineers realized
systems with once disregarded refrigerant (CO
2
) to
perform equally or better than R134a
•
That competition pushed proponents of R134a to
improve system efficiency by adopting almost
everything developed for CO
2
•
In several steps over ten years we have seen:
Technology improvements in 10 years as a
consequence of refrigerant competition
25
o
C
35
o
C
35
o
C
25
o
C
Improvement of efficiency for each
system over 10 years at any condition is
greater than the difference in system
efficiency at any given time.
>>
(900 rpm)
(2000 rpm)
1.
Internal HX
(result: IHX in R134a MAC systems)
2.
Evaporator and the control
(result: microchannel evaporators for R134a).
3.
CO
2
comp efficiency is high.
4.
Work recovery devices: expanders/ejectors
(result: first R134a ejector systems in Prius)
Some realized improvements :
Feb 22, 2006
DENSO Develops Unique Double-pipe Internal Heat Exchanger for Front
Car Air Conditioning Systems: New pipe increases cooling performance
by up to 12 percent
May 20, 2009 KARIYA, Japan ― DENSO Corp. said this week it has developed the
world’s first passenger vehicle air conditioning system that uses
ejector technology
. The
ejector, which is a small refrigerant injector, contributes to an overall reduction in power
consumption.
The system will be installed on the new Prius, introduced by Toyota this
month
.
(result: R134a Cp w/o suction valve)
Consequently
•
All improvements made for R134a initiated by CO
2
were lately applied to R1234yf
•
Additional competition or demands may push new
frontiers
•
New high glide options are potentially more cost
effective but require further modification of the
cycle and HXs to overcome challenging drop-in
replacement
Current R134a replacement may
not be the winner yet
•
R134a is already in phase out process with R1234yf
•
Maybe more costly CO
2
performs in a/c mode
better at lower temperatures and in more compact
systems
•
R1234yf easier at higher ambient temperatures
•
In the case of strengthening the importance of
electric vehicles
, CO
2
gains the ground because no
refrigerant comes close
•
R445A also better than R1234yf in heat pumping
