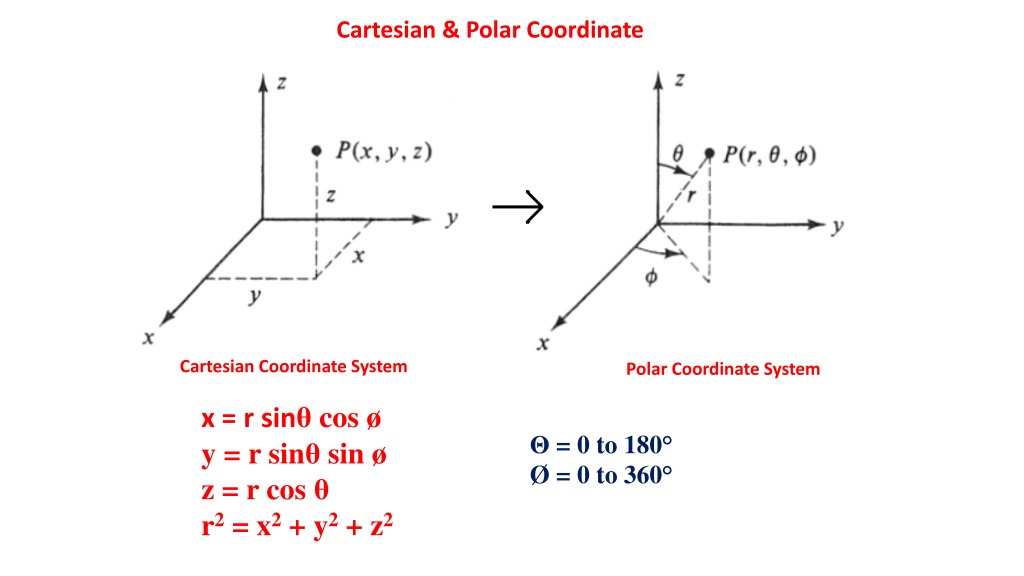

Cartesian and Polar Coordinate Systems

Cartesian Coordinate System
Polar Coordinate System
x = r sin
θ
 cos ø
y = r sin
θ
 sin ø
z = r cos
θ
r
2
 = x
2
 + y
2
 + z
2
Cartesian & Polar Coordinate
Θ
 = 0 to 180°
Ø = 0 to 360°
Polar Coordinate
Polar Plot of
cos
θ

Pz Orbital
Px Orbital
Py Orbital
Polar Plot of ( 3cos
2
θ
-1)
d
z
2
 Orbital
Slide Note
Embed
Share

Explore the concepts of Cartesian and Polar coordinate systems, including their formulas and visual representations. Dive into the relationships between Cartesian and Polar coordinates, as well as their applications in mathematics and physics. Discover orbital shapes such as Px, Py, Pz, and dz2 orbitals through graphical plots and diagrams.

  • Coordinate Systems
  • Mathematics
  • Physics
  • Orbital Shapes
  • Graphical Representation

Uploaded on Sep 19, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. Cartesian & Polar Coordinate Cartesian Coordinate System Polar Coordinate System x = r sin cos y = r sin sin z = r cos r2 = x2 + y2 + z2 = 0 to 180 = 0 to 360

  2. Polar Coordinate

  3. Polar Plot of cos

  4. Pz Orbital

  5. Px Orbital

  6. Py Orbital

  7. Polar Plot of ( 3cos2-1)

  8. dz2 Orbital
