  1. Branch and Bound Example

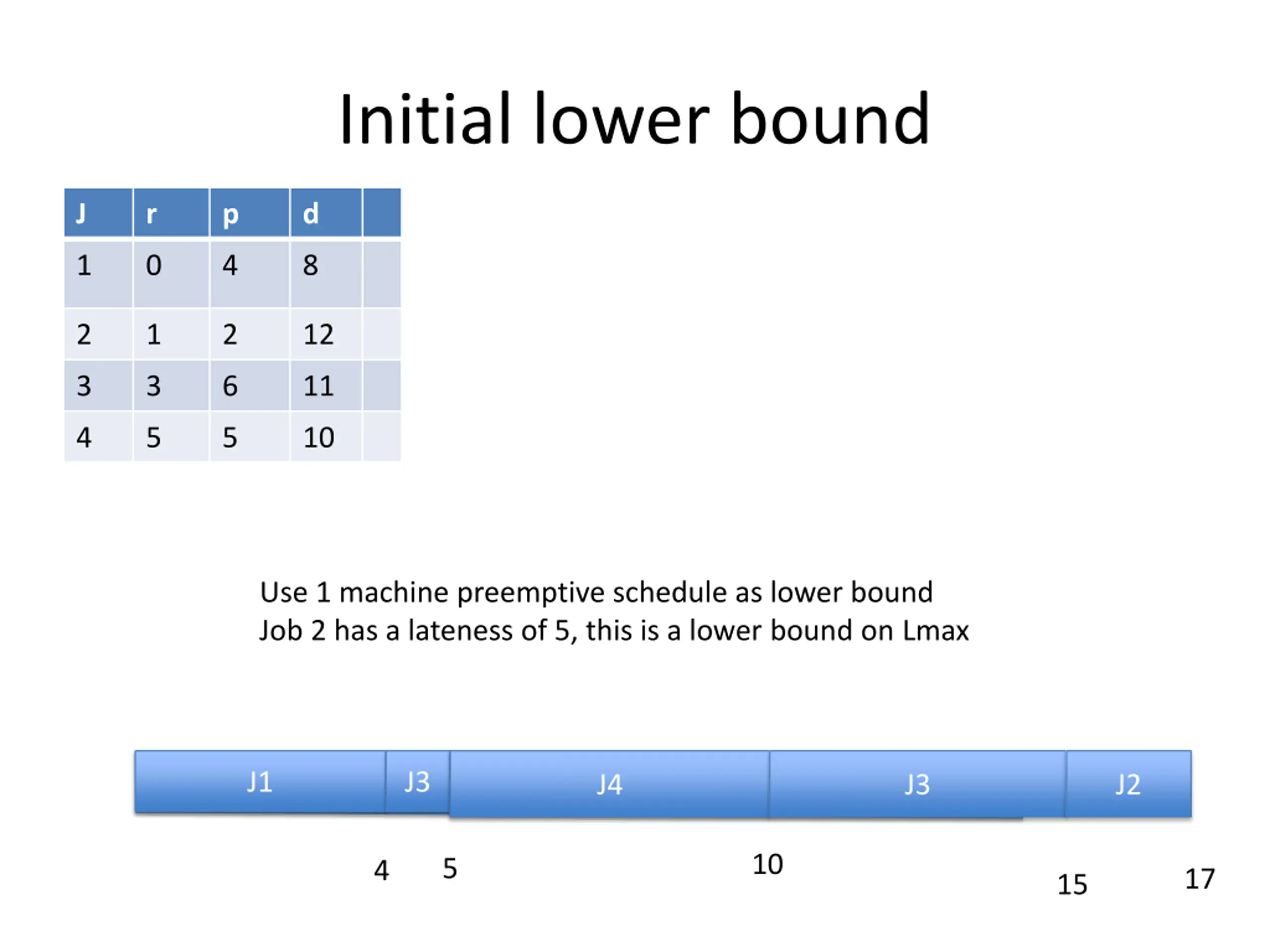

  2. Initial lower bound J r p d 1 0 4 8 2 1 2 12 3 3 6 11 4 5 5 10 Use 1 machine preemptive schedule as lower bound Job 2 has a lateness of 5, this is a lower bound on Lmax J1 J3 J4 J3 J2 10 5 4 17 15

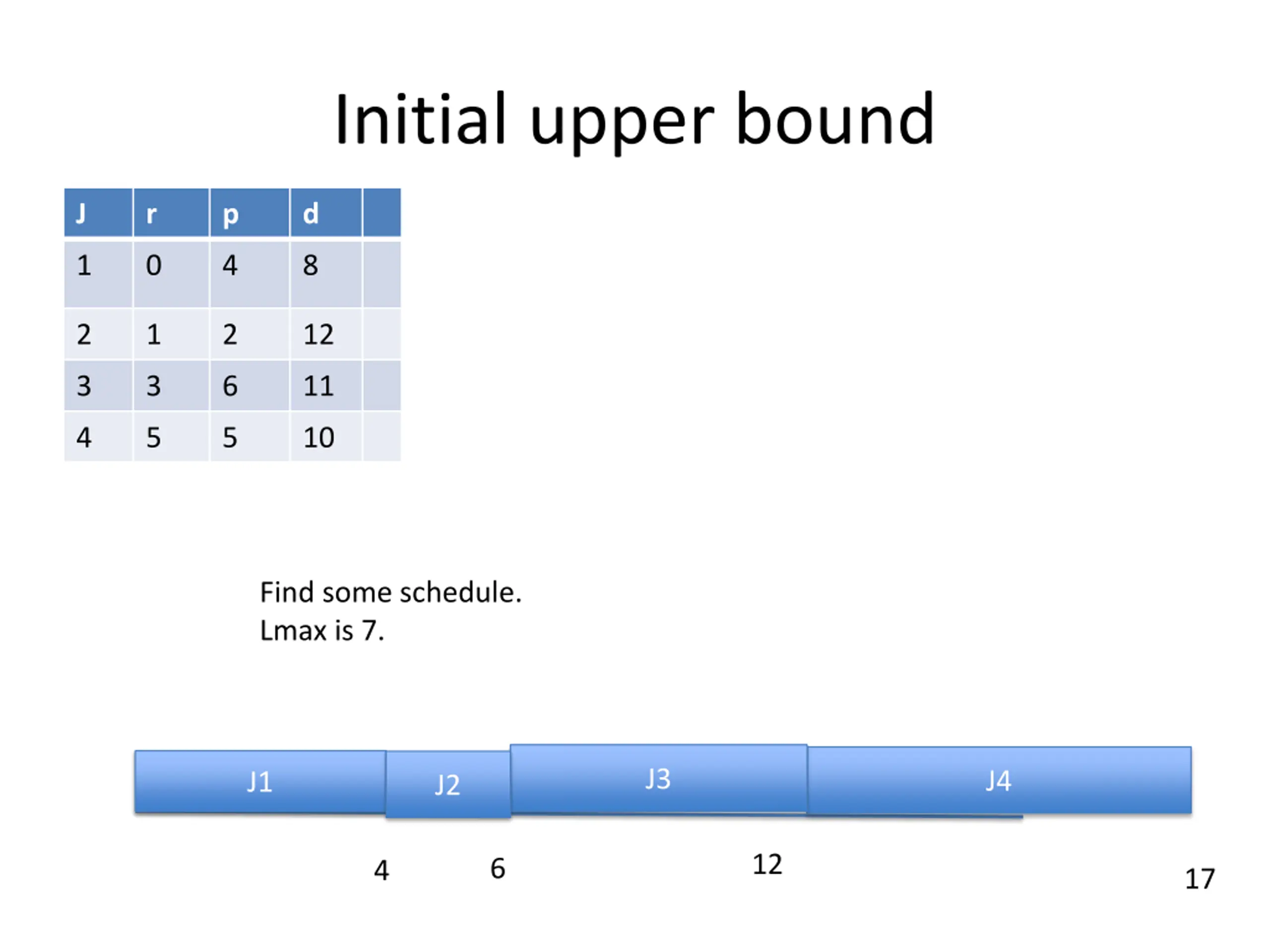

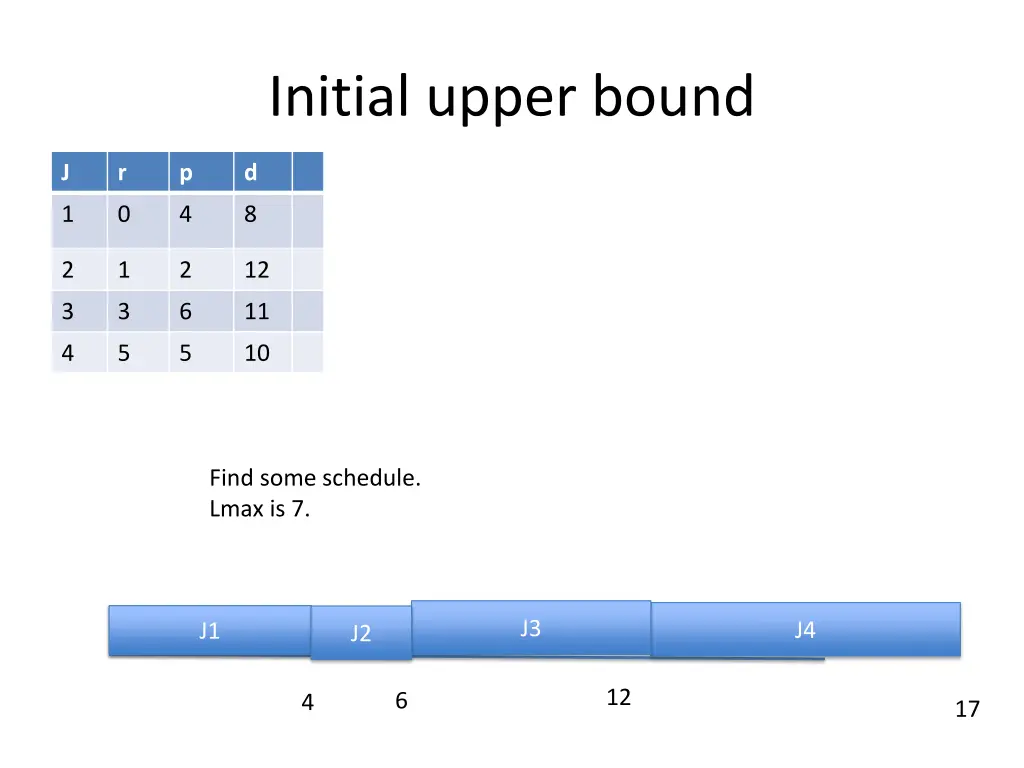

  3. Initial upper bound J r p d 1 0 4 8 2 1 2 12 3 3 6 11 4 5 5 10 Find some schedule. Lmax is 7. J3 J4 J1 J2 12 6 4 17

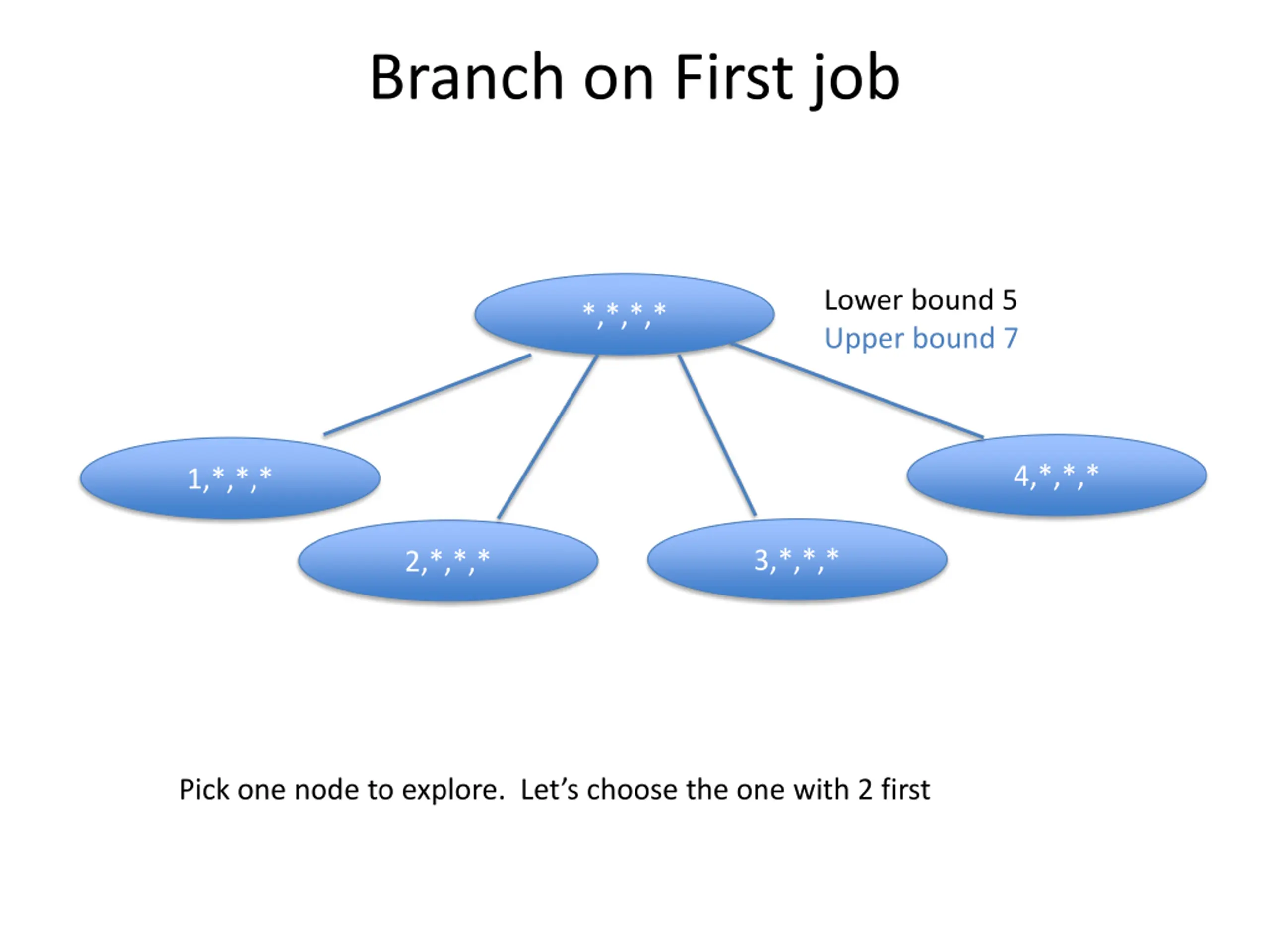

  4. Branch on First job Lower bound 5 Upper bound 7 *,*,*,* 4,*,*,* 1,*,*,* 3,*,*,* 2,*,*,* Pick one node to explore. Let s choose the one with 2 first

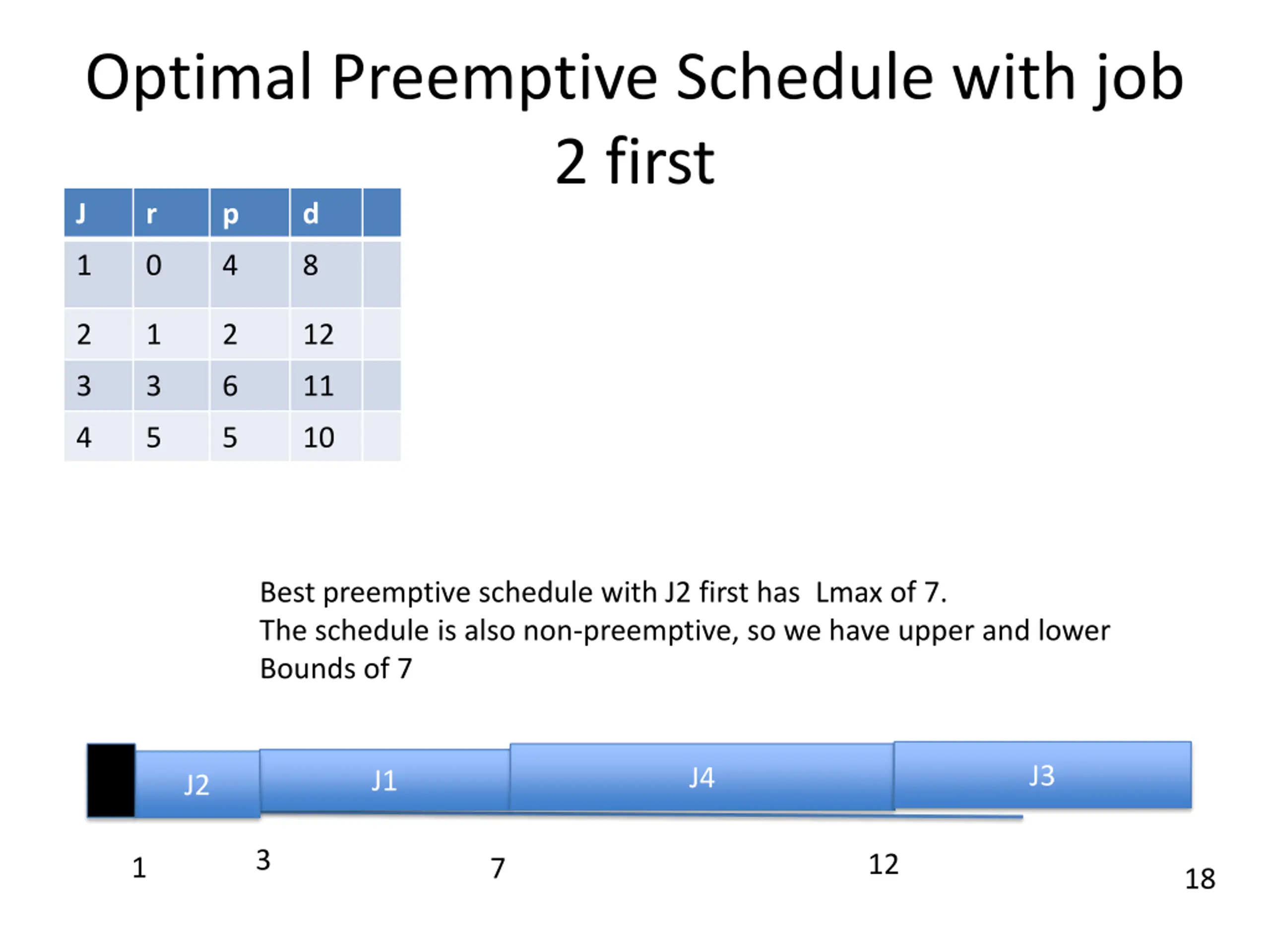

  5. Optimal Preemptive Schedule with job 2 first J r p d 1 0 4 8 2 1 2 12 3 3 6 11 4 5 5 10 Best preemptive schedule with J2 first has Lmax of 7. The schedule is also non-preemptive, so we have upper and lower Bounds of 7 J3 J4 J1 J2 3 12 1 7 18

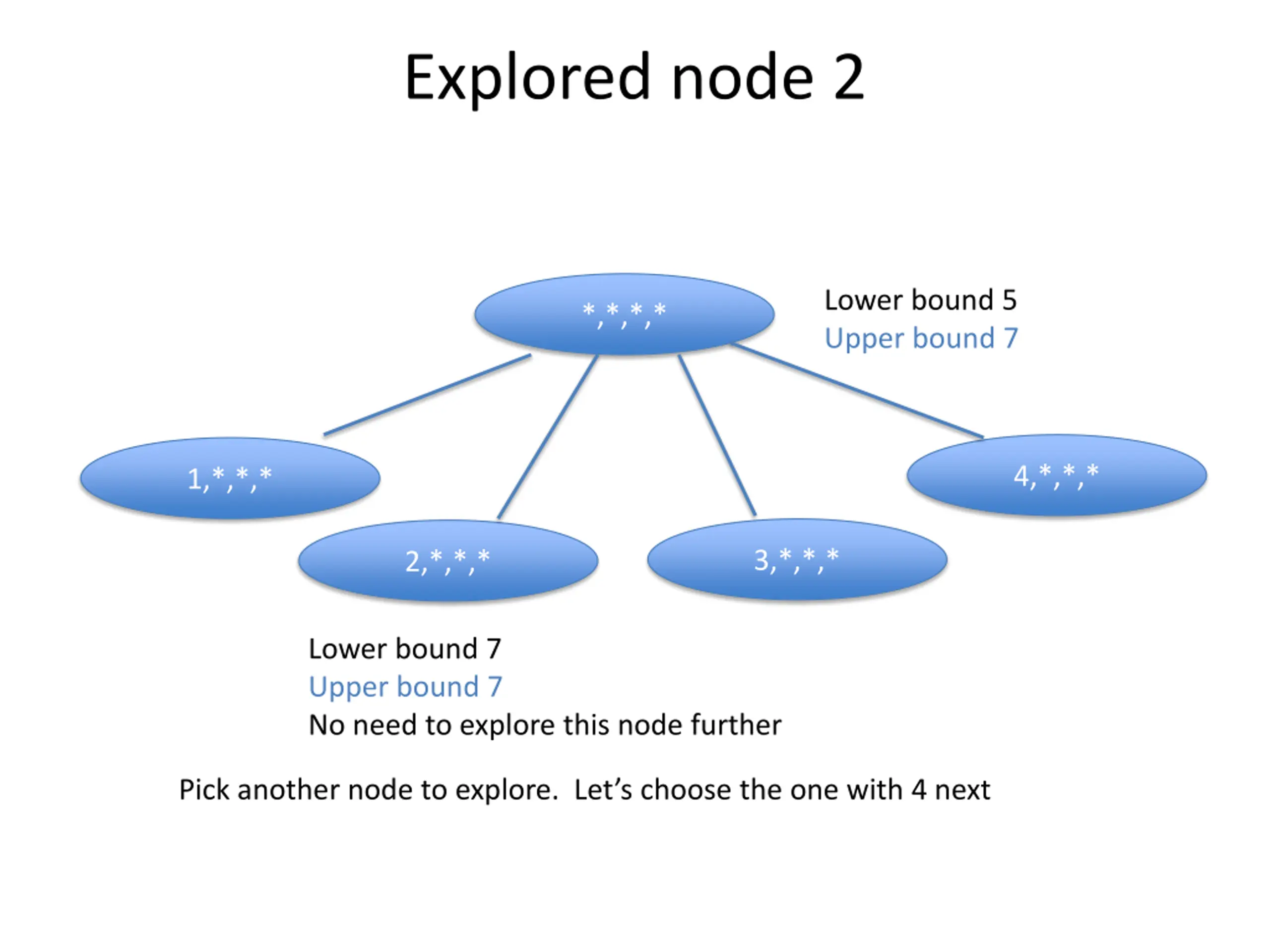

  6. Explored node 2 Lower bound 5 Upper bound 7 *,*,*,* 4,*,*,* 1,*,*,* 3,*,*,* 2,*,*,* Lower bound 7 Upper bound 7 No need to explore this node further Pick another node to explore. Let s choose the one with 4 next

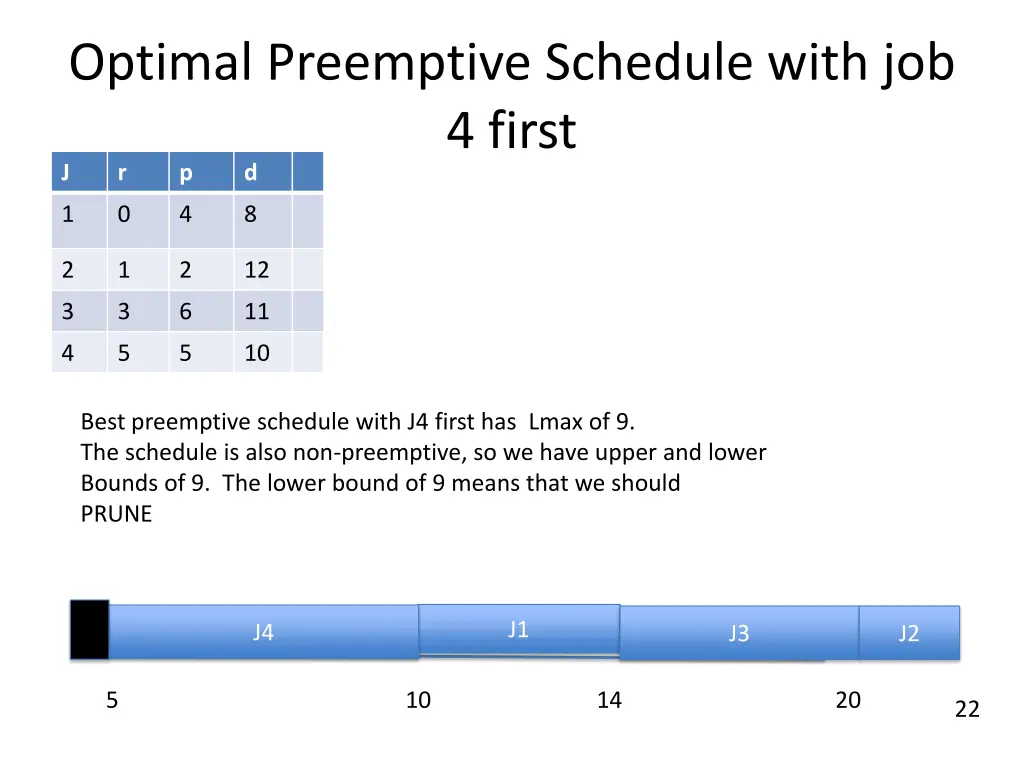

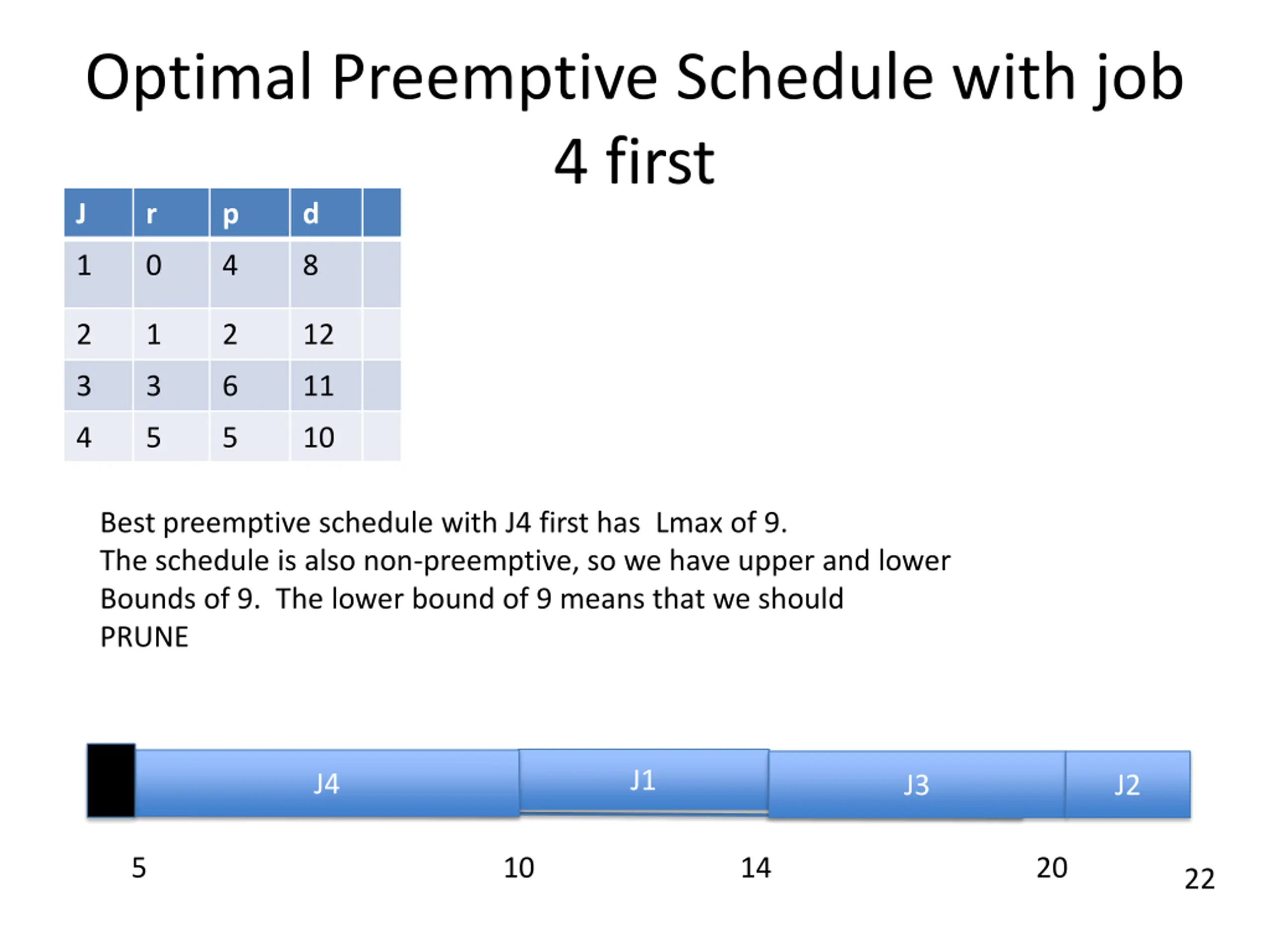

  7. Optimal Preemptive Schedule with job 4 first J r p d 1 0 4 8 2 1 2 12 3 3 6 11 4 5 5 10 Best preemptive schedule with J4 first has Lmax of 9. The schedule is also non-preemptive, so we have upper and lower Bounds of 9. The lower bound of 9 means that we should PRUNE J1 J4 J3 J2 5 10 14 20 22

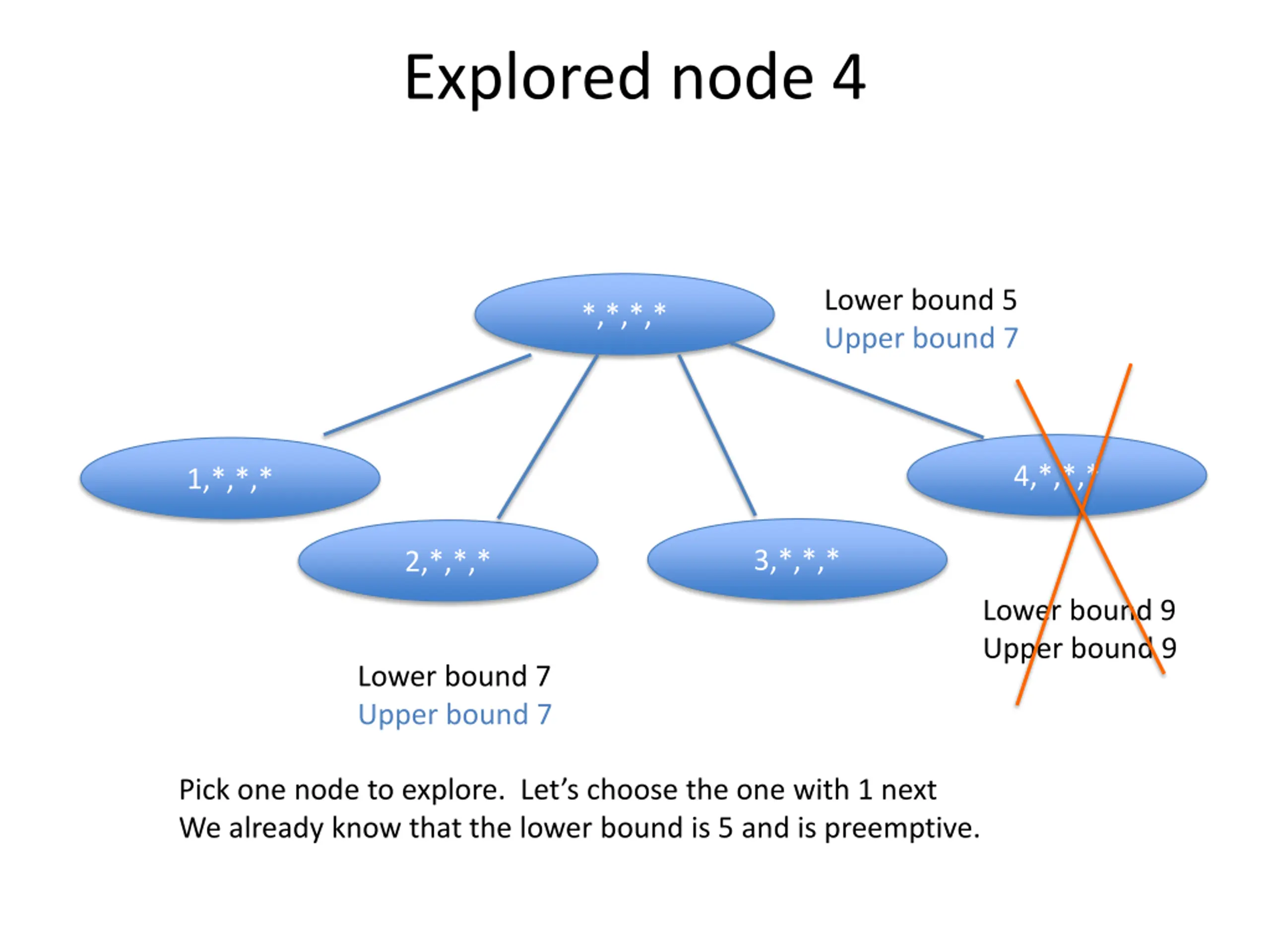

  8. Explored node 4 Lower bound 5 Upper bound 7 *,*,*,* 4,*,*,* 1,*,*,* 3,*,*,* 2,*,*,* Lower bound 9 Upper bound 9 Lower bound 7 Upper bound 7 Pick one node to explore. Let s choose the one with 1 next We already know that the lower bound is 5 and is preemptive.

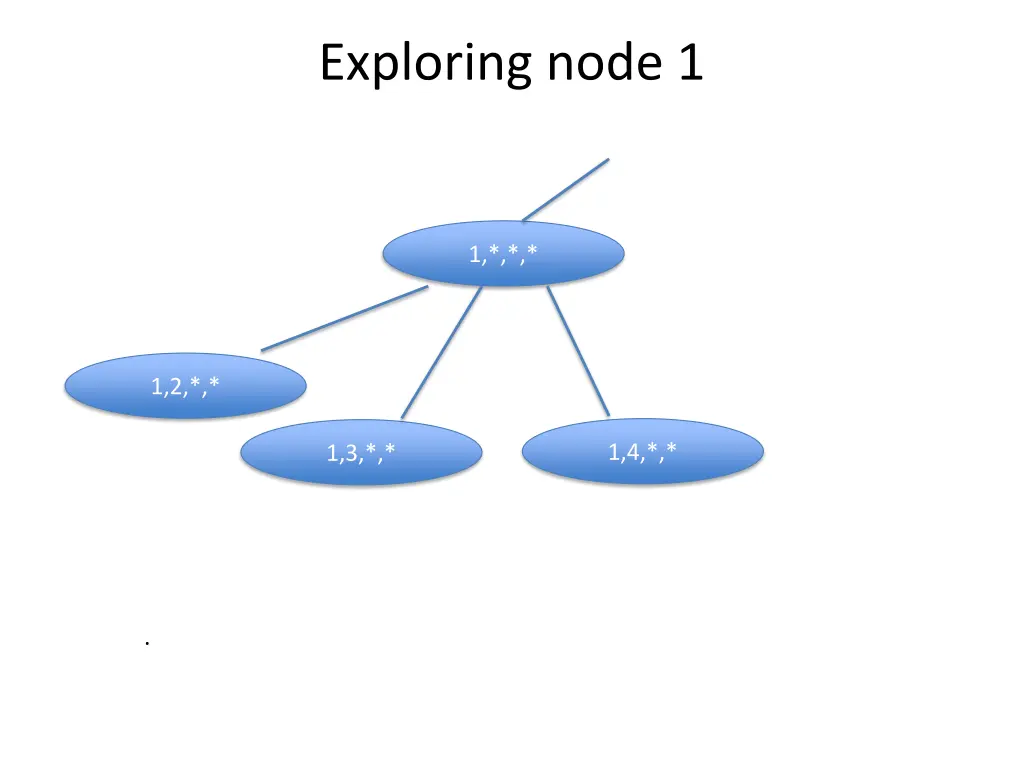

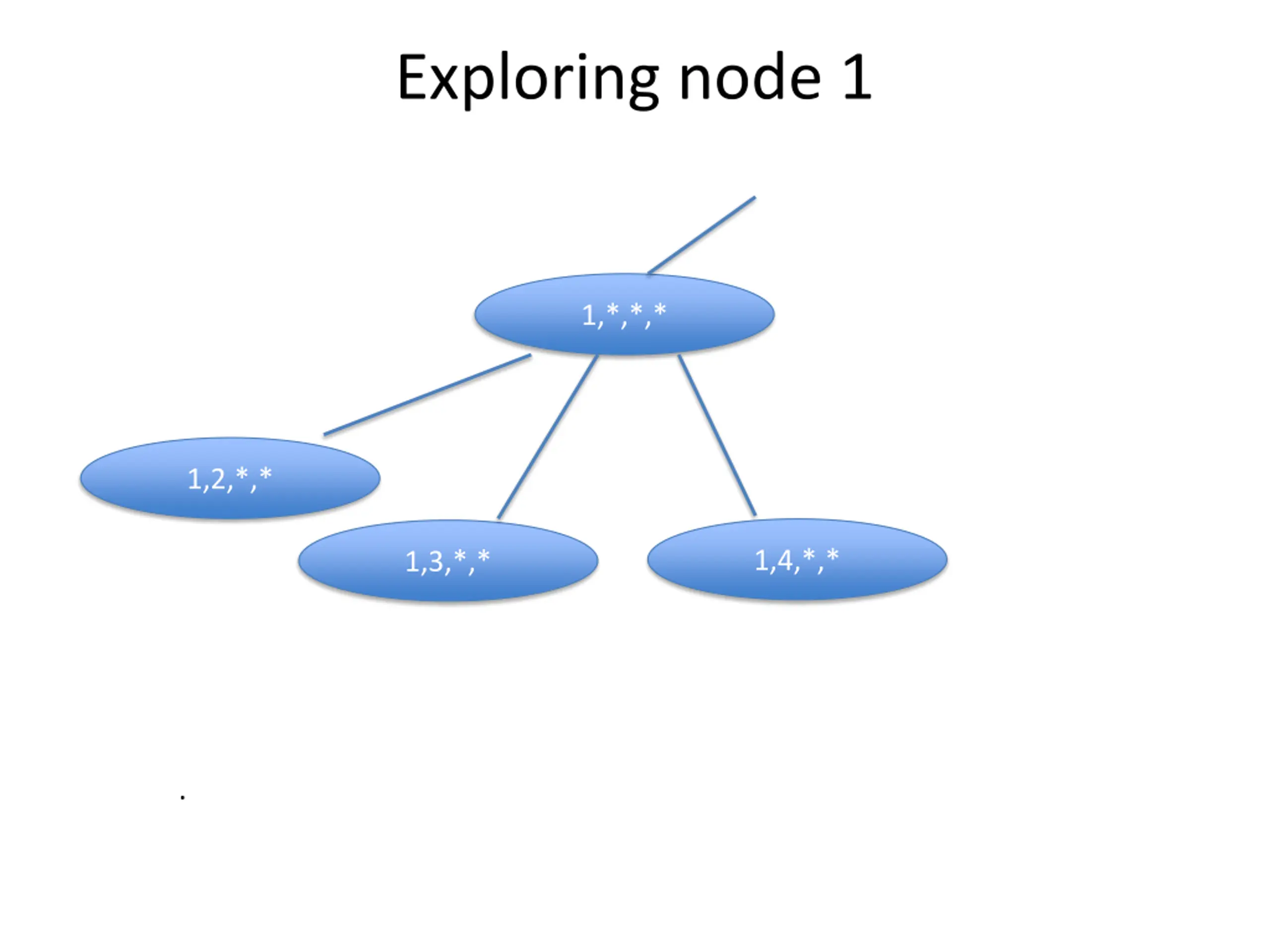

  9. Exploring node 1 1,*,*,* 1,2,*,* 1,4,*,* 1,3,*,* .

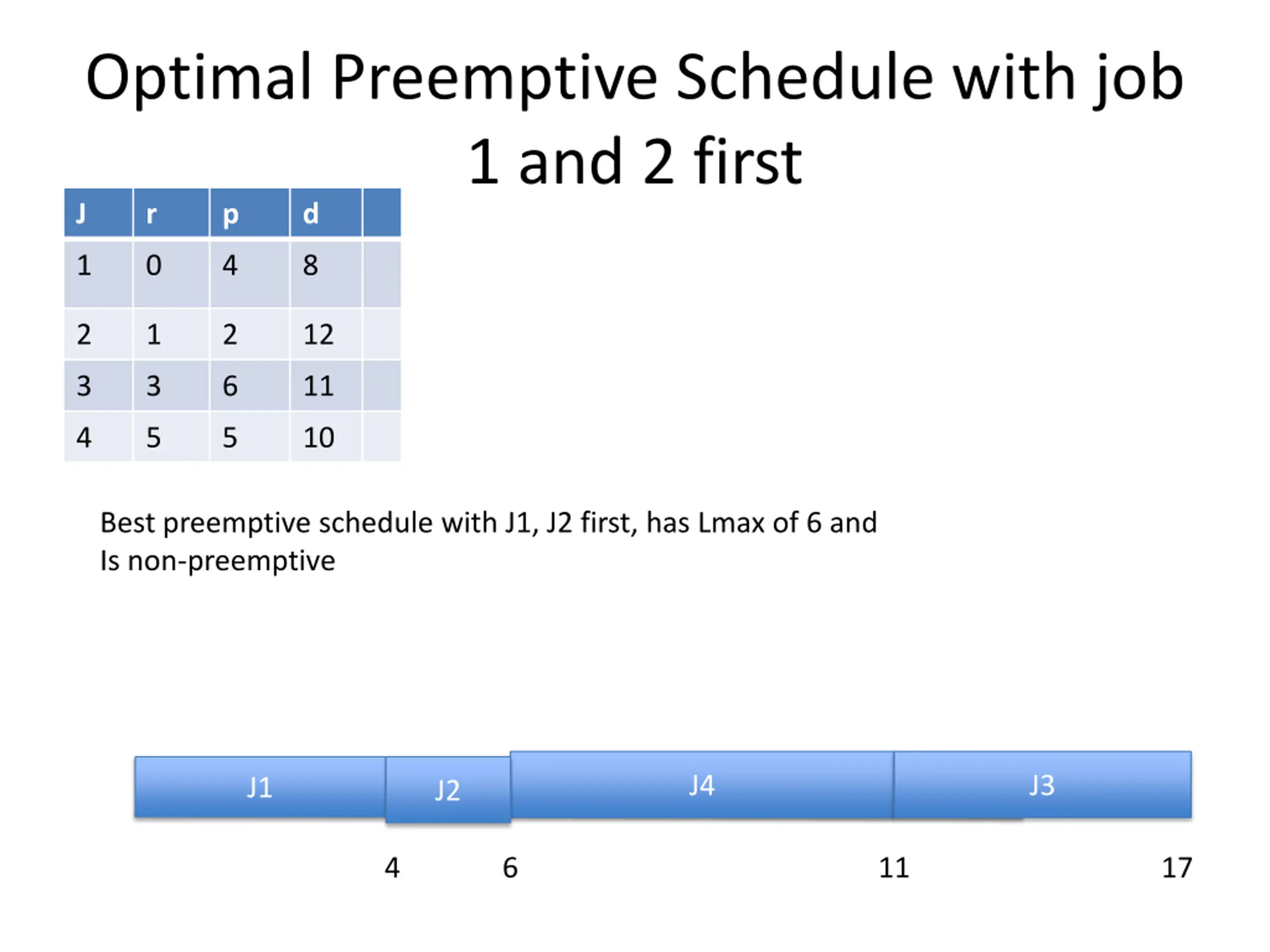

  10. Optimal Preemptive Schedule with job 1 and 2 first J r p d 1 0 4 8 2 1 2 12 3 3 6 11 4 5 5 10 Best preemptive schedule with J1, J2 first, has Lmax of 6 and Is non-preemptive J4 J3 J1 J2 4 6 11 17

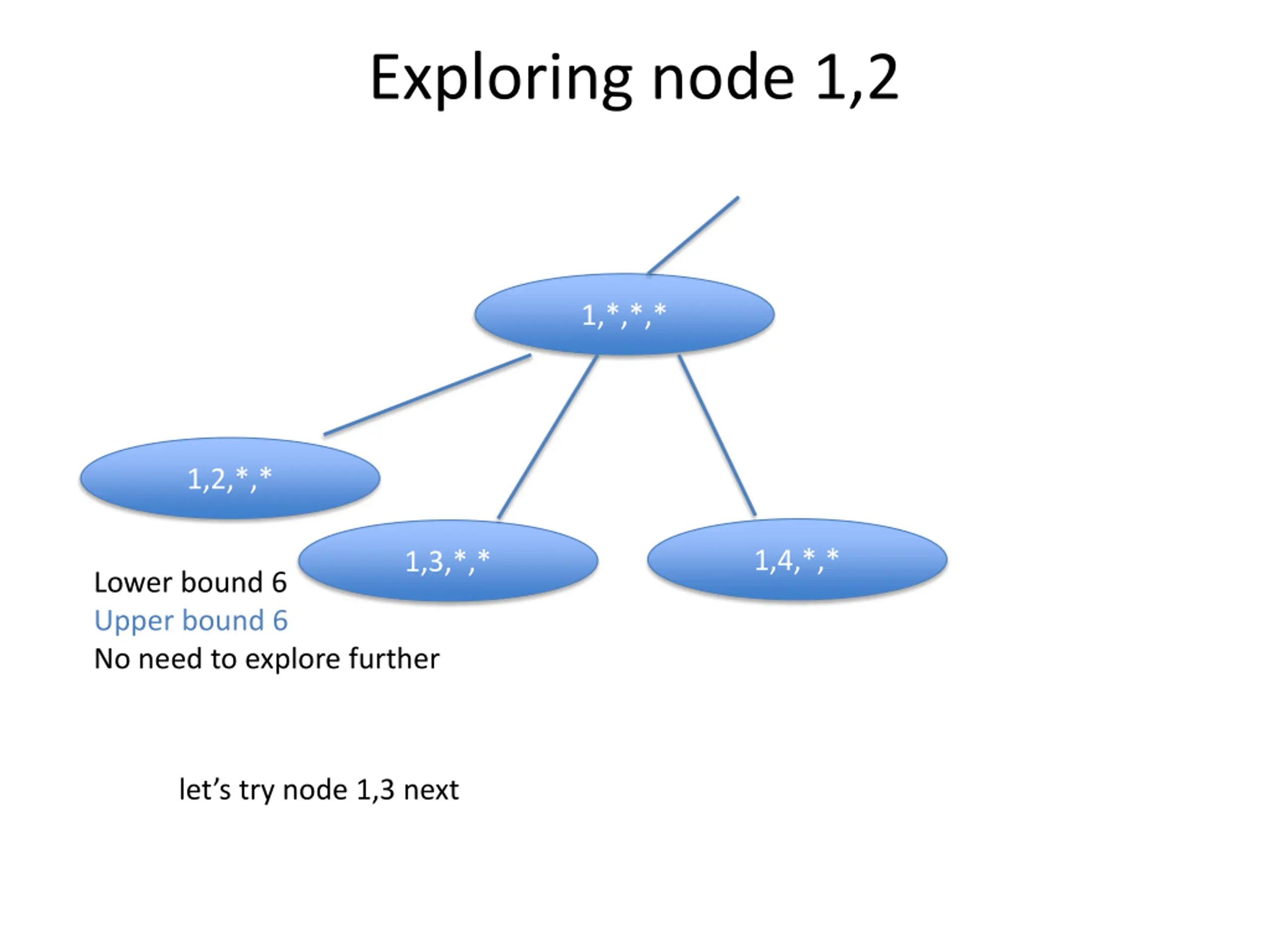

  11. Exploring node 1,2 1,*,*,* 1,2,*,* 1,4,*,* 1,3,*,* Lower bound 6 Upper bound 6 No need to explore further let s try node 1,3 next

  12. Optimal Preemptive Schedule with job 1 and 3 first J r p d 1 0 4 8 2 1 2 12 3 3 6 11 4 5 5 10 Best preemptive schedule with J1, J3 first, has Lmax of 5 and Is non-preemptive J2 J4 J1 J3 4 10 15 17

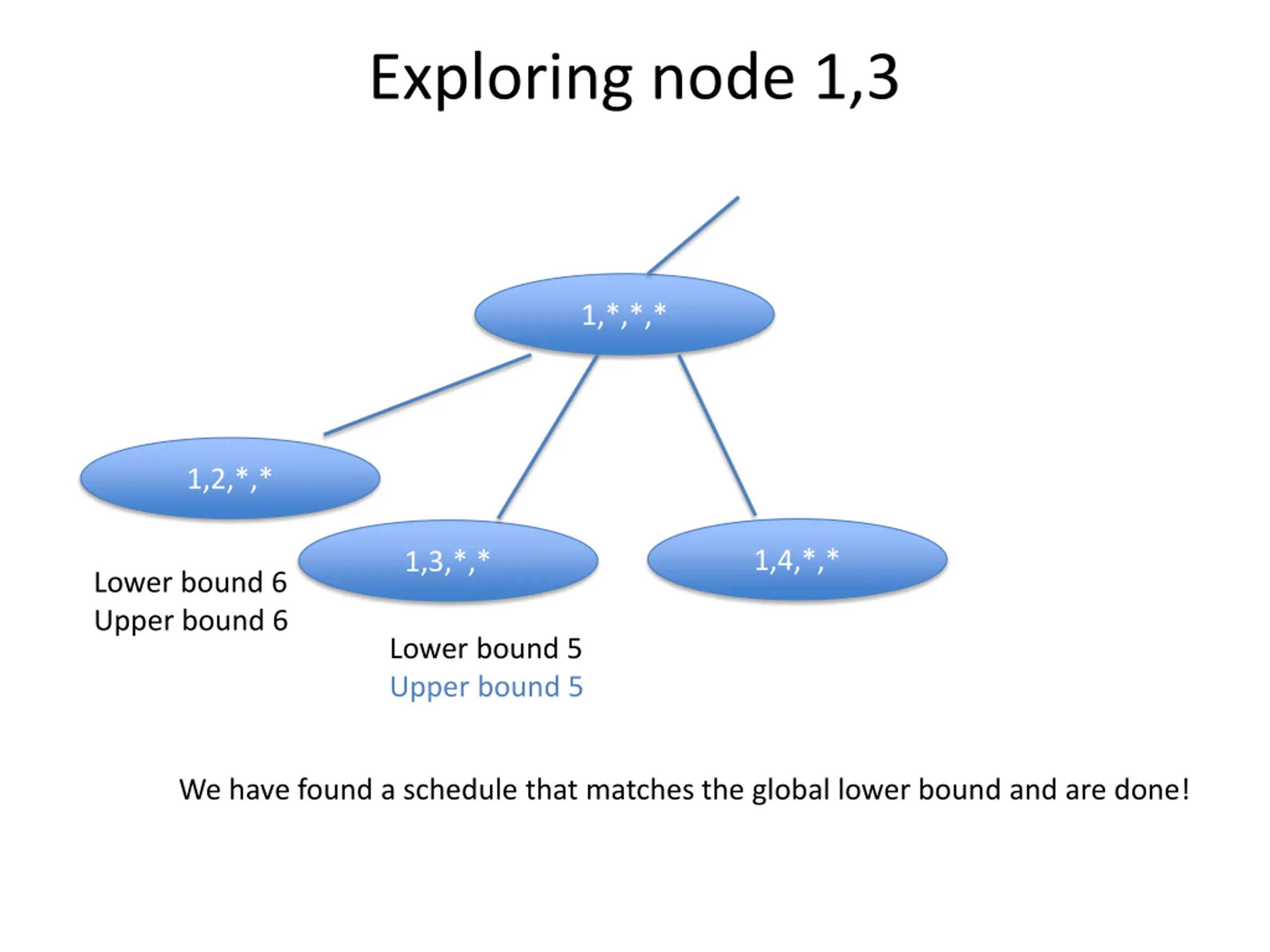

  13. Exploring node 1,3 1,*,*,* 1,2,*,* 1,4,*,* 1,3,*,* Lower bound 6 Upper bound 6 Lower bound 5 Upper bound 5 We have found a schedule that matches the global lower bound and are done!

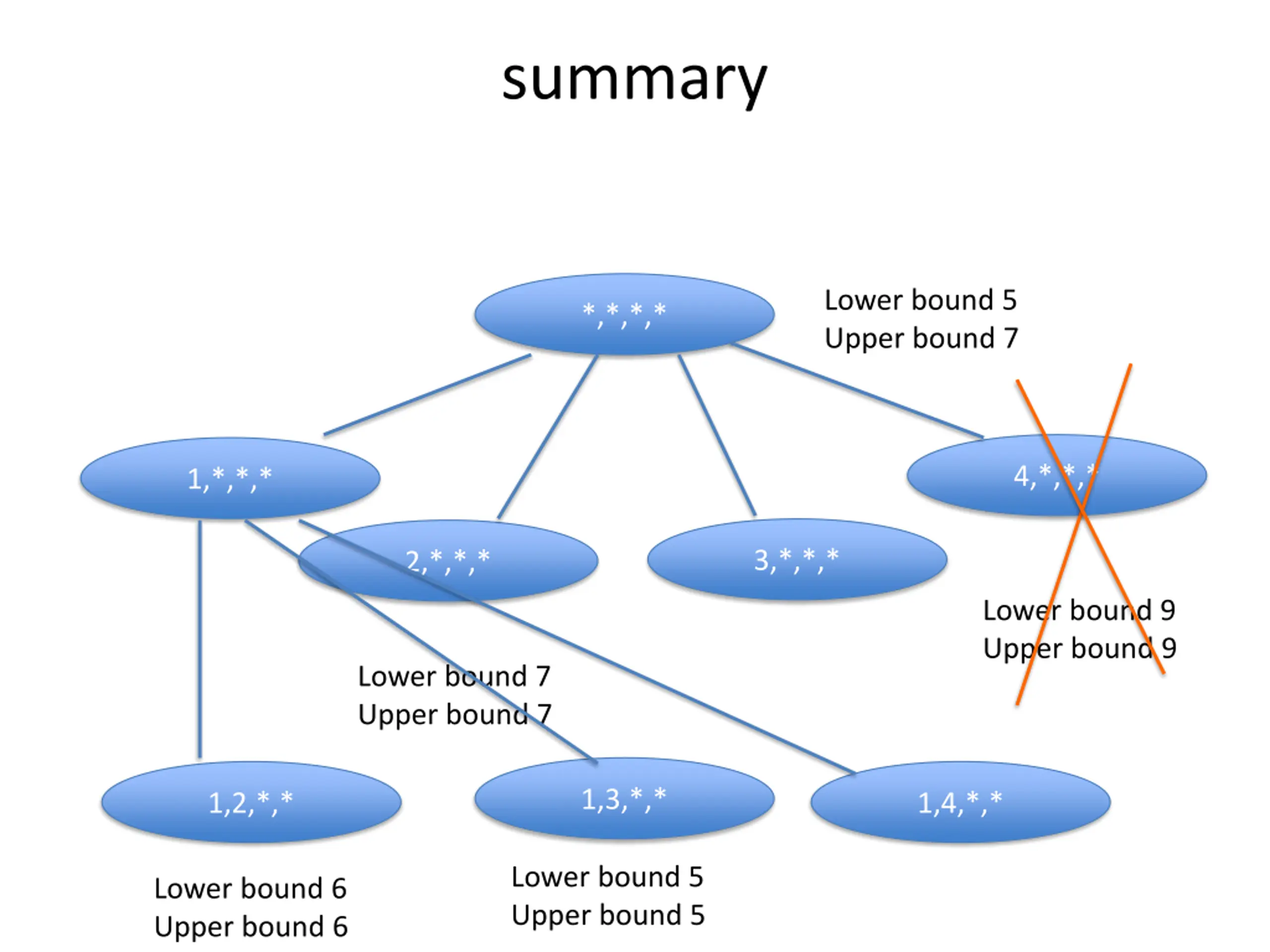

  14. summary Lower bound 5 Upper bound 7 *,*,*,* 4,*,*,* 1,*,*,* 3,*,*,* 2,*,*,* Lower bound 9 Upper bound 9 Lower bound 7 Upper bound 7 . 1,3,*,* 1,2,*,* 1,4,*,* Lower bound 5 Upper bound 5 Lower bound 6 Upper bound 6
