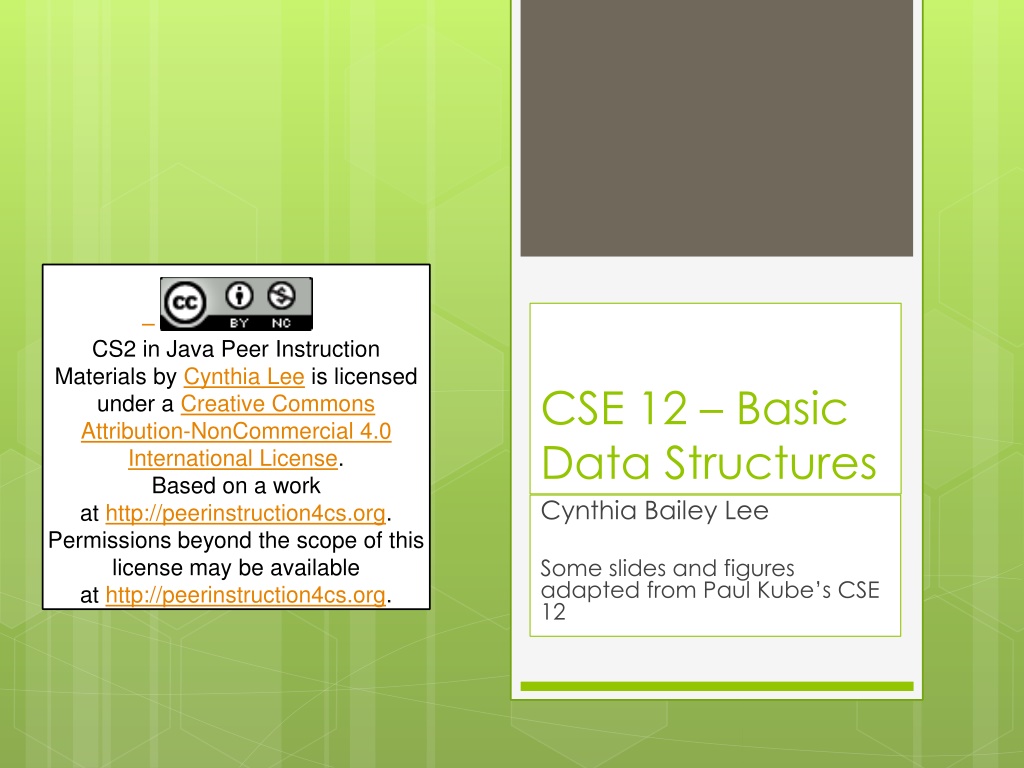

Binary Trees and Heap Implementation in Java
CSE 12 – Basic
Data Structures
Cynthia Bailey Lee
Some slides and figures
adapted from Paul Kube’s CSE
12
CS2 in Java Peer Instruction
Materials by
Cynthia Lee
is licensed
under a
Creative Commons
Attribution-NonCommercial 4.0
International License
.
Based on a work
at
http://peerinstruction4cs.org
.
Permissions beyond the scope of this
license may be available
at
http://peerinstruction4cs.org
.
Today’s Topics
1.
Heap implementation issues
Heap uniqueness
Heapsort in place
HW suggestions
2.
Back to generic binary trees
In-order traversal
Pre-order traversal
Post-order traversal
Level-order traversal (also called “breadth-first”)
2
Reading quiz!
1. A node in a binary tree may have
___ children
A.
0
B.
1
C.
2
D.
3
E.
Other/none of the above/more than
one of the above
Reading quiz!
2. A preorder traversal visits the current
node, performs a preorder traversal of
its ___ subtree and then performs a
preorder traversal of the its ___ subtree.
A.
right, right
B.
left, right
C.
left, left
D.
right, left
Reading quiz!
3. A full binary tree is a tree in which
every node other than the leaves has
____ children.
A.
0
B.
1
C.
2
D.
3
E.
Other/none of the above/more than
one of the above
Reading quiz!
Heap uniqueness
TRUE OR FALSE
There is only one configuration of a valid
min-heap containing the elements {34, 22,3, 9, 18}
A.
TRUE
B.
FALSE
Heap outcomes by insert order
Create a MIN-heap by inserting the elements, one by
one, in the order given below for the
first letter of your last
name
:
A-F: {3, 9, 18, 22, 34}
G-L: {3, 33, 18, 9, 34}
M-R: {9, 22, 18, 3, 34}
S-Z: {18, 22, 3, 9, 34}Heap outcomes by insert order
Create a MIN-heap by inserting the elements, one by
one, in the order given below for the
first letter of your last
name
:
A-F: {18, 9, 34, 3, 22}
G-L: {3, 18, 22, 9, 34}
M-R: {22, 9, 34, 3, 18}
S-Z: {34, 3, 9, 18, 22}How many distinct min-heaps are
possible for the elements {3, 9, 18,22, 34} ?
A.
1
B.
2-4
C.
5-8
D.
5! (5 factorial)
E.
Other/none/more
Heapsort
Heapsort is super easy
1.
Insert unsorted elements one at a time
into a heap until all are added
2.
Remove them from the heap one at a
time. We will always be removing the
next biggest[smallest] item from the
max-heap[min-heap], so the items come
out in sorted order!
THAT’S IT!
Example: using heapsort to print an
array in sorted order
(note: this is
not
the in-
place version you need for HW)
public static void printSorted(String[] unsortedlist)
{Heap<String> heap = new Heap<String>();
for (int i=0; i<unsortedlist.length; i++) {heap.add(unsortedlist[i]);
}
while (!heap.isEmpty()) {System.out.println(heap.remove());
}
}
Implementing heapsort
Devil’s in the details
We can do the entire heapsort
in place in one array
Unlike mergesort, we don’t need a
separate array for our workspace
We can do it all in place in one array (the
same array we were given as input)
Build heap by inserting
elements one at a time:
Sort array by removing
elements one at a time:
Build heap by inserting elements
one at a time IN PLACE:
Sort array by removing elements
one at a time IN PLACE:
Important tip!
The in-place approach will not work if your
test to see if index
i
is past the end of the
heap is to check if
heaparray[i]
is null.
Things will be in the array that are NOT in
the heap!
You need to keep track of an
int size
(in addition to an
int capacity
) in order
to check where the heap ends!
Binary tree traversals
Binary trees
Recall from last time, a binary tree is any
tree where each node has 0, 1, or 2
children
That’s the only restriction
Recall: heaps are a special case of binary
trees, and they have two additional
restrictions
Trees vs. Lists
Lists have an
obvious ordering
1
st
element is
first, 2
nd
element
is second, …
Trees don’t
More than one
reasonable
order
Pre-order traversal
preorder(node) { if (node != null){visit this node
preorder(node.left)
preorder(node.right)
}
}
A.
D B E A F C G
B.
A B D E C F G
C.
A B C D E F G
D.
D E B F G C A
E.
Other/none/more
Post-order traversal
postorder(node) { if (node != null){postorder(node.left)
postorder(node.right)
visit this node
}
}
A.
D B E A F C G
B.
A B D E C F G
C.
A B C D E F G
D.
D E B F G C A
E.
Other/none/more
In-order traversal
inorder(node) { if (node != null){inorder(node.left)
visit this node
inorder(node.right)
}
}
A.
D B E A F C G
B.
A B D E C F G
C.
A B C D E F G
D.
D E B F G C A
E.
Other/none/more
