FCX Cabinet & Ducted Fancoils

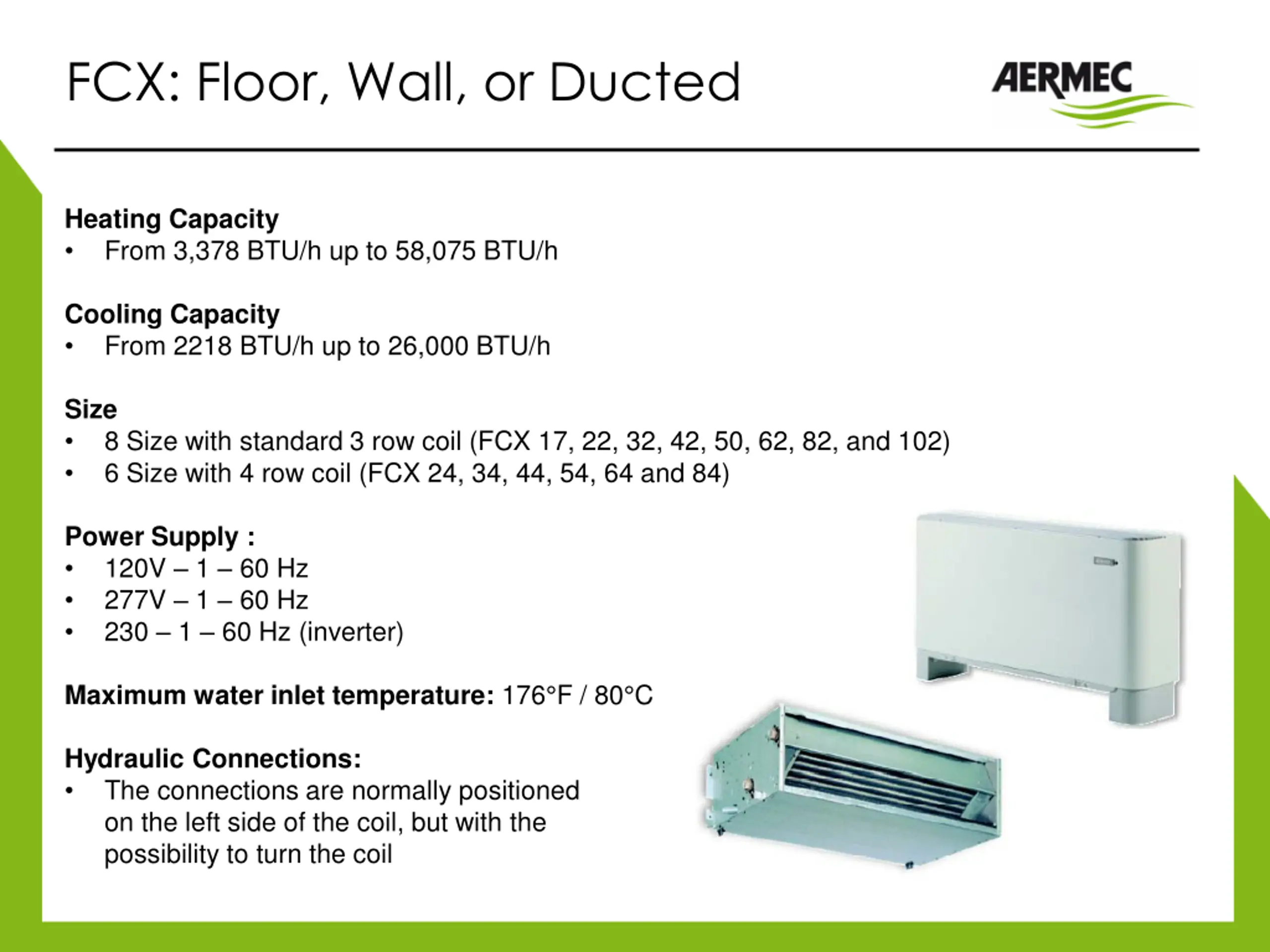

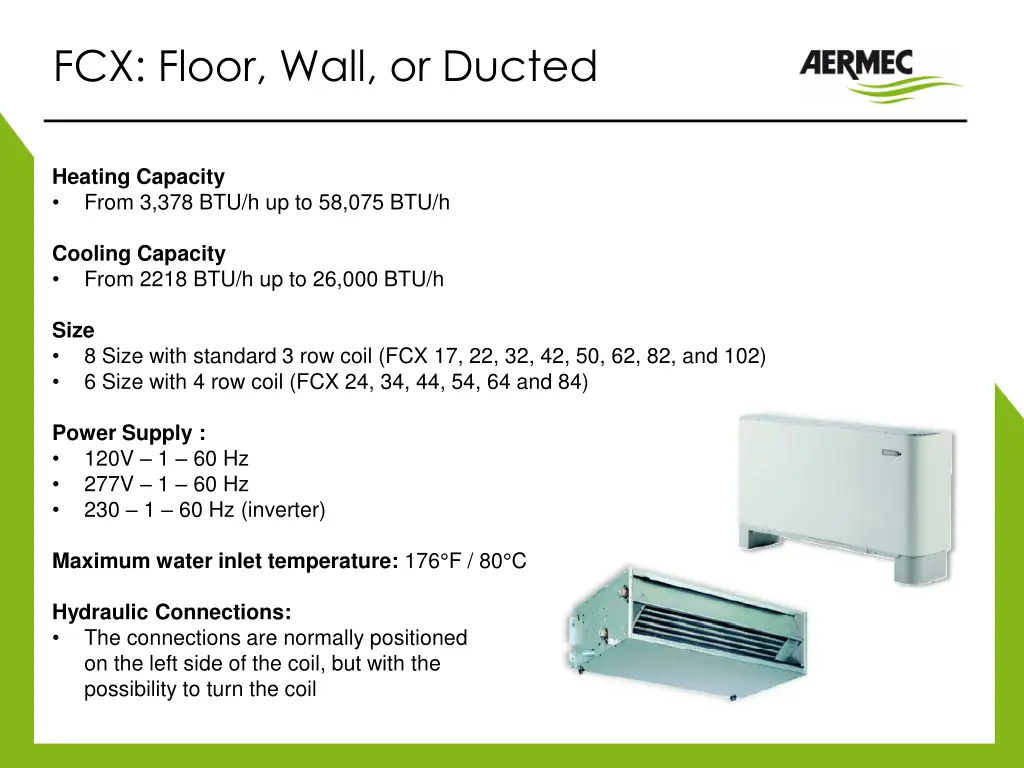

FCX: Floor, Wall, or Ducted Heating Capacity From 3,378 BTU/h up to 58,075 BTU/h Cooling Capacity From 2218 BTU/h up to 26,000 BTU/h Size 8 Size with standard 3 row coil (FCX 17, 22, 32, 42, 50, 62, 82, and 102) 6 Size with 4 row coil (FCX 24, 34, 44, 54, 64 and 84) Power Supply : 120V 1 60 Hz 277V 1 60 Hz 230 1 60 Hz (inverter) Maximum water inlet temperature: 176 F / 80 C Hydraulic Connections: The connections are normally positioned on the left side of the coil, but with the possibility to turn the coil

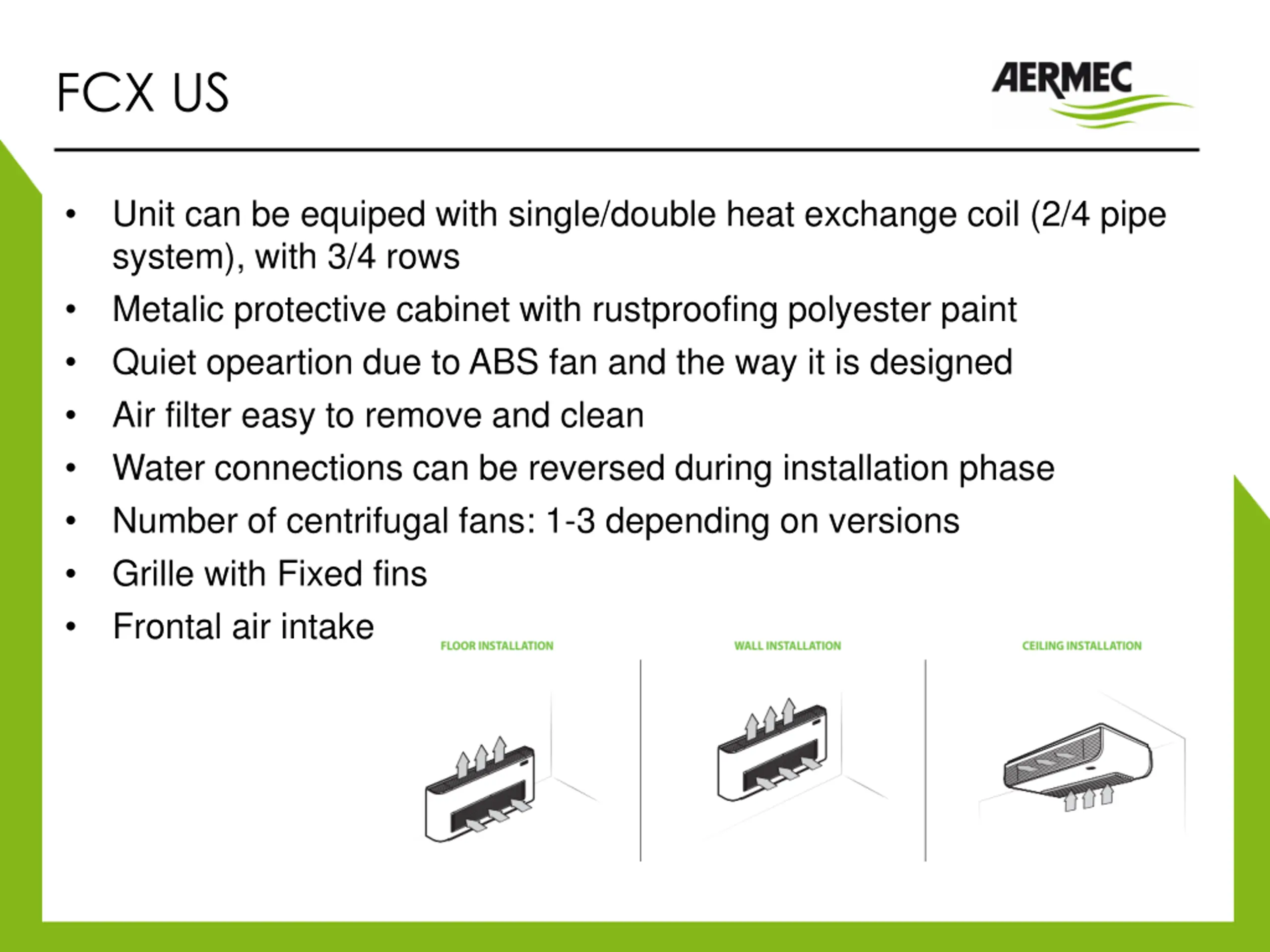

FCX US Unit can be equiped with single/double heat exchange coil (2/4 pipe system), with 3/4 rows Metalic protective cabinet with rustproofing polyester paint Quiet opeartion due to ABS fan and the way it is designed Air filter easy to remove and clean Water connections can be reversed during installation phase Number of centrifugal fans: 1-3 depending on versions Grille with Fixed fins Frontal air intake

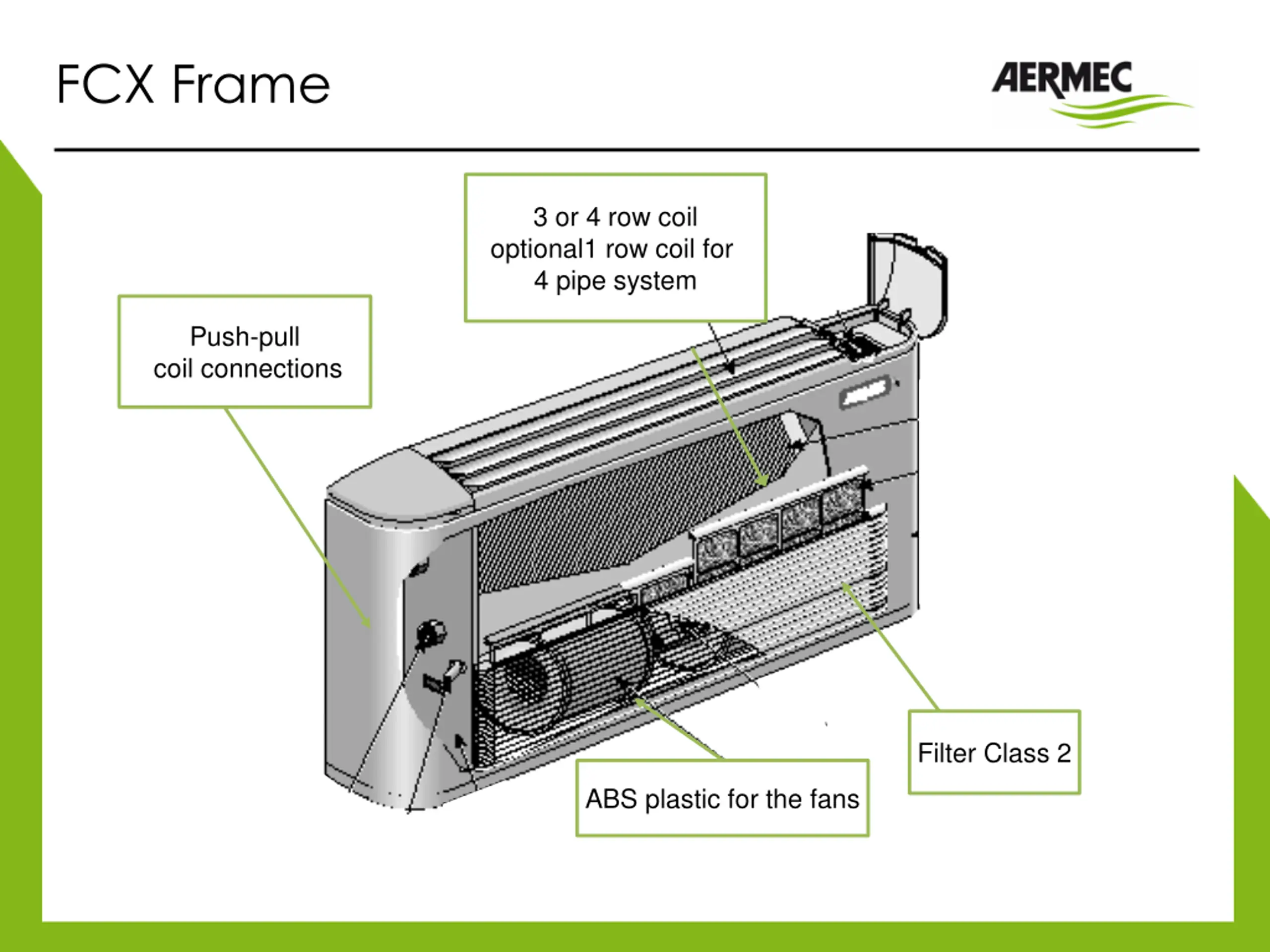

FCX Frame 3 or 4 row coil optional1 row coil for 4 pipe system Push-pull coil connections Filter Class 2 ABS plastic for the fans

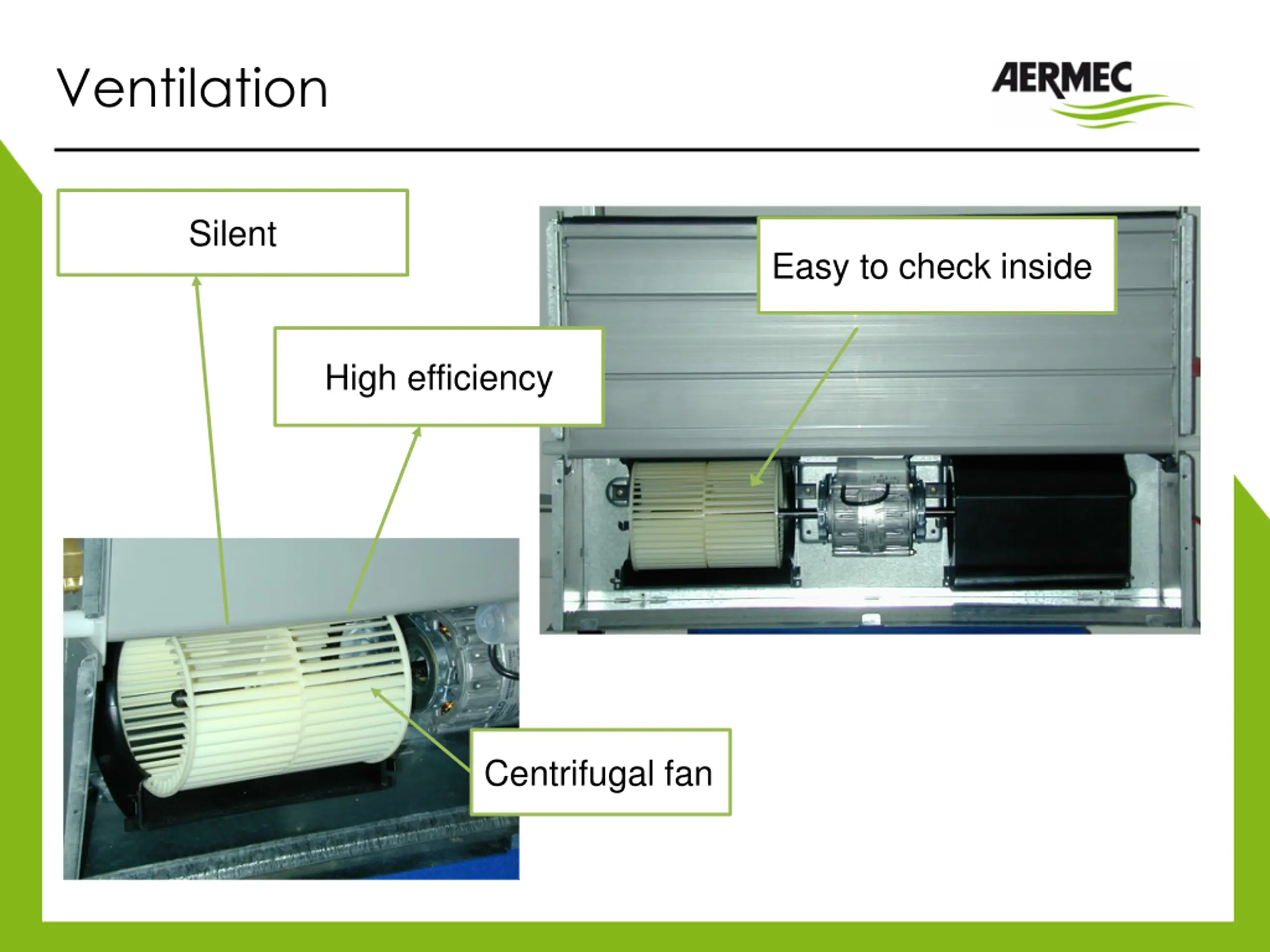

Ventilation Silent Easy to check inside High efficiency Centrifugal fan

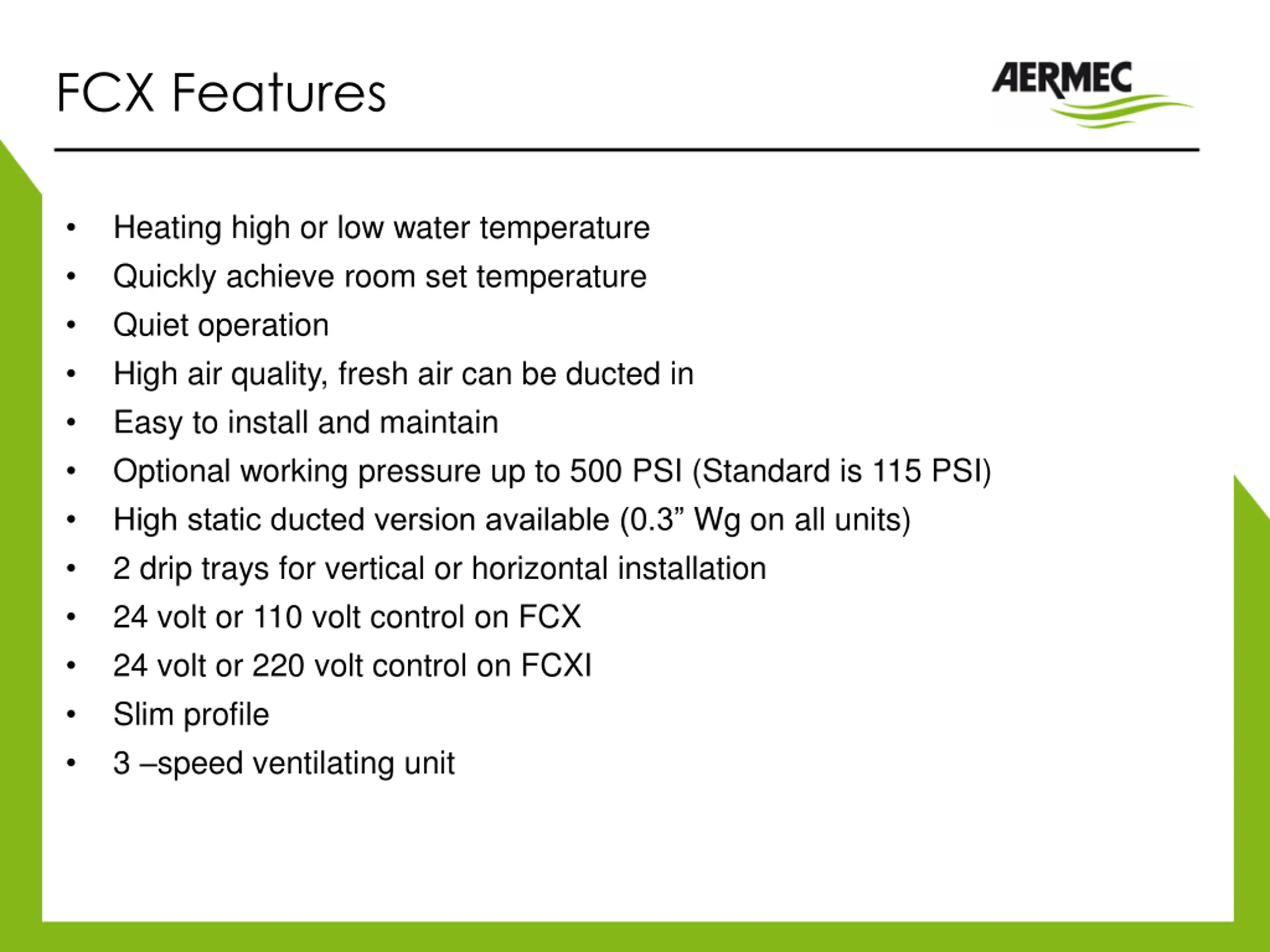

FCX Features Heating high or low water temperature Quickly achieve room set temperature Quiet operation High air quality, fresh air can be ducted in Easy to install and maintain Optional working pressure up to 500 PSI (Standard is 115 PSI) High static ducted version available (0.3 Wg on all units) 2 drip trays for vertical or horizontal installation 24 volt or 110 volt control on FCX 24 volt or 220 volt control on FCXI Slim profile 3 speed ventilating unit

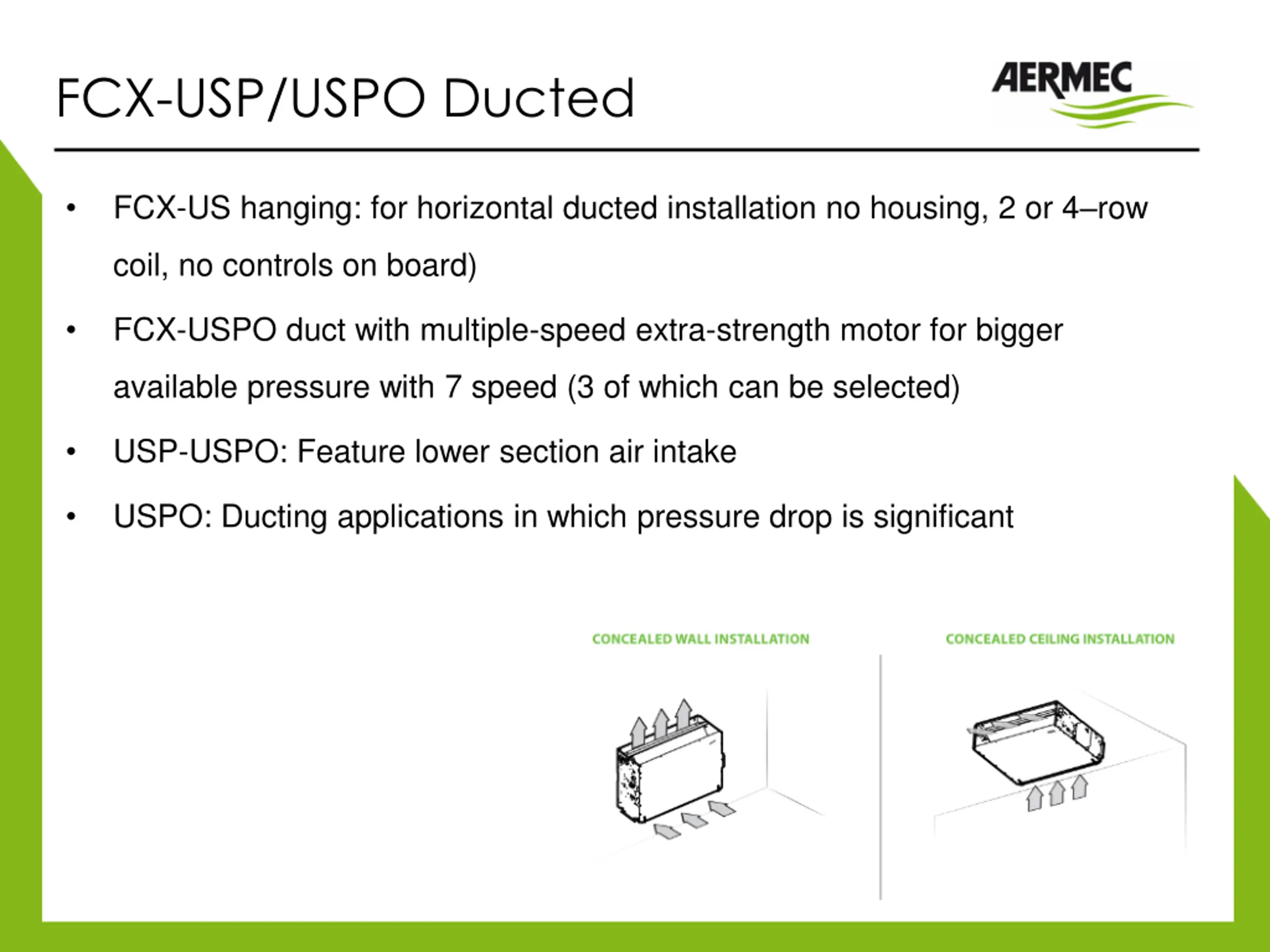

FCX-USP/USPO Ducted FCX-US hanging: for horizontal ducted installation no housing, 2 or 4 row coil, no controls on board) FCX-USPO duct with multiple-speed extra-strength motor for bigger available pressure with 7 speed (3 of which can be selected) USP-USPO: Feature lower section air intake USPO: Ducting applications in which pressure drop is significant

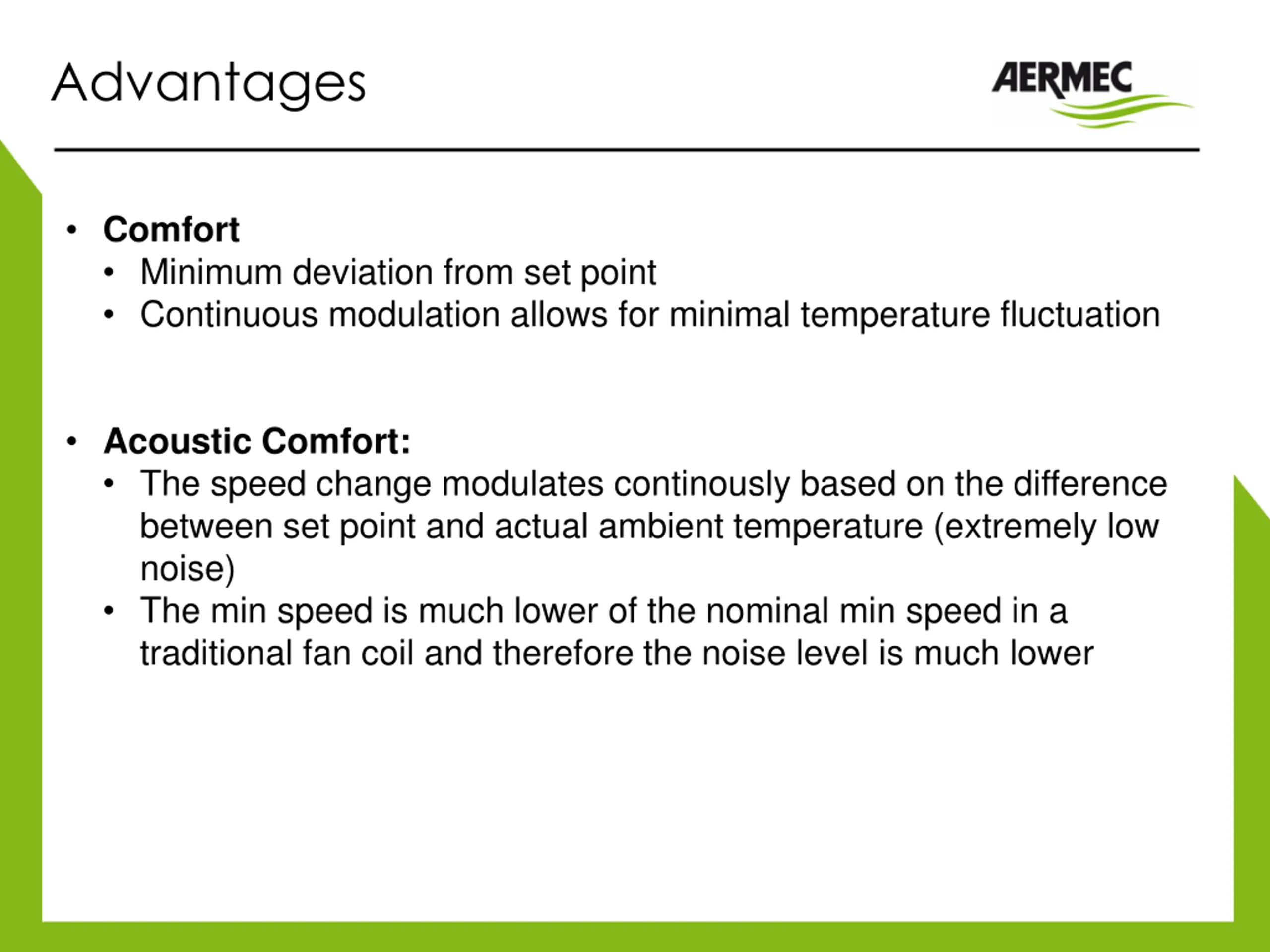

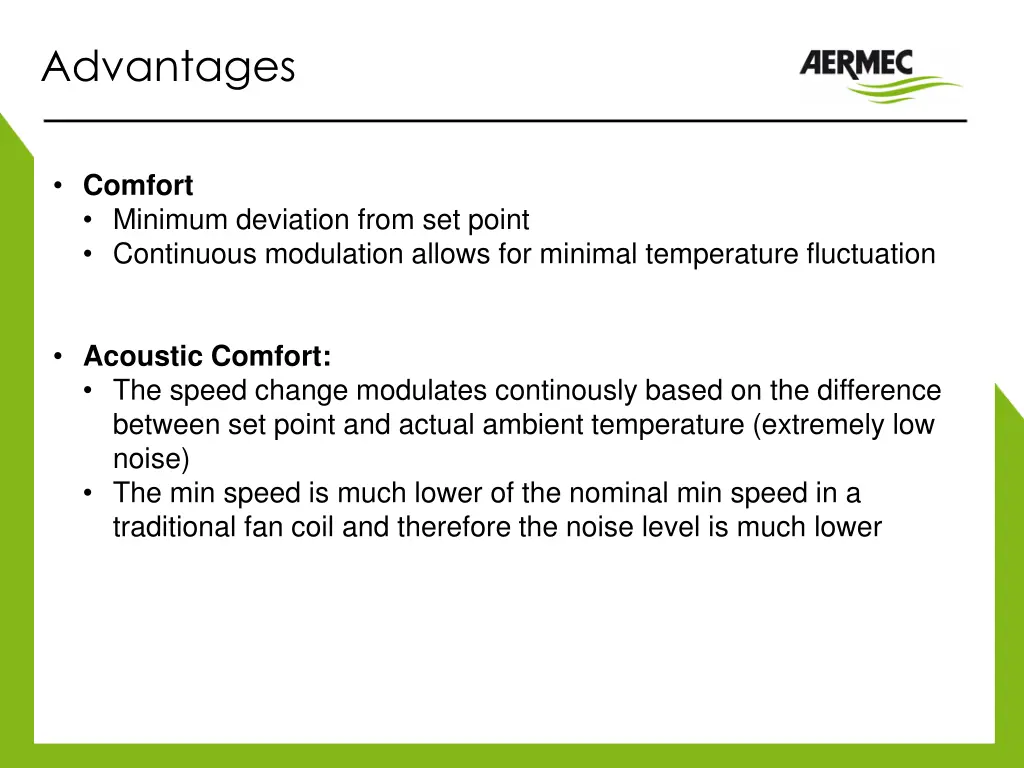

Advantages Comfort Minimum deviation from set point Continuous modulation allows for minimal temperature fluctuation Acoustic Comfort: The speed change modulates continously based on the difference between set point and actual ambient temperature (extremely low noise) The min speed is much lower of the nominal min speed in a traditional fan coil and therefore the noise level is much lower

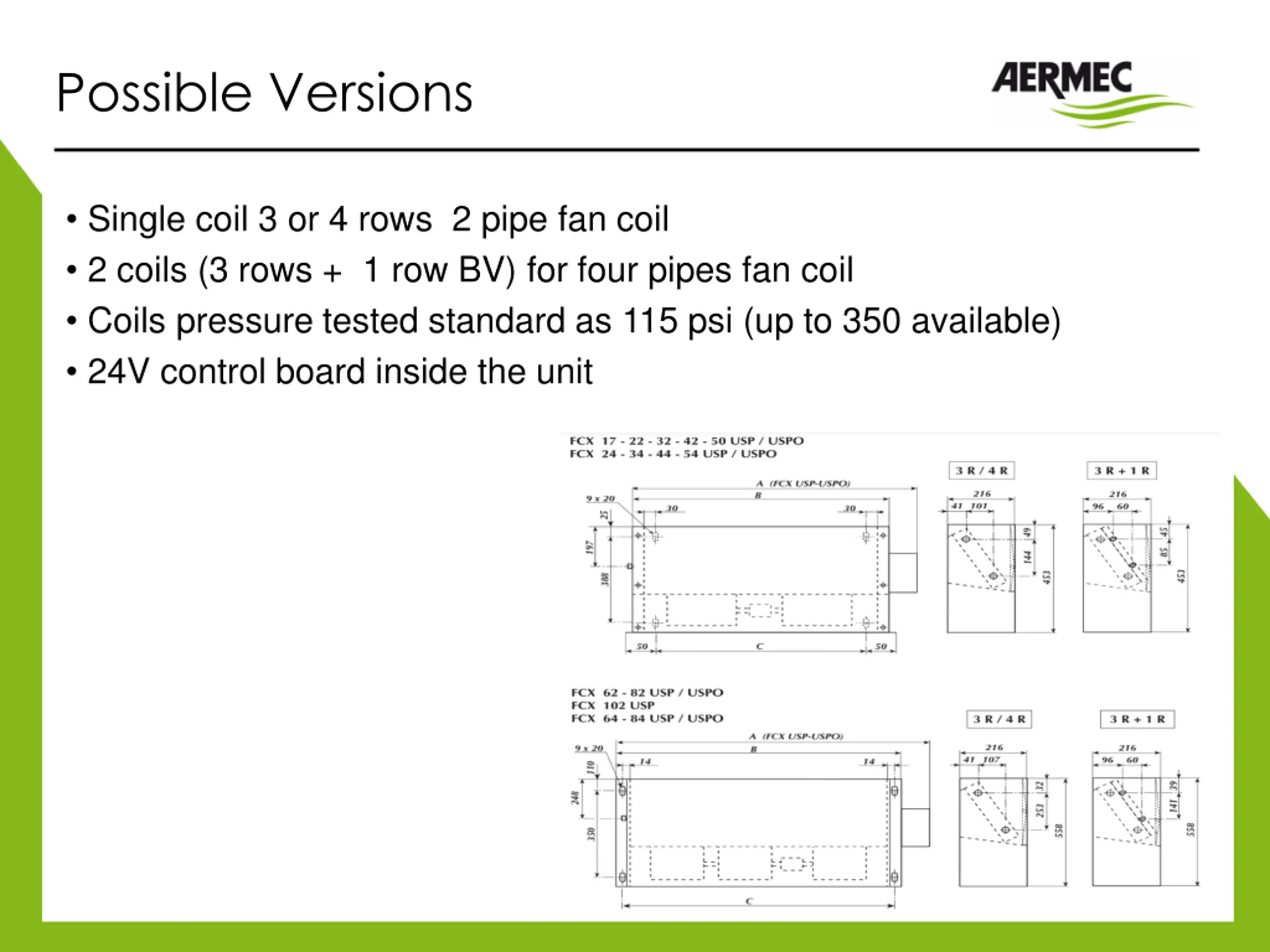

Possible Versions Single coil 3 or 4 rows 2 pipe fan coil 2 coils (3 rows + 1 row BV) for four pipes fan coil Coils pressure tested standard as 115 psi (up to 350 available) 24V control board inside the unit

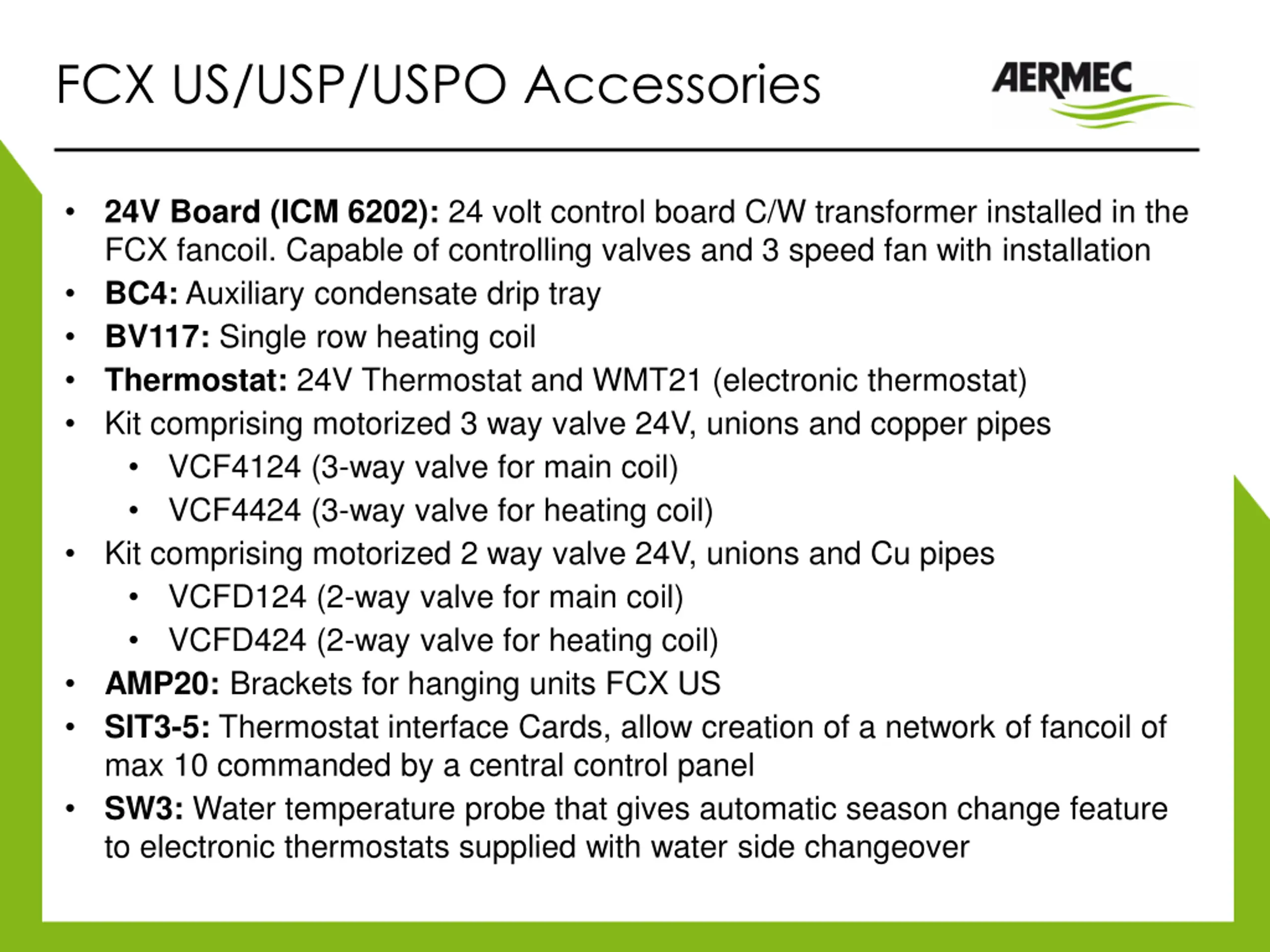

FCX US/USP/USPO Accessories 24V Board (ICM 6202): 24 volt control board C/W transformer installed in the FCX fancoil. Capable of controlling valves and 3 speed fan with installation BC4: Auxiliary condensate drip tray BV117: Single row heating coil Thermostat: 24V Thermostat and WMT21 (electronic thermostat) Kit comprising motorized 3 way valve 24V, unions and copper pipes VCF4124 (3-way valve for main coil) VCF4424 (3-way valve for heating coil) Kit comprising motorized 2 way valve 24V, unions and Cu pipes VCFD124 (2-way valve for main coil) VCFD424 (2-way valve for heating coil) AMP20: Brackets for hanging units FCX US SIT3-5: Thermostat interface Cards, allow creation of a network of fancoil of max 10 commanded by a central control panel SW3: Water temperature probe that gives automatic season change feature to electronic thermostats supplied with water side changeover
