Advanced Diagram Development and Management Project Summary

The Advanced Diagram Development and Management project aims to integrate a software architecture for inputting data and automating the process of developing and managing functional diagrams in naval shipbuilding. The project goals include reducing labor costs, minimizing errors on drawings, and enhancing first-time quality by controlling data more efficiently. Ongoing issues related to drawing intelligence, data repositories, and manual effort are being addressed to improve efficiency and accuracy in the project.

• Diagram Development
• Data Automation
• Naval Shipbuilding
• Project Management
• Efficiency Improvement

zenaida Follow

Uploaded on Aug 04, 2024 | 1 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

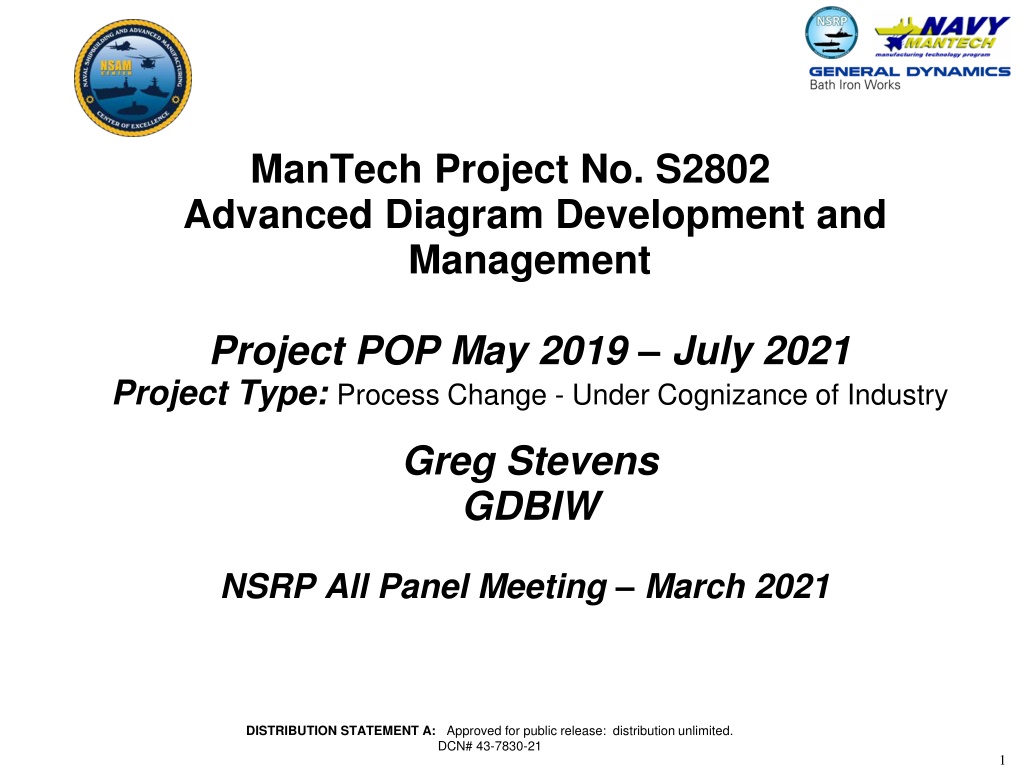

1. ManTech Project No. S2802 Advanced Diagram Development and Management Project POP May 2019 July 2021 Project Type: Process Change - Under Cognizance of Industry Greg Stevens GDBIW NSRP All Panel Meeting March 2021 DISTRIBUTION STATEMENT A: Approved for public release: distribution unlimited. DCN# 43-7830-21 1

2. NSAM ADDM Project Snapshot ManTech Center of Excellence (COE): Naval Shipbuilding and Advanced Manufacturing Center (NSAM) Project Lead: General Dynamics Bath Iron Works Project Dates: May 2018 Jul 2021 Objective: Integrate a software architecture that enables users to input data, representing attributes for system components, and introduce automation into the process of developing and managing functional diagrams Estimated Savings: $924K per DDG $924K per DDG- -51 hull 51 hull 5 5- -year: $5.5M (ROI of 1.87) year: $5.5M (ROI of 1.87) ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 2

3. Agenda Issue Description Project Goals Project Objectives and Approach Benefits and Savings Assumptions Benefits Industry/Platform Value Statement of Work Task List Project Accomplishments to Date Near-Term Activities (next 3 months) Summary ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 3

4. Issue Description Drawings are not intelligent and attributed Many data repositories used for drawings Drawing generation, revision and maintenance require high manual effort Manufacturing, testing and commissioning rely on proper drawing management Ongoing issues with: Reconciling errors Expedient reconciliation Coordination across change activities ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 4

5. Project Goals Reduce Labor Costs: Less effort required to create and maintain diagrams and data repositories Reduce Rework: Errors on drawings will be reduced or eliminated Improve First Time Quality: Data will be more easily controlled and drawn from a consolidated data environment, leading to more accurate, higher quality products ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 5

6. Project Objectives and Approach Develop data architecture tools to automate creation and maintenance of intelligent 2D functional drawing products Create tools to incorporate data driven diagram creation and presentation Demonstrate capability to interface to data sets and diagram software tools Create a User Interface that provides a common platform to manage data and its representation on functional diagram products Use an Agile methodology for design, development and testing Create extensible architecture Manage data rather than managing visual representation ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 6

7. Benefits and Savings Assumptions Engineering and design savings 4 years of nominal change and 1 year high change work Manufacturing cost avoidance Rework associated with incorrect information that flowed from engineering and design to manufacturing Engineering and design cost avoidance Rework associated with incorrect information caught during the check and validation process Qualitative benefits exist Improved request response time, error checking, last minute change requests, process performance monitoring ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 7

8. Benefits Industry/Platform Value A roadmap was generated indicating how to institute similar methods, tools and data management For those programs similar in nature, there could be direct impact similar to what has been estimated for the DDG 51 program The project team has engaged in several data exchange forums to communicate project progress ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 8

9. Statement of Work Task List Task PhaseI Technology Assessment Description 1 Current State / Future State Process Analysis and Roadmap 2 Vendor Assessment 3 Develop Roadmap 4 Define software architecture, tools and interfaces Phase I Report / Review with Go / No-Go Decision PhaseII Architecture Design and Development 5 6 Develop software architecture, tools and interfaces 7 Pilot integrated system architecture with back end interfaces 8 Implementation Plan and final reporting ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 9

10. Project Accomplishments to Date Created a Roadmap reflecting strategies Surveyed vendor products Provided data to support a GO decision Developed application and data management software Conducted software integration testing ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 10

11. Near-Term Activities (next 3 months) Technical Progress to be Accomplished Complete software integration testing Complete User Acceptance Testing Finalize Test Report Finalize implementation plan, and final project report Near-Term Technical Milestones Deliver Test Report May 2021 Risk Reduction Items to be Addressed Schedule and resource planning Implementation Actions to be Addressed Work on the implementation plan ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 11

12. Summary Project on track to complete in June 2021 Organizational implementation and transition will start shortly after project completion Improved awareness and knowledge of COTS products during vendor assessment Current project developed to respond to BIW-specific needs Project concepts may serve wider industry ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 12

13. Questions? ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 13

14. Backup (Slide Show Demo) ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 14

15. Slide Show Describing ADDM ADDM Automated Diagram Development and Management DIAGRAM DEVELOPMENT INTERACTIVITY AUTOMATED MAINTENANCE INTEGRATED METRICS ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 15

16. ADDM Platform Custom tools are built on top of AutoCAD, rapidly accessing data stored in a data warehouse Library parts use AutoCAD internal block and block attribute tools Uses visible and invisible attributes to display essential information and link the library part back to the database Component attributes are linked data not duplicated data Example Visible Attributes: Example Invisible Attributes: Piece Number FM-VLV-01 Damage Classification: X-Ray, William Part Usage in System: Firemain Valve #1 Unique Identifier to database Library Part Usage Ship Applicability ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 16

17. Development Features are Available via APIs Secondary Use- Primary Use- Automated Diagram Development Assisted Diagram Development User initiates automated processing to place components with existing design data links User manually places components with existing design data links ADDM User Interface APIs Design Data Completed Diagrams AUTOCAD ADDM Engine ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 17

18. Development Features Use of APIs ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 18

19. Development Feature Automated Title Sheet Automatically inserts linked (off-sheet) files as References, Sheet Index, Library Parts Used, and other key drawing data. ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 19

20. Development Features Automated Parts List Merges Equipment Data, Drawing Data Merges Equipment Data, Merges Equipment Data, Drawing Data, Library Part Data Merges Equipment Data, Drawing Data, Library Part Data, and 3D Design Data ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 20

21. ADDM Automated Diagram Development and Management DIAGRAM DEVELOPMENT INTERACTIVITY AUTOMATED MAINTENANCE INTEGRATED METRICS ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 21

22. Interactive Feature - Get Cable Information Get Cable Information Launches Cable Information Report In ADDM Based On Clicked Cable Pulls up cable, connection, and hookup information Provides additional reporting and tools to get additional information needed such as detailed equipment information and cable location. ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 22

23. ADDM Automated Diagram Development and Management DIAGRAM DEVELOPMENT INTERACTIVITY AUTOMATED MAINTENANCE INTEGRATED METRICS ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 23

24. Maintenance: Automatic Library Part Update Current Design: SYS-PMP-0001 Catalog:1000 (Centrifugal Pump) Ver 1 New Design: SYS-PMP-0001 Catalog:1000 (Centrifugal Pump) Ver 2 System automatically updates library parts that have been revised with the updated part/symbol ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 24

25. Maintenance: Automatic Offsheet Alignment Current Design: SYS-PMP-0001 SYS020 Cable: CS System Sheet 22A New Design: SYS-PMP-0001 SYS020 Cable: Equip Moved to 31A System automatically updates offsheet references for objects that have moved to a different location ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 25

26. ADDM Automated Diagram Development and Management DIAGRAM DEVELOPMENT INTERACTIVITY AUTOMATED MAINTENANCE INTEGRATED METRICS ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 26

27. Metrics: Daily Automated Status Updates Percent complete is estimated by equipment and cable counts expected to be shown on the diagram Time ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements Data Content is Fabricated Use for Demonstration Purposes Only 27

28. Integrated Project Team Paul Huang Program Officer Marty Ryan Director Bobby Mashburn Deputy Director Tim Macon Project Manager Vicky Dlugokecki Project Technical Representative Lee Fuglestad PMS 400D4 David Clark - CACI Stephen Nicholson Project Sponsor Sarah Glazier ManTech Project Manager Gregg Buczkowski Interim ManTech Project Manager Greg Stevens Business Project Manager Jim Strickland Technical Lead ManTech Project No. S2802 - Advanced Diagram Development and Management NSRP All Panel Meeting March 2021 See Title Page for Distribution Statements 28
