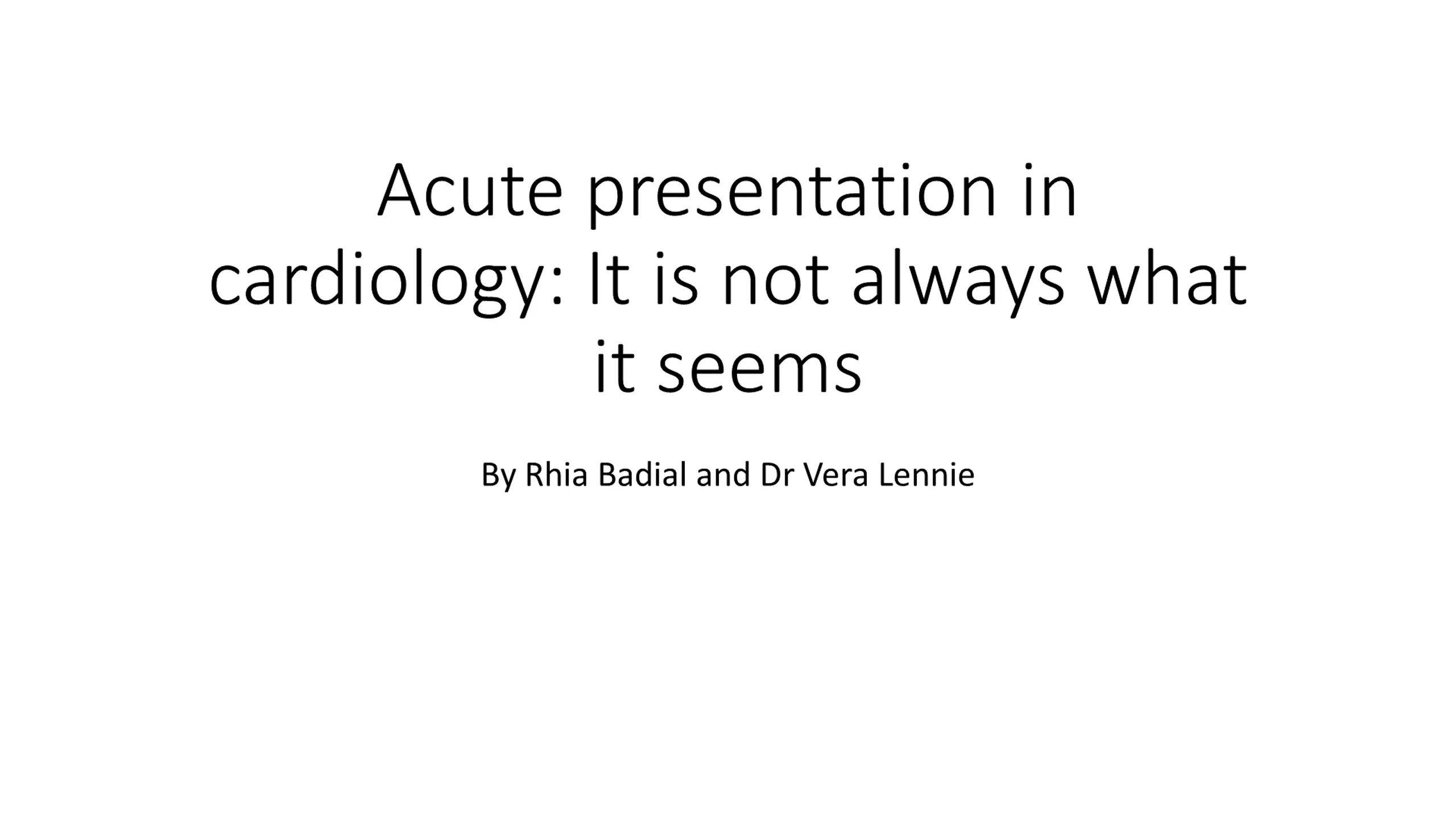

  1. Acute presentation in cardiology: It is not always what it seems By Rhia Badial and Dr Vera Lennie

  2. Learning outcomes Develop understanding of different causes of chest pain Use history and examination to construct a differential diagnosis Understanding differential diagnoses of elevated troponin Identify relevant investigations to aid diagnosis Consider the impact of Covid19 in cardiology

  3. Presenting complaint 35 year old black man referred from the GP to cardiology 2 episodes of retrosternal chest pain He says he is struggling to catch his breath Recently he has also been experiencing dizzy spells, headaches and tiredness General weakness over the last few days

  4. What other questions would you want to ask him?

  5. History of presenting complaint Chest pain described as a tightness No radiation Pain lasts for around 1 minute Both episodes of chest pain occurred on rest Ibuprofen improves the pain slightly He has not experienced any palpitations, ankle swelling or claudication

  6. No previous hospital admissions No cardiac family history Non-smoker, non-drinker and no illicit drug use On no medications Normally very well and sporty

  7. Due to Covid19 what other information may be relevant?

  8. Has none of the main Covid19 symptoms or any other infective symptoms (fever, cough or loss of taste and smell) and has tested negative No family members unwell Has not had either of the Covid19 vaccines Travels to London regularly for work

  9. Differential Diagnosis

  10. Examination Normal heart sounds Reduced air entry in left upper zone of chest Warm and well perfused peripheries Capillary refill time < 2 seconds No peripheral oedema Calves soft and non tender No lymphadenopathy Apyrexial

  11. Initial Investigations? ECG EEG Chest xray Blood tests ECHO CT scan Cardiac angiogram

  12. 12 lead ECG

  13. Describe the ECG?

  14. Results ECG T wave inversion in V2 to V6 and biphasic ST-T segment elevation in V3 Elevated troponin 2021 CRP < 1 Normal white cell count Normal renal and liver function Normal chest xray ECHO no left ventricular damage, no hypertrophy and no valvular abnormalities

  15. Cardiac Angiogram Normal coronary arteries with no evidence of stenosis or occlusion, which could result in coronary spasm or myocardial infarction

  16. Label the coronary arteries? A C B

  17. What can cause elevated troponin? Myocardial infarction Arrythmia Pulmonary embolism Septic shock Aortic dissection Cholecystitis Cocaine Myocarditis Percutaneous coronary intervention (PCI)

  18. Causes of elevated troponin Any infection resulting in inflammation can elevate troponin levels, the troponin levels can also elevate and reduce daily due to random cytokine responses.

  19. Cardiac MRI Cardiac MRI revealed inflammation around the heart muscle and patient was diagnosed with myocarditis Most likely combined with pericarditis Sometimes this is referred as myopericarditis

  20. What are the typical ECG features in pericarditis? Widespread concave ST elevation Delta wave PR depression Hyperacute T wave Dynamic ST changes Sinus tachycardia

  21. Patients ECG 4 weeks after admission Concave ST elevation

  22. Diagnostic criteria for myocarditis History Examination Initial investigations: ECG, troponin and chest xray Coronary angiogram Cardiac MRI Consider endomyocardial biopsy in required

  23. What can cause myocarditis?

  24. Further investigations and management Enforced rest Statins Dalteparin Give 500mls Plasmalyte 148 ACE inhibitor Administer 15l Oxygen Analgesia Viral screen Serum ACE

  25. Monitoring Continuous ECG monitoring during acute phase Daily troponins It is important for the patient to undergo regular ECHOs to ensure their left ventricular function is persevered it should be > 55% however ideally should be compared to previous ones to see if it has reduced from the patient s normal Cannot discharge patient until their troponin has reduced to normal due to risk of arrhythmias

  26. Long term complications of myocarditis Fibrosis leading to left ventricular impairment Ventricular arrythmias Chronic hypoxia Life threatening Angina on exertion Heart failure

  27. Complications of long Covid19 Pneumonia Acute respiratory distress syndrome Bacterial infection Primary cancer Myocarditis Infertility Septic shock Multi organ failure Permanent paralysis Cognitive impairment Obesity Breathlessness

  28. Summary Myocarditis can present with non-specific symptoms There can be no obvious cause for myocarditis it was believed that this patient developed it due to a previous episode of undiagnosed Covid19 (which is now recognised as a common cause) Troponin can be elevated by many factors other than myocardial infarction ECG can have evidence of ST elevation in myocarditis The treatment for myocarditis is mainly supportive Covid19 can cause a range of long-term complications

  29. Further Reading You have now: Developed your understanding of non acute coronary causes of chest pain Used history and examination to construct a differential diagnosis Learnt to identify abnormalities on ECGs Reviewed management of myocarditis Further Reading More detailed learning on myocarditis: European Society of Cardiology Link between myocarditis and Covid19 vaccine: BMJ
