  1. A moving target - Quench Antenna Location & Orientation Thomas Strauss LARP MQXFS1b 11 /30 /2016

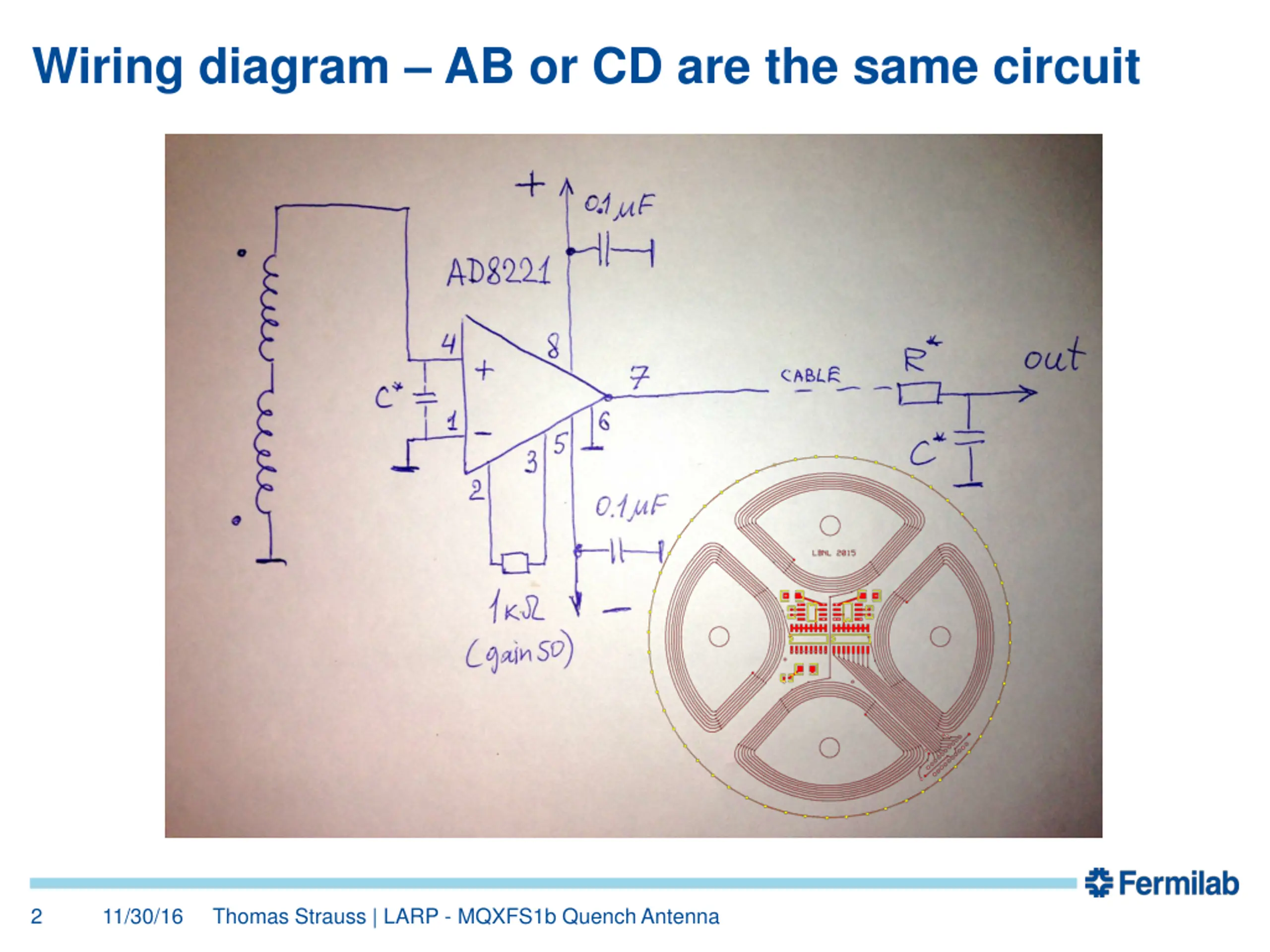

  2. Wiring diagram AB or CD are the same circuit 2 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

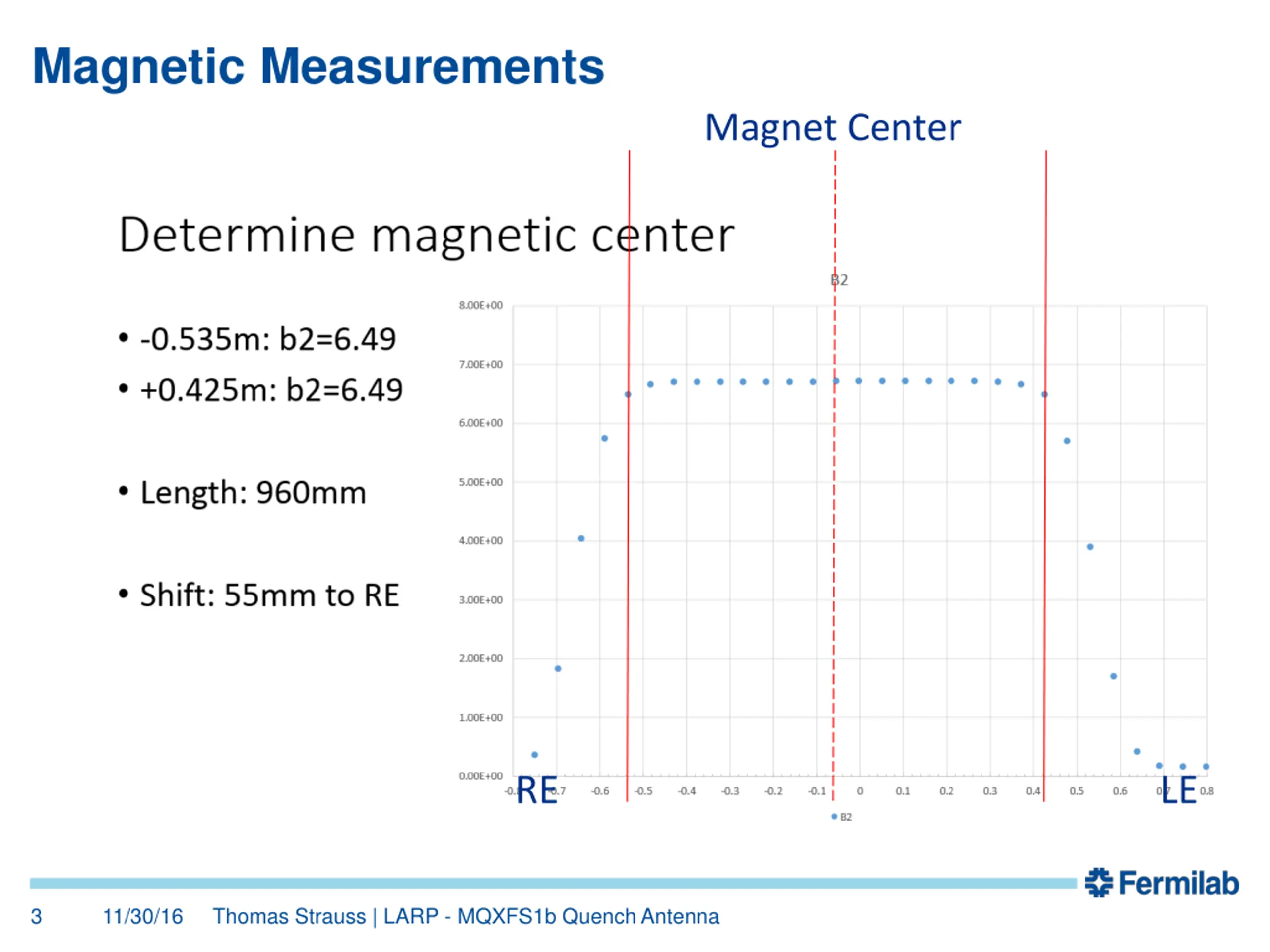

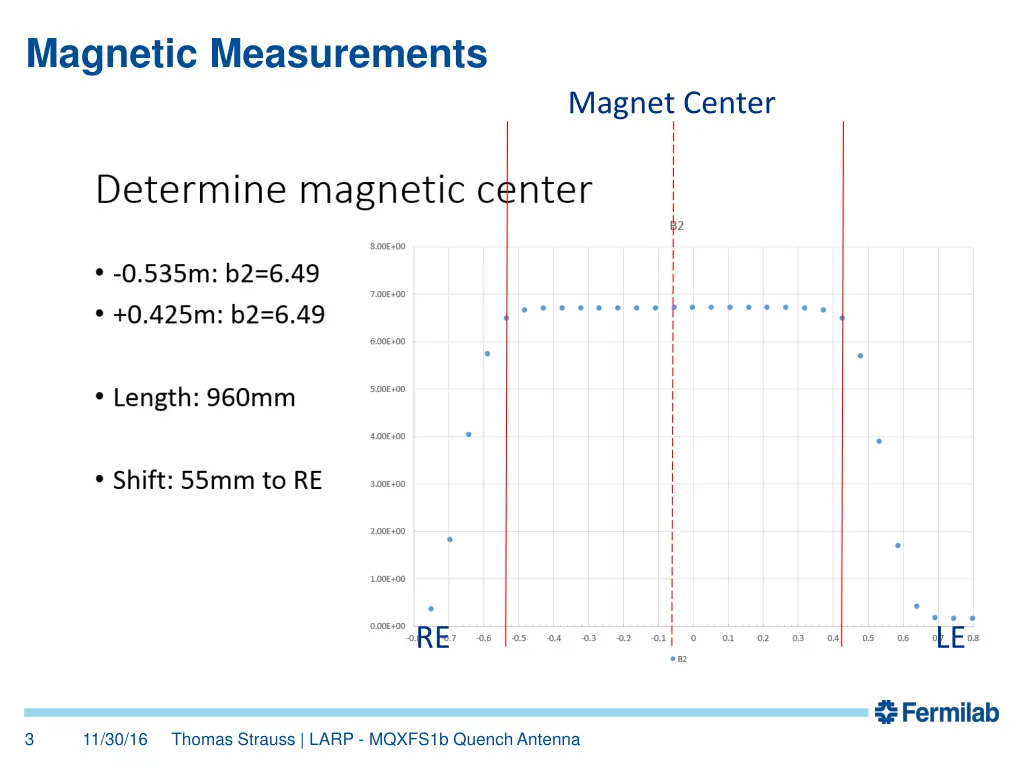

  3. Magnetic Measurements Magnet Center RE LE 3 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

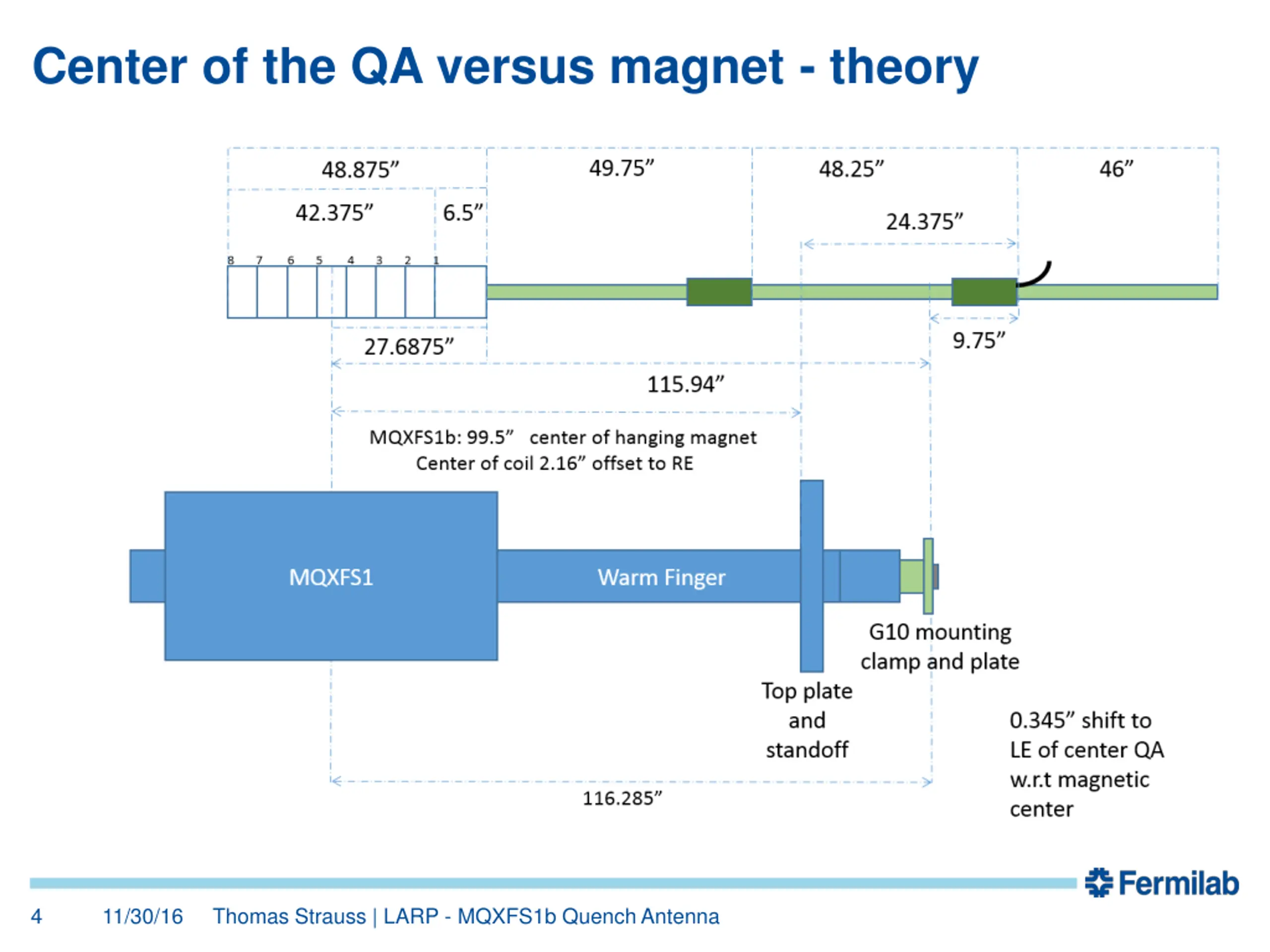

  4. Center of the QA versus magnet - theory 4 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

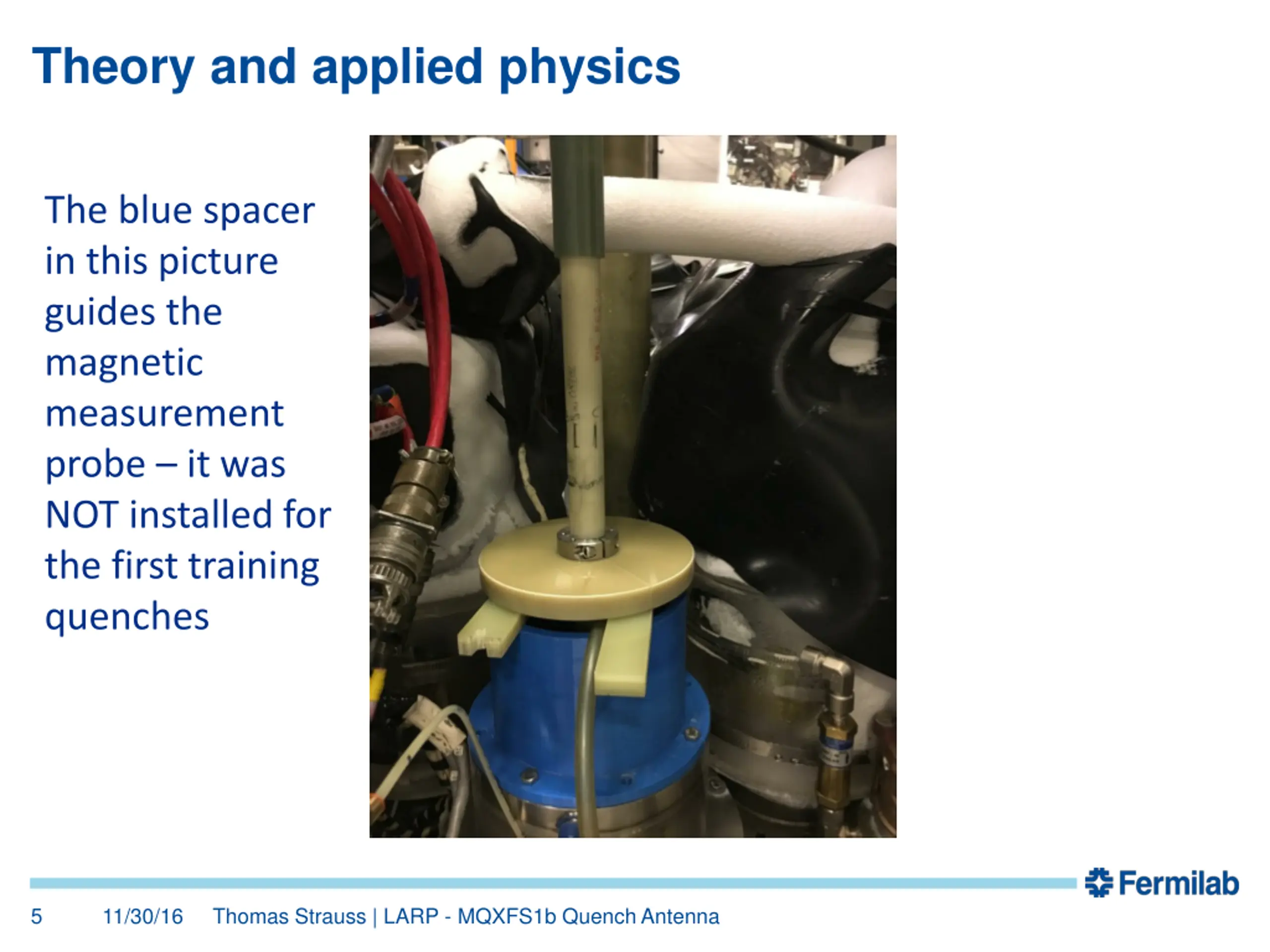

  5. Theory and applied physics The blue spacer in this picture guides the magnetic measurement probe it was NOT installed for the first training quenches 5 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

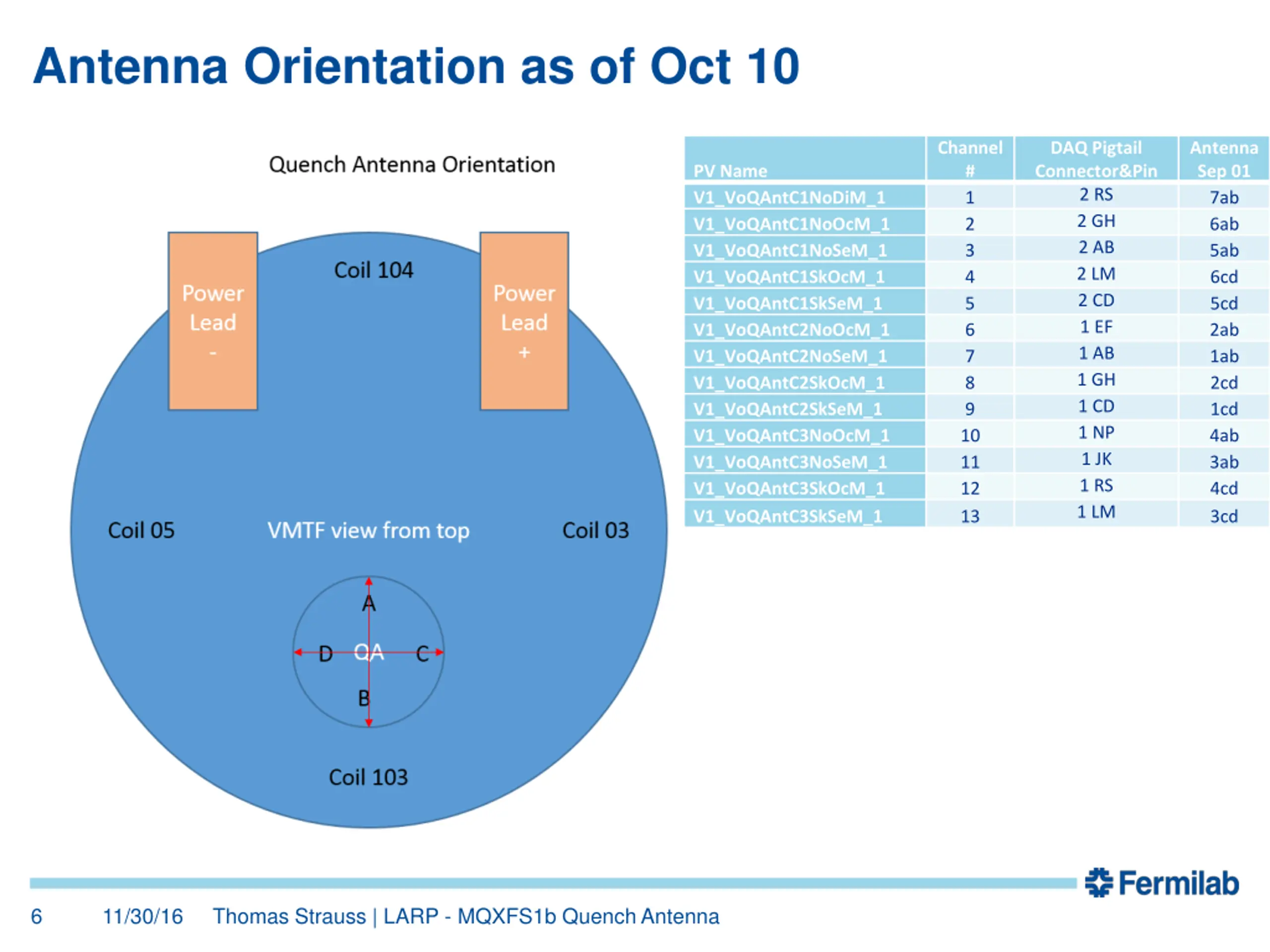

  6. Antenna Orientation as of Oct 10 Channel # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Sep 01 7ab 6ab 5ab 6cd 5cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 6 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

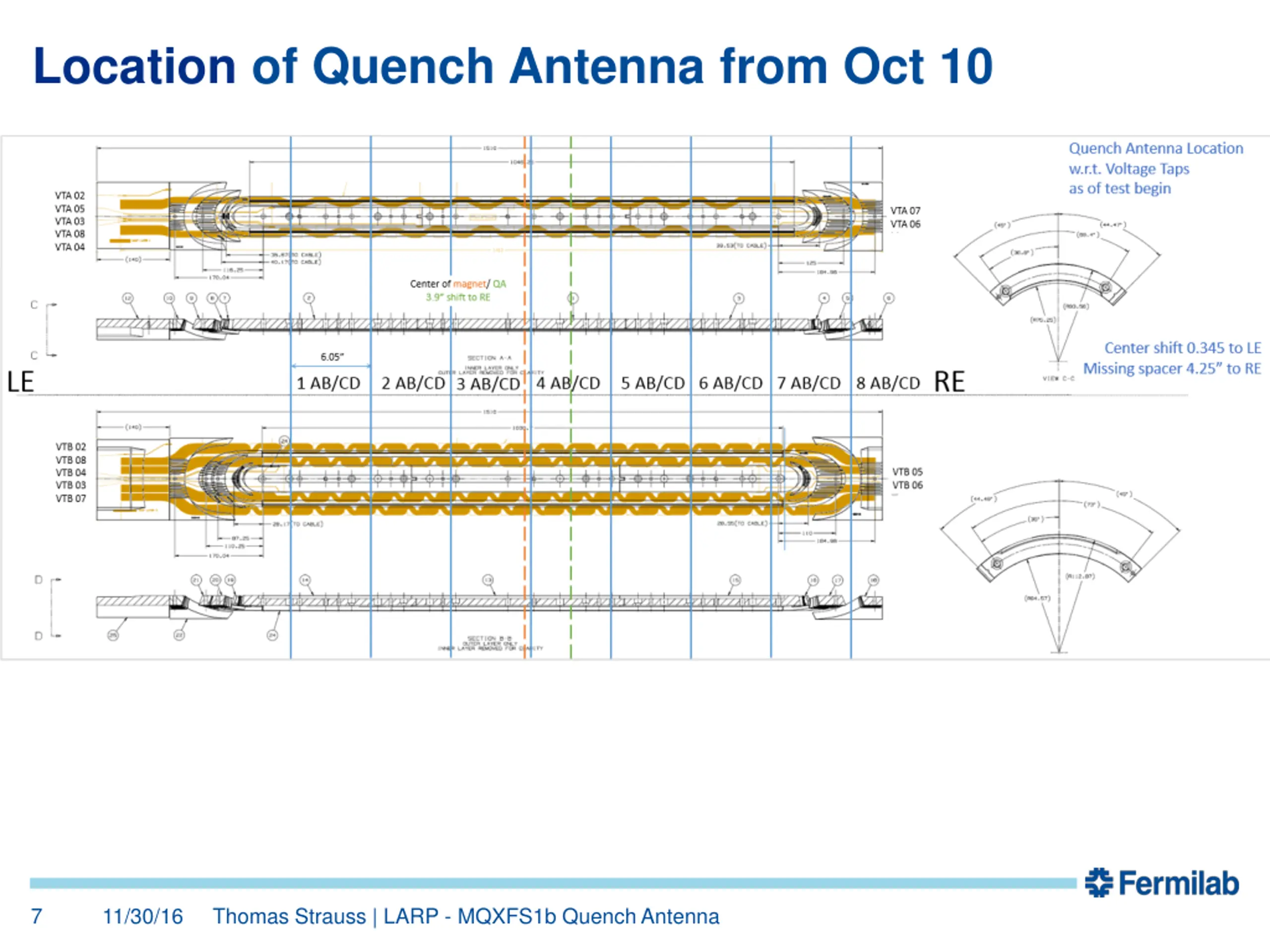

  7. Location of Quench Antenna from Oct 10 7 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

  8. Antenna Orientation stays same on Oct 21 Channe l # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Oct 21 7ab 6ab 8ab 6cd 8cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 Change in wiring 8 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

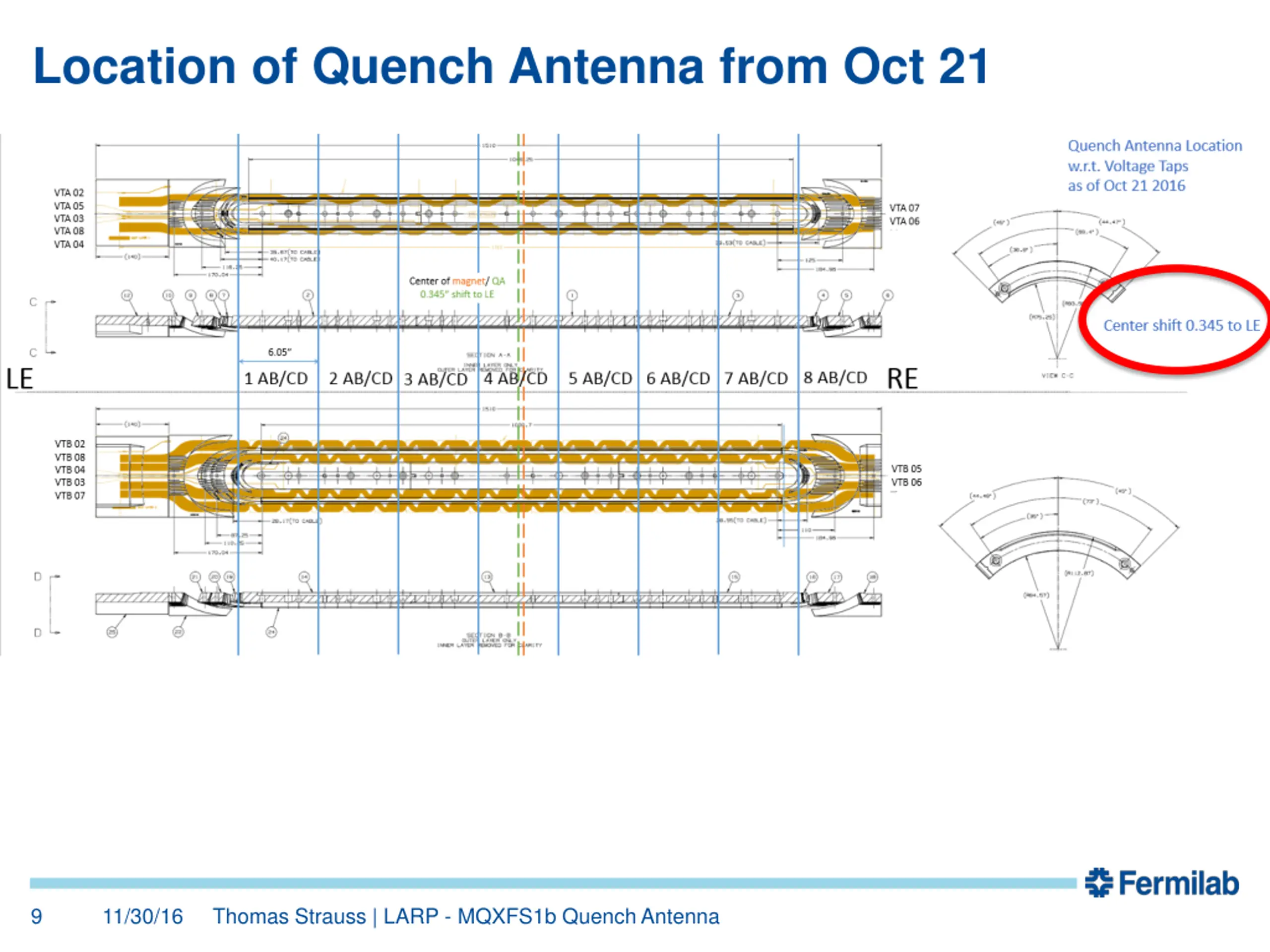

  9. Location of Quench Antenna from Oct 21 9 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

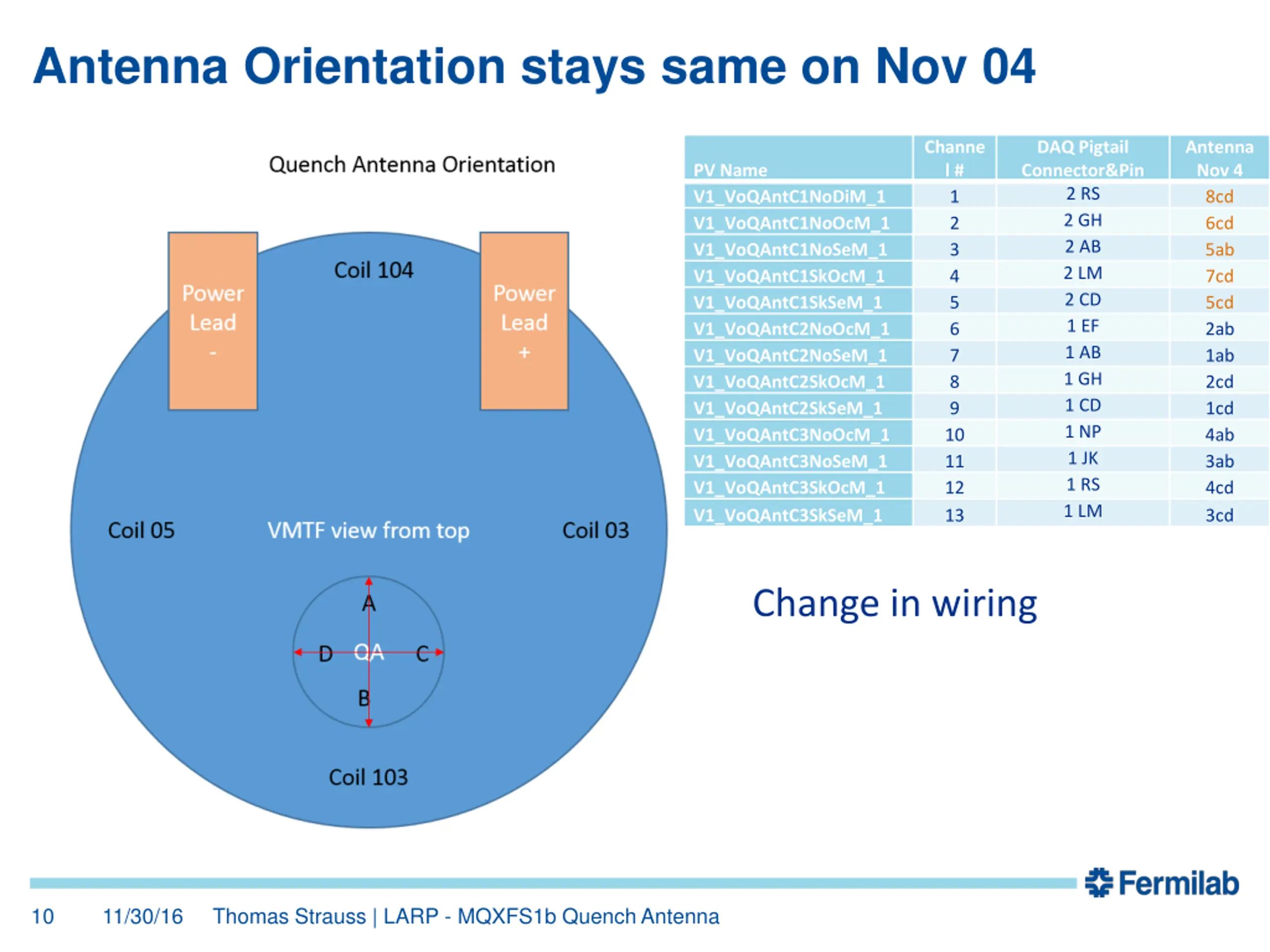

  10. Antenna Orientation stays same on Nov 04 Channe l # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Nov 4 8cd 6cd 5ab 7cd 5cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 Change in wiring 10 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

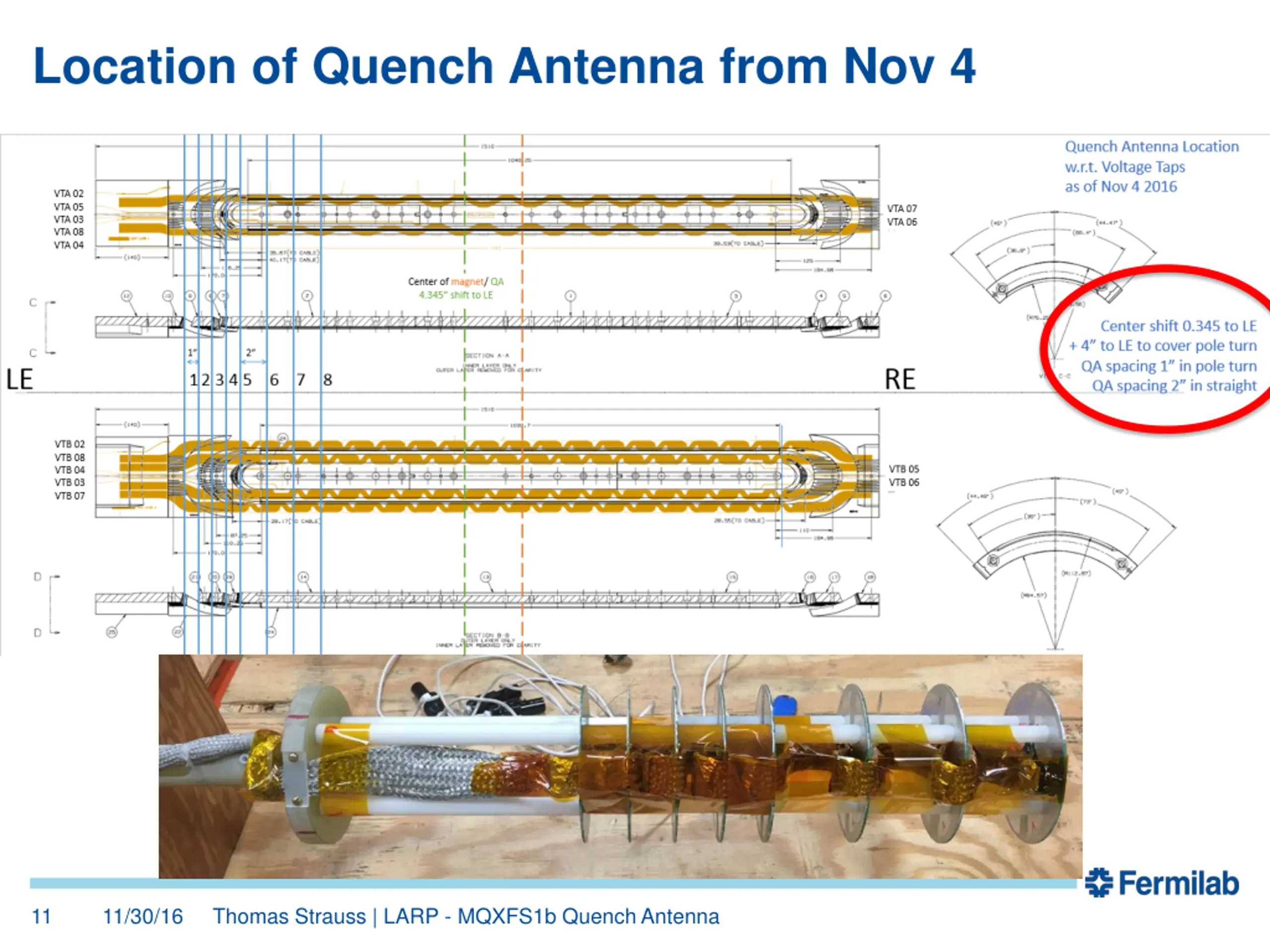

  11. Location of Quench Antenna from Nov 4 11 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

  12. Antenna Orientation on Nov 22 MORNING Channe l # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Nov 4 8cd 6cd 5ab 7cd 5cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 NO change in wiring 12 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

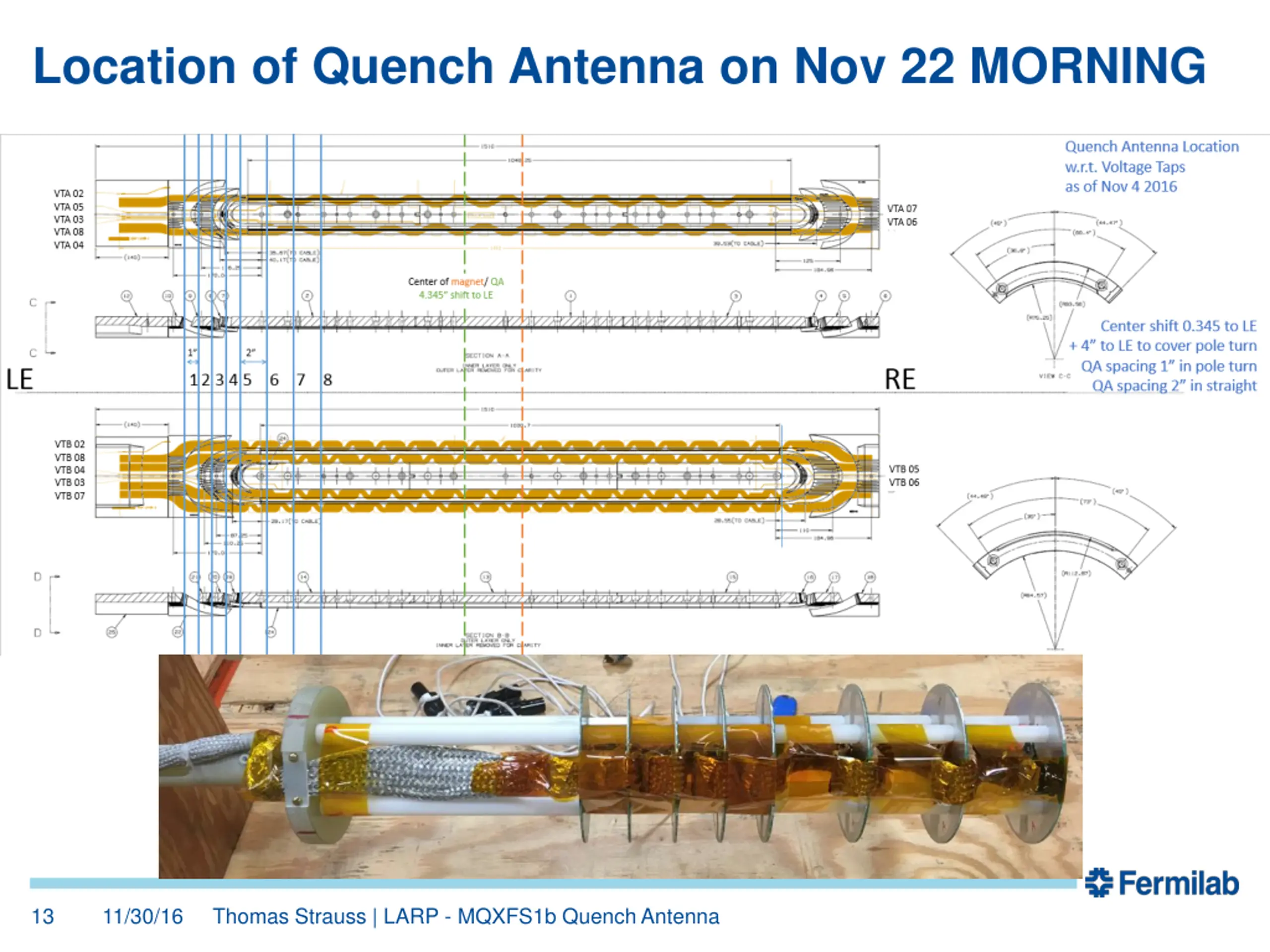

  13. Location of Quench Antenna on Nov 22 MORNING 13 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

  14. Antenna Orientation on Nov 22 AFTERNOON Channe l # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Nov 4 8cd 6cd 5ab 7cd 5cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 NO change in wiring 14 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

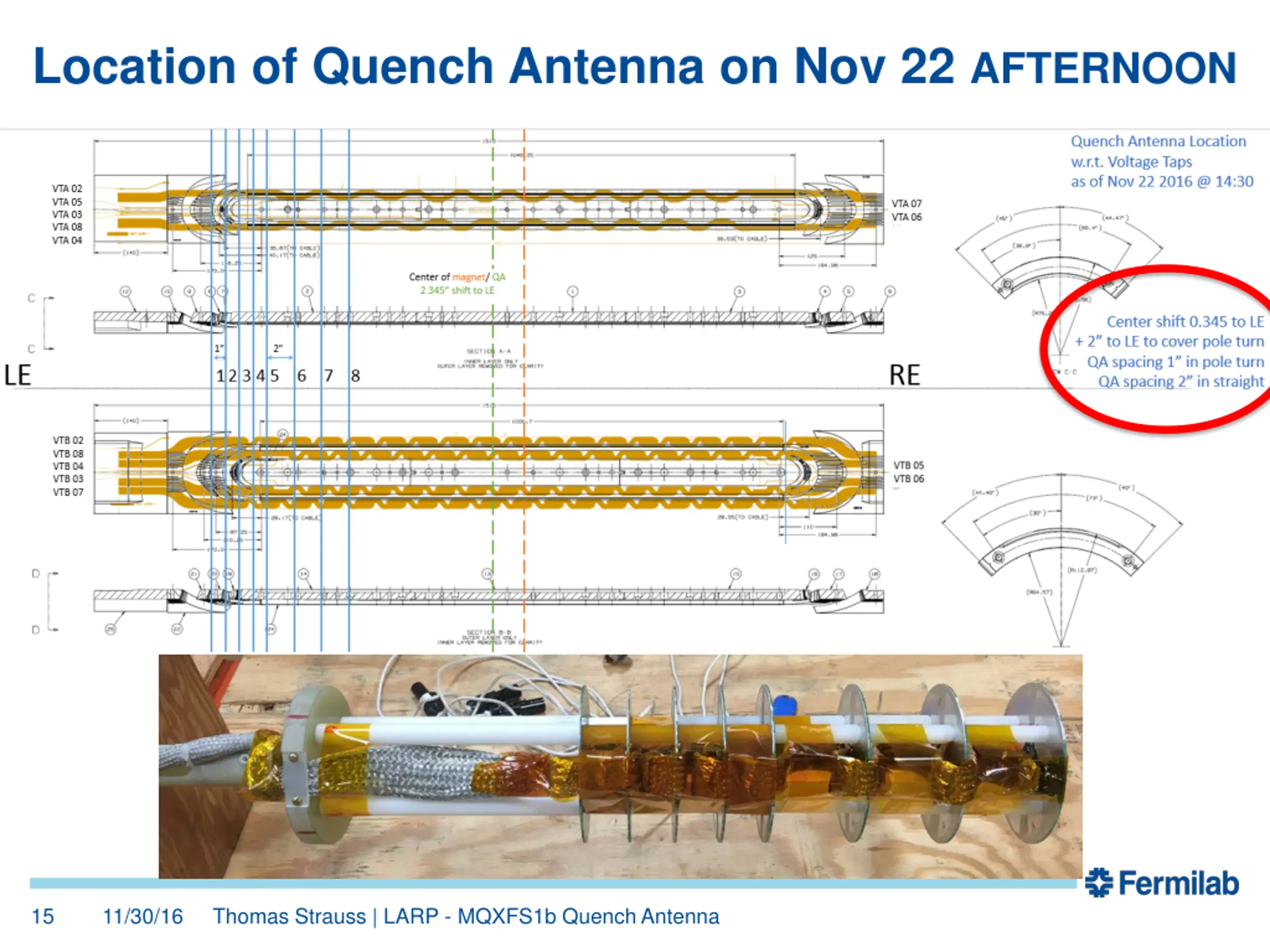

  15. Location of Quench Antenna on Nov 22 AFTERNOON 15 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

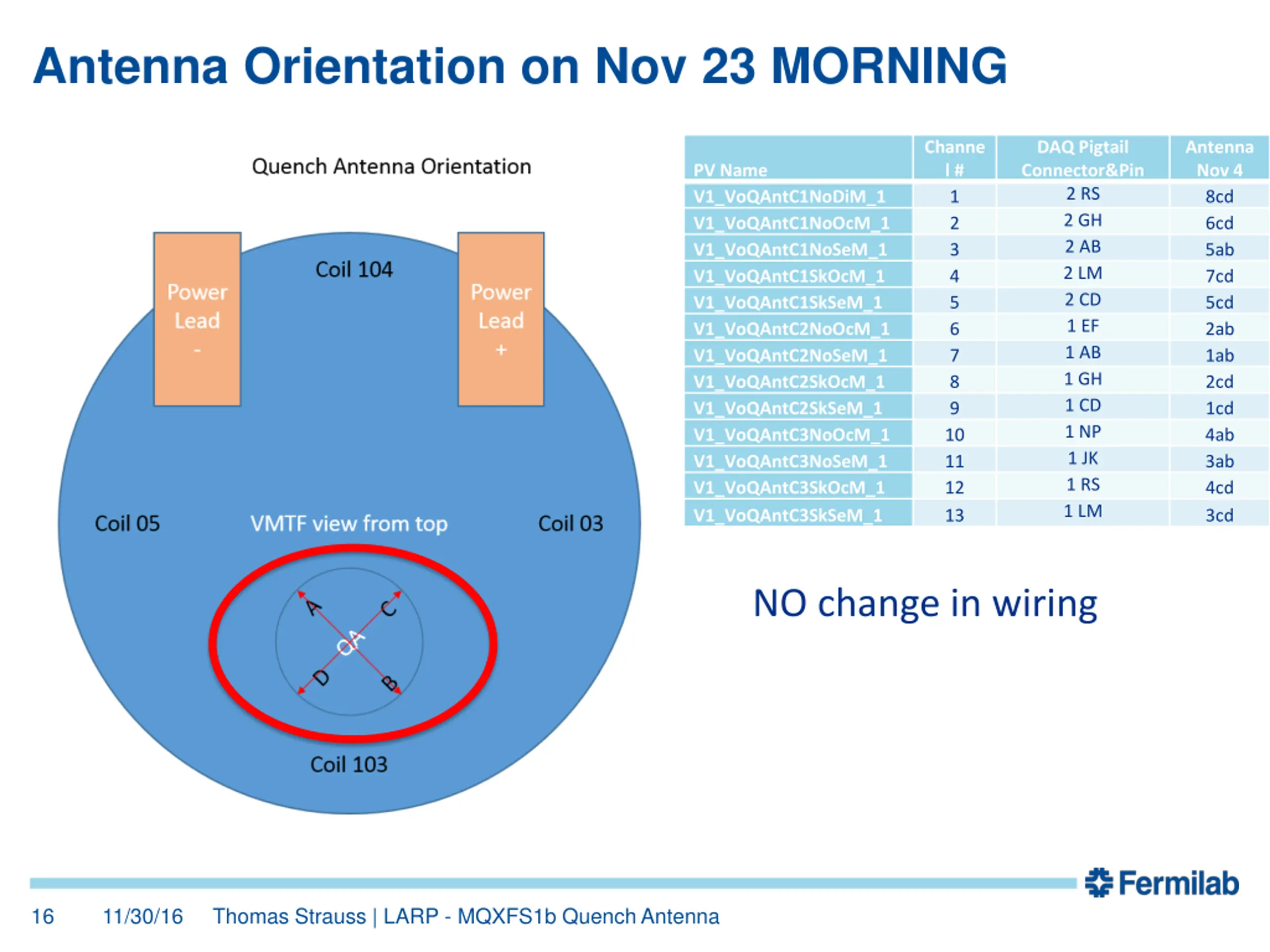

  16. Antenna Orientation on Nov 23 MORNING Channe l # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Nov 4 8cd 6cd 5ab 7cd 5cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 NO change in wiring 16 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

  17. Location of Quench Antenna on Nov 23 as 22 afternoon 17 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

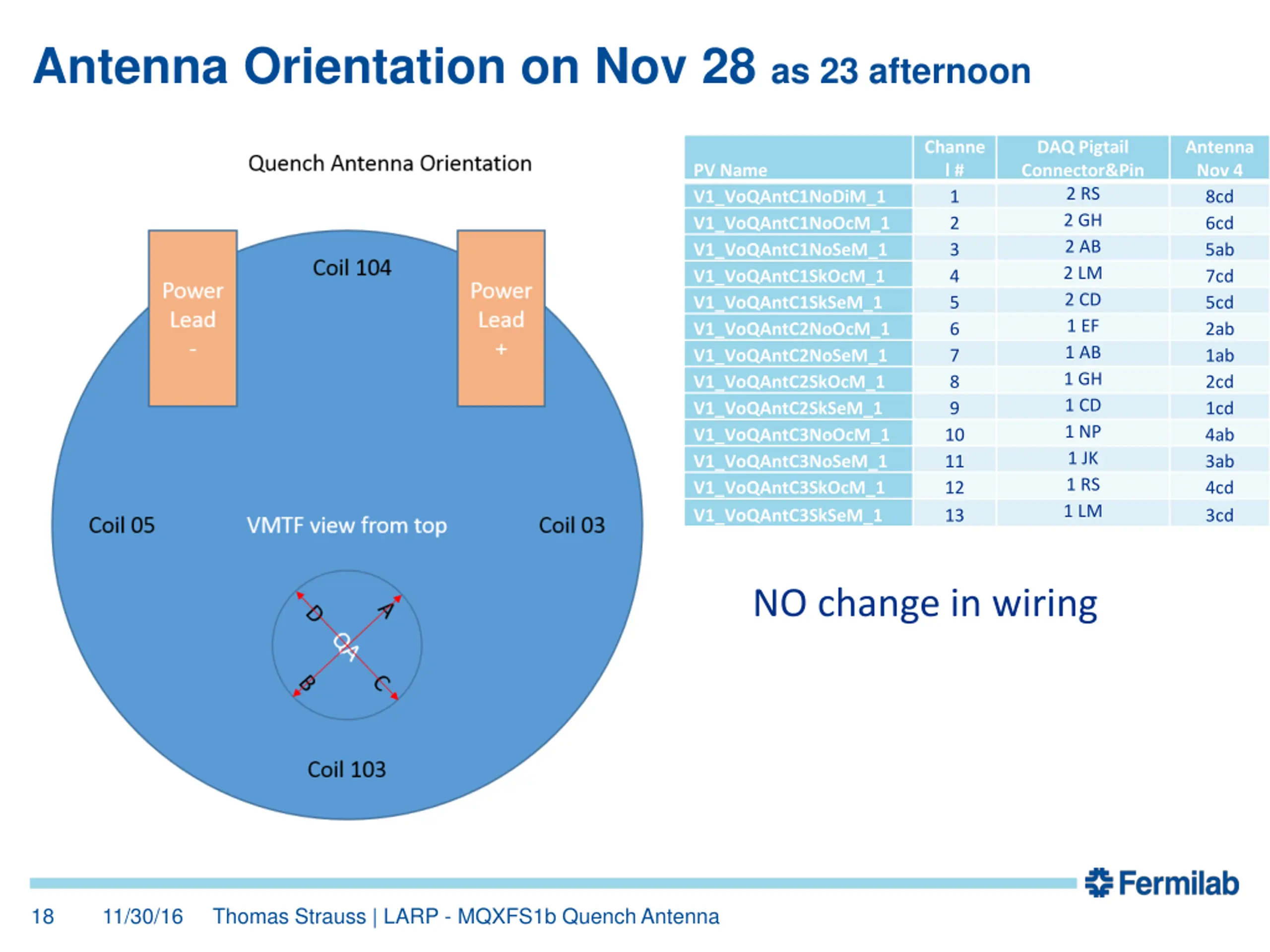

  18. Antenna Orientation on Nov 28 as 23 afternoon Channe l # 1 2 3 4 5 6 7 8 9 10 11 12 13 DAQ Pigtail Connector&Pin 2 RS 2 GH 2 AB 2 LM 2 CD 1 EF 1 AB 1 GH 1 CD 1 NP 1 JK 1 RS 1 LM Antenna Nov 4 8cd 6cd 5ab 7cd 5cd 2ab 1ab 2cd 1cd 4ab 3ab 4cd 3cd PV Name V1_VoQAntC1NoDiM_1 V1_VoQAntC1NoOcM_1 V1_VoQAntC1NoSeM_1 V1_VoQAntC1SkOcM_1 V1_VoQAntC1SkSeM_1 V1_VoQAntC2NoOcM_1 V1_VoQAntC2NoSeM_1 V1_VoQAntC2SkOcM_1 V1_VoQAntC2SkSeM_1 V1_VoQAntC3NoOcM_1 V1_VoQAntC3NoSeM_1 V1_VoQAntC3SkOcM_1 V1_VoQAntC3SkSeM_1 NO change in wiring 18 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna

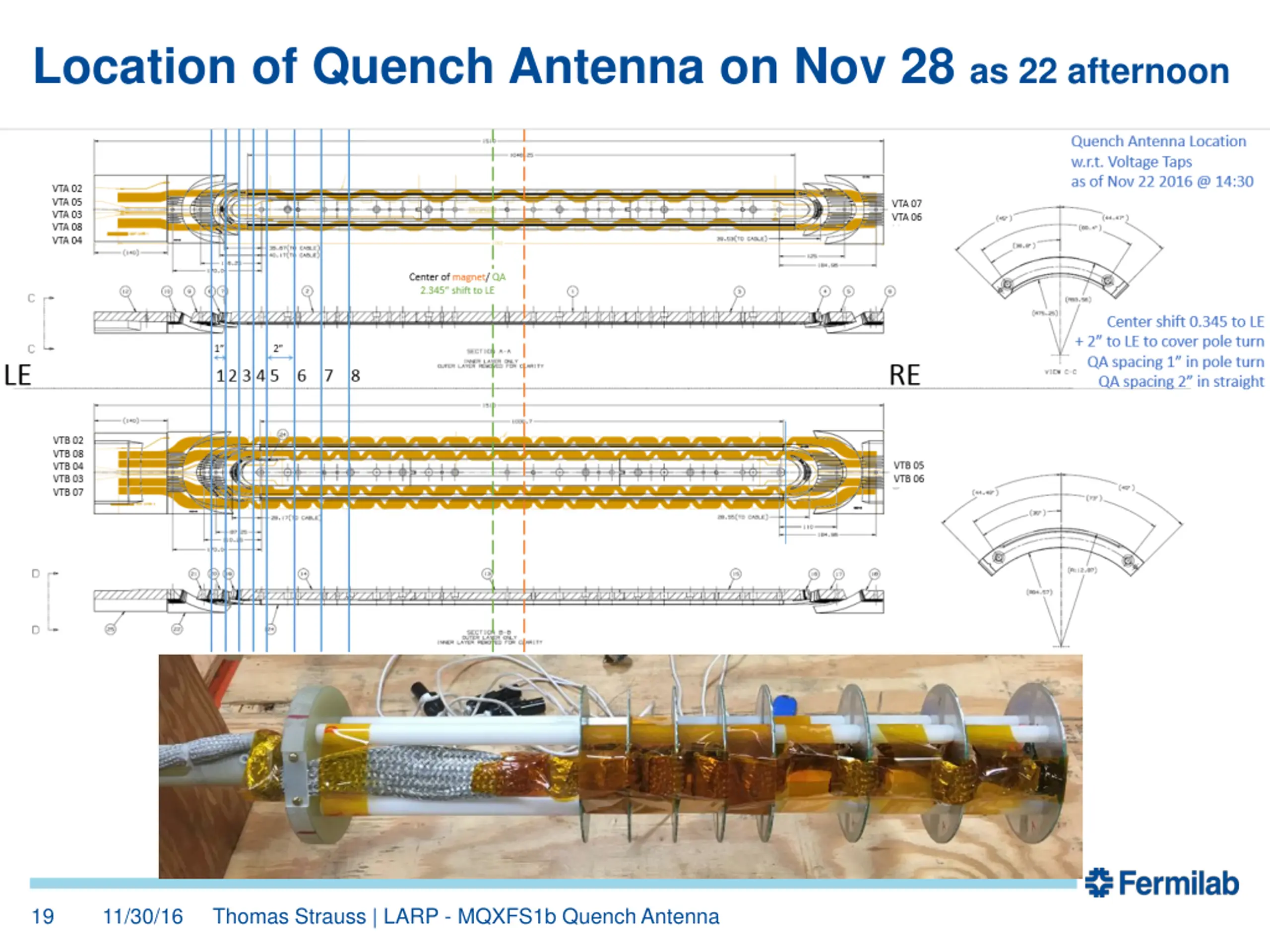

  19. Location of Quench Antenna on Nov 28 as 22 afternoon 19 11/30/16 Thomas Strauss | LARP - MQXFS1b Quench Antenna
