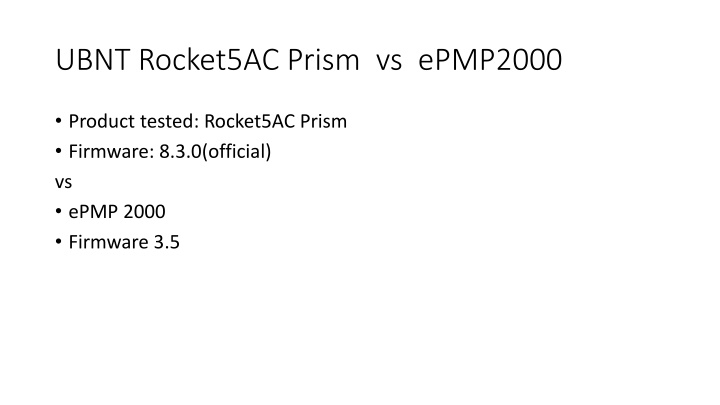

  1. UBNT Rocket5AC Prism vs ePMP2000 Product tested: Rocket5AC Prism Firmware: 8.3.0(official) vs ePMP 2000 Firmware 3.5

  2. UBNT AC: Capacity Up to 60 CPEs can be connected in fixed-frame mode as of airOS v8.3. (up to 100 CPEs is announced for Gen2)

  3. UBNT GPS Sync: PtMP Sector Performance UBNT AC (5ms 67/33) vs ePMP2000 (5ms 75/25), 20 MHz, MCS fixed to QAM-64, No Interference TCP Unidirectional 90 83 80 70 70 70 70 71 Throughput, Mbps 69 69 68 60 50 40 25 30 18 18 18 20 19 10 15 15 14 0 1 10 Number of Subscriber Modules 20 30 ePMP UL UBNT UL ePMP DL UBNT DL

  4. UBNT GPS Sync: PtMP Sector Performance UBNT AC (5ms 67/33) vs ePMP2000 (5ms 75/25), 20 MHz, MCS fixed to QAM-64, Uplink Interference TCP Unidirectional 80 69 67 66 66 70 60 Throughput, Mbps 50 45 44 42 40 40 30 18 20 11 8 7 10 8 8 6 5 1 0 10 20 30 Number of Subscriber Modules ePMP UL UBNT UL ePMP DL UBNT DL

  5. UBNT GPS Sync: PtMP Sector Performance UBNT AC (5ms 67/33) vs ePMP2000 (5ms 75/25), 40 MHz, MCS fixed to QAM-64, No Interference TCP Unidirectional 160 148 146 144 140 147 142 122 140 139 120 Throughput, Mbps 100 80 52 60 38 38 36 40 40 31 20 28 27 0 1 10 Number of subscriber Modules 20 30 ePMP UL UBNT UL ePMP DL UBNT DL

  6. UBNT GPS Sync: PtMP Sector Performance UBNT AC (5ms 67/33) vs ePMP2000 (5ms 75/25), 40 MHz, MCS fixed to QAM-64, Uplink Interference TCP Unidirectional 160 146 145 143 134 140 113 120 110 107 Throughput, Mbps 100 87 80 60 40 25 23 18 16 20 23 19 16 16 0 1 10 20 30 Number of Subscriber Modules ePMP UL UBNT UL ePMP DL UBNT DL

  7. UBNT GPS Sync: PtMP Sector Performance SECTOR T-PUT WITH 30 SMS (TCP UNIDIRECTIONAL) WITH NO INTERFERENCE, NO MCS LIMITATION ePMP UL UBNT UL ePMP DL UBNT DL 80 40MHz/8ms/50-50 130 32 30 40MHz/5ms/67-33 Operational Mode 120 155 63 54 40MHz/5ms/50-50 97 123 16 16 20MHz/5ms/67-33 71 80 36 40 20MHz/5ms/50-50 44 57 0 20 40 60 80 Throughput, Mbps 100 120 140 160 180

  8. UBNT GPS Sync: PtMP Sector Performance SECTOR T-PUT WITH 30 SMS (UDP BIDIRECTIONAL) WITH NO INTERFERENCE, NO MCS LIMITATION ePMP UL UBNT UL ePMP DL UBNT DL 78 40MHz/8ms/50-50 128 29 0 40MHz/5ms/67-33 119 Operational Mode 0 68 0 40MHz/5ms/50-50 94 0 16 10 20MHz/5ms/67-33 70 75 37 39 20MHz/5ms/50-50 45 47 0 20 40 60 Throughput, Mbps 80 100 120 140 *0 high packets losses with any rate running through

  9. UBNT GPS Sync: PtMP Sector Performance SECTOR T-PUT WITH 30 SMS (UDP BIDIRECTIONAL) WITH CO-CHANNEL INTERFERENCE IN UPLINK, NO MCS LIMITATION UBNT UL ePMP UL UBNT DL ePMP DL 40 40MHz/8ms/50-50 65 0 17 40MHz/5ms/67-33 0 Operational Mode 119 0 52 40MHz/5ms/50-50 0 92 6 8 20MHz/5ms/67-33 40 70 0 24 20MHz/5ms/50-50 0 44 0 20 40 60 80 100 120 140 Throughput, Mbps *0 DL traffic got stuck on UBNT AP AC

  10. UBNT GPS Sync: PtMP Sector Performance SECTOR T-PUT WITH 30 SMS (TCP BIDIRECTIONAL) WITH CO-CHANNEL INTERFERENCE IN UPLINK, NO MCS LIMITATION UBNT UL ePMP UL UBNT DL ePMP DL 31 40MHz/8ms/50-50 87 9 20 40MHz/5ms/67-33 91 Operational Mode 114 24 48 40MHz/5ms/50-50 82 94 5 9 20MHz/5ms/67-33 51 68 11 23 20MHz/5ms/50-50 34 42 0 20 40 60 80 100 120 Throughput, Mbps
