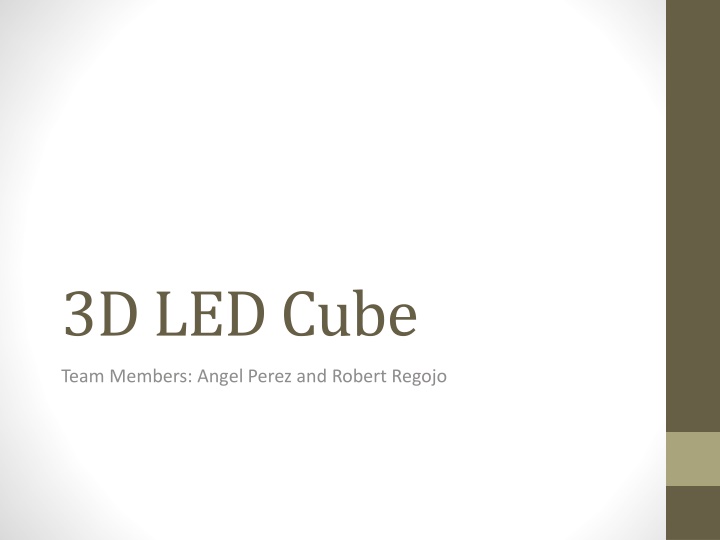

3D LED Cube Team Members: Angel Perez and Robert Regojo
General Design Overview USER INPUT PROCESSOR INFARED TRANSMITTER FPGA LCD /LED DRIVER INFARED RECIEVER LED ARRAY
Current Work Building the LED array Considerations between processing on the FPGA vs MSP430 Searching for FPGA with minimum necessary requirements
Challenges Physical construction and housing of cube Intelligently coding various graphic designs PCB layout of FPGA
Overall Potential 8x8x8 Cube http://www.youtube.com/watch?v=6mXM-oGggrM Hanging Cubes Figures: http://www.youtube.com/watch?v=mfcpChh9HRk&feature=related Dancing: http://www.youtube.com/watch?v=dVHP7Nhsn4E
