Whiteboard discussion of WS-Fed and WS-Trust

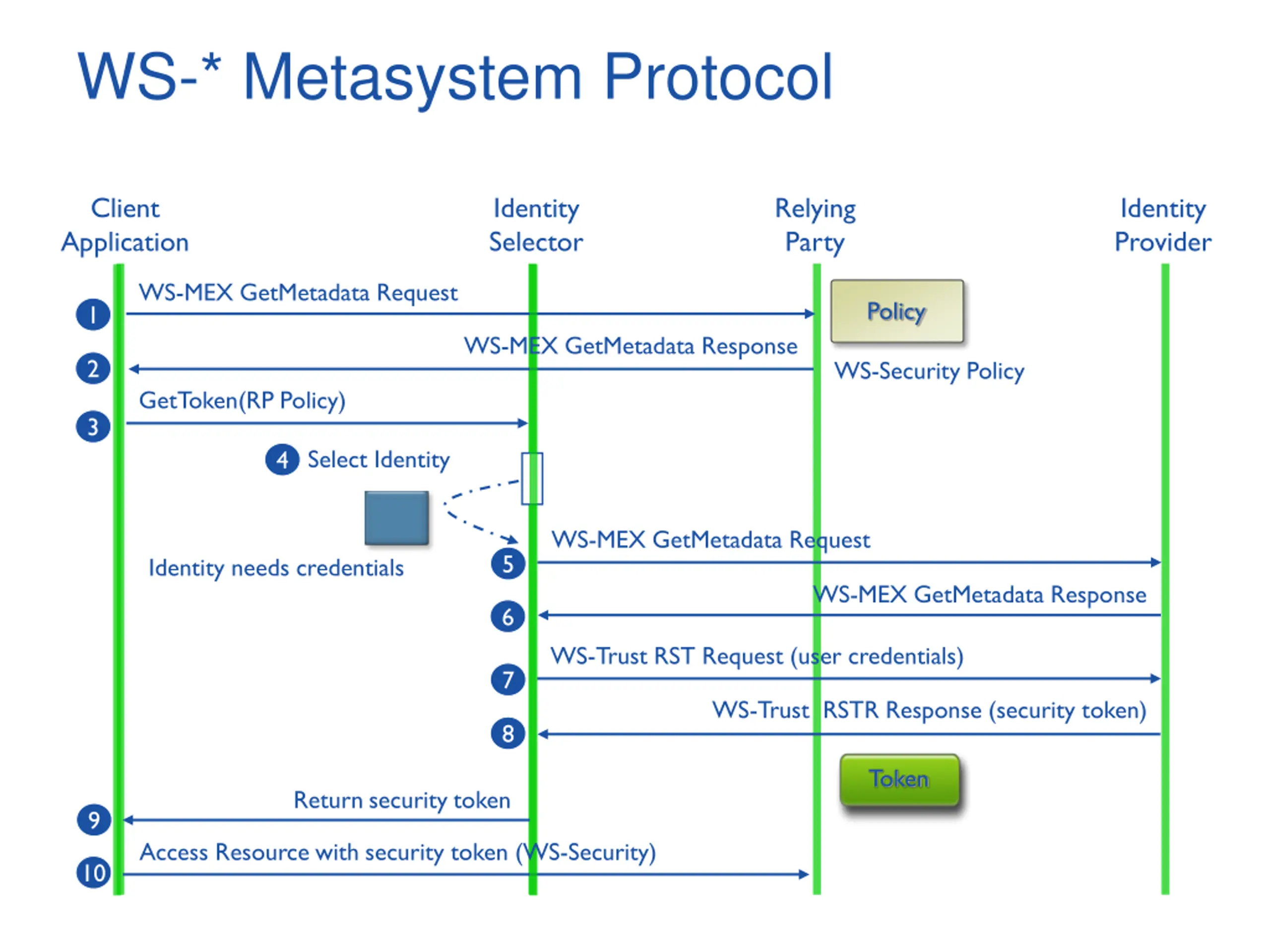

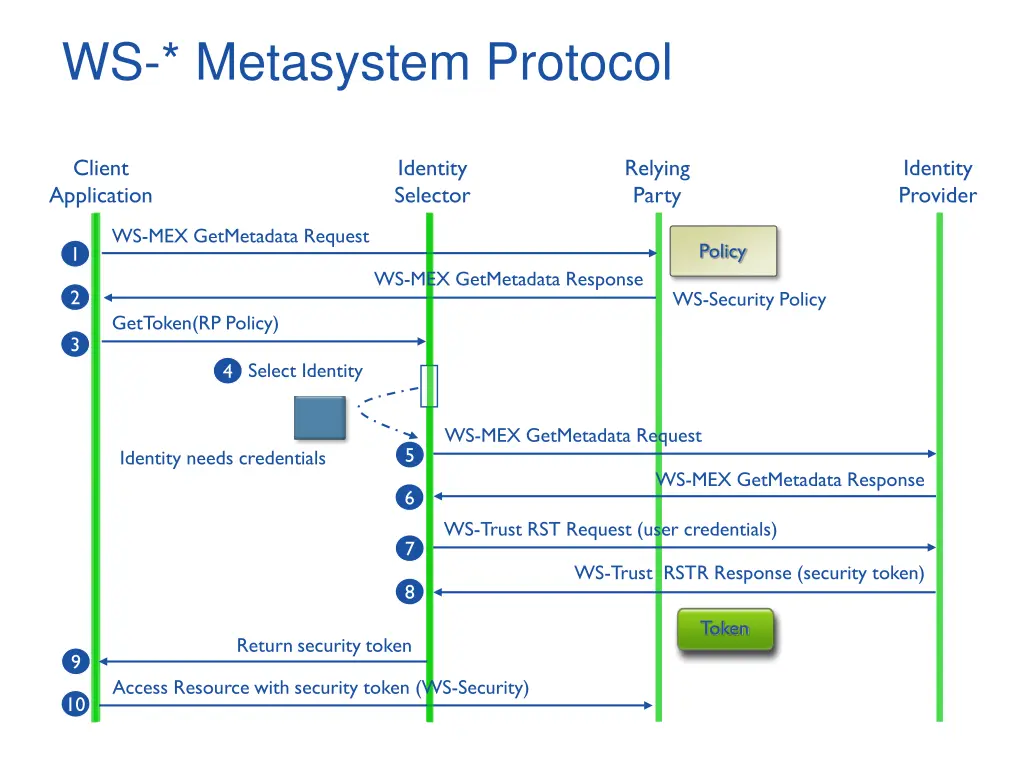

WS-* Metasystem Protocol Client Application Identity Selector Relying Party Identity Provider WS-MEX GetMetadata Request Policy 1 WS-MEX GetMetadata Response 2 WS-Security Policy GetToken(RP Policy) 3 Select Identity 4 WS-MEX GetMetadata Request 5 Identity needs credentials WS-MEX GetMetadata Response 6 WS-Trust RST Request (user credentials) 7 WS-Trust RSTR Response (security token) 8 Token Returnsecuritytoken 9 Access Resourcewithsecurity token (WS-Security) 10

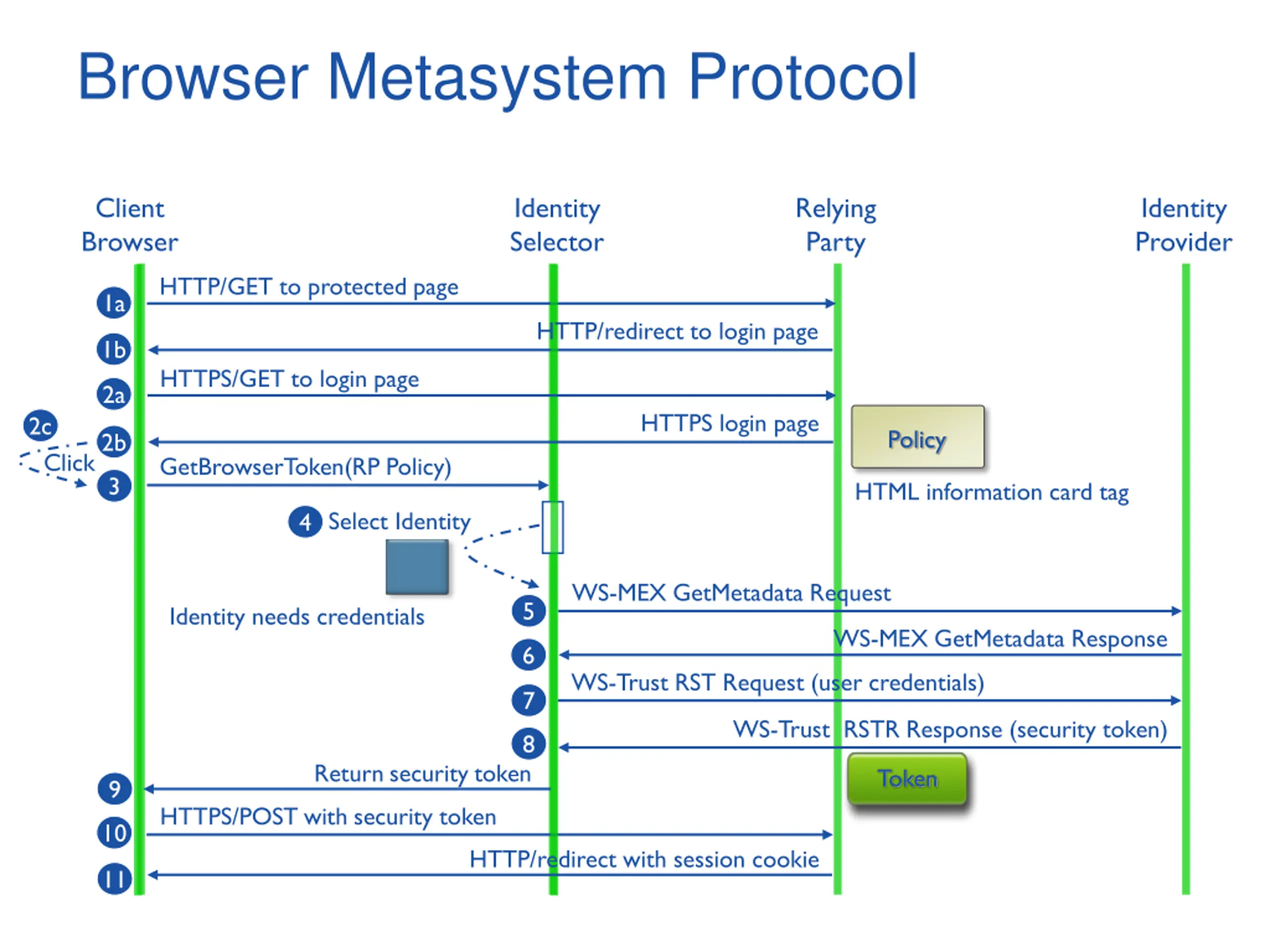

Browser Metasystem Protocol Client Browser Identity Selector Relying Party Identity Provider HTTP/GET to protected page 1a HTTP/redirect to login page 1b HTTPS/GET to login page 2a HTTPS login page 2c Policy 2b Click GetBrowserToken(RP Policy) 3 HTML information card tag Select Identity 4 WS-MEX GetMetadata Request 5 Identity needs credentials WS-MEX GetMetadata Response 6 WS-Trust RST Request (user credentials) 7 WS-Trust RSTR Response (security token) 8 Returnsecuritytoken Token 9 HTTPS/POSTwithsecurity token 10 HTTP/redirect with session cookie 11

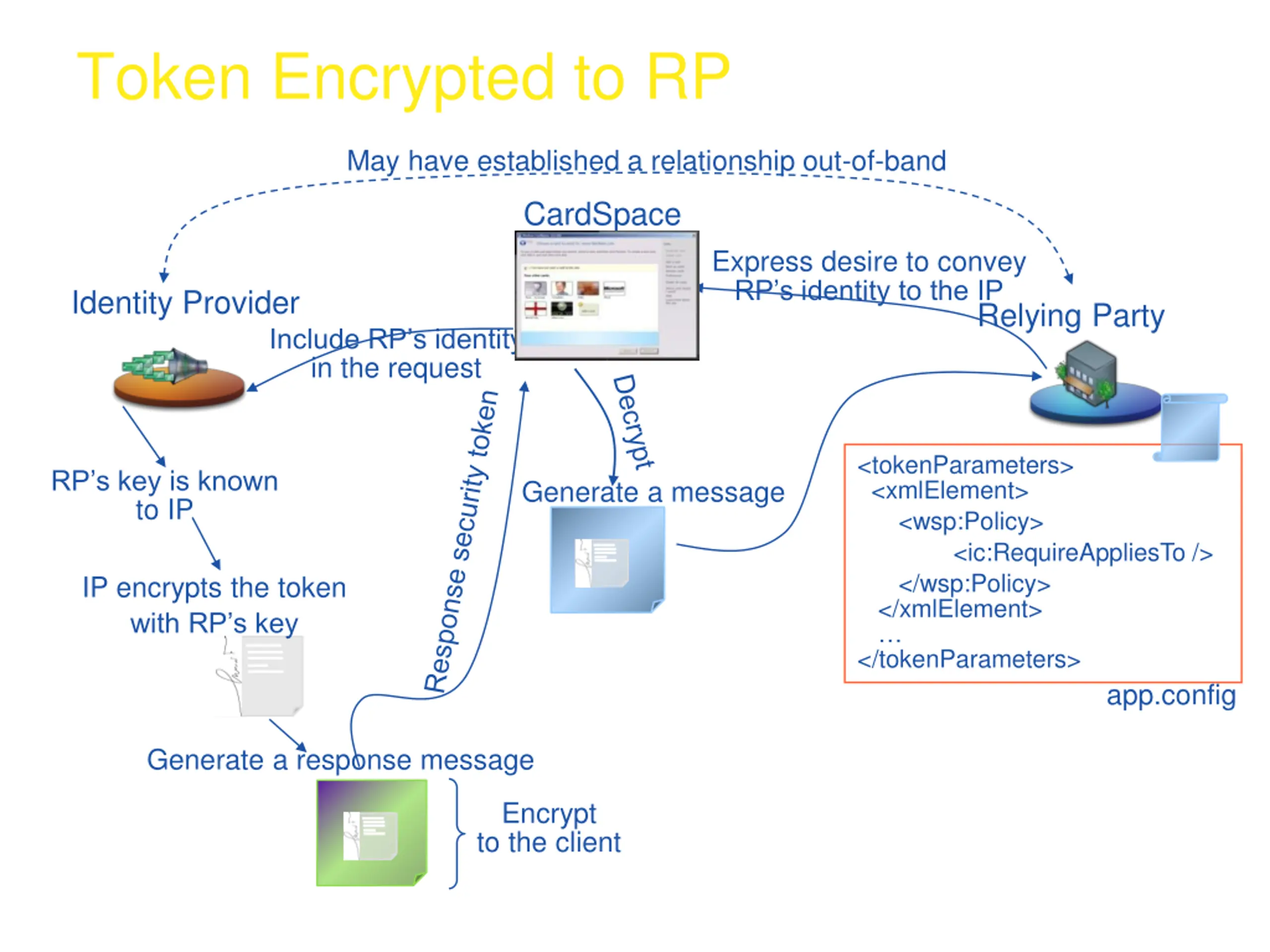

Token Encrypted to RP May have established a relationship out-of-band CardSpace Express desire to convey RP s identity to the IP Identity Provider Relying Party Include RP s identity in the request <tokenParameters> <xmlElement> <wsp:Policy> <ic:RequireAppliesTo /> </wsp:Policy> </xmlElement> </tokenParameters> RP s key is known to IP Generate a message IP encrypts the token with RP s key app.config Generate a response message Encrypt to the client

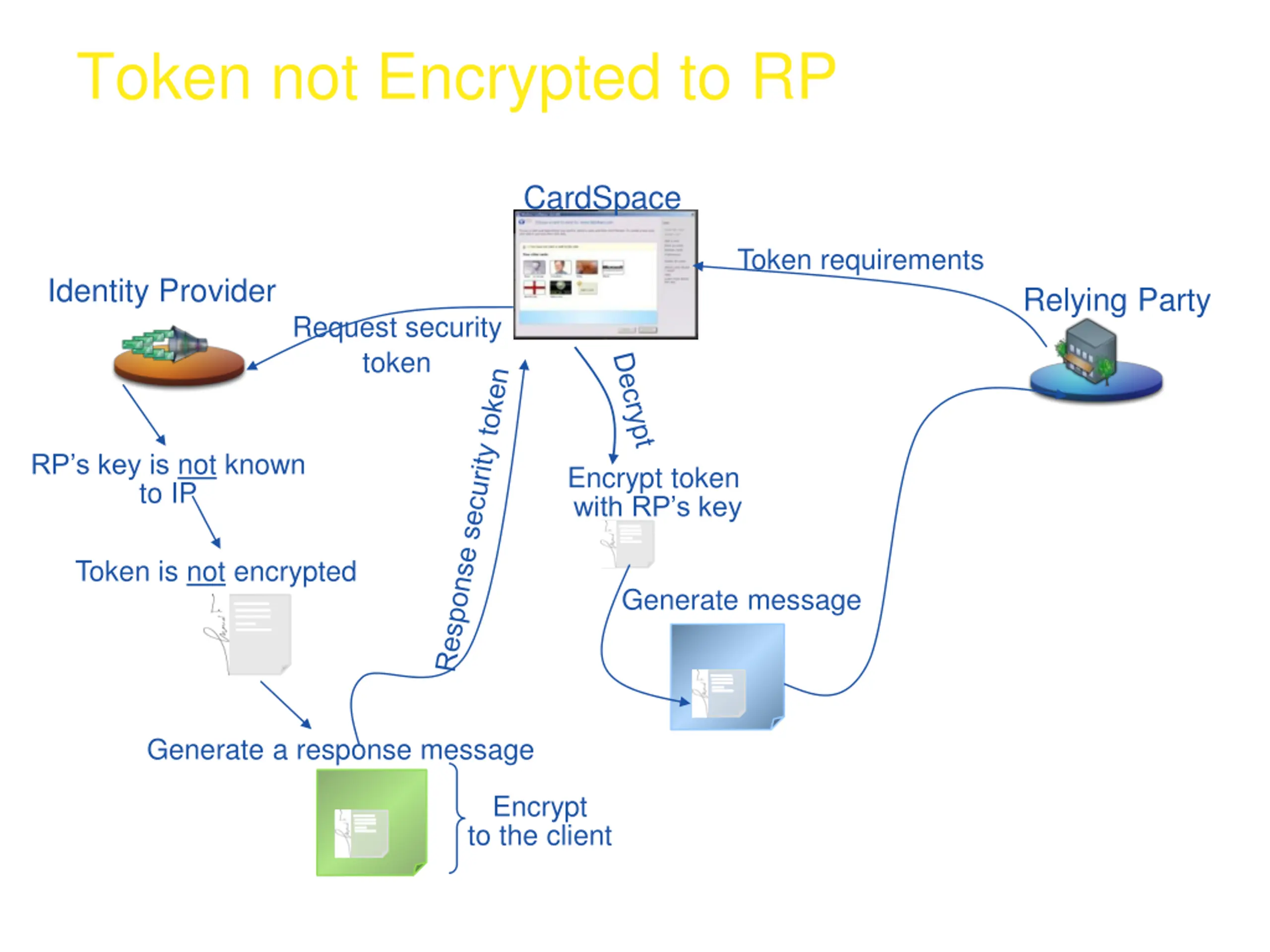

Token not Encrypted to RP CardSpace Token requirements Identity Provider Relying Party Request security token RP s key is not known to IP Encrypt token with RP s key Token is not encrypted Generate message Generate a response message Encrypt to the client

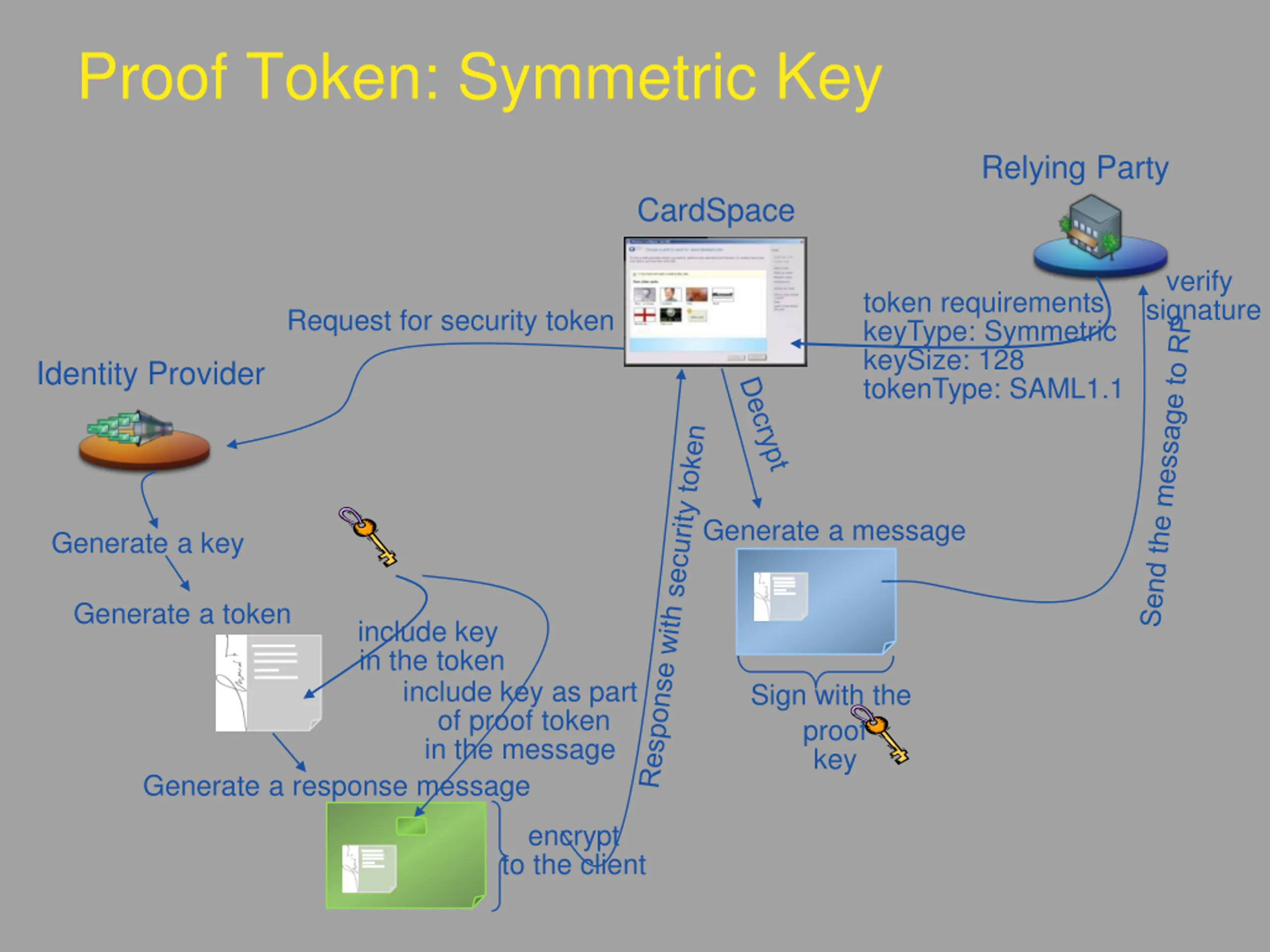

Proof Token: Symmetric Key Relying Party CardSpace verify signature token requirements keyType: Symmetric keySize: 128 tokenType: SAML1.1 Request for security token Identity Provider Generate a message Generate a key Generate a token include key in the token include key as part of proof token in the message Sign with the proof key Generate a response message encrypt to the client

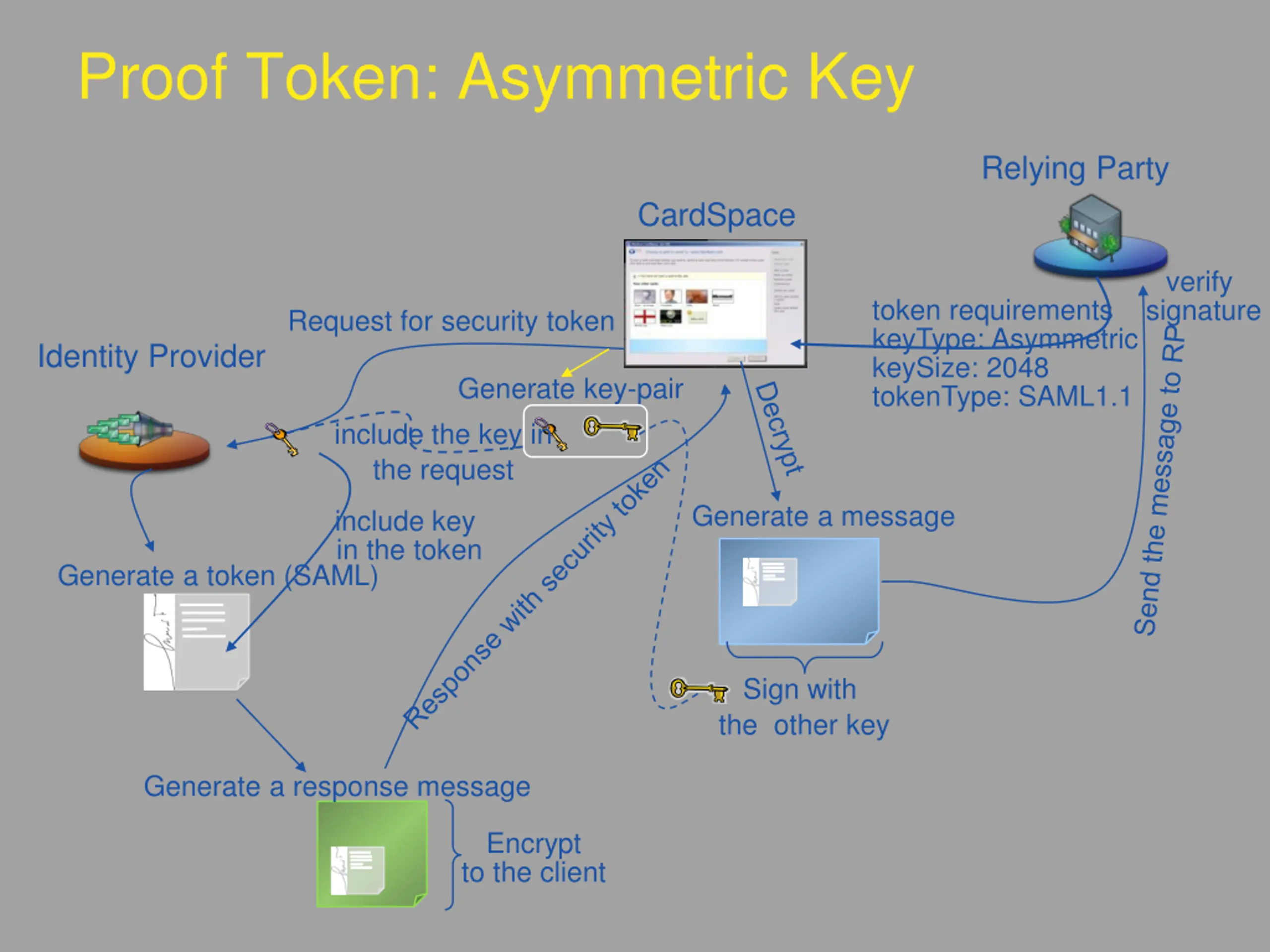

Proof Token: Asymmetric Key Relying Party CardSpace verify signature token requirements keyType: Asymmetric keySize: 2048 tokenType: SAML1.1 Request for security token Identity Provider Generate key-pair include the key in the request Generate a message include key in the token Generate a token (SAML) Sign with the other key Generate a response message Encrypt to the client

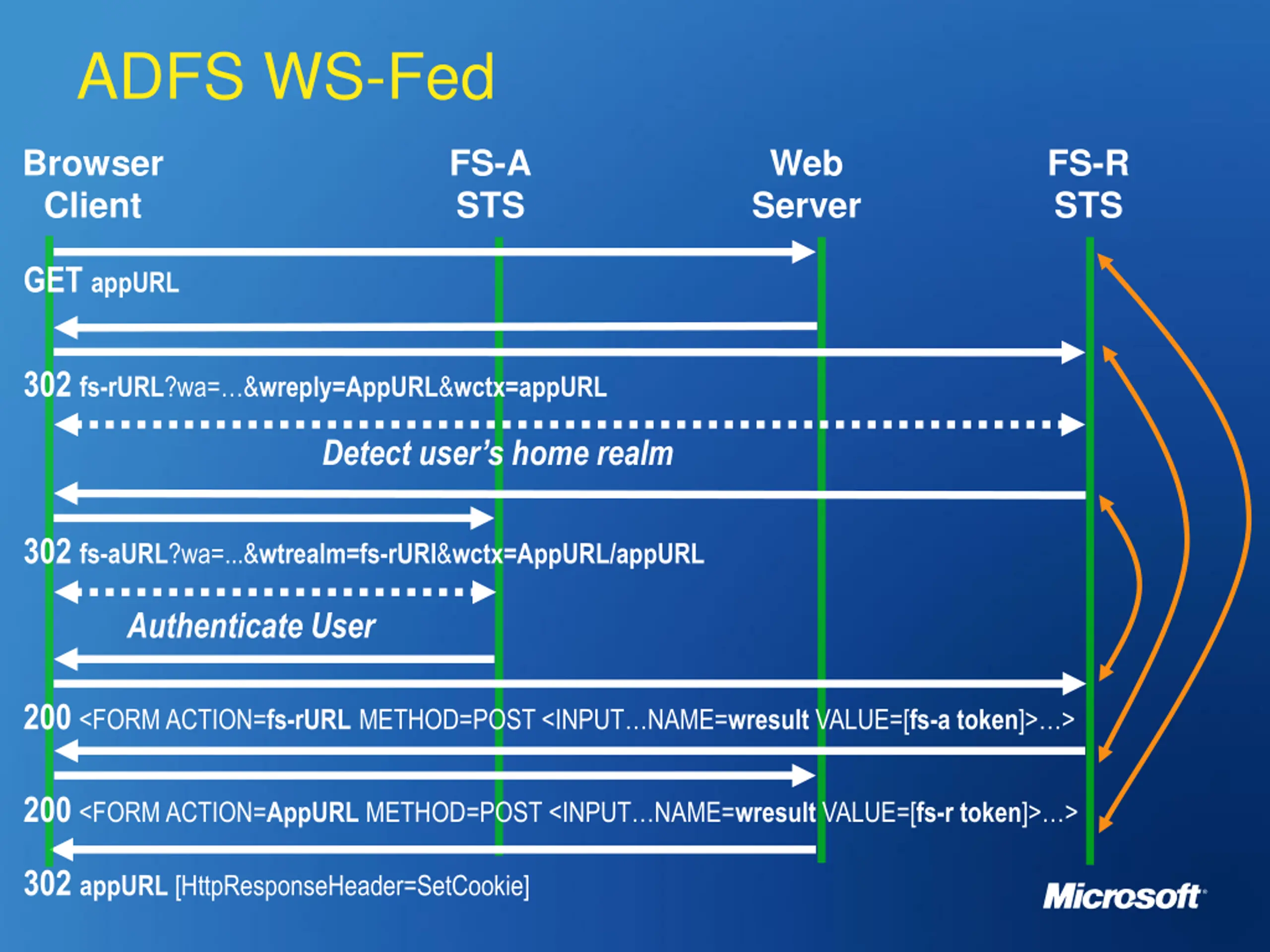

ADFS WS-Fed Browser Client FS-A STS Web Server FS-R STS GETappURL 302fs-rURL?wa= &wreply=AppURL&wctx=appURL Detect user s home realm 302 fs-aURL?wa=...&wtrealm=fs-rURI&wctx=AppURL/appURL Authenticate User 200<FORM ACTION=fs-rURLMETHOD=POST <INPUT NAME=wresult VALUE=[fs-a token]> > 200<FORM ACTION=AppURLMETHOD=POST <INPUT NAME=wresult VALUE=[fs-r token]> > 302 appURL [HttpResponseHeader=SetCookie]

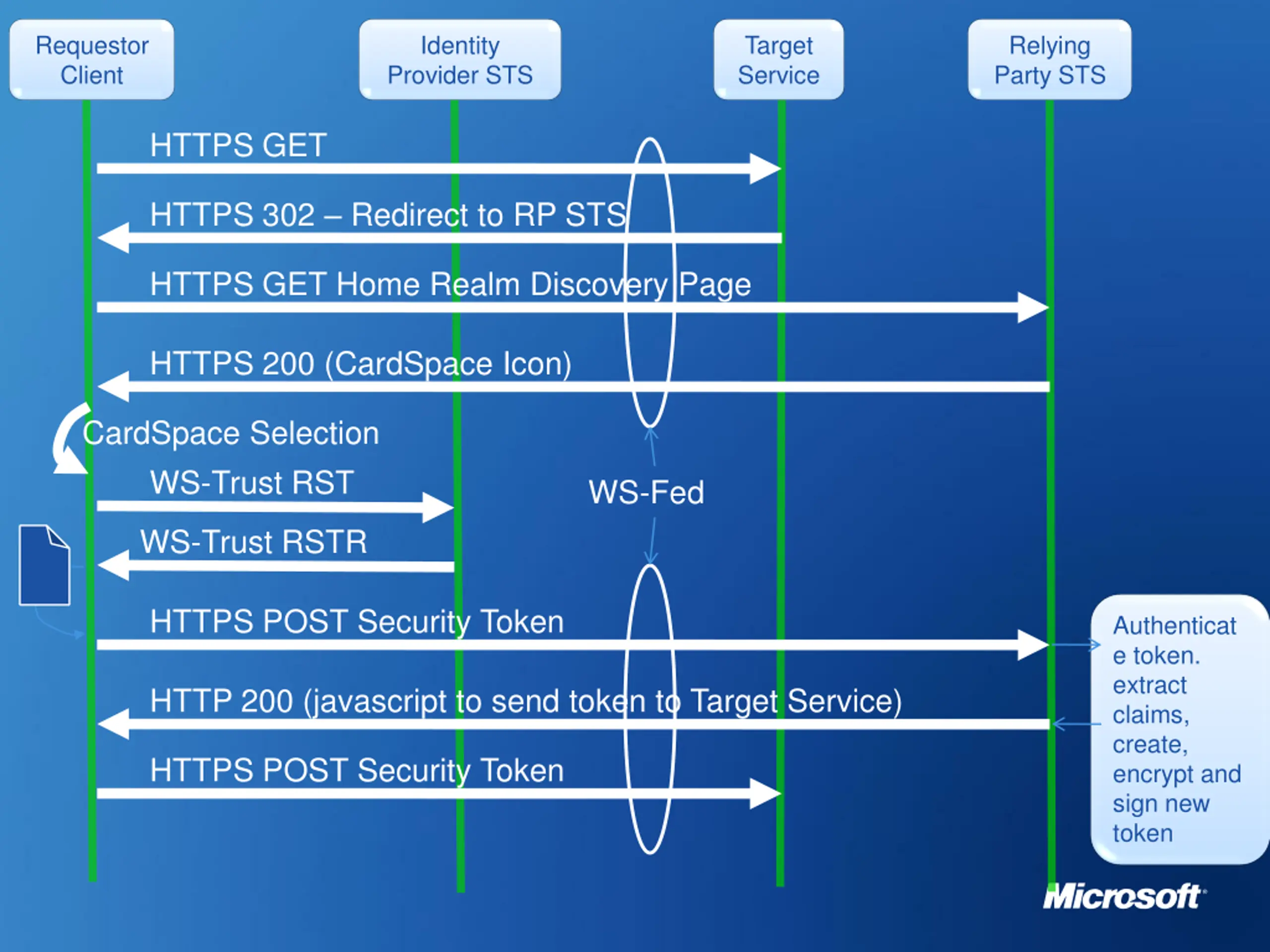

Requestor Client Identity Provider STS Target Service Relying Party STS HTTPS GET HTTPS 302 Redirect to RP STS HTTPS GET Home Realm Discovery Page HTTPS 200 (CardSpace Icon) CardSpace Selection WS-Trust RST WS-Fed WS-Trust RSTR HTTPS POST Security Token Authenticat e token. extract claims, create, encrypt and sign new token HTTP 200 (javascript to send token to Target Service) HTTPS POST Security Token
