Vector Processing Definitions
Vector Processing Definitions
•

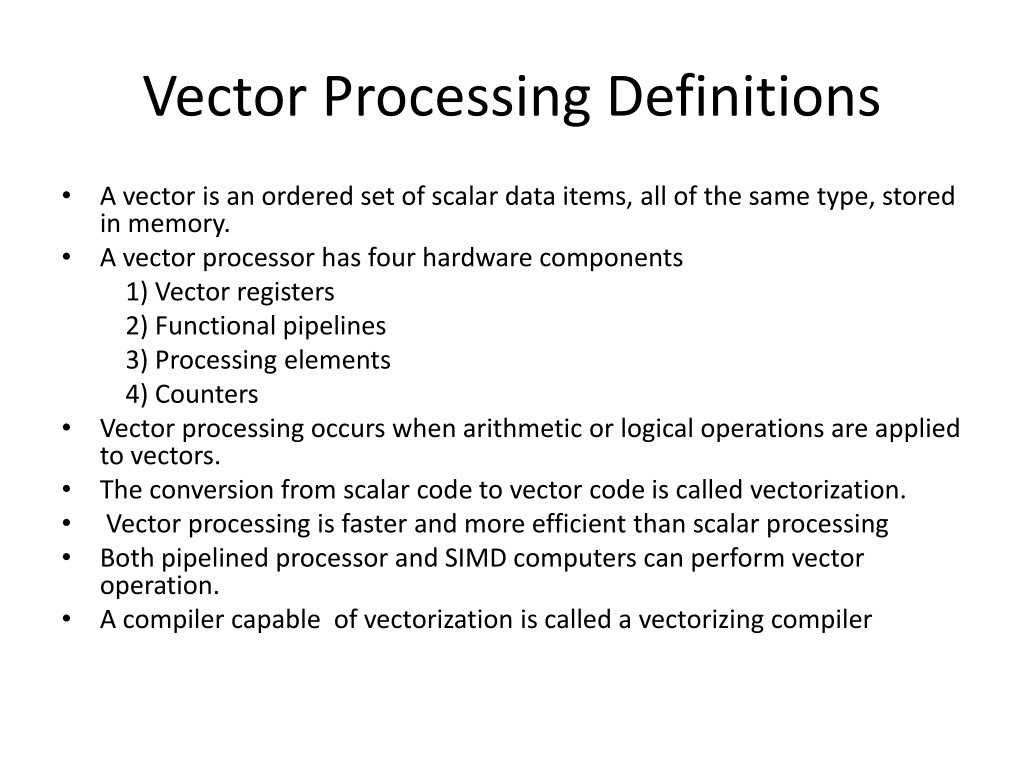

A vector is an ordered set of scalar data items, all of the same type, stored
in memory.
•
A vector processor has four hardware components
1) Vector registers
2) Functional pipelines
3) Processing elements
4) Counters
•
Vector processing occurs when arithmetic or logical operations are applied
to vectors.
•
The conversion from scalar code to vector code is called vectorization.
•
Vector processing is faster and more efficient than scalar processing
•
Both pipelined processor and SIMD computers can perform vector
operation.
•
A compiler capable of vectorization is called a vectorizing compiler
Vector stride
•
The fixed addressing increment between two
successive vector elements called stride.
•
Assume a n × m matrix where n and m are the no. of
rows and column respectively. Each element is stored
in one memory location.
•
Accessing the matrix in row major order the stride is
one.
•
Accessing the matrix in column major order the stride
is m.
•
Accessing the matrix in diagonally the stride is m+1 if it
is a square matrix (row and column size are same).
Example of vector stride
n × m matrix
m
n
When the matrix is accessed in row major order then elements are accessed according to
a
11,
a
12,
a
13, ………..
a
1m
. Here stride is 1 because of the fixed address increment of two
successive elements is 1.
When the matrix is accessed in column major order then elements are accessed according
to a
11,
a
21,
a
31, ………..
a
n1
. Here stride is m because of the fixed address increment of two
successive elements is m.
When the matrix is accessed in diagonally (only if possible when rows and columns are
same) then elements are accessed according to a
11,
a
22,
a
33, ………..
a
nm
. Here stride is m+1
because of the fixed address increment of two successive elements is m+1.
Vector Instruction Types
1)
Vector-vector instructions
f
1
: V
i
V
j
Where operation over one vector
register produce results in another
vector register.
Example: V
1
= sin(
V
2
)
f
2
: V
j
× V
k
V
i
Where operation over two vector
registers produce results in another
vector register.
Example: V
3
= V
1
+ V
2
Click here
Click here
Vector Instruction Types contd.
2)
Vector-scalar instructions
f
3
: s × V
i
V
j
Where operation over one vector register
and a scalar produce results in another
vector register.
Example: s * V
1
= V
2
3)
Vector-memory instructions
f
4
:
M
V
Vector Load
f
5
: V
M
Vector Store
Load the vector data from memory to
vector register is called vector load.
Store the vector data from vector register
to memory is called vector store.
Click here
Vector Instruction Types contd.
Click here
Vector Instruction Types contd.
5)
Gather and scatter instructions
These instructions use two vector registers to gather or to
scatter vector elements randomly through out the memory.
f
8
: M
V
i
× V
j
Gather
Example:
M
V
0
× V
1
The gather instruction is the mapping operation of
memory to vector registers.
Here V
L
register indicates the length of V
0
and V
1
registers( length=4).
A
0
is the base register that holds the base address.
V
0
is used as a index register. Every time the
content of V
0
will be added with A
0
and generate
the memory addresses.
The first location of V
0
register is 4. So the content
of 104 (100+4) memory address (600) will be
stored into first location of V
1
.
The gather instruction transfers the contents (600,
400, 250, 200) of non-sequential memory
locations (104, 102,107,100) to four elements of a
vector register V
1
.
Vector Instruction Types contd.
f
9
: V
i
× V
j
M Scatter
Example:
V
0
× V
1
M
The scatter instruction reverses the mapping
operation.
Here V
L
register indicates the length of V
0
and V
1
registers( length=4).
A
0
is the base register that holds the base
address.
V
0
is used as a index register. Every time the
content of V
0
will be added with A
0
and
generate the memory addresses.
The first location of V
0
register is 4. So the
content of 104 (100+4) memory address
must be 200 (first location of V
1
).
Similarly next data will be stored into
memory.
Vector Instruction Types contd.
6)
Masking instructions
f
10
: V
i
× V
m
V
j
Example:
V
0
× V
m
V
1
The masking instruction is used for compressing
a long vector into a short index vector.
The masking instruction is very useful in
handling sparse matrices. Sparse matrices are
those in which most of the elements are zero.
The contents of vector register V
0
are tested for
zero and nonzero elements.
A masking register V
m
is used to store the test
result.
After testing and forming the masking vector in
V
m
, the corresponding nonzero indices are
stored in the V
1
register.
The V
L
register indicates the length of vector
being tested.
In V
0
register indices are started
from 0 and ended with 8.
Thank You
Example: V
1
= sin(
V
2
)
Example: V
3
= V
1
+ V
2
V
2
V
1
V
1
V
2
V
3
After applying
sin operation
over V
2
After addition
operation of
V
1
and V
2
Back
V
1
Example: s * V
1
= V
2
2
s
V
2
Back
After
multiplication
of V
1
and s
Example : s
=
max(V
1
)
V
1
40
s
Back
After finding
the maximum
of V
1
