TrueSight IT Data Analytics Architecture Overview

TrueSight IT Data Analytics Architecture provides a comprehensive framework for collecting, indexing, and analyzing data from target hosts. Components like Console Server, Configuration Database, Collection Agents, and more work together to ensure efficient data processing and storage. The architecture includes features such as redundancy for data protection, scalability with multiple indexers, and seamless data search capabilities.

• Data Analytics
• Architecture
• Collection Agents
• Indexers
• Datastores

adonis Follow

Uploaded on Aug 05, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

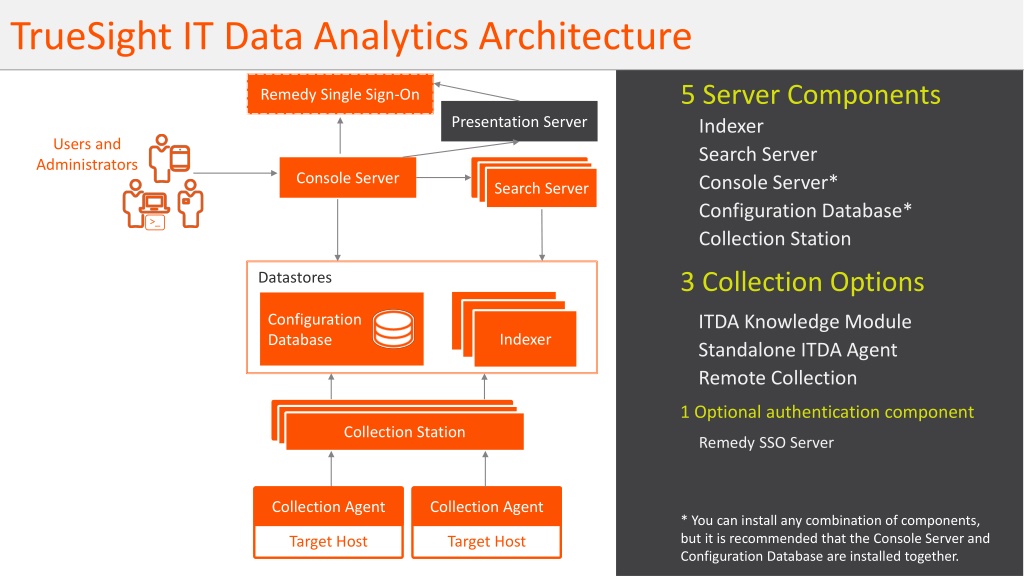

1. TrueSight IT Data Analytics Architecture 5 Server Components Indexer Search Server Console Server* Configuration Database* Collection Station Remedy Single Sign-On Presentation Server Users and Administrators Console Server Search Search Search Server >_ 3 Collection Options Datastores Configuration Database ITDA Knowledge Module Standalone ITDA Agent Remote Collection Indexer Indexer Indexer 1 Optional authentication component Collection Station Collection Station Collection Station Remedy SSO Server Collection Agent Collection Agent Collection Agent Collection Agent * You can install any combination of components, but it is recommended that the Console Server and Configuration Database are installed together. Target Host Target Host

2. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Collection Agents Presentation Server Users and Administrators Collection Agents collect data from the target hosts (where data resides) and forward it to the Collection Station. Console Server Search Search Search Server >_ Collection Agents can be one of two types: 1. Standalone Collection Agent 2. Knowledge Module for PATROL Datastores Configuration Database Indexer Indexer Indexer The ITDA Knowledge Module (KM) has the same capabilities as the standalone ITDA agent. Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

3. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Collection Station Presentation Server Users and Administrators Collects data from Collection Agents and writes the data to the Indexer. Console Server Search Search Search Server Contains all the capabilities of a Collection Agent, but can also process data sent from Collection Agents. >_ Datastores Collection Stations operate as a pool for application-level high availability. Configuration Database Indexer Indexer Indexer Should be deployed in close network proximity to at least one Indexer. Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

4. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Indexer Presentation Server Users and Administrators Indexers provide indexing capability for all the log data collected. Console Server Search Search Search Server Indexes and stores the collected data in time series, making that data easily searchable. >_ Datastores Multiple indexers can be utilized to scale up the data collected and to improve collection and search performance. Configuration Database Indexer Indexer Indexer Collection Station Collection Station Collection Station Indexers can be configured with redundancy to provide application- level data protection. Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

5. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Configuration Database Presentation Server Users and Administrators Stores all configuration information, such as data collectors, hosts, dashboards, saved searches and content packs. Console Server Search Search Search Server >_ Does not store data collected by using the Collection Stations and Collection Agents. Datastores Configuration Database Indexer Indexer Indexer Only one Configuration Database is required/supported. Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

6. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Console Server Presentation Server Users and Administrators Serves as the user interface for performing all actions in the product. Also acts as a gatekeeper for actions performed by using the CLI and REST APIs. Console Server Search Search Search Server >_ Datastores Only one Console Server is required. Configuration Database Indexer Indexer Indexer Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

7. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Search Server Presentation Server Users and Administrators Processes search requests and runs scheduled notifications and reports. Console Server Search Search Search Server Multiple Search Servers can be employed to improve performance and provide application-level high availability. >_ Datastores Configuration Database Indexer Indexer Indexer Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

8. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Remedy Single Sign-On (SSO) Presentation Server Users and Administrators Can be optionally used as an additional means of authenticating into IT Data Analytics. This kind of authentication is required to be able to integrate with TrueSight Presentation Server. Console Server Search Search Search Server >_ Datastores Configuration Database Indexer Indexer Indexer Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

9. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Integrations supported with IT Data Analytics (optional) External Connections Presentation Server Users and Administrators Enables TrueSight Infrastructure Management events to be searched and analyzed in IT Data Analytics. Also, enables IT Data Analytics to log events into Infrastructure Management via notifications. Console Server Search Search Search Server Infrastructure Management >_ Presentation Server Datastores Configuration Database Indexer Indexer Indexer Remedy AR SMTP Server Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

10. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Integrations supported with IT Data Analytics (optional) External Connections Presentation Server Users and Administrators Console Server Search Search Search Server Infrastructure Management >_ Hosts the TrueSight console which consumes events sent by IT Data Analytics. Presentation Server Datastores Configuration Database Indexer Indexer Indexer Remedy AR Requires IT Data Analytics and the Infrastructure Management to be registered with Presentation Server. SMTP Server Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

11. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Integrations supported with IT Data Analytics (optional) External Connections Presentation Server Users and Administrators Console Server Search Search Search Server Infrastructure Management >_ Presentation Server Datastores Integration with Remedy Action Request System allows you to collect and analyze Remedy data (changes and incidents) into IT Data Analytics. Configuration Database Indexer Indexer Indexer Remedy AR SMTP Server Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host

12. TrueSight IT Data Analytics Architecture Remedy Single Sign-On Integrations supported with IT Data Analytics (optional) External Connections Presentation Server Users and Administrators Console Server Search Search Search Server Infrastructure Management >_ Presentation Server Datastores Configuration Database Indexer Indexer Indexer Remedy AR SMTP Server Allows email notifications & report delivery. ` Collection Station Collection Station Collection Station Collection Agent Collection Agent Collection Agent Collection Agent Target Host Target Host
