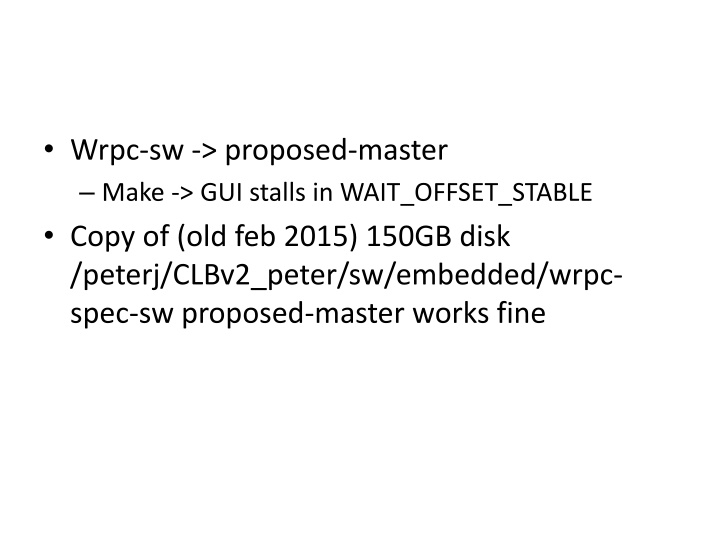

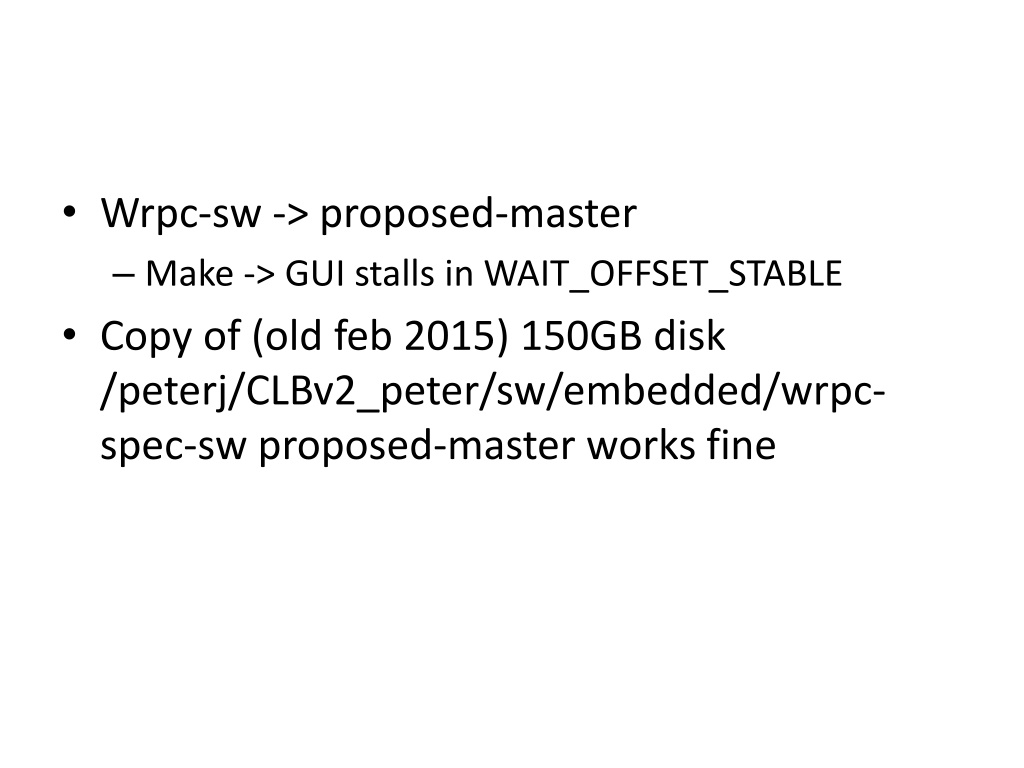

1. Wrpc-sw -> proposed-master Make -> GUI stalls in WAIT_OFFSET_STABLE Copy of (old feb 2015) 150GB disk /peterj/CLBv2_peter/sw/embedded/wrpc- spec-sw proposed-master works fine

2. Wrpc-sw Git checkout 0e8b222 Git submodule init Git submodule update Works Git checkout proposed_master WAIT_OFFSET_STABLE ppsi

3. Thus: Git checkout 0e8b222 Git submodule init Git submodule update Checks out ppsi da4979d And: Git checkout proposed_master Git submodule init Git submodule update Checks out ppsi b8ebe5f

4. net.c wrc_main.c void update_rx_queues() { struct my_socket *s = NULL; struct sockq *q; | case LINK_UP: update_rx_queues(); | case LINK_WENT_DOWN: if (wrc_ptp_get_mode() == WRC_MODE_SLAVE) { spll_init(SPLL_MODE_FREE_RUNNING_MASTER, 0, 1); shw_pps_gen_enable_output(0); } break; } fsm.c wrc_ptp_ppsi.c int pp_state_machine(struct pp_instance *ppi, uint8_t *packet, int plen) { struct pp_state_table_item *ip; int state, err = 0; | int wrc_ptp_update() { int i; struct pp_instance *ppi = &ppi_static; | i = __recv_and_count(ppi, ppi->rx_frame, PP_MAX_FRAME_LENGTH - 4, &ppi->last_rcv_time); ui_update(); wrc_ptp_update(); spll_update(); check_stack(); if ((!i) && (timer_get_tics() - start_tics < delay_ms)) return 0; if (!i) { /* Nothing received, but timeout elapsed */ start_tics = timer_get_tics(); delay_ms = pp_state_machine(ppi, NULL, 0); return 0; } delay_ms = pp_state_machine(ppi, ppi->rx_ptp, i); return 0; } diag-macros.h

5. enum pp_diag_things { pp_dt_fsm pp_dt_time too */ pp_dt_frames pp_dt_servo pp_dt_bmc pp_dt_ext pp_dt_config = 7, = 6, /* level 1: set and timeouts, 2: get_time = 5, /* level 1: send/recv, 2: dump contents */ = 4, = 3, = 2, = 1,}; frames config servo time bmc fsm ext Verbose Verbose Verbose 1 0 2 0 1 0 0 0 2 = example in PPSi Manual (FSM at level 1 and frames at level 2) = example in PPSi Manual (level 1 for time) = prints raw timestamp info!

6. frames config servo time bmc fsm ext Verbose 1 0 1 2

7. frames config servo time bmc fsm ext Verbose 0 0 1

8. frames config servo time bmc fsm ext Verbose 0 0 1 Mode master already enables PPS_o SPEC Loopback ppsi/proto-standard/state-master.c //if (plen == 0) // goto out; /* * An extension can do special treatment of this message type, * possibly returning error or eating the message by returning * PPM_NOTHING_TO_DO */ msgtype = PPM_NOTHING_TO_DO; /* msgtype = ppi->received_ptp_header.messageType; if (pp_hooks.master_msg) msgtype = pp_hooks.master_msg(ppi, pkt, plen, msgtype); if (msgtype < 0) { e = msgtype; goto out_fault; } */ So far so good, but not yet timestamps and WR is OFF

9. ppsi/proto-standard/hooks.c static int wr_init(struct pp_instance *ppi, unsigned char *pkt, int plen) { struct wr_dsport *wrp = WR_DSPOR(ppi); pp_diag(ppi, ext, 2, "hook: %s\n", __func__); wrp->wrStateTimeout = WR_DEFAULT_STATE_TIMEOUT_MS; wrp->calPeriod = WR_DEFAULT_CAL_PERIOD; //wrp->wrModeOn = 0; wrp->wrModeOn = 1; //wrp->parentWrConfig = NON_WR; wrp->parentWrConfig = WR_MASTER; //wrp->parentWrModeOn = 0; wrp->parentWrModeOn = 1; wrp->calibrated = !WR_DEFAULT_PHY_CALIBRATION_REQUIRED;

10. Goal: loopback mode Master and generate Announce message once per second ppsi/proto-standard/state-master.c /* The real state function, relying on the two above for sending */ int pp_master(struct pp_instance *ppi, unsigned char *pkt, int plen) { int msgtype, d1, d2; int e = 0; /* error var, to check errors in msg handling */ if (ppi->is_new_state) { pp_timeout_rand(ppi, PP_TO_SYNC, DSPOR(ppi)->logSyncInterval); pp_timeout_rand(ppi, PP_TO_ANN_INTERVAL, DSPOR(ppi)->logAnnounceInterval); Announce messages At startup /* Send an announce immediately, when becomes master */ if ((e = pp_master_issue_announce(ppi)) < 0) goto out; } // if (pp_timeout_z(ppi, PP_TO_SYNC)) { // /* Restart the timeout for next time */ // pp_timeout_rand(ppi, PP_TO_SYNC, DSPOR(ppi)->logSyncInterval); // // if ((e = pp_master_issue_sync_followup(ppi) < 0)) // goto out; // // } if (pp_timeout_z(ppi, PP_TO_ANN_INTERVAL)) { if ((e = pp_master_issue_announce(ppi) < 0)) goto out; Only periodically Announce messages /* Restart the timeout for next time */ pp_timeout_rand(ppi, PP_TO_ANN_INTERVAL, DSPOR(ppi)->logAnnounceInterval); }

11. Resulting screenshots Announce messages once per second Mode master already enables PPS_o frames config servo time bmc fsm ext Verbose 0 0 1 Next step: t1 and t4 must be printed in the low level net.c routines SPEC Loopback

12. Goal: loopback mode Master and generate Announce message once per second ppsi/proto-standard/common-fun.h static inline int __send_and_log(struct pp_instance *ppi, int msglen, int msgtype, int chtype) { if (ppi->n_ops->send(ppi, ppi->tx_frame, msglen + ppi->tx_offset, &ppi->last_snt_time, chtype, 0) < msglen) { pp_diag(ppi, frames, 1, "%s(%d) Message can't be sent\n", pp_msg_names[msgtype], msgtype); return PP_SEND_ERROR; } /* FIXME: diagnosticst should be looped back in the send method */ pp_diag(ppi, frames, 1, "SENT %02d bytes at %d.%09d.%d (%s)\n", msglen, (int)(ppi->last_snt_time.seconds), (int)(ppi->last_snt_time.nanoseconds), (int)(ppi->last_snt_time.phase), pp_msg_names[msgtype]); if (chtype == PP_NP_EVT && ppi->last_snt_time.correct == 0) return PP_SEND_NO_STAMP; Add phase info to SENT message ppsi/fsm.c int pp_state_machine(struct pp_instance *ppi, uint8_t *packet, int plen) { struct pp_state_table_item *ip; int state, err = 0; Diff: 336 ns + 5611 if (plen) pp_diag(ppi, frames, 1, "RECV %02d bytes at %d.%09d.%d (type %x, %s)\n", plen, (int)ppi->last_rcv_time.seconds, (int)ppi->last_rcv_time.nanoseconds, (int)ppi->last_rcv_time.phase, packet[0] & 0xf, pp_msg_names[packet[0] & 0xf]); Add phase info to RECV message

13. Goal: loopback mode Master and generate Announce message once per second Stat bts loopback loopback Loopback +0 mtr +1 mtr 336 336 344 336 344 336 336 336 +30 mtr 0 0 4000 0 4000 5600 5600 1600 2400 5600 Different bitslide 8 ns extra? 1 meter fiber, both 336 ns Or difference is 5600 ps via bitslide? 480 480

15. wrc_main .c -> wrc_ptp_init() Wrc_ptp_ppsi.c doesn t do much -> wrc_ptp_set_mode(WRC_MODE_MASTER) wrp->wrConfig = WR_M_ONLY; ppi->role = PPSI_ROLE_MASTER; spll_init(SPLL_MODE_FREE_RUNNING_MASTER, 0, 1); pp_printf("Locking PLL"); -> wrc_ptp_start pp_init_globals(&ppg_static, &__pp_default_rt_opts); /* Call the state machine. Being it in "Initializing" state, make * ppsi initialize what is necessary */ delay_ms = pp_state_machine(ppi, NULL, 0); start_tics = timer_get_tics(); WR_DSPOR(ppi)->linkUP = FALSE; wr_servo_reset(); -> wrc_ptp_update() Wrc_ptp_ppsi.c = type pp_globals Definedin pp- instance.h = type pp_runtime_opts Wrc_ptp_ppsi.c proto-standard/open-close.c = Definedin fsm.c NULL Wrc_ptp_ppsi.c Fsm.c Is called in wrc_ptp_update (defined in wrc_ptp_ppsi.c ) as => int pp_state_machine(struct pp_instance *ppi, uint8_t *packet, int plen) delay_ms = pp_state_machine(ppi, ppi->rx_ptp, i)

16. add_TimeInternal(proto_standard/arith.c) time_snt = time_snt + outbound_latency = last_snt_time = SYNC t1 from_TimeInternal(proto_standard/arith.c) &tstamp = time_snt seconds/nanoseconds (default 0.0)

17. frames config servo time bmc fsm SENT SYNC ext Diff: 5628192 ??? Verbose 2 2 2 2 now: 0x0555 = 1365 0x1027de60 = 271048288 SYNC sent @ 276676480 = PTP-t1 This info is put into FOLLOW_UP SENT FOLLOW_UP 0x0555 = 1365 0x1027de60 = 276676480 RECV SYNC Receivedat 276676824 With PTP-t1 = 276676480

18. msg_issue_sync_followup (defined in proto_standard\msg.c) Modified to strip away followup and print PTP-t1 PTP-t1 SPEC Loopback SYNC mesage PTP-t4 PTP-t1 (type TimeInternaldefinedin ppsi\ieee1588_types.h)

19. defined in proto-standard\msg.c Msg_issue_syn_followup = sent, phase is set 0 defined in time-wrpc\wrc-socket.c No FOLLOW_UP wrpc_net_send wrpc_net_recv Phase *always* 5611 also with different fiber loopback length. Why? Couples to ptpd_netif_recvfrom Defined in lib/net.c See next slide (defined in proto-standard\common-fun.h)

20. Receive Phase *always* 5611 Why? defined in lib/net.c ptpd_netif_recvfrom defined in time-wrpc\wrc-socket.c wrpc_net_send wr_timestamp_t defined in include\ptpd_netif.h renamed to _wr_timestamp Always the 0. Why? ptpd_netif_linearize_rx_timestamp defined in lib/net.c See next slide

21. So here the recv phase is put into place defined in lib/net.c 8000 2389 = 5611 Always the same since dmtd_phase = 0 always defined in lib/softpll/softpll_ng.c defined in lib/include/spll_defs.h

22. defined in lib/softpll/softpll_ptracker.h defined in lib/softpll/softpll_ng.c What about these? Initializedbut never started nor Updated... ptracker_init() called by: spll_init() ptracker_start() called by: void spll_enable_ptracker(int ref_channel, int enable) (softpll_ptracker.c) called by: int wrpc_spll_locking_enable(struct pp_instance *ppi) (wrpc_spll.c) -> maps to wr_operations .locking_enable int wrpc_spll_enable_ptracker(struct pp_instance *ppi) (wrpc_spll.c) -> maps tp wr_operations .enable_ptracker static inline void start_ptrackers(struct softpll_state *s) (softpll_ptracker.c) defined in ppsi/proto-ext-whiterabbit/state_wr-link-on.c defined in ppsi/proto-standard/state_initializing.c Instead of going to state MASTER directly, go and set WR_LINK_ON first

23. Conclusion: modifications ppsi/proto-standard/state_master.c Remove ANNOUNCE message Only sent SYNC Only sent SYNC Remove ANNOUNCE message See next slide

24. ppsi/proto-standard/msg.c Remove FOLLOW_UP message ppsi/proto-standard/state-initializing.c Essential! First initialize and enable Phase Tracker before going to PPS_MASTER otherwise Rx Phase will always read 0

25. ppsi/fsm.c ppsi/proto-standard/common-fun.h Not mandatory: Add phase to RX diagnostics Not mandatory: Add phase to TX diagnostics (by the way: always 0) ppsi/time-wrpc/wrpc-socket.c Not mandatory: Not mandatory: Also bitslide info is needed! Add phase to TX and RX net_send Add phase to TX and RX net_send
