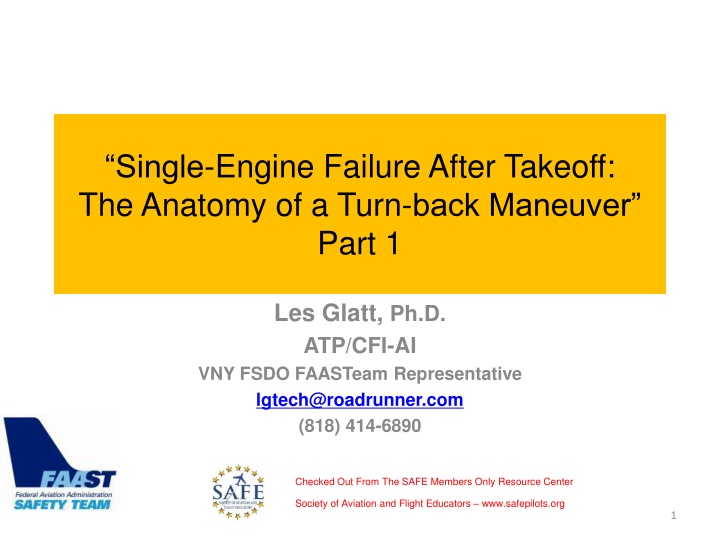

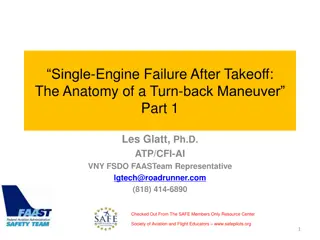

The Importance of the Turn-back Maneuver in Aviation
“Single-Engine Failure After Takeoff:
The Anatomy of a Turn-back Maneuver”
