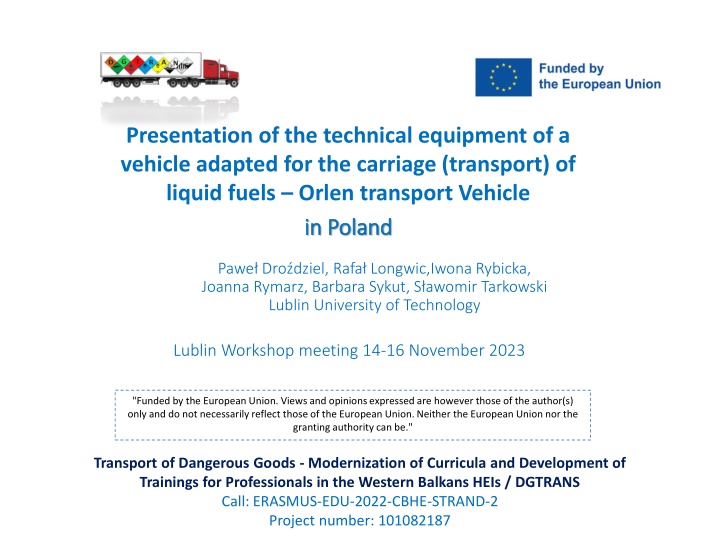

Presentation of the technical equipment of a vehicle adapted for the carriage (transport) of liquid fuels Orlen transport Vehicle in in Poland Poland Pawe Dro dziel, Rafa Longwic,Iwona Rybicka, Joanna Rymarz, Barbara Sykut, S awomir Tarkowski Lublin University of Technology Lublin Workshop meeting 14-16 November 2023 "Funded by the European Union. Views and opinions expressed are however those of the author(s) only and do not necessarily reflect those of the European Union. Neither the European Union nor the granting authority can be." Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS Call: ERASMUS-EDU-2022-CBHE-STRAND-2 Project number: 101082187
Tank car construction Fuel tank cars are very capacious tanks used for transporting petrol, diesel or heating oil. Their construction is carefully thought out, so that transport is not only safe for road users, but also for the environment. Tankers must meet a long list of requirements, precisely to protect the transported fuels from uncontrolled leakage and contamination of soil or water. In addition, they must be very robust, so that in the event of a road collision or other situation that could lead to damage to its structure and prevent leakage. Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS
Diesel tank car construction Most tankers are constructed from aluminium alloys. Some models may be constructed from carbon or boiler steels. This results in a melting point of 640 C for aluminium tankers. Tanks have cross-sections of various shapes, but the most common are round, trunk or oval. On both sides, the cisterns are topped with bottoms. In the middle, breakwalls are fitted to minimise the liquid inertia phenomenon occurring during starting and braking. In addition, these inner walls make the tank rigid and resistant to crushing. The breakwaters are fitted with additional openings that allow the fuel to overflow freely in the event of the structure tipping over. The volume of liquid between the breakwaters is no more than 7,500 L or the distance between them should be no more than 1,750 mm. Cistern models constructed from aluminium have walls 5-5.5 mm thick and steel 4-4.2 mm thick. Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS
Diesel tank car construction The tankers are equipped with numerous hatches and valves for refuelling, as well as for emptying the tank. This task is facilitated by a built-in pump. There is also a sensor inside the tanker that indicates the filling level when the tank is refuelled. In addition, there may be a computer with a printer on board to provide readings when the goods are unloaded. Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS
Demonstration of the technical equipment of a vehicle adapted for the carriage (transport) of liquid fuels Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS
Presentation of the technical equipment of the Road Transport Inspection vehicle Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS
Thank You Transport of Dangerous Goods - Modernization of Curricula and Development of Trainings for Professionals in the Western Balkans HEIs / DGTRANS
