Stem and Leaf Diagrams for Statistical Analysis

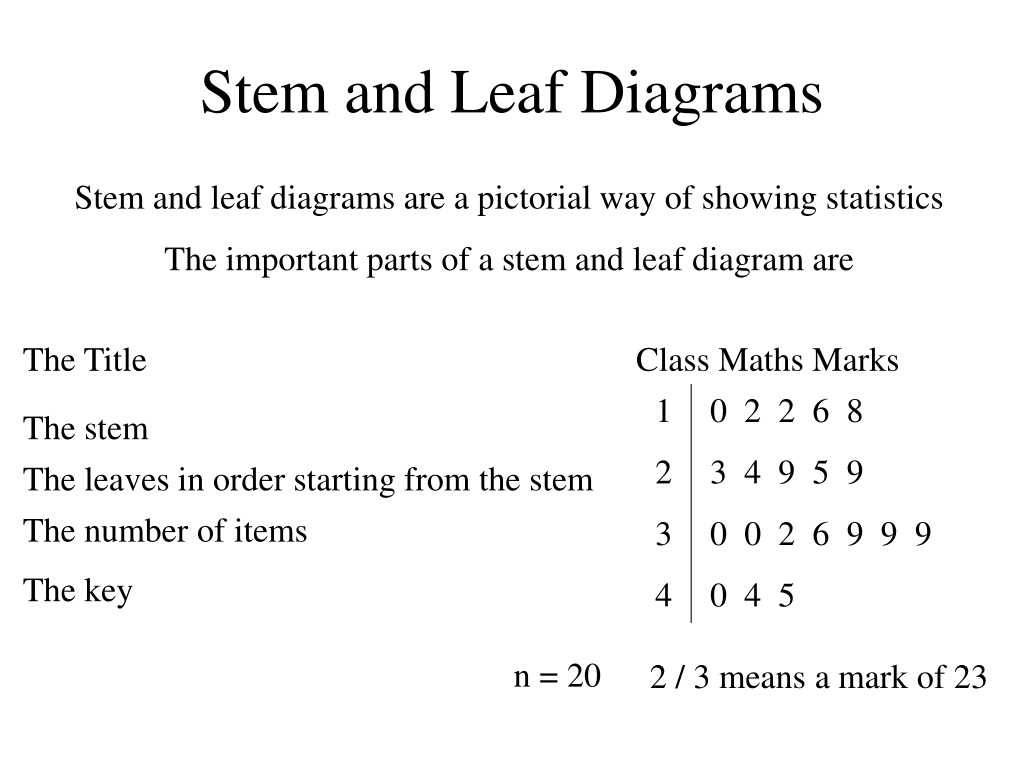

Stem and Leaf Diagrams
Stem and leaf diagrams are a pictorial way of showing statistics
The important parts of a stem and leaf diagram are
The Title
The stem
The leaves in order starting from the stem
The number of items
The key
Class Maths Marks
0 2 2 6 8
3 4 9 5 9
0 0 2 6 9 9 9
0 4 5
n = 20
2 / 3 means a mark of 23
A group of students measured their pulse rates in beats per minute.
The results were.
66 69 62 58 74 56 67 72 61 62 59 60 72 58 63
Draw a Stem and Leaf diagram to show this
We need a title
Pulse rates (beats per minute)
We need the stems
We need the Leaves
8
6
9
8
6
9
2
7
1
2
0
3
4
2
2
We need to reorder the leaves
6 8 8 9
0 1 2 2 3 6 7 9
2 2 4
We need to write in n
n = 15
We need the key
6 / 2 means 62 beats per minute
A group of students were asked how much pocket money they get.
The results were.
£6.60 £6.90 £6.20 £5.80 £7.40 £5.60 £6.70 £7.20
£6.10 £6.20 £5.90 £6.00 £7.20 £5.80 £6.30
Draw a Stem and Leaf diagram to show this
Note this gives us the same
diagram as the previous
example. This shows the
importance of the title and
key.
Draw Stem and Leaf Diagrams for the following sets of data
The speed of cars, in mph, passing
police speed check
35 46 32 48 53 58 60 39 36
48 34 51 42 37 53 42 51 38
John took a note of how far, in
metres, he was able to hit a golf
ball
108 115 132 121 101 122 138
127 105 112 118 127 129 120
139 136 131 121 111 129 137
Stem and Leaf diagrams can be used to compare 2 sets of data.
To do this we draw a back to back stem and leaf diagram.
2
3
1A
Use the Back to Back Stem and Leaf Diagram to answer the questions
How many books were borrowed at level 3 this week
?
How many books were borrowed at level 4 last week
Which week was best for the library
How many books were borrowed last week altogether
65
?
129
?
This week
?
387
