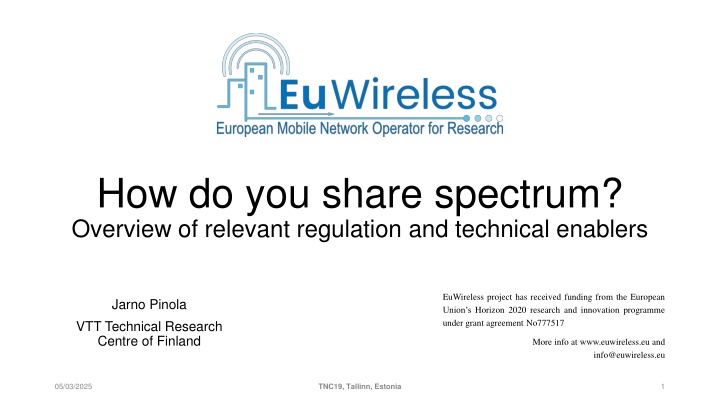

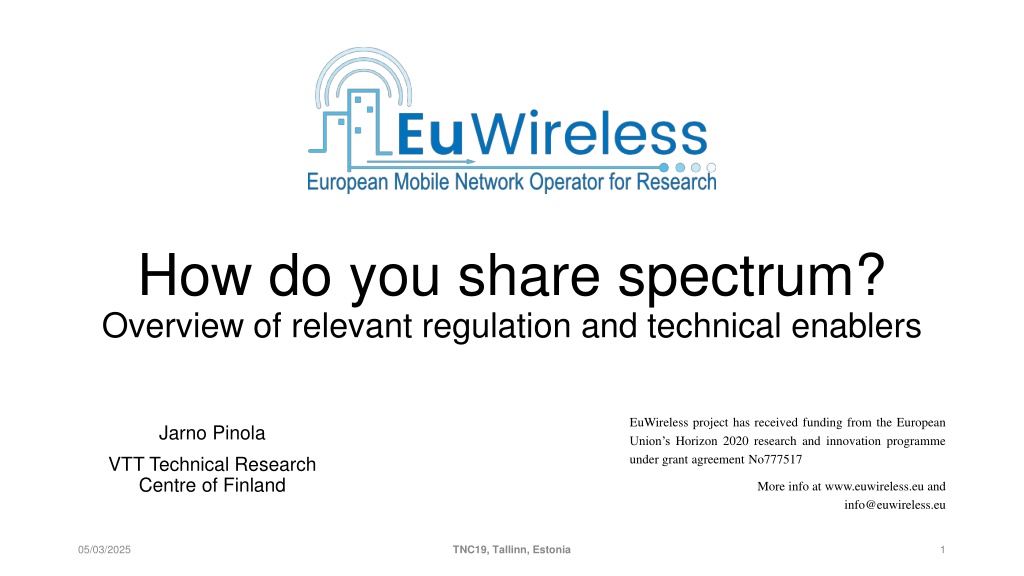

Spectrum Sharing Techniques Overview
How do you share spectrum?
Overview of relevant regulation and technical enablers
Jarno Pinola
VTT Technical Research
Centre of Finland
1
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Contents
Background
•
Licensed spectrum and regulation
•
Spectrum sharing techniques
•
Dynamic licensed access
•
RAN sharing techniques
•
Related work
EuWireless project
•
High-level architecture
•
Needs and requirements
•
Spectrum sharing enhancements
•
RAN sharing enhancements
•
Integration to the overall architecture
05/03/2025
2
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Background
Why EuWireless needs dynamic spectrum sharing and RAN sharing?
05/03/2025
3
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Licensed spectrum and
regulation
•
Realistic large scale field test and pilots with mobile technologies and
services rely on the availability of licensed spectrum
•
Availability of equipment and testing sites
•
Current regulatory environment in Europe is heterogeneous and based
on fixed-term exclusive rights
•
The available spectrum and means to acquire it vary from country to county
•
Pan-European dynamic spectrum sharing framework needed in order
to realise the EuWireless vision
05/03/2025
4
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Spectrum sharing techniques
•
Individual authorisation, i.e. licensed access
•
Fixed term licensed access
•
Dynamic licensed access
•
Light licensing
•
General authorisation, i.e. unlicensed or license-exempt access
•
Opportunistic access
05/03/2025
5
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Dynamic licensed access
•
Licensed Shared Access (LSA) in Europe
•
A license holder (incumbent) can share spectrum with a mobile
communication system under certain rules and on non-interfering basis
•
Current candidate channels in Europe are 2.3 – 2.4 GHz, but in the future, they
can extend beyond the IMT bands
•
Citizens Broadband Radio Service (CBRS) in the US
•
Environmental Sensing Capability (ESC) is used as an additional source of
information for incumbent protection
•
Targeting the 3.5 GHz frequency band
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
6
RAN sharing techniques
•
To facilitate the deployment of the dynamic spectrum sharing, other
Radio Access Network (RAN) resources can also be shared
•
Joint Radio Resource Management (RRM) enables coordinated
transmissions and interference management in legacy networks
•
Software-Defined RAN (SD-RAN) enables further decomposition of
RAN functionalities and centralised control in future networks
05/03/2025
7
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Related work
•
Dynamic spectrum sharing
•
EU H2020/5G-PPP: ADEL, SPEED-5G, METIS/METIS-II, COHERENT
•
Standardization: CEPT ECC, FCC, ETSI, 3GPP
•
Industry forums: WINNF
•
RAN sharing
•
EU H2020/5G-PPP: 5G-NORMA/5G-MoNArch, SESAME/5G-ESSENCE
•
Standardization: 3GPP, IEEE
•
Industry forums: NGMN, ORAN, TIP
05/03/2025
8
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
EuWireless project
How EuWireless will implement dynamic spectrum sharing and RAN sharing?
05/03/2025
9
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
High-level architecture
05/03/2025
10
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Needs and requirements
•
EuWireless experimenter must be able to create end-to-end slices over
the joint EuWireless and MNO infrastructure
•
In RAN, both the spectrum and RRM must be configurable
•
For spectrum, selection of frequency, time and location
•
For RRM, selection of functionalities and parameters
•
The EuWireless operator must handle all the paper work and offer a
one stop shop portal for the experimenters
05/03/2025
11
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Spectrum sharing enhancements
1/2
•
For the standardised dynamic spectrum sharing methods, EuWireless
must define a hierarchical approach to manage both the spectrum
controllers and databases
•
In order to guarantee interference free operation towards MNOs,
EuWireless should consider to utilise more sophisticated spectrum
sensors also for spectrum sharing methods, which do not yet include
them, i.e. LSA
05/03/2025
12
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
Spectrum sharing enhancements
2/2
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
13
Hierarchical structure of the
EuWireless spectrum manager
Spectrum sharing enhancements
2/2
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
14
Hierarchical structure of the
EuWireless spectrum manager
RAN sharing enhancements 1/3
•
For the joint RRM and/or centralised RAN resource management,
EuWireless must define functional components supporting the utilised
virtualisation platform for both legacy and future systems
•
From the architecture point of view, EuWireless is taking into account
the recent advances in RAN virtualisation in order to be in line with
the standardization and industry trends
05/03/2025
15
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
RAN sharing enhancements 2/3
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
16
Network entities and interfaces for
joint RRM in 4G architecture
RAN sharing enhancements 2/3
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
17
Network entities and interfaces for
joint RRM in 4G architecture
RAN sharing enhancements 3/3
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
18
Network entities and interfaces for
centralised RAN resource
management in 5G architecture
RAN sharing enhancements 3/3
05/03/2025
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
19
Network entities and interfaces for
centralised RAN resource
management in 5G architecture
Integration to the overall
architecture
•
Where to place the high-level spectrum managers and databases in the
spectrum sharing hierarchy?
•
Maximise local performance
•
Minimise global signalling overhead
•
What RAN functionalities can actually be virtualised and managed
from a centralised controller?
•
Non-real-time stuff: Virtual Network Functions (VNF) + SDN for sure!
•
Near-real-time stuff: VNFs + SDN possible for many use cases
•
Real-time stuff: Physical Network Functions (PNF) and point to point links
still required
05/03/2025
20
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
05/03/2025
21
Thank you!
Jarno Pinola
VTT Technical Research
Centre of Finland
T
N
C
1
9
,
T
a
l
l
i
n
n
,
E
s
t
o
n
i
a
