WF on spatial relation switch

Mediatek Inc.

3GPP TSG-RAN WG4 #94-e
-Bis
 Meeting
Electronic Meeting, 20 – 30 Apr., 2020

R4-2005340

In RAN Plenary #86,
the WI of NR RRM enhancement requirements for R16
was revised. T
he following issue is agreed to be discussed.
Active spatial relation switch for uplink
Scenario overview

Background

Agreement(1)

No requirement is needed for spatial relation info switching associated
with UL SRS.
No requirement is needed for MAC CE based spatial relation info switching associated
with SRS for PUCCH.
No requirement is needed for RRC based spatial relation info switching associated with
SRS for P-SRS.
No requirements are defined
 for spatial relation info switching delay for
PUSCH.
No requirements are defined for spatial relation info switching for PUCCH
when
PUCCH-SpatialRelationInfo
 is not configured.
No requirements are defined for spatial relation info switching
for RRC
based spatial relation info switching with DL-RS for PUCCH.



Agreement(2)

Define delay requirement for RRC based spatial relation info switching
with DL-RS for P-SRS.
Define
DCI based spatial relation info switching delay for
A-SRS.
When spatial relation info associated with DL-RS
For unknown TCI state, there is no requirement
For known TCI state, refer to RAN1 spec.
Define delay requirement for MAC CE based spatial relation info switching
associated with DL-RS for PUCCH.
Define delay requirement for MAC CE based spatial relation info switching
with DL-RS for SP-SRS.




Agreement(3)

The known condition on spatial relation when
associated with DL-RS,
T
he spatial relation associated to DL RS is known if the following conditions are met:
-

During the period from the last transmission of the DL RS resource used for the L1-
RSRP measurement reporting for the target spatial relation to the completion of active
spatial relation switch, where the DL RS resource for L1-RSRP measurement is the DL RS in
target spatial relation or QCLed to the target spatial relation with QCL type-D.
-

Spatial relation switch command is received within 1280 ms upon the last
transmission of the RS resource for beam reporting or measurement
-

The UE has sent at least 1 L1-RSRP report for the target spatial relation before the
spatial relation switch command
-

The [DL RS configured in spatial relation] remains detectable during the spatial
relation switching period
-

The SSB associated with the spatial relation remains detectable during the spatial
relation switching period
-

SNR of the spatial relation ≥ -3dB
Otherwise, the spatial relation is unknown.

Way Forward

Whether UE which only supports BC Bit-0 will always
need UL beam sweeping to select a suitable beam for
UL transmission when active spatial relation
configuration switch?
Option 1: No

Way Forward

When the UL signal has spatial relation to an
unknown DL RS,
Option 1: UE transmits using previous TX beam
Option 2: Drop UL transmission until TCI state is known
Option 3: Up to UE implementation
and no need to be
specified.

Way Forward

Whether to consider timing tracking when associated DL-RS?
Sub1. Whether to consider timing tracking when associated DL-RS QCLed with a
different qcl-Type1 RS?
Option 1: No
Option 2:
Yes
Option 3: Up to UE
Sub2. Whether to consider timing tracking when associated DL-RS is an unknown DL RS?
Option 1: No
Option 2:
Yes
Option 3: Up to UE
Sub3. Whether to consider timing tracking when PUSCH/PUCCH and SRS associated with
different DL-RSs in one slot?
Option 1: No
Option 2:
Yes
Option 3: Up to UE



Define delay requirement for MAC CE based spatial relation info
switching associated with DL-RS for PUCCH
For known TCI state
Option 1: T
HARQ
 +3ms
Option 1a: T
HARQ
 +3ms/NR slot length
Option 2: T
HARQ
 +3ms + time for time tracking if applicable
Option 3: The PDCCH TCI switch timeline to be used as baseline
For unknown TCI state
Option 1: T
HARQ
 + 3ms + T
L1-RSRP
Option 1a: T
HARQ
 +(3ms+ T
L1-RSRP
)/NR slot length
Option 2: T
HARQ
 + 3ms + T
L1-RSRP
+ time for time tracking if applicable
Option 3: T
HARQ
 + 3ms + ‘time for tracking’
Option 4: No requirement

Way Forward

Delay requirement for RRC based spatial relation info
switching associated with DL-RS for P-SRS
For known TCI state
Option 1: Define delay based on RRC based TCI state switching requirements
Option 2: T
RRCprocessing
 + time for time tracking if applicable
Option 3: T
RRCprocessing
 (timing is not required)
For unknown TCI state
Option 1: Define delay based on RRC based TCI state switching requirements
Option 2:

T
RRCprocessing
 + T
L1-RSRP
+ time for time tracking if applicable
Option 3: T
RRCprocessing
+ T
L1-RSRP
Option 4: No requirements


Way Forward

Whether to define delay requirement for MAC CE based spatial
relation info switching with DL-RS for A-SRS?
Option 1:
Yes
Option 2:
No


Way Forward
Slide Note
Embed
Share

The document discusses various spatial relation switching requirements for uplink scenarios in the 3GPP NR RAN Plenary Meeting. It covers agreement points related to UL SRS, PUCCH, P-SRS, and DL-RS, defining delay requirements and known conditions for spatial relation switching. The agreements provide insights into different triggering methods and associated sources for spatial relation switching in the context of PHY channels.


Uploaded on Aug 14, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

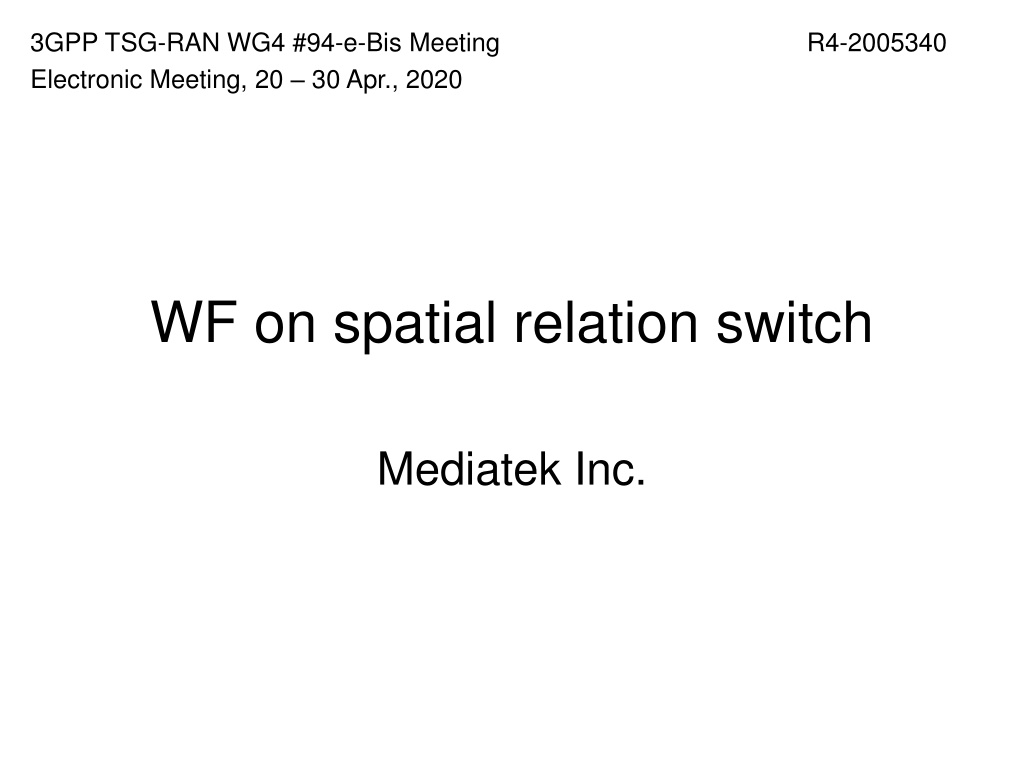

  1. 3GPP TSG-RAN WG4 #94-e-Bis Meeting Electronic Meeting, 20 30 Apr., 2020 R4-2005340 WF on spatial relation switch Mediatek Inc.

  2. Background In RAN Plenary #86, the WI of NR RRM enhancement requirements for R16 was revised. The following issue is agreed to be discussed. Active spatial relation switch for uplink Scenario overview PHY channel Triggering method associated source Whether to introduce requirement # Scenario 1 PUCCH-RRC-DL PUCCH RRC DL RS No 2 PUCCH-RRC-UL PUCCH RRC UL SRS No 3 PUCCH-MAC-DL PUCCH MAC DL RS Yes 4 PUCCH-MAC-UL PUCCH MAC UL SRS No 5 PUSCH-DCI PUSCH DCI - No 6 pSRS-RRC-DL P-SRS RRC DL RS Yes 7 pSRS-RRC-UL P-SRS RRC UL SRS No 8 spSRS-MAC-DL SP-SRS MAC DL RS Yes 9 spSRS-MAC-UL SP-SRS MAC UL SRS No 10 aSRS-DCI-DL A-SRS DCI DL RS Yes 11 aSRS-DCI-UL A-SRS DCI UL SRS No 12 aSRS-MAC-DL A-SRS MAC DL RS FFS

  3. Agreement(1) No requirement is needed for spatial relation info switching associated with UL SRS. No requirement is needed for MAC CE based spatial relation info switching associated with SRS for PUCCH. No requirement is needed for RRC based spatial relation info switching associated with SRS for P-SRS. No requirements are defined for spatial relation info switching delay for PUSCH. No requirements are defined for spatial relation info switching for PUCCH when PUCCH-SpatialRelationInfo is not configured. No requirements are defined for spatial relation info switching for RRC based spatial relation info switching with DL-RS for PUCCH.

  4. Agreement(2) Define delay requirement for RRC based spatial relation info switching with DL-RS for P-SRS. Define DCI based spatial relation info switching delay for A-SRS. When spatial relation info associated with DL-RS For unknown TCI state, there is no requirement For known TCI state, refer to RAN1 spec. Define delay requirement for MAC CE based spatial relation info switching associated with DL-RS for PUCCH. Define delay requirement for MAC CE based spatial relation info switching with DL-RS for SP-SRS.

  5. Agreement(3) The known condition on spatial relation when associated with DL-RS, The spatial relation associated to DL RS is known if the following conditions are met: - During the period from the last transmission of the DL RS resource used for the L1- RSRP measurement reporting for the target spatial relation to the completion of active spatial relation switch, where the DL RS resource for L1-RSRP measurement is the DL RS in target spatial relation or QCLed to the target spatial relation with QCL type-D. - Spatial relation switch command is received within 1280 ms upon the last transmission of the RS resource for beam reporting or measurement - The UE has sent at least 1 L1-RSRP report for the target spatial relation before the spatial relation switch command - The [DL RS configured in spatial relation] remains detectable during the spatial relation switching period - The SSB associated with the spatial relation remains detectable during the spatial relation switching period - SNR of the spatial relation -3dB Otherwise, the spatial relation is unknown.

  6. Way Forward Whether UE which only supports BC Bit-0 will always need UL beam sweeping to select a suitable beam for UL transmission when active spatial relation configuration switch? Option 1: No

  7. Way Forward When the UL signal has spatial relation to an unknown DL RS, Option 1: UE transmits using previous TX beam Option 2: Drop UL transmission until TCI state is known Option 3: Up to UE implementation and no need to be specified.

  8. Way Forward Whether to consider timing tracking when associated DL-RS? Sub1. Whether to consider timing tracking when associated DL-RS QCLed with a different qcl-Type1 RS? Option 1: No Option 2: Yes Option 3: Up to UE Sub2. Whether to consider timing tracking when associated DL-RS is an unknown DL RS? Option 1: No Option 2: Yes Option 3: Up to UE Sub3. Whether to consider timing tracking when PUSCH/PUCCH and SRS associated with different DL-RSs in one slot? Option 1: No Option 2: Yes Option 3: Up to UE

  9. Way Forward # Scenario Whether to introduce requirement 3 PUCCH-MAC-DL Yes Define delay requirement for MAC CE based spatial relation info switching associated with DL-RS for PUCCH For known TCI state Option 1: THARQ+3ms Option 1a: THARQ+3ms/NR slot length Option 2: THARQ+3ms + time for time tracking if applicable Option 3: The PDCCH TCI switch timeline to be used as baseline For unknown TCI state Option 1: THARQ+ 3ms + TL1-RSRP Option 1a: THARQ+(3ms+ TL1-RSRP)/NR slot length Option 2: THARQ+ 3ms + TL1-RSRP + time for time tracking if applicable Option 3: THARQ+ 3ms + time for tracking Option 4: No requirement

  10. Way Forward # Scenario Whether to introduce requirement 6 pSRS-RRC-DL Yes Delay requirement for RRC based spatial relation info switching associated with DL-RS for P-SRS For known TCI state Option 1: Define delay based on RRC based TCI state switching requirements Option 2: TRRCprocessing+ time for time tracking if applicable Option 3: TRRCprocessing(timing is not required) For unknown TCI state Option 1: Define delay based on RRC based TCI state switching requirements Option 2: TRRCprocessing+ TL1-RSRP + time for time tracking if applicable Option 3: TRRCprocessing+ TL1-RSRP Option 4: No requirements

  11. Way Forward # Scenario Whether to introduce requirement 12 aSRS-MAC-DL FFS Whether to define delay requirement for MAC CE based spatial relation info switching with DL-RS for A-SRS? Option 1: Yes Option 2: No
