Spatial Experiences in a Small Flat
Mapping spatial experiences in a small flat, this content describes pleasant and unpleasant places within the living space. It highlights favorite spots like a kitchen chair with a view, a cozy desk for work, and a room with enough space for activities. In contrast, it mentions bothersome areas like a cramped kitchen and a room with an uncomfortable bed placement. Isovists analysis provides insights into visibility and spatial characteristics, helping to understand the layout's impact on user experiences.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

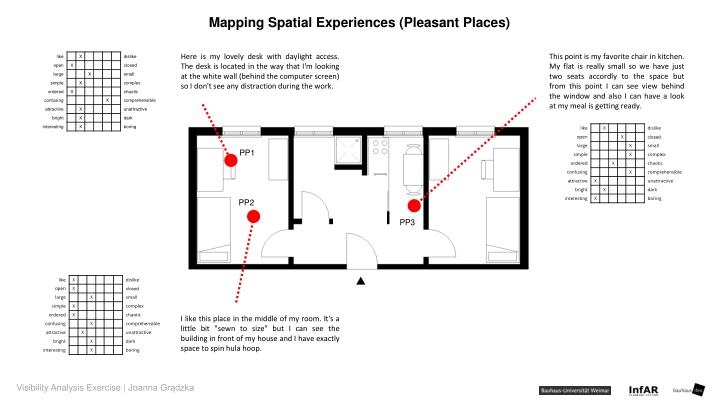

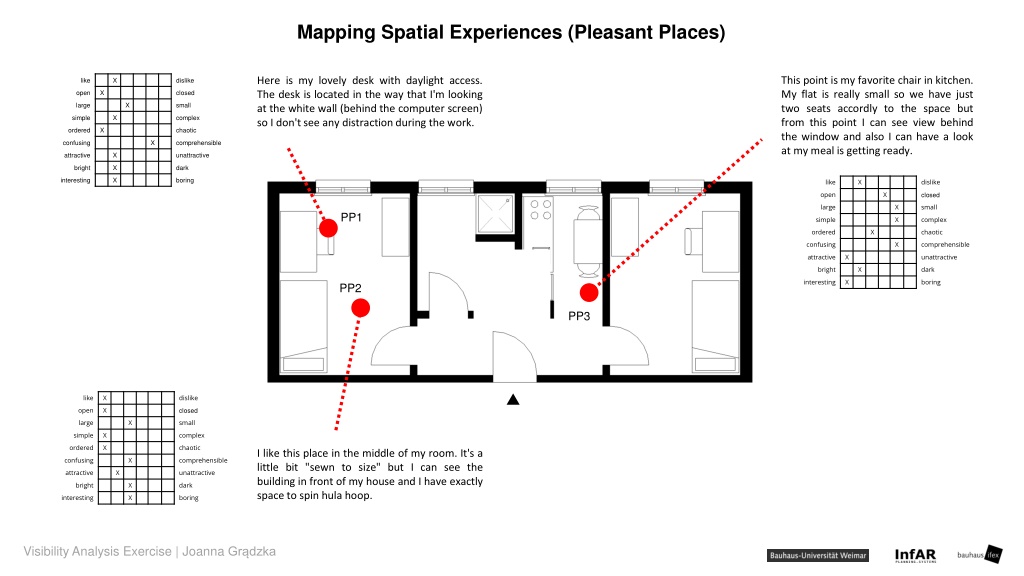

Mapping Spatial Experiences (Pleasant Places) This point is my favorite chair in kitchen. My flat is really small so we have just two seats accordly to the space but from this point I can see view behind the window and also I can have a look at my meal is getting ready. Here is my lovely desk with daylight access. The desk is located in the way that I'm looking at the white wall (behind the computer screen) so I don'tsee any distractionduring the work. like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring like X dislike open X closed large X small PP1 simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring PP2 PP3 like X dislike open X closed large X small simple X complex ordered X chaotic I like this place in the middle of my room. It's a little bit "sewn to size" but I can see the building in front of my house and I have exactly space to spin hula hoop. confusing X comprehensible attractive X unattractive bright X dark interesting X boring Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Mapping Spatial Experiences (Unpleasant Places) like X dislike open X closed Here is an especially bothersome place. More than one person cannot prepare their own meals in the kitchen at the same someonehas to wait. large X small This place gives me a strange feeling. I walk into a room from a tight space and the first thing I see is a bed, and usually I can't go to bed right away. I've noticed that my gaze is always sideways, looking for daylight in the room. simple X complex ordered X chaotic confusing X comprehensible time. Usually attractive X unattractive bright X dark interesting X boring like X dislike open X closed large X small simple X complex UP2 ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring UP1 UP3 like X dislike open X closed large X small I do not like the arrangement of the room where you enter the bed. If you lie down and the door to the room is open/ajar, everyone can see you. Additionally, leaving an unmade bed will never be hide. simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Isovists for the pleasant places PP1 Here is my lovely desk with daylight access. The desk is located in the way that I'm looking at the white wall (behind the computer screen) so I don't see any distraction during the work. like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Area: 10.73 m Compactness: 0.65 Occlusivity: 1.37 m MinRadial: 0.59 m MaxRadial: 4.04 m Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Isovists for the pleasant places PP2 I like this place in the middle of my room. It's a little bit "sewn to size" but I can see the building in front of my house and I have exactly space to spin hula hoop. like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Area: 11.13 m Compactness: 0.55 Occlusivity: 1.95 m MinRadial: 0.98 m MaxRadial: 3.06 m Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Isovists for the pleasant places PP3 This point is my favorite chair in kitchen. My flat is really small so we have just two seats accordly to the space but from this point I can see view behind the window and also I can have a look at my meal is getting ready. like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Area: 6.34 m Compactness: 0.43 Occlusivity: 2.93 m MinRadial: 0.32 m MaxRadial: 2.73 m Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Isovists for the unpleasant places UP1 This place gives me a strange feeling. I walk into a room from a tight space and the first thing I see is a bed, and usually I can't go to bed right away. I've noticed that my gaze is always sideways, looking for daylight in the room. like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Area: 26.13 m Compactness: 0.30 Occlusivity: 2.32 MinRadial: 0.47 m MaxRadial: 5.00 m Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Isovists for the unpleasant places UP2 Here bothersome place. More than one person cannot prepare their own meals in the kitchen at the same time. Usuallysomeonehas to wait. is an especially like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Area: 5.72 m Compactness: 0.50 Occlusivity: 1.27 m MinRadial: 0.82 m MaxRadial: 3.03 m Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change!
Isovists for the unpleasant places UP3 I do not like the arrangement of the room where you enter the bed. If you lie down and the door to the room is open/ajar, everyone you. Additionally, leaving an unmade bed will never be hide. can see like X dislike open X closed large X small simple X complex ordered X chaotic confusing X comprehensible attractive X unattractive bright X dark interesting X boring Area: 14.30 m Compactness: 0.47 Occlusivity: 1.17 m MinRadial: 0.63 m MaxRadial: 5.00 m Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Comparing Isovist properties of pleasant and unpleasant places On average higher in the unpleasant places probably because I feel more comfortable in a smaller area. As in example, I have the values almost the same so the compactness of the visual space seems to not bother me! On average higher in the unpleasant places which makes me a little bit suprise but maybe I to soft with expressing negative things in room. The smallest number is in the pleasant places probably because I would rather stay in the middle of the room than close to its border. The min radial value oscillates in similar intervals, not particularly different from each other. Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
Correlating Isovist properties to subjective spatial experiences sal In such a small total area of a flat, it is difficult to distinguish a "large" space from a "small". I was able to accurately portray the felt space. It's nice to know your apartment so well! The longer the maximal sightlines, the more open I perceived the spaces. Visibility Analysis Exercise | First Name Last Name -> use Master Slide to change! Visibility Analysis Exercise | Joanna Gr dzka
