Interprocedural Path Profiling
David Melski
Thomas Reps
University of Wisconsin
Outline
•
Introduction and Applications
•
The Ball-Larus Intraprocedural Technique
•
Overview of Interprocedural Path-profiling
•
Conclusion
Introduction
•
What is path profiling?
–
Counts the number of times particular path
fragments are executed
•
Our work: extensions of Ball-Larus
–
New
inter
procedural techniques
–
New
intra
procedural techniques
Applications
•
Program Optimization
–
Path-qualified dataflow analysis (Ammons, Larus)
•
Software Maintenance
–
Path spectra (Reps et al.)
–
“Oddball” paths
–
Debugger applications
The Ball-Larus Technique
•
“Remove” cycles from the CFG
•
Label each vertex
v
with
numPaths
[
v
], the
number of paths from
v
to
Exit
.
•
Label each edge with an integer such that:
–
For each path
p
,
p
’s
path number
---the sum of
the values on
p
’s edges---is unique value
–
Each path number is in [0..
numpaths
[
Entry
]-1]
•
Add Instrumentation
Ball-Larus Tech.
•
“Remove” cycles
–
Add surrogate edges
–
Remove backedges
Left with a DAG: have a
finite
number of
acyclic
paths
Ball-Larus Tech.
•
Label each vertex
v
with
numPaths
[
v
],
(the number of paths
from
v
to
Exit
.)
•
Use bottom-up traversal
Ball-Larus Tech.
•
Label edges such that:
For each path
p
,
p
’s
path
number
—the sum of
p
’s
edges—is a unique value
pathNum = 0
pathNum = 3
pathNum = 1
pathNum = 2
Ball-Larus Tech.
•
Add Instrumentation:
•
Var.
pathNum
Example: start w/
pathNum=0
pathNum+=0 (pathNum=0)
pathNum+=0 (pathNum=0)
pathNum+=0 (pathNum=0)
pathNum+=0 (pathNum=0)
pathNum+=0 (pathNum=0)
Profile[pathNum] ++
pathNum=2
Edge Labels
Overview
•
Introductory example program
•
The program
supergraph G*
•
Modifying
G*
to create
G*-fin
•
Parameterized instrumentation
Introductory Example (
main
)
Introductory Example
(
pow
function)
Supergraph
G*
•
Unique vertices Entry
global
and Exit
global
•
CFG for each procedure P
–
Unique Entry
P
and Exit
P
•
call
and
return-site
vertices
for each procedure call
•
call-edges
and
return-edges
connect calls to procedures
Invalid Path Example
•
Do not want to consider
invalid paths for profiling
Valid Paths
•
Label interprocedural edges
with parens
•
Don’t accept paths with
mismatched parens
(
)
[
}
{]
Invalid: ( {]
)
Same-Level: ( { } )Unbalanced-Left: ( {Interprocedural Cycles
•
Complicates interprocedural
profiling
Creating
G*-fin
•
Modify
G*
:
–
In each procedure:
•
Add Gexit
•
Remove Backedges
–
(Removes cycles in
control-flow graphs)
u
6
:
G
e
x
i
t
p
o
w
Exit_global
Creating
G*-fin
•
Modify
G*
(cont):
–
Remove recursive
edges
–
(Removes cycles in
call graph)
Observable Paths
•
In G*-fin:
–
A
finite
number of
unbalanced-left
paths.
–
Each unbalanced-left path defines an
observable path
—an item that we log in a
profile.
–
(observable paths are unbalanced-left because
they may end in the middle of a procedure)
Context-Prefix and
Active-Suffix
•
Each path has
–
a
context-prefix
–
an
active-suffix
–
a counter
•
The counter counts the
executions of the
active-suffix
in the context of the
context-
prefix
Overview:
and
functions
•
For vertex
v
in procedure P, assign fn
v
–
v
takes the number of paths from Exit
P
and
returns the number of paths from
v
•
For edge
e
in procedure P, assign fn
e
–
e
takes the number of paths from Exit
P
and
returns an integer value for
e
Overview: Instrumentation
•
Each procedure Q takes additional parameters:
–
pathNum
(passed by reference)
–
numPathsExitQ
(passed by value)
•
On a procedure call to Q from P, calculate
numPathsExitQ
for current context:
–
numPathsExitQ
=
r
(
numPathsExitP
)
Overview:
Instrumentation
numPathsExitPow =
r
(numPathsExitMain)
pathNumOnEntryPow =
pathNum
E.g., Function call:
v6: Call pow
v7: Rtn pow
Overview:
Instrumentation
pathNum +=
e
(numPathsExitPow)
E.g., Edge Traversal:
v6: Call pow
v7: Rtn pow
Overview:
Instrumentation
pathNum +=
e
(numPathsExitPow)
Profile[pathNum] ++
pathNum = pathNumOnEntryPow
pathNum +=
e
(numPathsExitPow)
E.g., Backedge
Traversal:
v6: Call pow
v7: Rtn pow

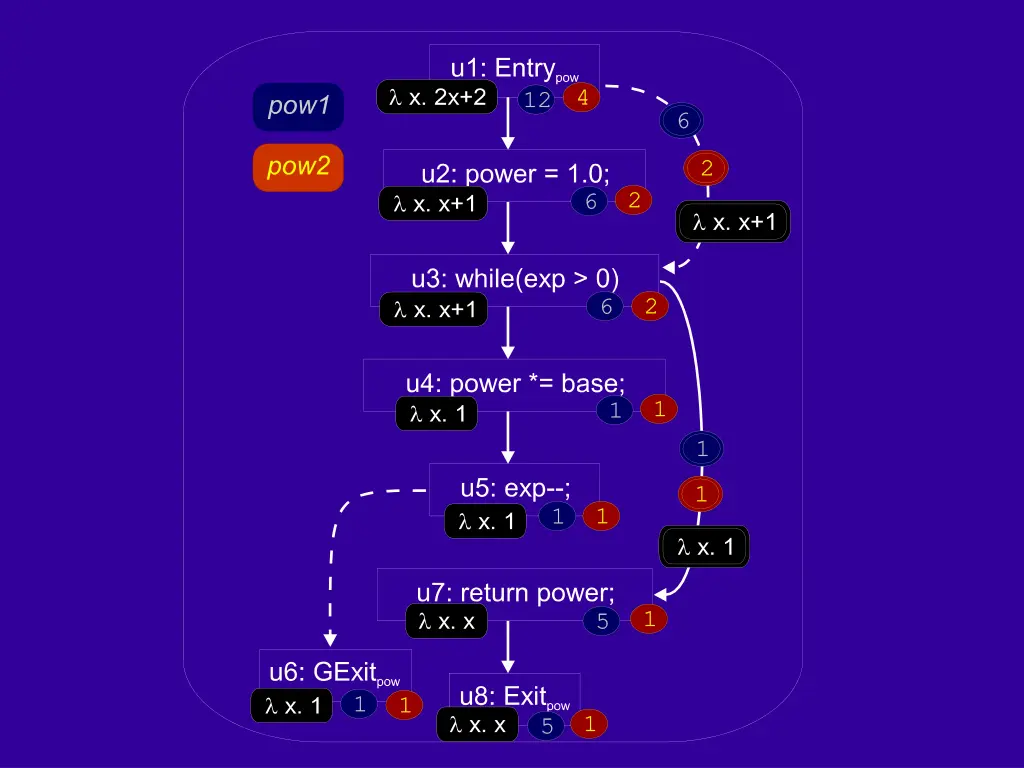

Assigning
functions
•
Solve the following equations:

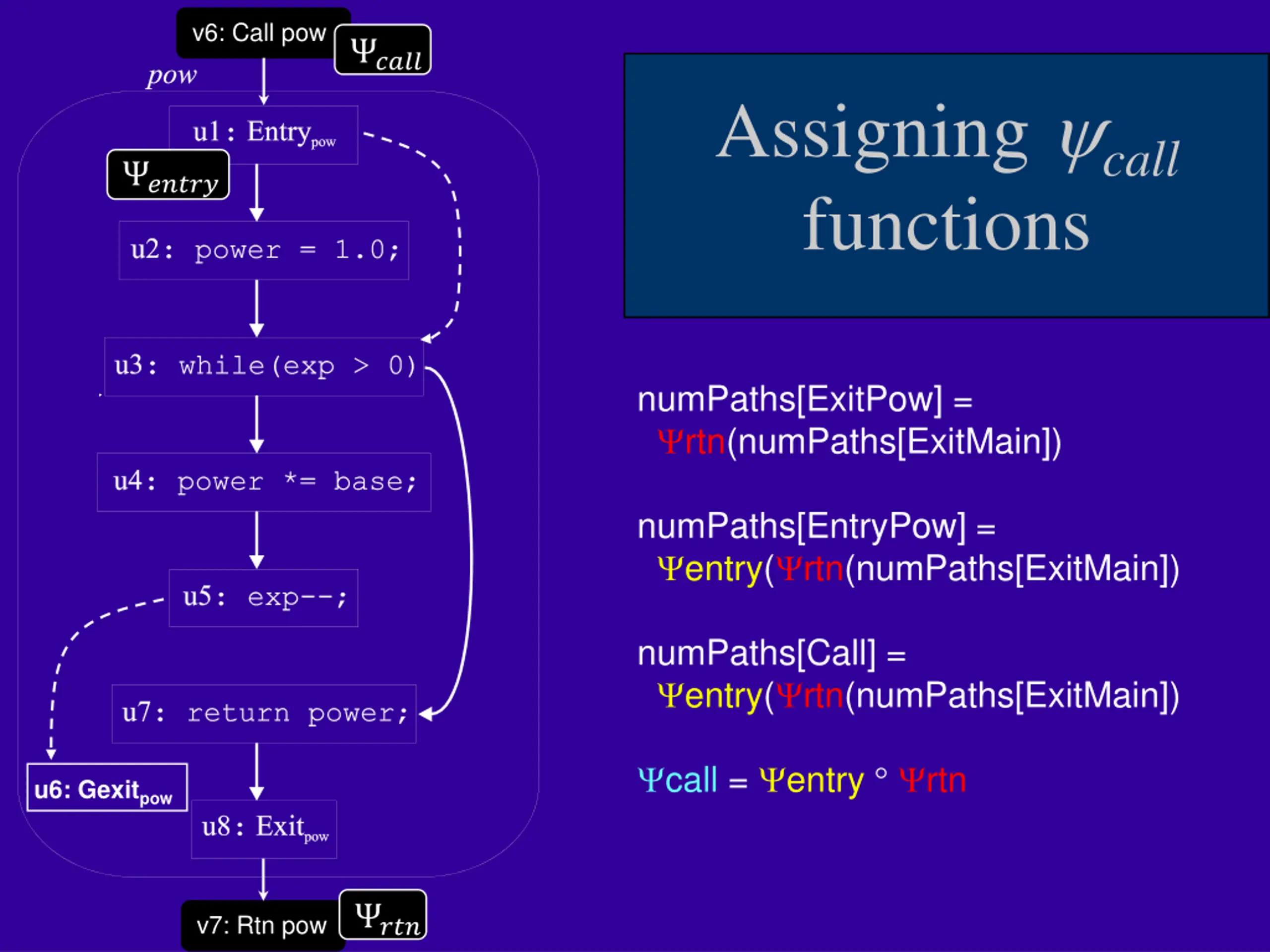

Assigning
call
functions
numPaths[ExitPow] =
rtn
(numPaths[ExitMain])
numPaths[EntryPow] =
entry
(
rtn
(numPaths[ExitMain])
numPaths[Call] =
entry
(
rtn
(numPaths[ExitMain])
call
=
entry
rtn
v6: Call pow
v7: Rtn pow
Discussion
•
Relationship of
functions to Interprocedural
DFA (e.g., Sharir and Pnueli’s
functions):
Assigning
functions
•
Let the vertex
w
have successors
w
1
…
w
k
:
Conclusion
•
Interprocedural Context Path Profiling
–
still some difficulties:
•
Doubly exponential observable paths
(but can “prune” paths)
•
instrumentation is somewhat more costly
(
2 ops per edge instead of 1)
–
Need static analysis to find
and
functions
Conclusion
•
Developed a toolkit of path-profiling
techniques:
–
Inter
procedural vs.
intra
procedural
–
Edge
functions
vs. edge
values
–
Context
vs.
piecewise
Possible Approaches
•
Remove most call-edges and return-edges
•
Inline every non-recursive procedure
•
Duplicate every non-recursive procedure
•
Parameterize instrumentation in each
procedure to behave differently for different
contexts
Handling Recursion
•
Assign values to each edge
Entry
global
Entry
R
i
:

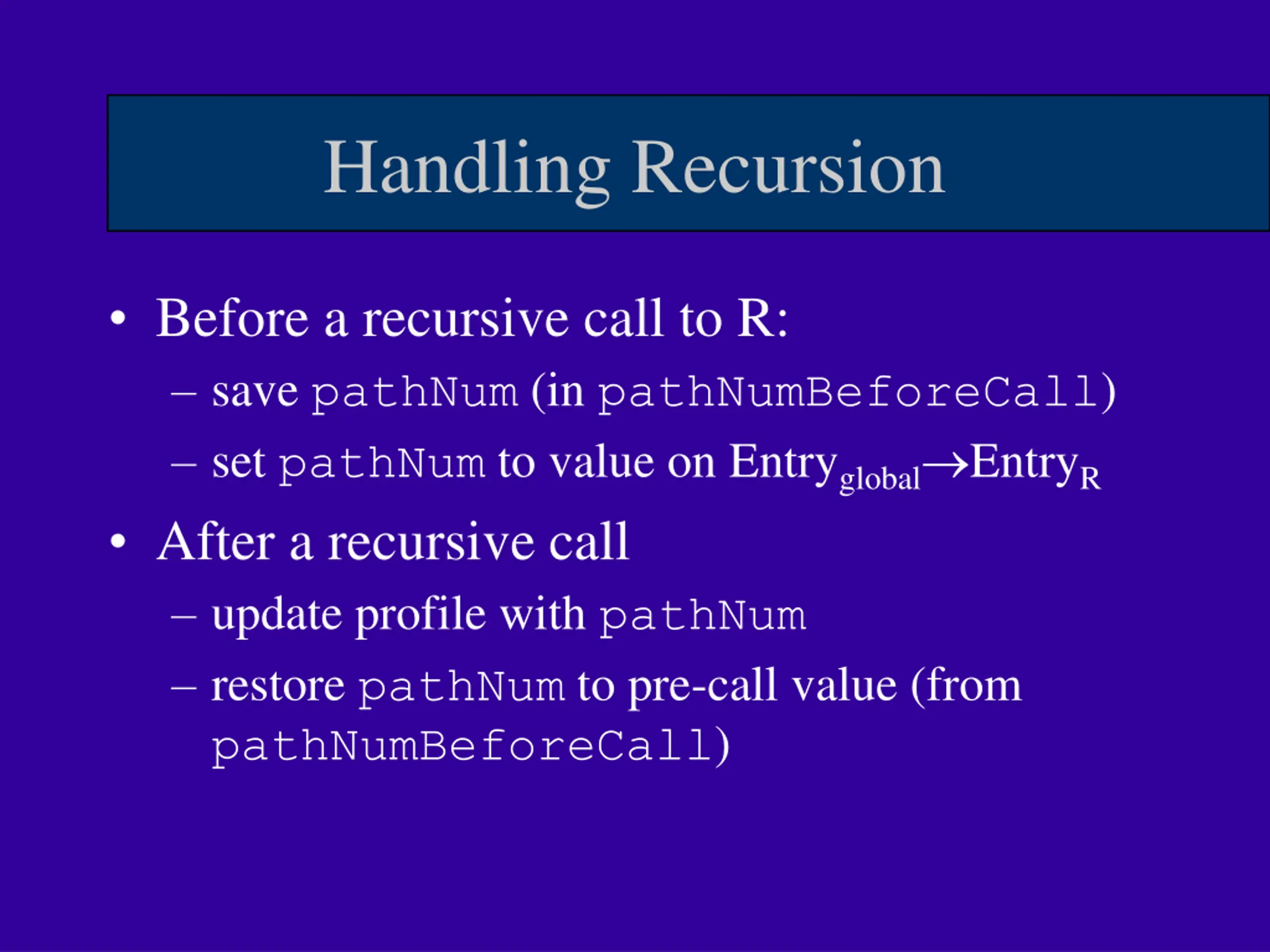

Handling Recursion
•
Before a recursive call to R:
–
save
pathNum
(in
pathNumBeforeCall
)
–
set
pathNum
to value on Entry
global
Entry
R
•
After a recursive call
–
update profile with
pathNum
–
restore
pathNum
to pre-call value (from
pathNumBeforeCall
)
Theory: Context-Free DAGs
•
Let
L
be a context-free language over
•
Let
G
be a directed graph whose edges are
labeled with members of
•
A path in
G
is an
L-path
if its word is in
L
•
(
L
,
G
) is a
context-free DAG
if the number
of
L
-paths through
G
is finite
Interprocedural Piecewise
Profiling
•
Modification of context profiling:
–
For each procedure P:
•
Add the vertex GEntry
P
•
Add the edge Entry
global
GEntry
P
–
Replace each surrogate edge Entry
P
v
with
GEntry
P
v
•
Use
Unbalanced-Right-Left
paths in
G*-fin
•
(must handle unbalanced-right paths)
Other Techniques
•
Intraprocedural context path profiling
–
Context indicates the path taken to a loop
header
•
Hybrid techniques
–
Exploit parameterization of the instrumentation
Discussion
•
Keeping the numbering dense:
–
the number of paths can be
exponential in the size of the graph
–
might require O(n) bits for
pathNum
–
dense numbering important
–
piecewise or hybrid may be more
practical
