Scheduling Loading and Unloading of Crude Oil in a Refinery
ΕΦΑΡΜΟΓΕΣ ΕΠΙΧΕΙΡΗΣΙΑΚΗΣ
ΕΡΕΥΝΑΣ
Ενότητα
2
:
Scheduling of Loading and Unloading of Crude oil in a Refinery
Γεώργιος Κ.Δ. Σαχαρίδης
Τμήμα Μηχανολόγων Μηχανικών
Refinery
•
A refinery is a system composed of docks, pipelines, a series
of tanks to store the crude oil (and prepare the different
blends), CDUs, VDUs production units
,
blenders and tanks to
store the raw materials and the final products.
2

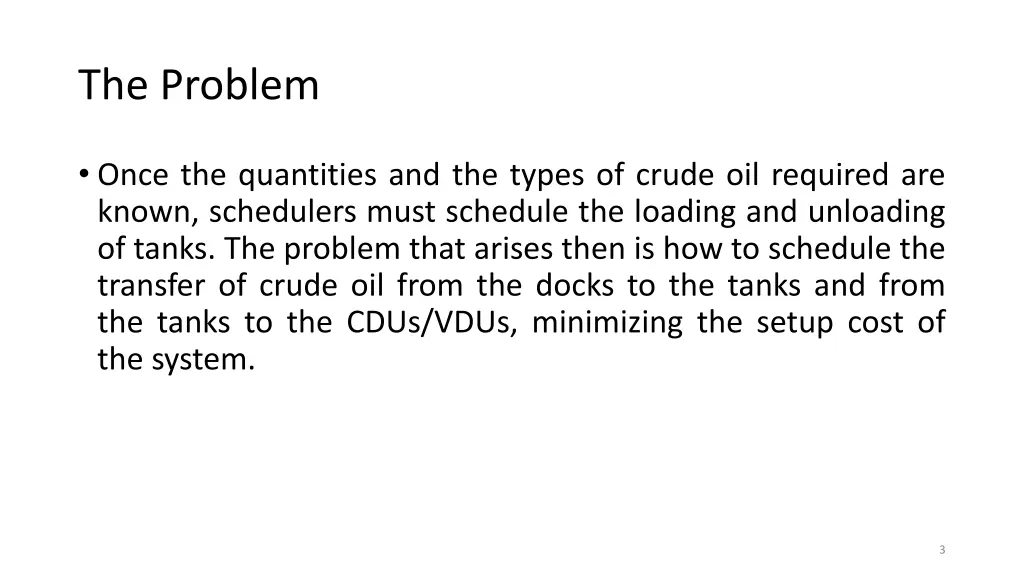

The Problem
•
Once the quantities and the types of crude oil required are
known, schedulers must schedule the loading and unloading
of tanks. The problem that arises then is how to schedule the
transfer of crude oil from the docks to the tanks and from
the tanks to the CDUs/VDUs, minimizing the setup cost of
the system.
3
Refinery
4
Στο σχήμα
βλέπουμε μια
τυπική διάταξη
από ένα
Oil
Refinery.
Δεξαμενόπλοια
έρχονται στις
αποβάθρες,
ξεφορτώνουν το
πετρέλαιο στις
δεξαμενές, το
οποίο
πετρέλαιο στην
συνέχεια περνάει
από τις
εγκαταστάσεις
δυίλισης.
Typical Refinery
•
A typical refinery is composed of 1 to 10 tanks for the
storage of the crude oil, 2 to 4 CDUs/VDUs and 1 or 2 docks,
which can accommodate 4 to 5 vessels per month.
•
The storage capacity of each tank can range from 80000 m
3
to 150000 m
3
. Crude oil flows from the docks to the tanks,
and its flow depends on the unloading capacity of the boats,
ranging from 1000 m
3
/hour to 5000 m
3
/hour. Duration of a
boat’s unloading is typically defined a priori by contract (ex.
36 hours).
•
Each CDU/VDU has a distillation capacity that can range from
200 m
3
/hour to 2000 m
3
/hour.
5
Refinery
•
A refinery is a system composed of docks, pipelines, a series
of tanks to store the crude oil (and prepare the different
blends), CDUs, VDUs production units
,
blenders and tanks to
store the raw materials and the final products.
6
The Problem
•
Once the quantities and the types of crude oil required are
known, schedulers must schedule the loading and unloading
of tanks. The problem that arises then is how to schedule the
transfer of crude oil from the docks to the tanks and from
the tanks to the CDUs/VDUs, minimizing the setup cost of
the system.
7
Data of the system
•
Dimensions of the refinery;
•
Arrival dates of vessels based on medium-term planning,
•
Demand of crude oil by the CDU/VDU;
•
Initial conditions (quantity and composition in each tank)
and the system’s capabilities (operational times, tanks
capacity and flow limits);
8
Data of the system
•
The number of tanks available for storage and their storage
capacity are known;
•
The production rates;
•
The recipe preparation alternative;
•
The blending mode.
Modeling
•
Continuous and binary decision variables:
•
The continuous variables correspond to flows from docks to tanks,
flows from tanks to CDUs/VDUs, and quantities stored in the
tanks.
•
Binary variables are used to specify connections between docks
and tanks, connections between tanks and CDUs
/VDUs, and
also the availability and setup for loading and unloading of the
tanks.
10
Modeling
•
The constraints necessary to describe the system include:
a) satisfying operations rules;
b) satisfying material balances;
c) meeting storage capacity constraints;
d) satisfying blend properties;
e) establishing a connection between docks and tanks;
f) establishing connections between tanks and CDUs/VDUs; and
g) setup of tanks for loading or unloading.
11
Reference example
•
The system under study is composed of two docks, six tanks
for the loading of crude oil, and two crude distillation units
(CDU) fed by these six tanks;
•
The unloading time of a boat is equal to 36 hours and fixed
by contract with the suppliers of crude oil;
•
The distillation flow for the two CDUs are 270-350 m3/hour
for CDU1 and 300-1660 m3/hour for CDU2;
•
The blends are prepared using the pipelines just before the
CDUs.
12
Reference example
•
The period of planning is equal to 30 days (720 hours);
•
The arrival plan of three boats (when, which type, and what
quantity of the crude oil they carry) is known a priori;
•
The demand of 12 different blends (composed of a
maximum of three different types of crude oil) by the two
CDUs (when, which type, and what quantities of blend) is
given;
•
The initial state of each tank at the beginning of a scheduling
period and their storage capacity is given(100000 m3).
13
Reference example
14
Το σχήμα έχει 3 παράλληλες γραμμές που απεικονίζουν τον
χρονικό ορίζοντα:
•
Αφίξεων των δεξαμενόπλοιων
•
Ζήτηση σε πετρέλαιο ανεξαρτήτως τύπου για κάθε μονάδα
διύλισης

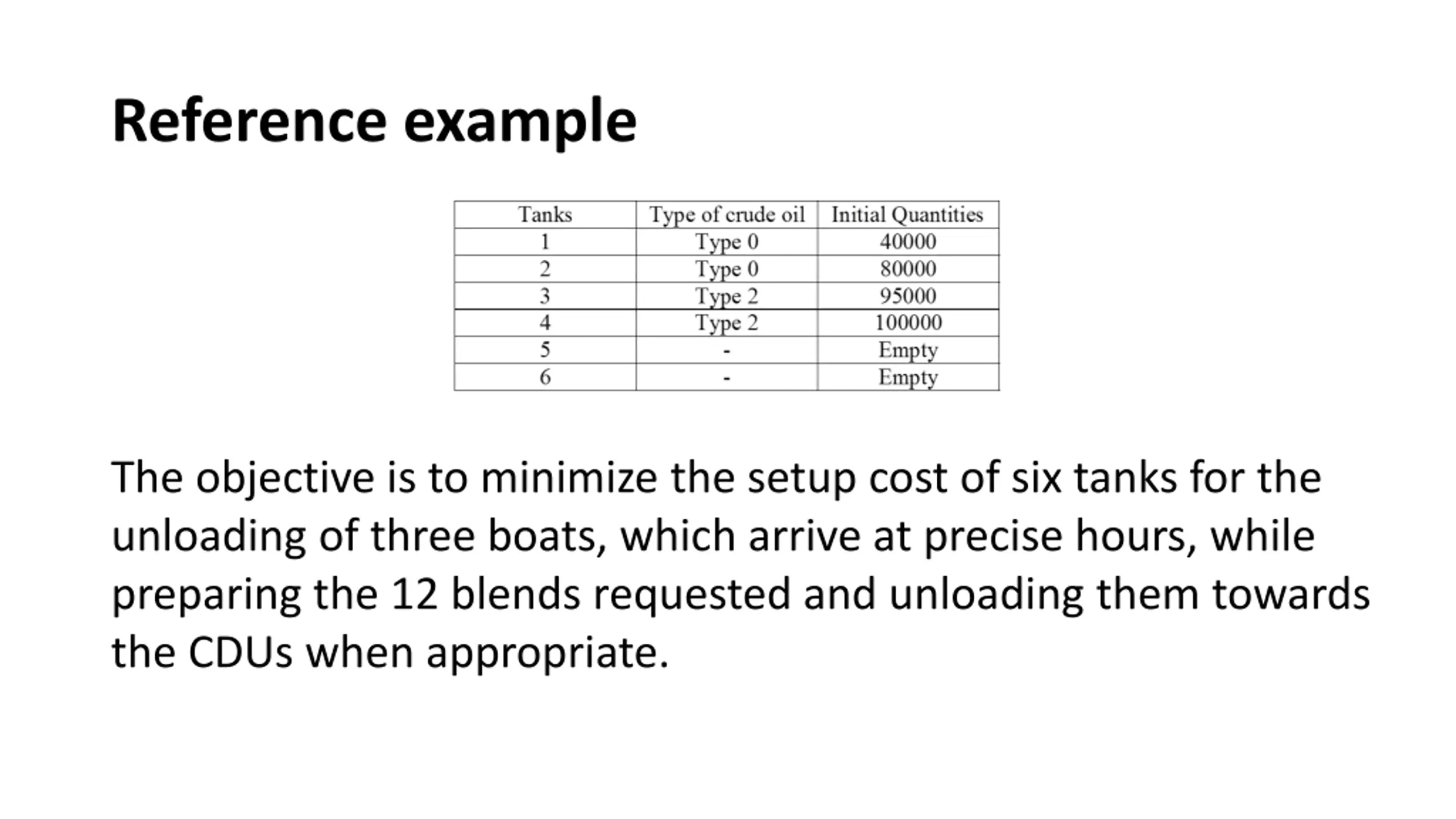

Reference example
The objective is to minimize the setup cost of six tanks for the
unloading of three boats, which arrive at precise hours, while
preparing the 12 blends requested and unloading them towards
the CDUs when appropriate.
Why setup cost is important?
•
The setup of tanks, involving loading the quantities of crude
oil at the docks and unloading the quantities of blends or
crude oil toward the CDU/VDU, requires a series of
operations that are expensive for the refinery.
16
Why setup cost is important?
•
The most critical and expensive operations associated with a
tank’s setup at each stage are:
•
Before loading/unloading:
•
Configuring the pipeline network (e.g. opening of valves, configuration of
pumps, etc.);
•
Filling pipelines with crude oil which is a dangerous and lengthy
procedure;
•
Sampling of crude oil for chemical analyses;
•
Measuring of the crude oil stock in tank before loading/unloading;
•
Starting the loading/unloading; and
•
Stopping the loading/unloading.
17
Why setup cost is important?
•
The most critical and expensive operations associated with a
tank’s setup at each stage are:
•
After loading/unloading:
•
Configuring the pipeline network which is a dangerous and lengthy
procedure (e.g. closing of valves, configuration and maintenance of
pumps, etc.);
•
Emptying of pipelines; and
•
Measuring the crude oil loaded/unloaded in the tanks.
18
Why setup cost is important?
•
Costs associated with these operations require that the
loading and unloading of tanks be completed with the
minimum number of setups.
•
The minimization of the number of setups is required also for
security reasons, as the above operations are complicated
and with each start of a new loading and unloading, the
system is strained.
19
Current practice – Heuristic approach
•
Currently, the obtained schedule is generated based on
managerial experience and on manual calculations giving rise
to a unique optimal schedule for each period, separately
taking into account all the constraints and minimizing the
number of the tanks used.
•
This type of optimization gives for the reference example a
sub-optimal solution (feasible solution), leading to twenty-
five setups.
•
These 25 setups of six tanks are required for the loading of
crude oil quantities transferred by the three boats and the
tank unloading, in order to satisfy the request of 12 different
blends by the two CDUs.
20
General context of scheduling of crude oil
•
The objective is to present a general model which gives the
optimal solution for the scheduling of crude oil and can also
be used in any equivalent system
21
General context of scheduling of crude oil
•
The potential financial and operational benefits associated
with the development of this model are enormous, as an
advanced optimization tool for scheduling could allow the
refinery to:
•
a) minimize the flow problems and the loss of crude oil;
•
b) obtain the optimal periodic plans of production;
•
c) give direction for the future;
22

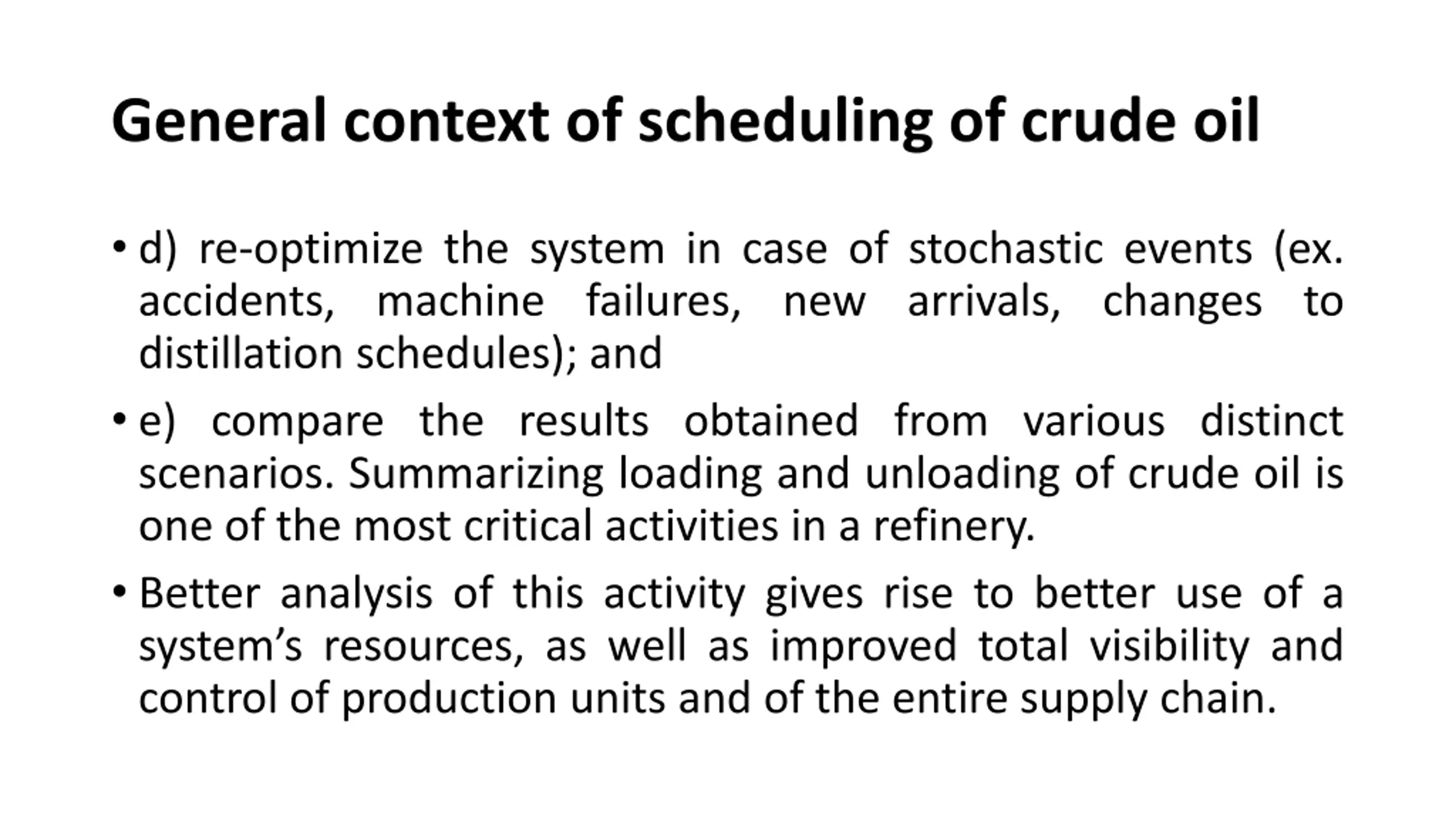

General context of scheduling of crude oil
•
d) re-optimize the system in case of stochastic events (ex.
accidents, machine failures, new arrivals, changes to
distillation schedules); and
•
e) compare the results obtained from various distinct
scenarios. Summarizing loading and unloading of crude oil is
one of the most critical activities in a refinery.
•
Better analysis of this activity gives rise to better use of a
system’s resources, as well as improved total visibility and
control of production units and of the entire supply chain.

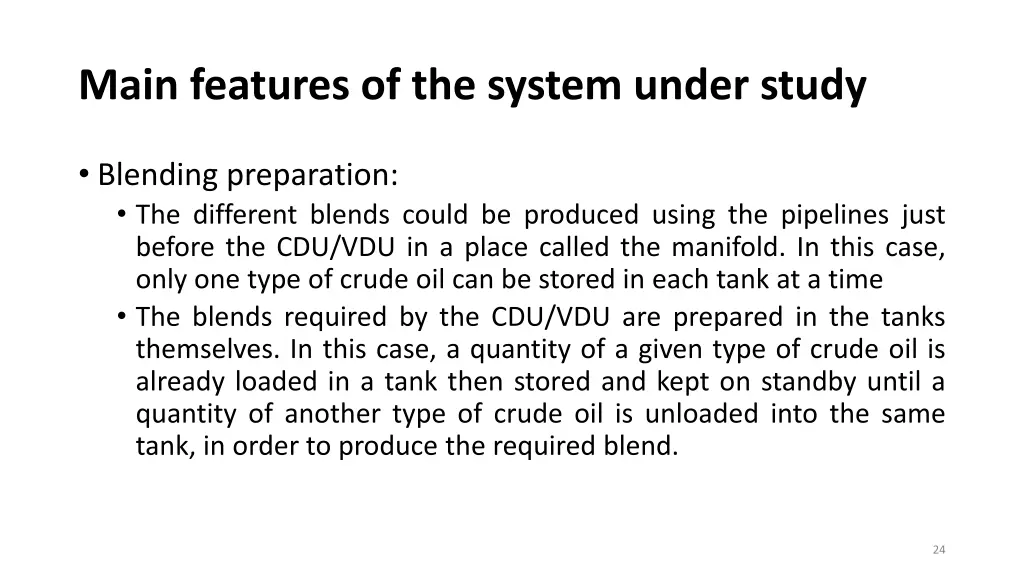

Main features of the system under study
•
Blending preparation:
•
The different blends could be produced using the pipelines just
before the CDU/VDU in a place called the manifold. In this case,
only one type of crude oil can be stored in each tank at a time
•
The blends required by the CDU/VDU are prepared in the tanks
themselves. In this case, a quantity of a given type of crude oil is
already loaded in a tank then stored and kept on standby until a
quantity of another type of crude oil is unloaded into the same
tank, in order to produce the required blend.
24
Main features of the system under study
•
Recipe preparation alternatives:
•
The standard recipe preparation. The required blend must satisfy
an exact composition of crude before being distilled in a CDU,
regardless of blending mode. For example, the blend required by a
CDU must contain 20% of crude oil type A and 80% of crude oil
type B for an exact, a priori defined quantity.
•
The flexible recipe (relaxation of the standard recipe preparation).
The components of the required blend must satisfy lower and
upper bounds. For example, a CDU requires a quantity of a blend,
where type A can constitute at least 20% of the total quantity and
not more than 50%.
25

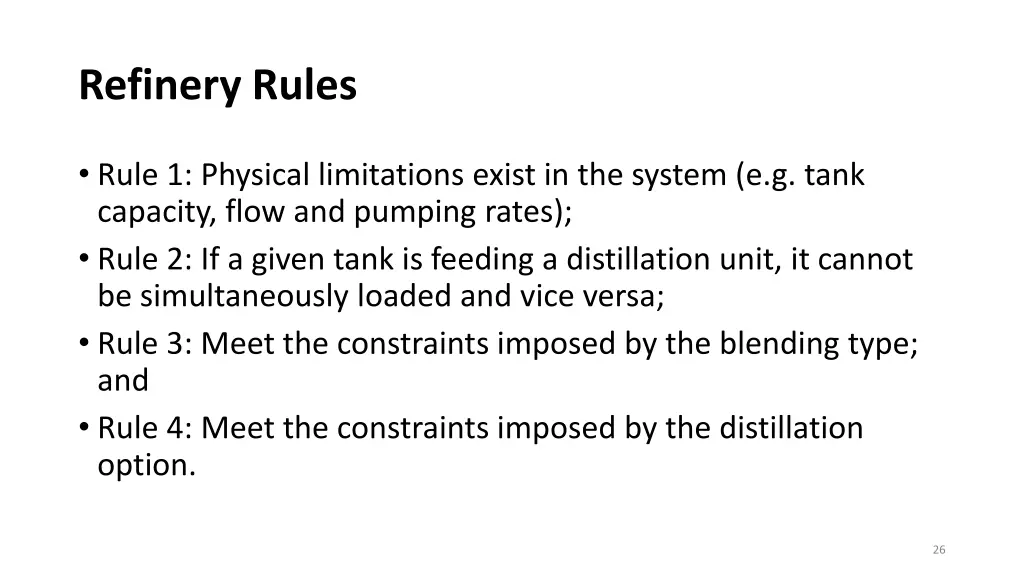

Refinery Rules
•
Rule 1: Physical limitations exist in the system (e.g. tank
capacity, flow and pumping rates);
•
Rule 2: If a given tank is feeding a distillation unit, it cannot
be simultaneously loaded and vice versa;
•
Rule 3: Meet the constraints imposed by the blending type;
and
•
Rule 4: Meet the constraints imposed by the distillation
option.
26
Mathematical Modeling
27
Decision Variable
•
We consider two types of decision variables (continuous and
binary):
•
The continuous variables are associated with the flow between
docks and tanks, flow between tanks and CDUs/VDUs, and the
quantities of various types of crude oil in the tanks.
28
Decision Variable
•
We consider two types of decision variables (continuous and
binary):
•
The binary variables represent decisions regarding the loading,
unloading and setup of a tank (which is necessary either before the
loading of a quantity available at the dock or before unloading crude oil
or a blend of crude oil towards the CDU/VDU). The binary variables
represent decisions regarding the loading, unloading and setup of a
tank (which is necessary either before the loading of a quantity
available at the dock or before unloading crude oil or a blend of crude
oil towards the CDU/VDU). The binary variables represent decisions
regarding the loading, unloading and setup of a tank (which is
necessary either before the loading of a quantity available at the dock
or before unloading crude oil or a blend of crude oil towards the
CDU/VDU).
29
Mathematical Modeling
30
Constraints
•
Four groups of constraints which guarantee certain
operational conditions:
•
Constraints which guarantee that the quantities loaded in tanks
are equal to the quantities available to docks in each period
•
Constraints expressing that the quantities unloaded towards
CDUs/VDUs are equal to the quantities required by them
•
Constraints expressing the material balance
•
Constraints guarantee that quantity stored in a tank is not greater
than its storage capacity.
31
Constraints applicable in any case
•
Constraint (1) is a loading constraint and guarantees that the
sum of the quantities loaded in tanks, at dock i, for period t,
is equal to the quantity available at the dock.
•
Constraint (2) is an unloading constraint and guarantees that
the sum of the quantities unloaded by all the tanks, towards
CDUk, for period t, is equal to the quantity required by the
CDUk.
32
Constraints applicable in any case
•

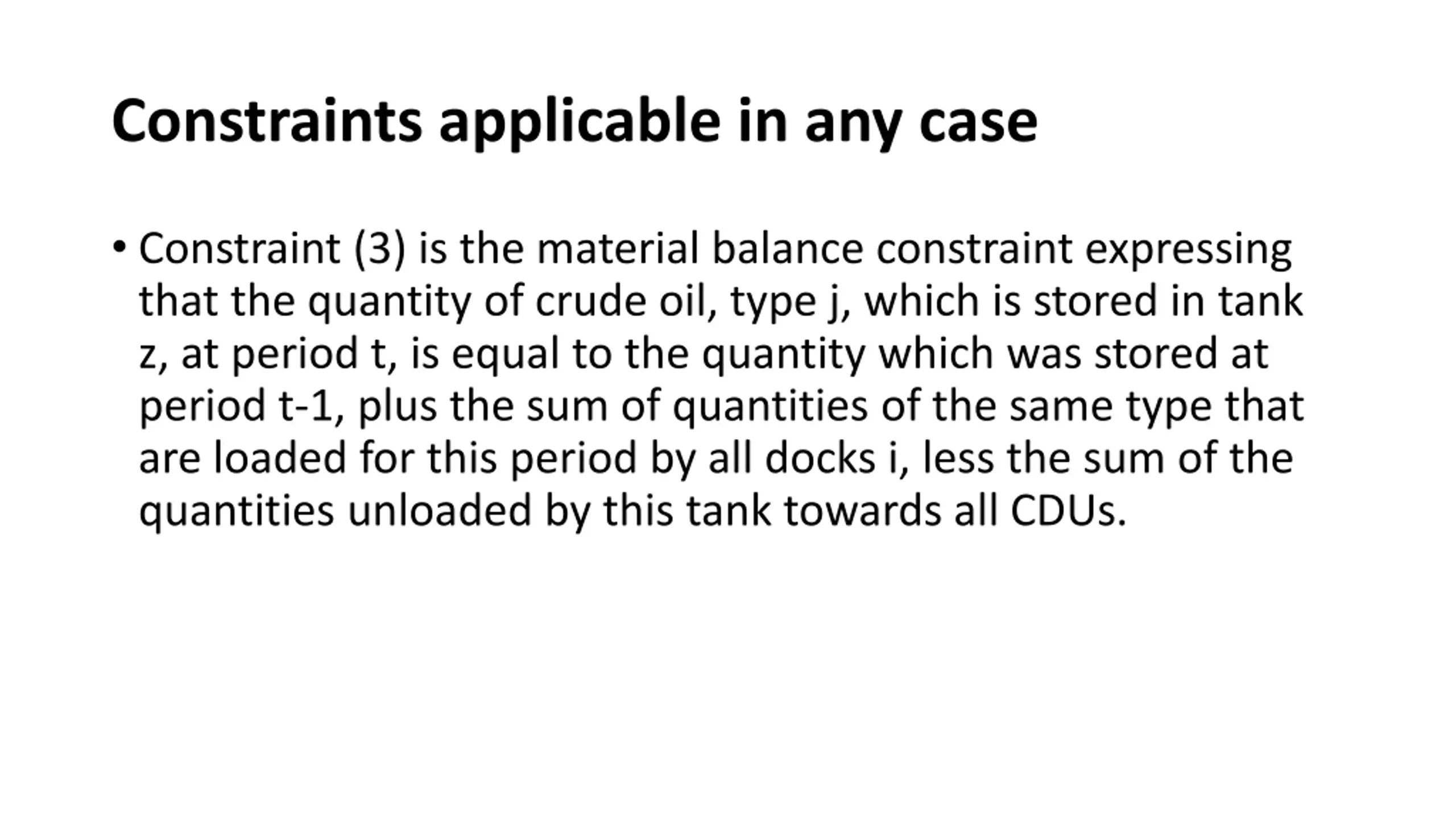

Constraint (3) is the material balance constraint expressing
that the quantity of crude oil, type j, which is stored in tank
z, at period t, is equal to the quantity which was stored at
period t-1, plus the sum of quantities of the same type that
are loaded for this period by all docks i, less the sum of the
quantities unloaded by this tank towards all CDUs.
Constraints applicable in any case
•

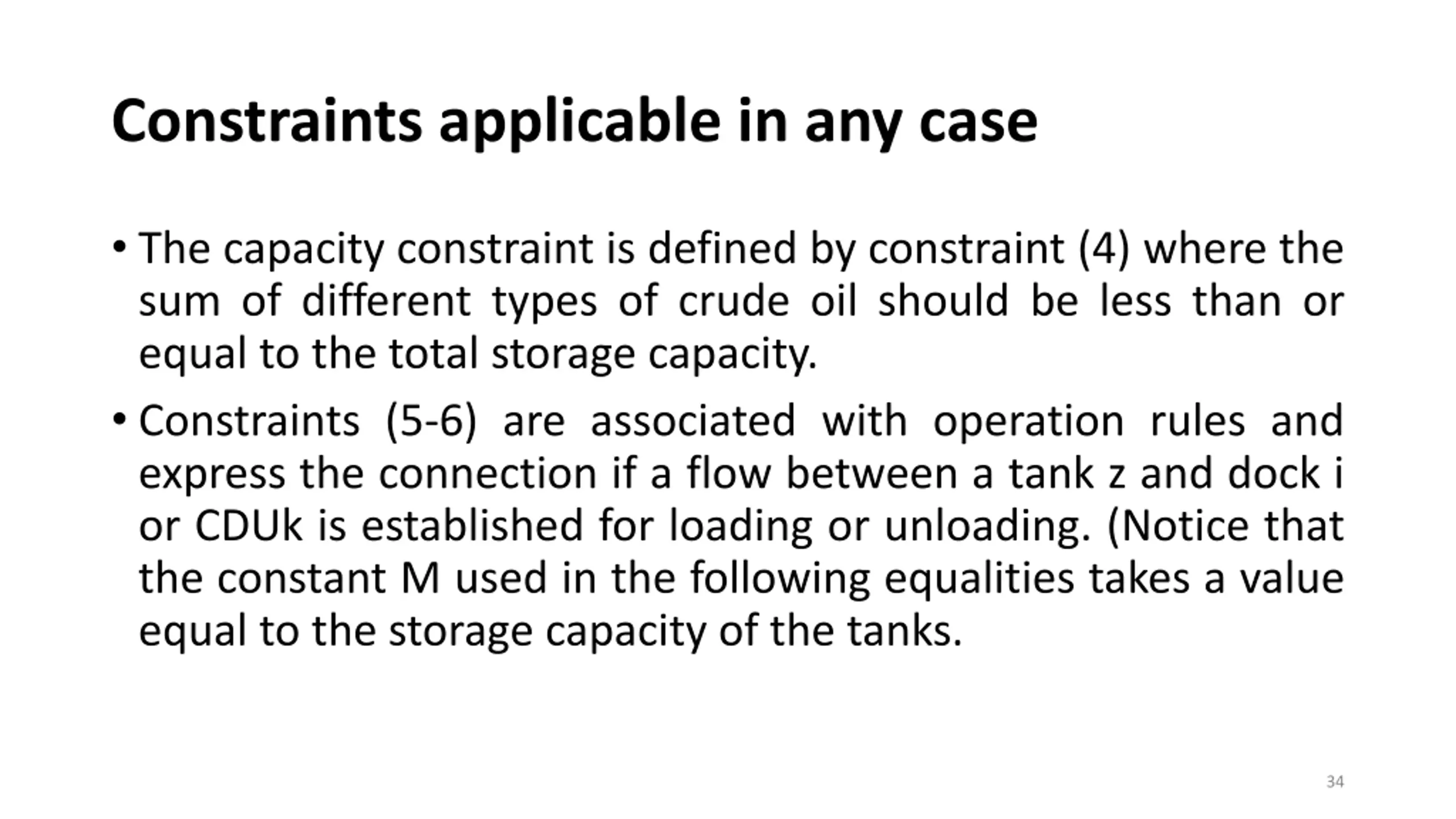

The capacity constraint is defined by constraint (4) where the
sum of different types of crude oil should be less than or
equal to the total storage capacity.
•
Constraints (5-6) are associated with operation rules and
express the connection if a flow between a tank z and dock i
or CDUk is established for loading or unloading. (Notice that
the constant M used in the following equalities takes a value
equal to the storage capacity of the tanks.
34
Constraints applicable in any case
•
Constraint (7) guarantees that loading and unloading does
not take place at the same time. We notice that the sum
over i in constraint (7) results from the fact that a maximum
of only one boat unloads crude oil to a tank z in the time
period t.
•
Constraints (8-9) are the setup constraints. These constraints
guarantee that during the loading or unloading of a tank z, a
setup cost is charged at the beginning of the loading or
unloading period.
Objective Function
•

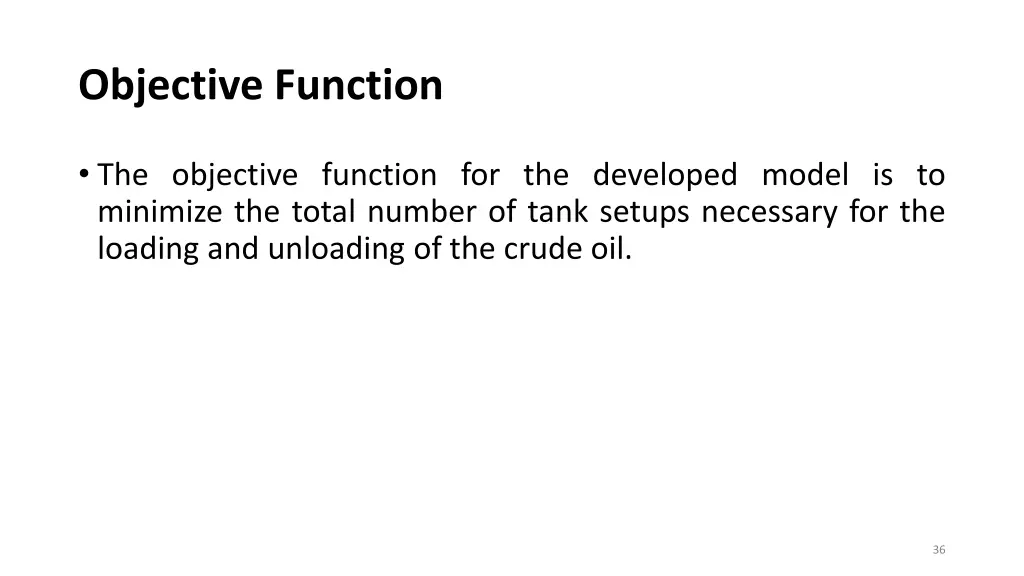

The objective function for the developed model is to
minimize the total number of tank setups necessary for the
loading and unloading of the crude oil.
36
Blending in the manifold
•

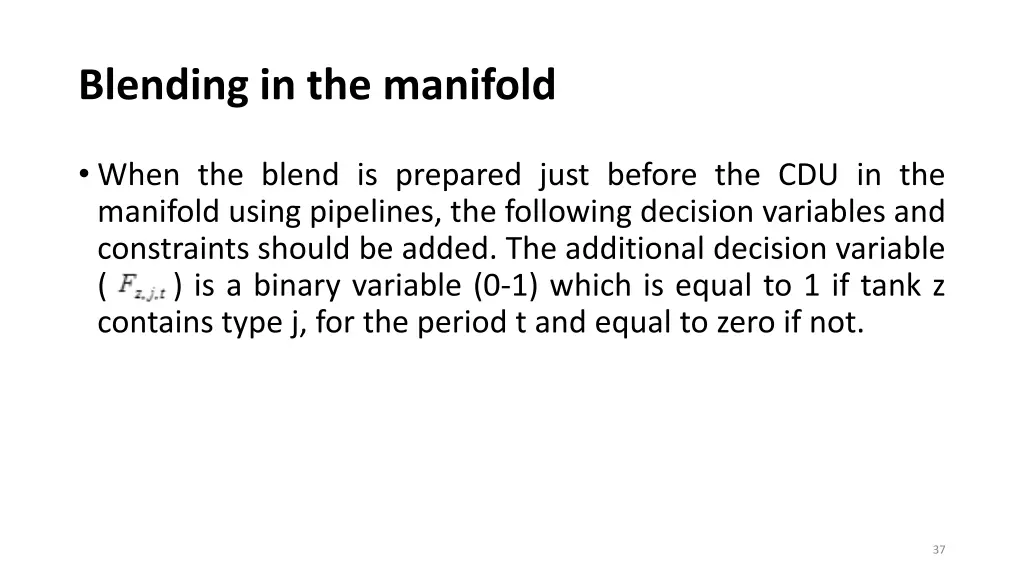

When the blend is prepared just before the CDU in the
manifold using pipelines, the following decision variables and
constraints should be added. The additional decision variable
( ) is a binary variable (0-1) which is equal to 1 if tank z
contains type j, for the period t and equal to zero if not.
37
Blending in the manifold
•
Additional constraint should guarantee that only one type
j
of the crude oil can be stored in a tank
z
, in the period
t
and
should ensures the coherence between decision variables
38
Blending modes – Standard recipe
preparation /OM11 - OM12 models
•
Standard recipe preparation
•
Flexible recipe preparation
39
Blending in tanks
•
When blend is prepared in the tanks, It is necessary to
introduce a new term: the acceptable blend:
•
Preparation of blend in tank – Standard recipe preparation
/OM21 model
•
In order that a tank
z
is unloaded towards CDU
k
, at period
t
, the
quantity of the
j
type must be equal to the total quantity which
exists in the tank multiplied by the rate required by CDU
k
.
Preparation of blend in tank - Flexible recipe preparation /OM22
model
•
In order that a tank
z
is unloaded towards CDU
k
, at period
t
, the
quantity of the
j
type must satisfy the upper and lower bounds of
the component
j
required by the CDU
k
.
40
Blending in the manifold and tanks
•
When a percentage of the crude oil is unloaded from the
tank z, to the CDUk, in period t then all the types of crude oil
are unloaded simultaneously in a quantity which satisfies the
proportion of the mixture.
41
Blending in the manifold and tanks
•
Standard recipe preparation / OM31 model
•
The sum of the quantities unloaded by all the tanks, towards CDU
k
,
for period
t
, is equal to the quantity required by the CDU
k
•
Flexible recipe preparation / OM32 model
•
With the flexible distillation, the additional constraints are that the
sum of quantities type
j
unloaded by all tanks, for period
t
,
towards CDU
k
satisfies the upper and lower percentage of the
quantity required by this CDU
k
42
Heuristic Optimization vs. Exact
Optimization
43
Time representation
44
Το σχήμα έχει 3 παράλληλες γραμμές που απεικονίζουν τον
χρονικό ορίζοντα:
•
Αφίξεων των δεξαμενόπλοιων
•
Ζήτηση σε πετρέλαιο ανεξαρτήτως τύπου για κάθε μονάδα
διύλισης
Time representation
45
Το σχήμα έχει 3 παράλληλες γραμμές που
απεικονίζουν τον χρονικό ορίζοντα:
•
Αφίξεων των δεξαμενόπλοιων
•
Ζήτηση σε πετρέλαιο ανεξαρτήτως τύπου για
κάθε μονάδα διύλισης
Ο χρονικός ορίζοντας έχει διαιρεθεί σε χρονικές
ζώνες.
Event-based time representation
46
Το σχήμα έχει 3 παράλληλες γραμμές που απεικονίζουν τον χρονικό ορίζοντα:
•
Αφίξεων των δεξαμενόπλοιων
•
Ζήτηση σε πετρέλαιο ανεξαρτήτως τύπου για κάθε μονάδα διύλισης
Εκτός της διακριτοποίησης του χρόνου, βλέπουμε και την διακριτοποίηση σε
περιόδους.
Reference example - Event based time
representation
47
Παράδειγμα βασιζόμενο στην προηγούμενη αναπαράσταση του χρόνου.
Size of the mathematical models
48
Linearization of constraints
•
Modeling with bilinear products of continuous and 0-1
decision variables
49
Linearization of constraints
50
Linearization of constraints
•
The above formulation corresponds to a nonlinear model where we
have a bilinear product of continuous and general integer variable. In
order to apply the above method we need a preprocessing step. The
general integer variable should be expressed as a function of auxiliary
binary variables leading to new bilinear product of binary and
continuous variables:
Linearization of constraints
52
Linearization of constraints
53
A refinery system involving docks, pipelines, tanks, CDUs, VDUs, and more requires efficient scheduling of crude oil transfers to minimize setup costs. Learn about the challenges and logistics involved in this process.
Uploaded on Mar 02, 2025 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
2: Scheduling of Loading and Unloading of Crude oil in a Refinery . .
Refinery A refinery is a system composed of docks, pipelines, a series of tanks to store the crude oil (and prepare the different blends), CDUs, VDUs production units, blenders and tanks to store the raw materials and the final products. 2
The Problem Once the quantities and the types of crude oil required are known, schedulers must schedule the loading and unloading of tanks. The problem that arises then is how to schedule the transfer of crude oil from the docks to the tanks and from the tanks to the CDUs/VDUs, minimizing the setup cost of the system. 3
Oil Refinery. , , . Refinery Manifold Crude oil tanks CDU/VDU Vessels Docks 4
Typical Refinery A typical refinery is composed of 1 to 10 tanks for the storage of the crude oil, 2 to 4 CDUs/VDUs and 1 or 2 docks, which can accommodate 4 to 5 vessels per month. The storage capacity of each tank can range from 80000 m3 to 150000 m3. Crude oil flows from the docks to the tanks, and its flow depends on the unloading capacity of the boats, ranging from 1000 m3/hour to 5000 m3/hour. Duration of a boat s unloading is typically defined a priori by contract (ex. 36 hours). Each CDU/VDU has a distillation capacity that can range from 200 m3/hour to 2000 m3/hour. 5
Refinery A refinery is a system composed of docks, pipelines, a series of tanks to store the crude oil (and prepare the different blends), CDUs, VDUs production units, blenders and tanks to store the raw materials and the final products. 6
The Problem Once the quantities and the types of crude oil required are known, schedulers must schedule the loading and unloading of tanks. The problem that arises then is how to schedule the transfer of crude oil from the docks to the tanks and from the tanks to the CDUs/VDUs, minimizing the setup cost of the system. 7
Data of the system Dimensions of the refinery; Arrival dates of vessels based on medium-term planning, Demand of crude oil by the CDU/VDU; Initial conditions (quantity and composition in each tank) and the system s capabilities (operational times, tanks capacity and flow limits); 8
Data of the system The number of tanks available for storage and their storage capacity are known; The production rates; The recipe preparation alternative; The blending mode.
Modeling Continuous and binary decision variables: The continuous variables correspond to flows from docks to tanks, flows from tanks to CDUs/VDUs, and quantities stored in the tanks. Binary variables are used to specify connections between docks and tanks, connections between tanks and CDUs also the availability and setup for loading and unloading of the tanks. /VDUs, and 10
Modeling The constraints necessary to describe the system include: a) satisfying operations rules; b) satisfying material balances; c) meeting storage capacity constraints; d) satisfying blend properties; e) establishing a connection between docks and tanks; f) establishing connections between tanks and CDUs/VDUs; and g) setup of tanks for loading or unloading. 11
Reference example The system under study is composed of two docks, six tanks for the loading of crude oil, and two crude distillation units (CDU) fed by these six tanks; The unloading time of a boat is equal to 36 hours and fixed by contract with the suppliers of crude oil; The distillation flow for the two CDUs are 270-350 m3/hour for CDU1 and 300-1660 m3/hour for CDU2; The blends are prepared using the pipelines just before the CDUs. 12
Reference example The period of planning is equal to 30 days (720 hours); The arrival plan of three boats (when, which type, and what quantity of the crude oil they carry) is known a priori; The demand of 12 different blends (composed of a maximum of three different types of crude oil) by the two CDUs (when, which type, and what quantities of blend) is given; The initial state of each tank at the beginning of a scheduling period and their storage capacity is given(100000 m3). 13
Reference example 3 : 14
Reference example The objective is to minimize the setup cost of six tanks for the unloading of three boats, which arrive at precise hours, while preparing the 12 blends requested and unloading them towards the CDUs when appropriate.
Why setup cost is important? The setup of tanks, involving loading the quantities of crude oil at the docks and unloading the quantities of blends or crude oil toward the CDU/VDU, requires a series of operations that are expensive for the refinery. 16
Why setup cost is important? The most critical and expensive operations associated with a tank s setup at each stage are: Before loading/unloading: Configuring the pipeline network (e.g. opening of valves, configuration of pumps, etc.); Filling pipelines with crude oil which is a dangerous and lengthy procedure; Sampling of crude oil for chemical analyses; Measuring of the crude oil stock in tank before loading/unloading; Starting the loading/unloading; and Stopping the loading/unloading. 17
Why setup cost is important? The most critical and expensive operations associated with a tank s setup at each stage are: After loading/unloading: Configuring the pipeline network which is a dangerous and lengthy procedure (e.g. closing of valves, configuration and maintenance of pumps, etc.); Emptying of pipelines; and Measuring the crude oil loaded/unloaded in the tanks. 18
Why setup cost is important? Costs associated with these operations require that the loading and unloading of tanks be completed with the minimum number of setups. The minimization of the number of setups is required also for security reasons, as the above operations are complicated and with each start of a new loading and unloading, the system is strained. 19
Current practice Heuristic approach Currently, the obtained schedule is generated based on managerial experience and on manual calculations giving rise to a unique optimal schedule for each period, separately taking into account all the constraints and minimizing the number of the tanks used. This type of optimization gives for the reference example a sub-optimal solution (feasible solution), leading to twenty- five setups. These 25 setups of six tanks are required for the loading of crude oil quantities transferred by the three boats and the tank unloading, in order to satisfy the request of 12 different blends by the two CDUs. 20
General context of scheduling of crude oil The objective is to present a general model which gives the optimal solution for the scheduling of crude oil and can also be used in any equivalent system 21
General context of scheduling of crude oil The potential financial and operational benefits associated with the development of this model are enormous, as an advanced optimization tool for scheduling could allow the refinery to: a) minimize the flow problems and the loss of crude oil; b) obtain the optimal periodic plans of production; c) give direction for the future; 22
General context of scheduling of crude oil d) re-optimize the system in case of stochastic events (ex. accidents, machine failures, new arrivals, changes to distillation schedules); and e) compare the results obtained from various distinct scenarios. Summarizing loading and unloading of crude oil is one of the most critical activities in a refinery. Better analysis of this activity gives rise to better use of a system s resources, as well as improved total visibility and control of production units and of the entire supply chain.
Main features of the system under study Blending preparation: The different blends could be produced using the pipelines just before the CDU/VDU in a place called the manifold. In this case, only one type of crude oil can be stored in each tank at a time The blends required by the CDU/VDU are prepared in the tanks themselves. In this case, a quantity of a given type of crude oil is already loaded in a tank then stored and kept on standby until a quantity of another type of crude oil is unloaded into the same tank, in order to produce the required blend. 24
Main features of the system under study Recipe preparation alternatives: The standard recipe preparation. The required blend must satisfy an exact composition of crude before being distilled in a CDU, regardless of blending mode. For example, the blend required by a CDU must contain 20% of crude oil type A and 80% of crude oil type B for an exact, a priori defined quantity. The flexible recipe (relaxation of the standard recipe preparation). The components of the required blend must satisfy lower and upper bounds. For example, a CDU requires a quantity of a blend, where type A can constitute at least 20% of the total quantity and not more than 50%. 25
Refinery Rules Rule 1: Physical limitations exist in the system (e.g. tank capacity, flow and pumping rates); Rule 2: If a given tank is feeding a distillation unit, it cannot be simultaneously loaded and vice versa; Rule 3: Meet the constraints imposed by the blending type; and Rule 4: Meet the constraints imposed by the distillation option. 26
Mathematical Modeling Nomenclature Index NZ NP NCDU NJ NT Data Cap t i E, ae , , the number of tanks; the number of docks; the number of crude distillation units; the number of various types of crude oil; the number of periods. the storage capacity of tanks (the same for any tank); the total quantity of the crude oil available, in dock i, for period t; t i E,) of type j, of the quantity available in the percentage of the crude oil ( dock i, for period t; the total quantity requested from CDUk, for the period t; i j t k S, as t k S,) of type j, required by CDUk, for period t; the percentage of the crude oil ( equal to 1 if the CDUkrequests crude oil of type j, for period t and equal to zero if not; acceptable minimal percentage, of type j, for the blend unloading towards CDUk, for period t; acceptable maximal percentage, of type j, for the blend unloading towards CDUk, for period t; equal to 1 if a boat is in dock i and brings crude oil of type j, for period t; equal to zero otherwise; equal to 1 if the CDUk requests crude oil of type j, for period t; equal to zero otherwise; the minimal number of tanks needed for crude oil unloading of boat arriving at dock i, for period t; number of different crude oil types requested by CDUs for period t; , , k j t t k a , , j t amin , , k j t amax , , k j t W1 , , i j t W2 , , k j t 3 W , i t S2 G2 t number of different blends requested by CDUs for period t; t equal to 1 if the crude oil of type j is requested by CDUs for period t; equal to zero otherwise. Decision Variables X , , , continuous variable which corresponds to the quantity of crude oil type j, loaded by dock i, in tank z, for period t (flow dock tank); z Y , , , continuous variable which corresponds to the quantity of crude oil type j, unloaded by tank z, with CDUk , for period t (flow tank CDU); zI , , continuous variable which corresponds to the quantity of crude oil type j, stocked at the end of period t, in tank z. We specify that variables data corresponding to the quantities stored in the tanks at the beginning of scheduling period; C , , binary variable (0-1) which is equal to 1 if connection is established between the dock i and tank z, for period t and equal to zero if not; D , , binary variable (0-1) which is equal to 1 if connection is established between the tank z and CDUk, for period t and equal to zero if not; SC , , binary variable (0-1) which is equal to 1 if setup of tank z is established for loading crude oil from the dock i, at the beginning of the period t and equal to zero if not; SD , , binary variable (0-1) which is equal to 1 if setup of tank z is established for j L, 27 t i z j t k j t j t zI are , j 0 , i z t z k t i z t i z t
Decision Variable We consider two types of decision variables (continuous and binary): The continuous variables are associated with the flow between docks and tanks, flow between tanks and CDUs/VDUs, and the quantities of various types of crude oil in the tanks. 28
Decision Variable We consider two types of decision variables (continuous and binary): The binary variables represent decisions regarding the loading, unloading and setup of a tank (which is necessary either before the loading of a quantity available at the dock or before unloading crude oil or a blend of crude oil towards the CDU/VDU). The binary variables represent decisions regarding the loading, unloading and setup of a tank (which is necessary either before the loading of a quantity available at the dock or before unloading crude oil or a blend of crude oil towards the CDU/VDU). The binary variables represent decisions regarding the loading, unloading and setup of a tank (which is necessary either before the loading of a quantity available at the dock or before unloading crude oil or a blend of crude oil towards the CDU/VDU). 29
Mathematical Modeling Decision Variables X , , , continuous variable which corresponds to the quantity of crude oil type j, loaded by dock i, in tank z, for period t (flow dock tank); continuous variable which corresponds to the quantity of crude oil type j, unloaded by tank z, with CDUk , for period t (flow tank CDU); continuous variable which corresponds to the quantity of crude oil type j, stocked at the end of period t, in tank z. We specify that variables data corresponding to the quantities stored in the tanks at the beginning of scheduling period; binary variable (0-1) which is equal to 1 if connection is established between the dock i and tank z, for period t and equal to zero if not; binary variable (0-1) which is equal to 1 if connection is established between the tank z and CDUk, for period t and equal to zero if not; binary variable (0-1) which is equal to 1 if setup of tank z is established for loading crude oil from the dock i, at the beginning of the period t and equal to zero if not; binary variable (0-1) which is equal to 1 if setup of tank z is established for unloading crude oil towards CDUk, at the beginning of the period t and equal to zero if not; binary variable (0-1) which is equal to 1 if tank z contains type j, for the period t and equal to zero if not; integer variable that takes value in the interval [0,100] and defines the percentage of the total quantity stored in the tank z unloaded towards the CDUk in period t. i z j t z Y , , , k j t zI , , j t zI are , j 0 , C , , i z t D , , z k t SC , , i z t SD , , i z t z F , , j t , , z k t 30
Constraints Four groups of constraints which guarantee certain operational conditions: Constraints which guarantee that the quantities loaded in tanks are equal to the quantities available to docks in each period Constraints expressing that the quantities unloaded towards CDUs/VDUs are equal to the quantities required by them Constraints expressing the material balance Constraints guarantee that quantity stored in a tank is not greater than its storage capacity. 31
Constraints applicable in any case Constraint (1) is a loading constraint and guarantees that the sum of the quantities loaded in tanks, at dock i, for period t, is equal to the quantity available at the dock. Constraint (2) is an unloading constraint and guarantees that the sum of the quantities unloaded by all the tanks, towards CDUk, for period t, is equal to the quantity required by the CDUk. 32
Constraints applicable in any case Constraint (3) is the material balance constraint expressing that the quantity of crude oil, type j, which is stored in tank z, at period t, is equal to the quantity which was stored at period t-1, plus the sum of quantities of the same type that are loaded for this period by all docks i, less the sum of the quantities unloaded by this tank towards all CDUs.
Constraints applicable in any case The capacity constraint is defined by constraint (4) where the sum of different types of crude oil should be less than or equal to the total storage capacity. Constraints (5-6) are associated with operation rules and express the connection if a flow between a tank z and dock i or CDUk is established for loading or unloading. (Notice that the constant M used in the following equalities takes a value equal to the storage capacity of the tanks. 34
Constraints applicable in any case Constraint (7) guarantees that loading and unloading does not take place at the same time. We notice that the sum over i in constraint (7) results from the fact that a maximum of only one boat unloads crude oil to a tank z in the time period t. Constraints (8-9) are the setup constraints. These constraints guarantee that during the loading or unloading of a tank z, a setup cost is charged at the beginning of the loading or unloading period.
Objective Function The objective function for the developed model is to minimize the total number of tank setups necessary for the loading and unloading of the crude oil. 36
Blending in the manifold When the blend is prepared just before the CDU in the manifold using pipelines, the following decision variables and constraints should be added. The additional decision variable ( ) is a binary variable (0-1) which is equal to 1 if tank z contains type j, for the period t and equal to zero if not. 37
Blending in the manifold Additional constraint should guarantee that only one type j of the crude oil can be stored in a tank z, in the period t and should ensures the coherence between decision variables , , zI zF , , t j t j 38
Blending modes Standard recipe preparation /OM11 - OM12 models Standard recipe preparation Flexible recipe preparation 39
Blending in tanks When blend is prepared in the tanks, It is necessary to introduce a new term: the acceptable blend: Preparation of blend in tank Standard recipe preparation /OM21 model In order that a tank z is unloaded towards CDUk, at period t, the quantity of the j type must be equal to the total quantity which exists in the tank multiplied by the rate required by CDUk. Preparation of blend in tank - Flexible recipe preparation /OM22 model In order that a tank z is unloaded towards CDUk, at period t, the quantity of the j type must satisfy the upper and lower bounds of the component j required by the CDUk. 40
Blending in the manifold and tanks When a percentage of the crude oil is unloaded from the tank z, to the CDUk, in period t then all the types of crude oil are unloaded simultaneously in a quantity which satisfies the proportion of the mixture. 41
Blending in the manifold and tanks Standard recipe preparation / OM31 model The sum of the quantities unloaded by all the tanks, towards CDUk, for period t, is equal to the quantity required by the CDUk Flexible recipe preparation / OM32 model With the flexible distillation, the additional constraints are that the sum of quantities type j unloaded by all tanks, for period t, towards CDUk satisfies the upper and lower percentage of the quantity required by this CDUk 42
Heuristic Optimization vs. Exact Optimization Example Ex.1 Ex.2 Ex.3 Ex.4 Ex.5 Model HM11 9 setups 8 setups 14 setups 22 setups 13 setups Model HM12 16 setups 13 setups 20 setups 23 setups 16 setups Model HM21 23 setups 18 setups 19 setups 35 setups 17 setups Model HM22 33 setups 22 setups 19 setups 22 setups 32 setups Model OM11 8 setups 7 setups 13 setups 19 setups 12 setups Model OM12 13 setups 12 setups 15 setups 18 setups 13 setups Model OM21 20 setups 15 setups 18 setups 30 setups 15 setups Model OM22 26 setups 20 setups 16 setups 17 setups 27 setups Relative difference 11.11% 12.5% 7.14% 13.63% 7.69% CPU Resolution 10h 11h 13h 17h 13h Ex.6 Ex.7 Ex.8 Ex.9 Ex.10 18.75% 7.69% 25% 21.73% 18.75% 16h 15h 17h 19h 16h Ex.11 Ex.12 Ex.13 Ex.14 Ex.15 13.04% 16.66% 5.26% 14.28% 11.76% 16h 16h 19h 22h 19h Ex.16 Ex.17 Ex.18 Ex.19 Ex.20 21.87% 9.09% 15.78% 22.72% 15.62% 19h 18h 18h 17h 18h 43
Time representation 3 : 44
Time representation 200 hours = 200 periods 200 hours = 4 periods 3 Vessels Arrival : Arrival A Arrival A Vessels Arrival t=t4 t=t5 t=t4 t=t5 CDU1 Demand CDU1 Demand Mix type A Mix type B Mix type A Mix type A Mix type B Mix type B t=t3 t=t3 CDU2 Demand . CDU2 Demand Mix type D Mix type E Mix type D Mix type E Mix type E Mix type E t=t1 t=t2 t=t1 t=t2 Period 1 Period 2 Period 3 Period 4 45
Event-based time representation 200 hours = 200 periods 200 hours = 4 periods Arrival A Arrival A Vessels Arrival Vessels Arrival t=t4 t=t5 t=t4 t=t5 CDU1 Demand CDU1 Demand Mix type A Mix type B Mix type A Mix type A Mix type B Mix type B t=t3 t=t3 CDU2 Demand CDU2 Demand Mix type D Mix type E Mix type D Mix type E Mix type E Mix type E t=t1 t=t2 t=t1 t=t2 Period 1 Period 2 Period 3 Period 4 Hourly representation Event-based representation 3 : , . 46
Reference example - Event based time representation 0 2 102 204 240 342 378 480 516 618 720 10 periods 6 0 1 2 3 4 5 7 8 9 Vessels Arrival 0 0 0 Type 0 120000 0 Type 1 110000 0 Type 0 90000 0 0 CDU1 Demand 0 Type 0 15000 Type 2 15000 Type 0 27750 Type 0 9750 Type 0 27750 Type 0 9750 Type 0 9800 Type 1 9800 Type 2 15400 Type 0 6000 Type 1 5250 Type 0 17000 Type 1 14875 Type 0 17000 Type 1 14875 CDU2 Demand 0 Type 0 24600 Type 2 35400 Type 0 30000 Type 2 15600 Type 2 44400 Type 0 60000 Type 1 30000 Type 2 20000 Type 0 15000 Type 1 25000 Type 1 10000 Type 2 40000 Type 0 60000 . 47
Size of the mathematical models Partition based on hour 720 112320 116640 16 hours 21 setups Table 3: Comparative results Partition based on events 10 1560 1620 1 hour 21 setups MO1,1 Number of periods Number of decision variables Number of constraints CPU resolution time Optimal solution 48
Linearization of constraints Modeling with bilinear products of continuous and 0-1 decision variables z,k,j,t zI W W I , t j , , , , , , t k , z k t z t j z Considering the bilinear products of the form is a continuous decision variable. where is a binary variable and In order to linearize this bilinear product, the continuous decision variable should be bounded: L I U , , z t j . For this purpose and based on the case study we define the L and U. 49
Linearization of constraints = z,k,j,t W I , , , , , , , z k t j z k t z t j The basic idea is to introduce new variables for each bilinear product. z,k,j,t Then introduce 4 additional constraints for each : z,k,j,t 1 ( ) 1 ( L ) I U W H I W , , , , , , , , , , , z t j z k t z k t j z t j z k t z,k,j,t LW H UW , , , , , , , z k t z k t j z k t 50
